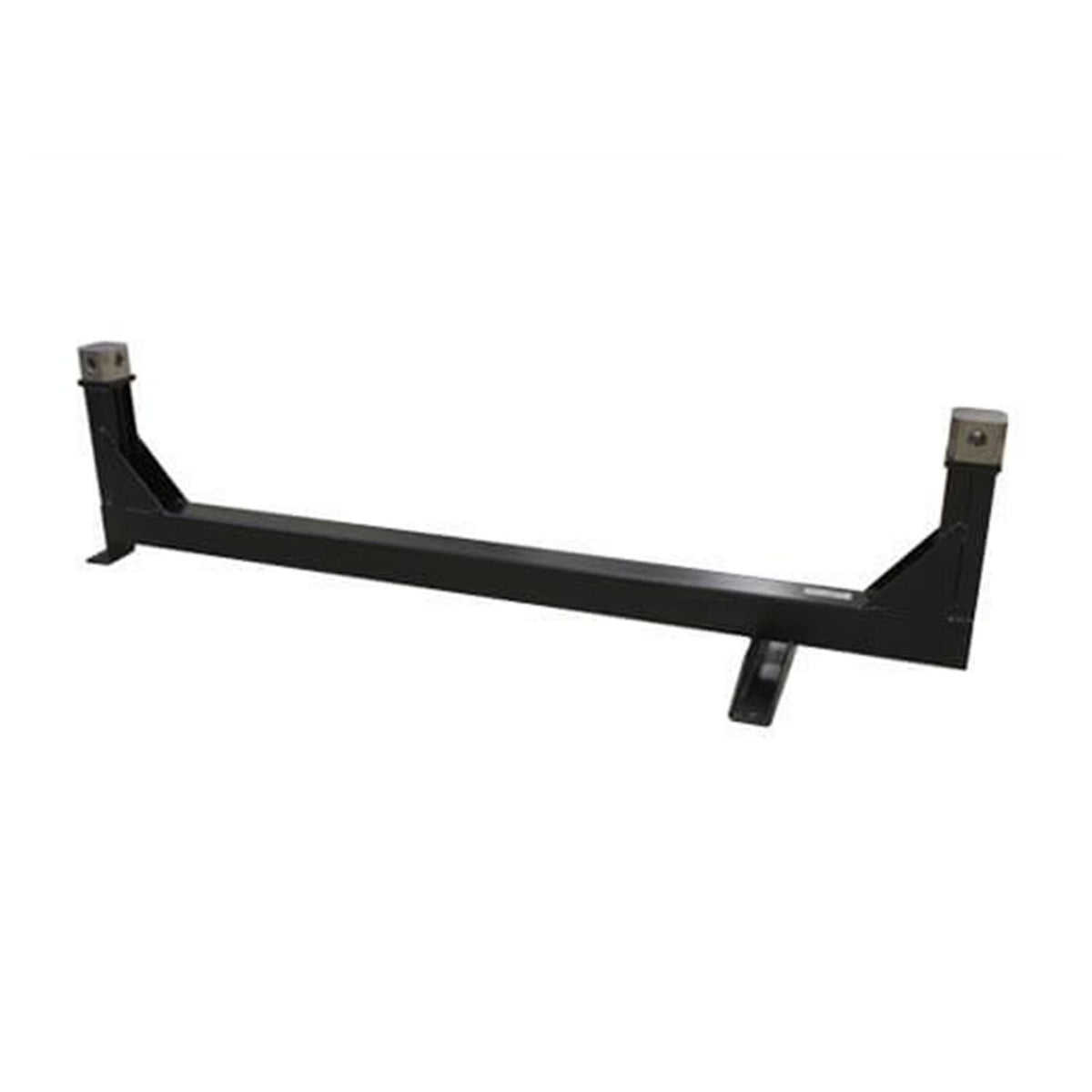

Atlas® Edge Long Calibration Bar (RAV) #ATEATEDGE-STDA14

SKU: ALMATLATEATEDGESTDA14
(0)
$5,499.99
Available to order
Shipping timing is confirmed after order review.

Atlas® Automotive Equipment shipping quote

Shipping is quoted by destination before payment. Select your options, then request your freight quote.

Call (817) 865-3707

We will confirm the shipping total before sending a payment link.

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (817) 865-3707

For Will Call Options, call (817) 865-3707 or message and save $250!
Specifications
Atlas SKU ATEATEDGE-STDA14
Ravaglioli Reference STDA14
Product Type Long Calibration Bar / Standard Calibration Tool
Application Alignment Sensor / Detector Calibration
Documented Atlas Applications Edge 501 / 601 Pro with Firmware 4.0+; Edge 801 Truck Aligner
Current Ravaglioli Replacement Note STDA163 Replaces STDA14 for WS / WD Series

Atlas Edge STDA14 Long Calibration Bar for Alignment Systems #ATEATEDGE-STDA14

Atlas Edge #ATEATEDGE-STDA14 is the Ravaglioli STDA14 standard calibration tool used for calibration procedures on compatible CCD wheel-alignment sensor heads. Ravaglioli service documentation identifies STDA14 as a detector-calibration system used when calibration is required after certain sensor or transducer service conditions.

Atlas dealer documentation identifies the STDA14 long calibration bar for Edge 501 and 601 Pro systems with firmware 4.0 and above, as well as the Edge 801 truck alignment system. Confirm the exact aligner generation and software/firmware before ordering.

Compatibility & Fitment

Alignment System Compatibility Note
Atlas Edge 501 Dealer documentation specifies firmware 4.0 and above
Atlas Edge 601 Pro Dealer documentation specifies firmware 4.0 and above
Atlas Edge 801 Truck Aligner Documented STDA14 application
Ravaglioli WS / WD Series Current Ravaglioli STDA163 replaces STDA14

Calibration Use

Ravaglioli states that measuring heads are factory calibrated and store their calibration values internally. Calibration is generally performed when transducers are replaced or when repeated measurement errors indicate that sensor components may have shifted following impact or similar service events.

⚠ Check your aligner generation: STDA14 is not the current calibration tool for every Ravaglioli alignment platform. Ravaglioli now lists STDA163 as the replacement for STDA14 on WS and WD series systems.

Frequently Asked Questions

What is the STDA14 used for?

STDA14 is a calibration fixture used for compatible wheel-alignment detector or sensor-head calibration procedures.

Does every replacement sensor head need calibration?

Not necessarily. Ravaglioli documentation states that detector calibration values are stored in the detector itself and calibration is generally required only under specified service conditions such as transducer replacement or confirmed repeated measurement errors.

Is STDA14 still the current calibration tool for every Ravaglioli aligner?

No. Ravaglioli currently identifies STDA163 as the replacement for STDA14 on WS and WD series alignment systems.

Questions before ordering? Call (817) 865-3707 with your Atlas Edge model and firmware version so we can help confirm the correct calibration fixture.
