Atlas® Equip PRO-9D Overhead 9k Cap 2-Post Lift #ATEXH-PRO-9D-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

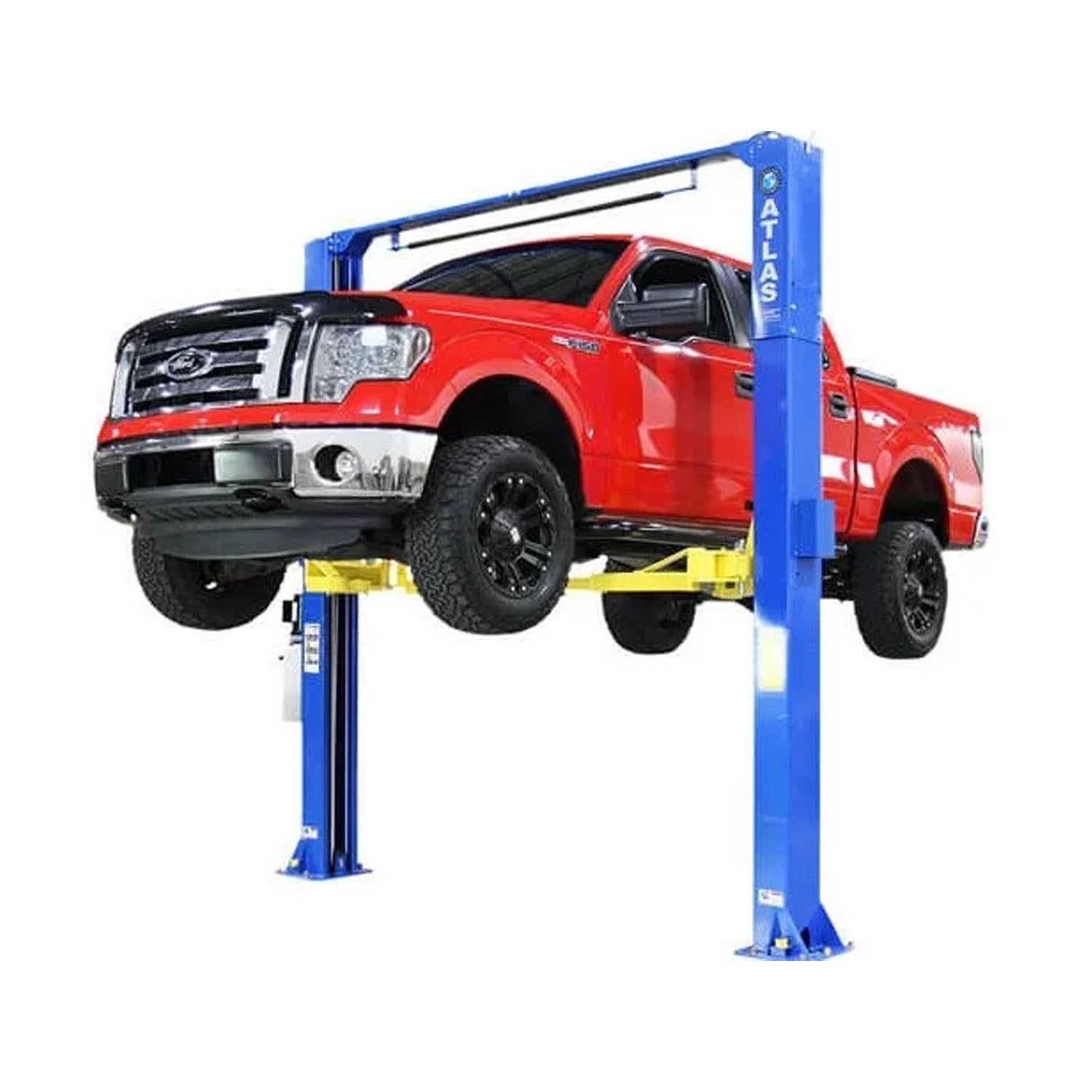

  Atlas® PRO-9D Two-Post Above-Ground Lift

  The Atlas® PRO-9D Two-Post Above Ground Lift is the perfect solution for smaller commercial repair shops or DIY enthusiasts who want top-tier quality at an unbeatable price. Standing at 12 feet tall, the PRO-9D is a true 9,000 lb. capacity lift that offers exceptional value without compromising on performance.

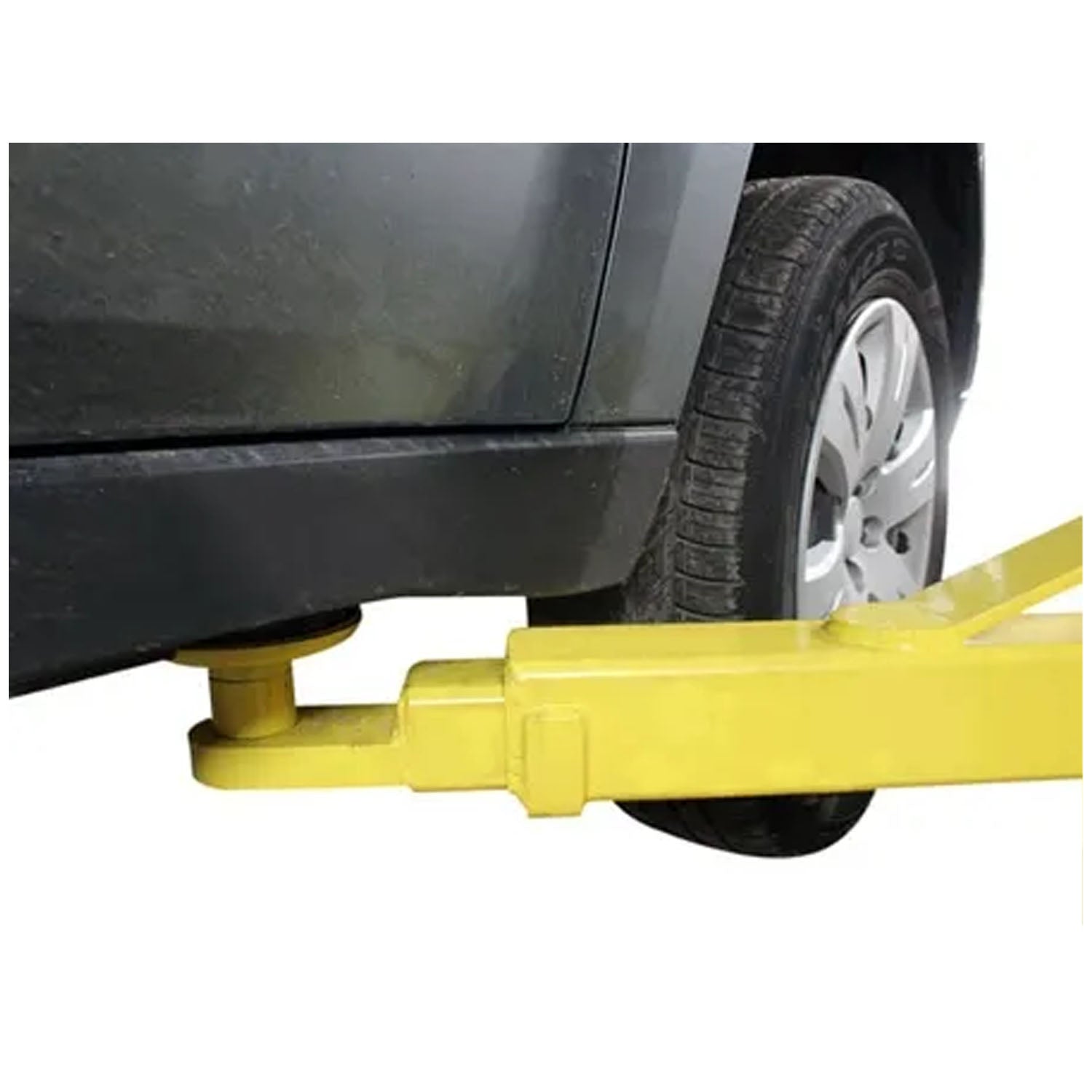

  Designed with symmetric columns and versatile, specially engineered arms, the Atlas® PRO-9D allows you to position the arms in either a symmetric or asymmetric setup. This flexibility ensures a low lift pad height, thanks to the EZ-metric arm configuration. The low pad height makes it easy to lift small cars with low pick-up points as well as heavier trucks, making it an ideal choice for a wide range of vehicles.

  The PRO-9D features a dual direct-drive cylinder system, reducing the number of moving parts for enhanced durability and reliability. This direct-drive technology ensures that your Atlas lift will provide years of smooth, efficient service for all your lifting needs.

• FEATURES + BENEFITS

  • 9,000 LB. Capacity
  • Overhead, Open-Floor design

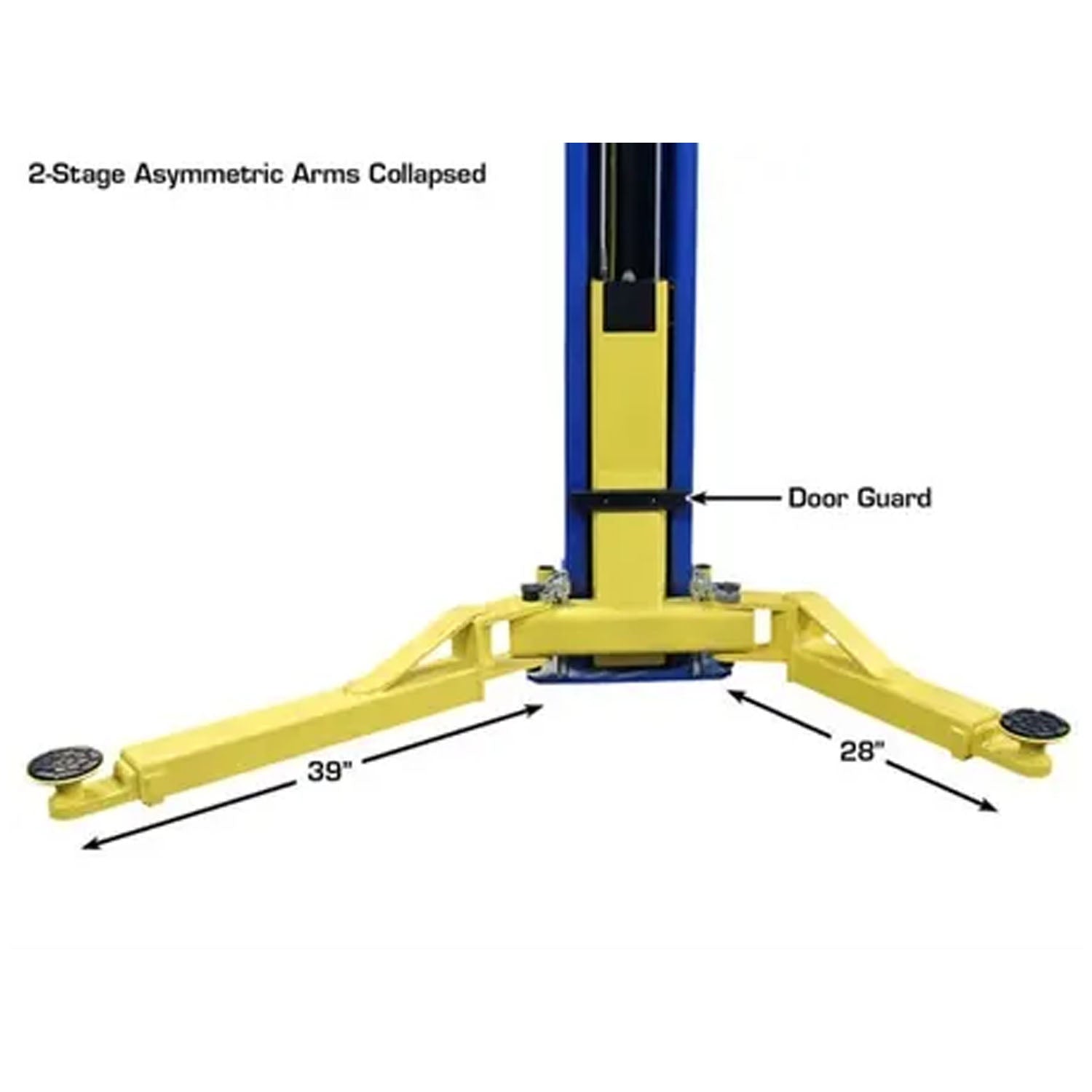

  • Asymmetric/Symmetric Arms

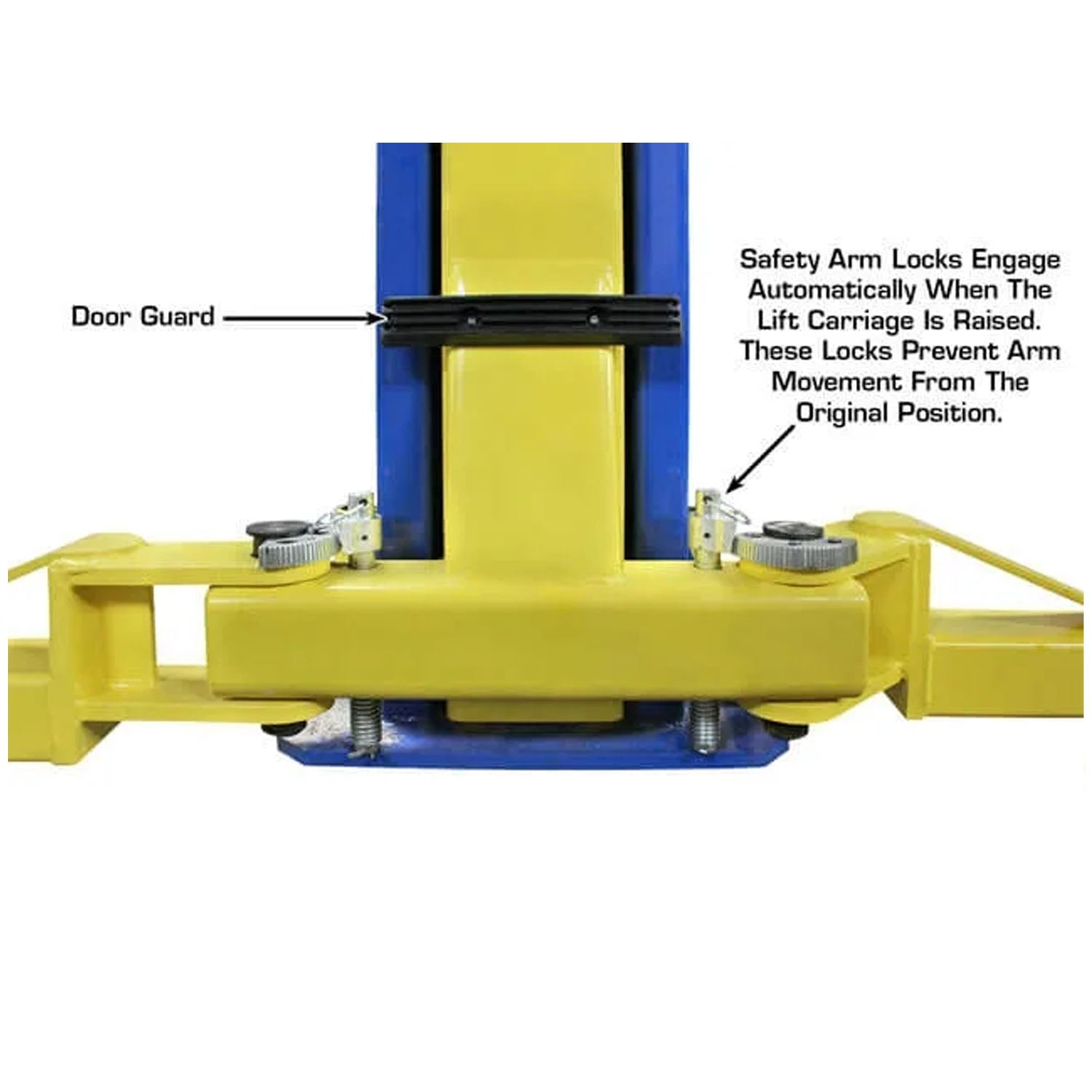

  • Automatic Arm Restraints

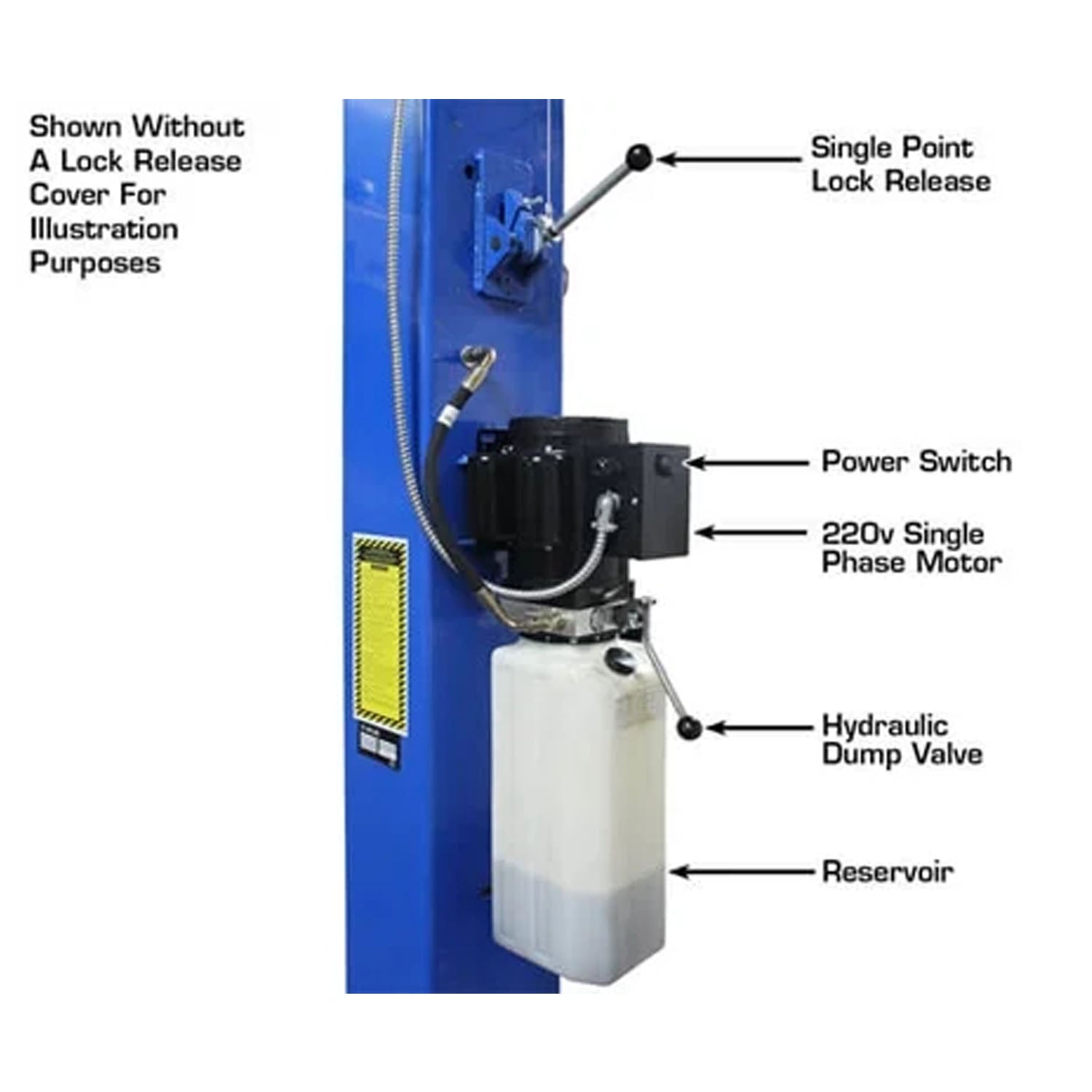

  • Single-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Direct-Drive Cylinders
  • Powder Coat Finish
  • Mounting Hardware Included

  Includes:

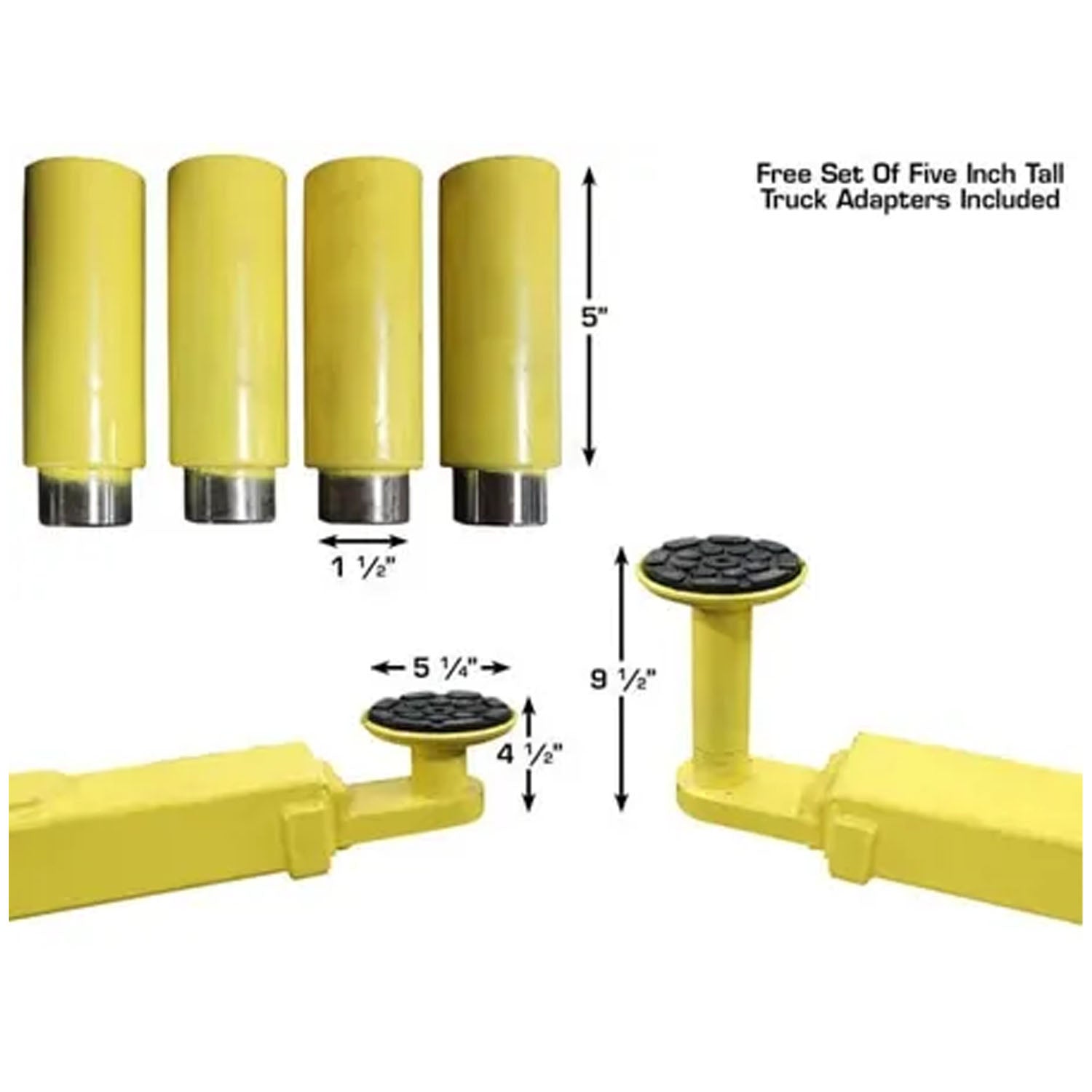

  • Truck Adapter Set

• SPECIFICATIONS

  Lifting Capacity	9,000 lbs

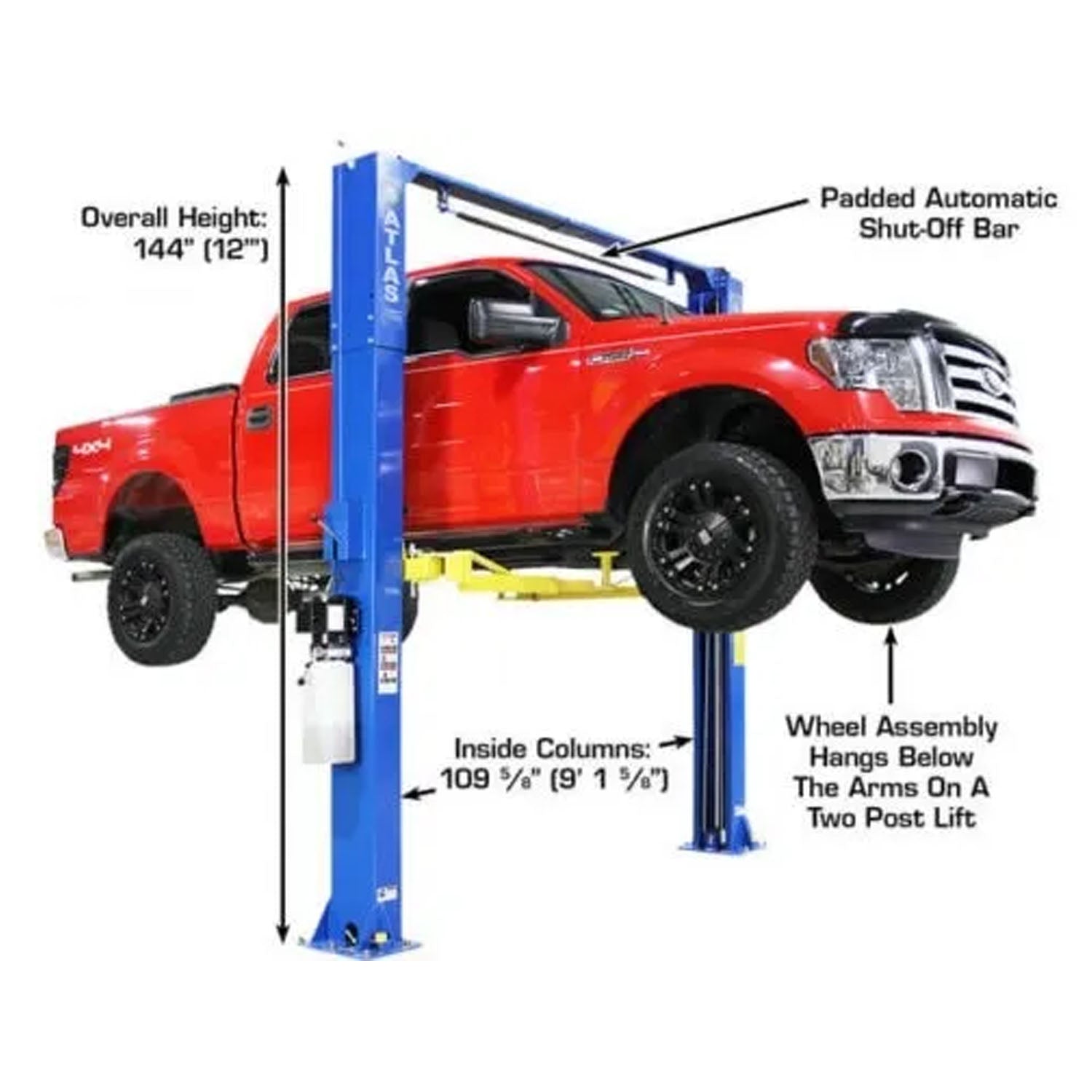

  Overall Height	12' (144")
  Overall floor Width	134.6"
  Outside Column to Outside Column	10’ 4 7/8" (124 7/8")

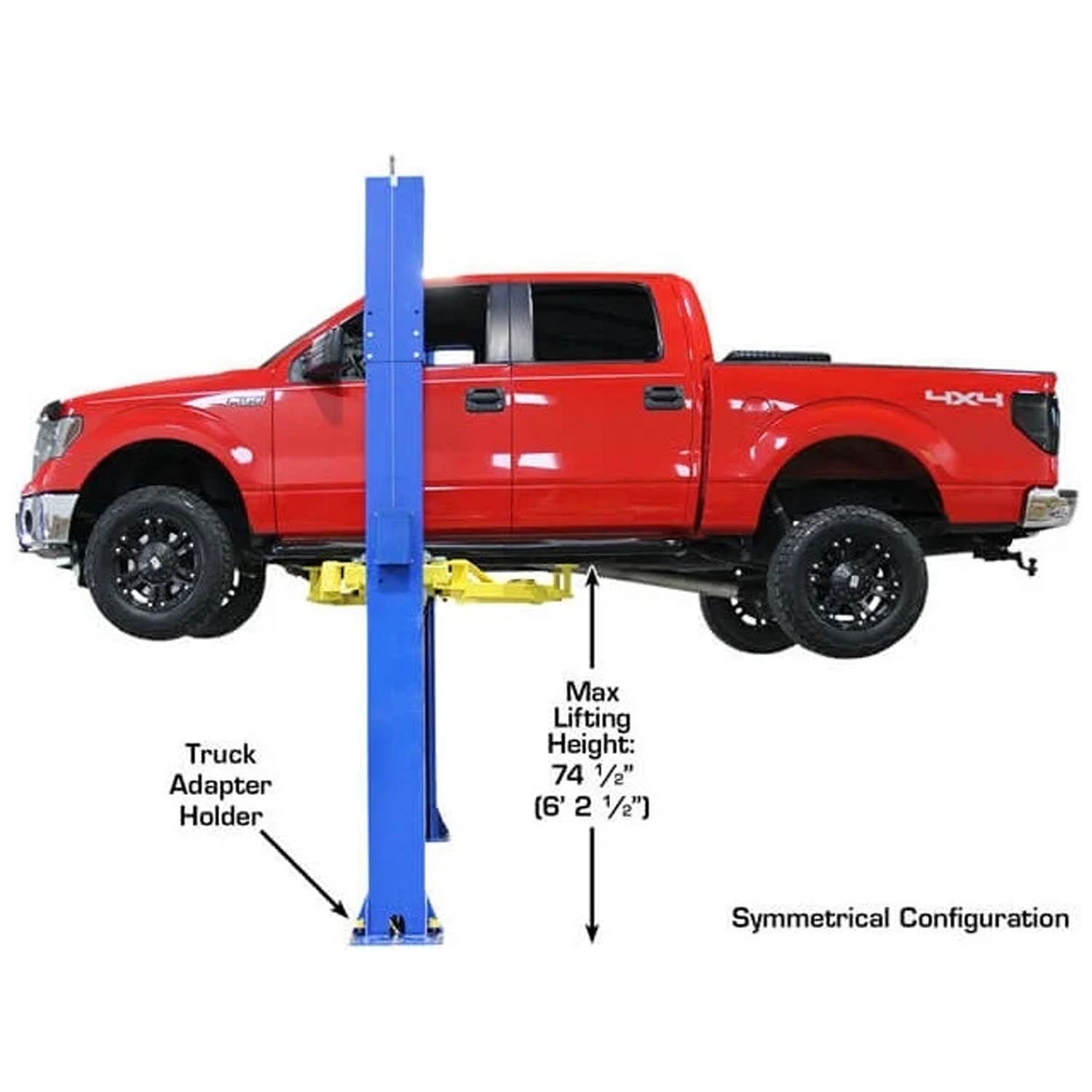

  Maximum Lift Height (without adapters)	68"
  Maximum Lift Height (with adapters)	78 13/4"
  Maximum Arm Height	4 1/2"

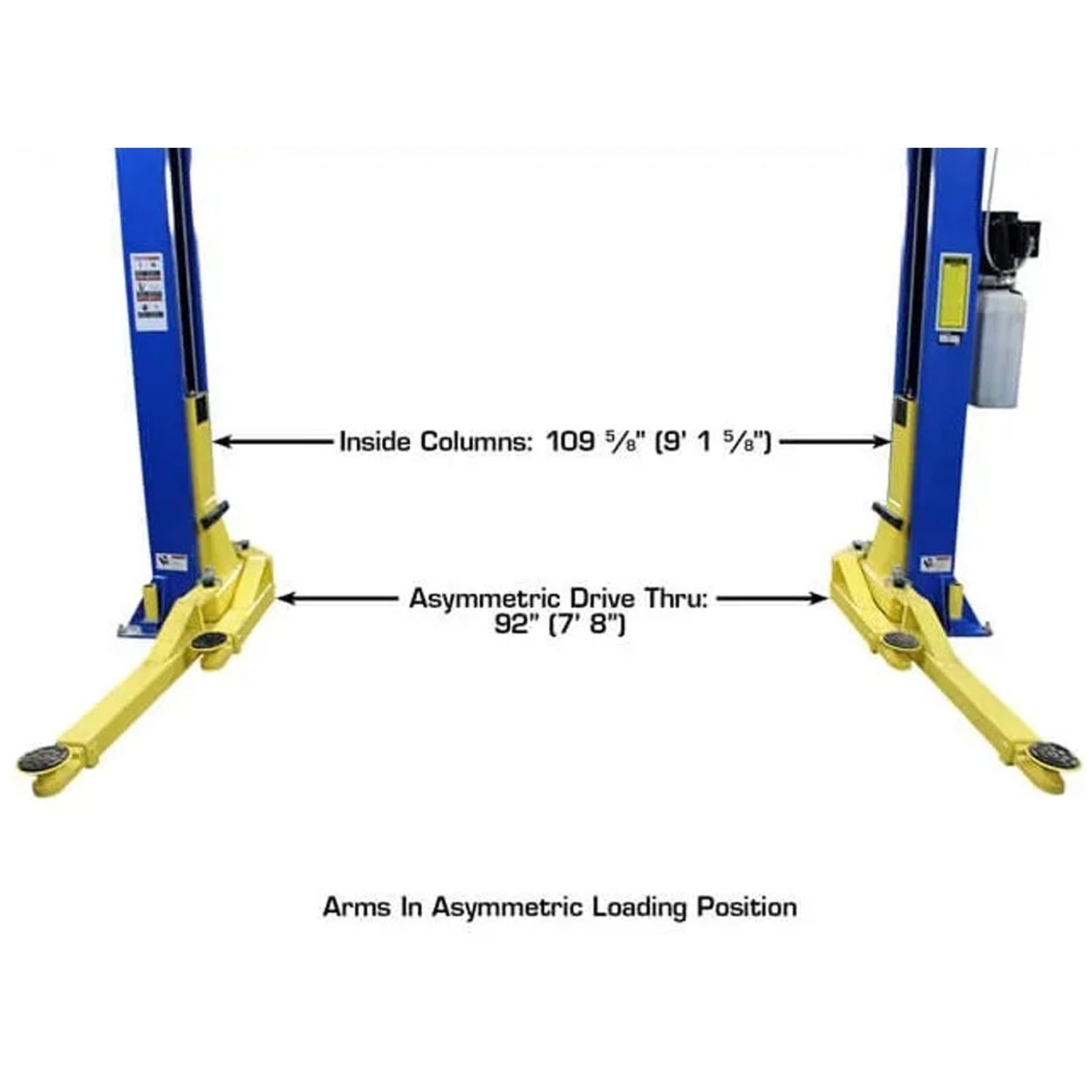

  Inside Column	109 3/4"
  Drive Thru	100" Symmetric/ 92 1/4" Asymmetric

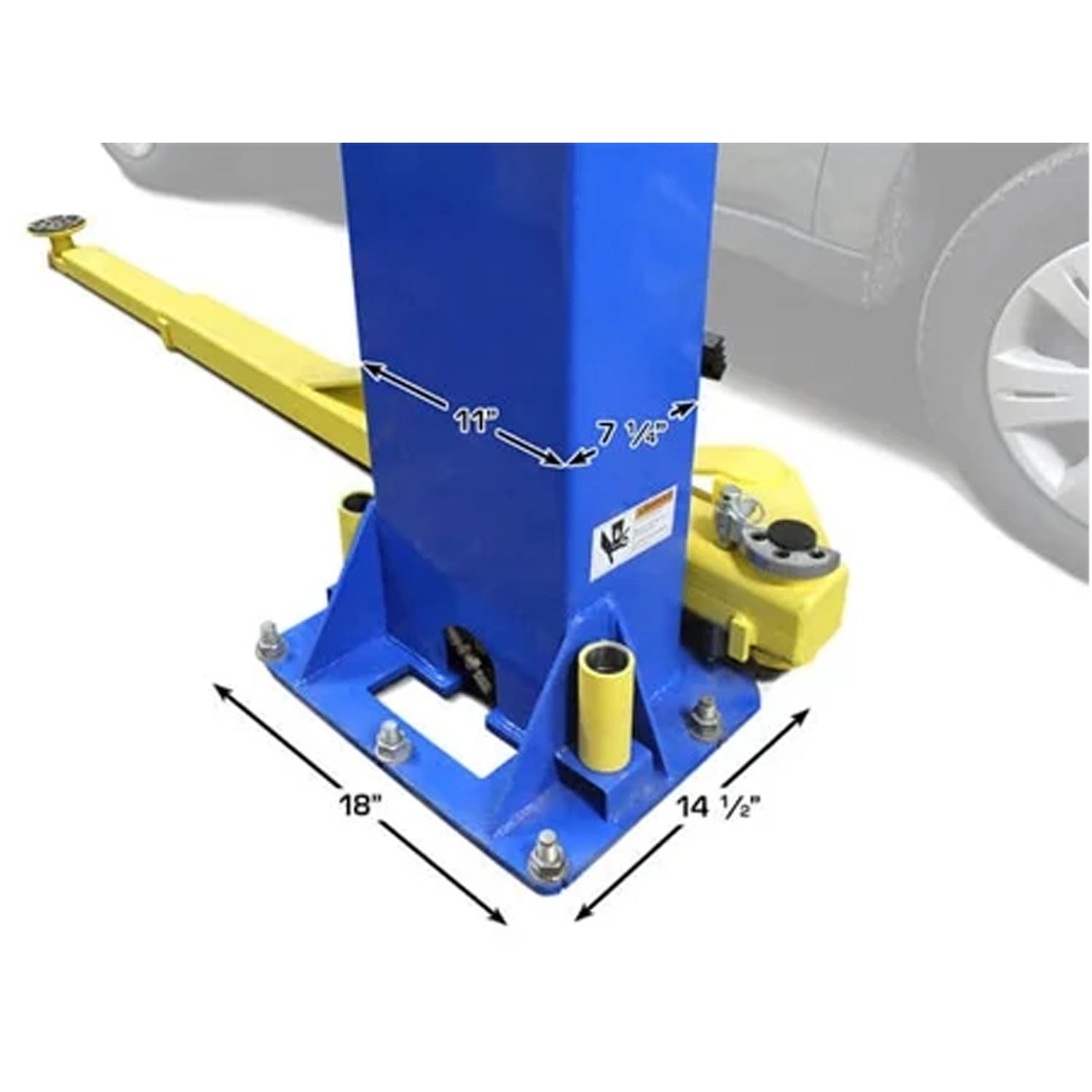

  Column Size	7 1/4" x 11"
  Column Thickness Steel	5mm
  Carriage Thickness of Steel	6mm
  Arm Thickness of Steel	6mm
  Base of Lift	14 1/4" x 18"

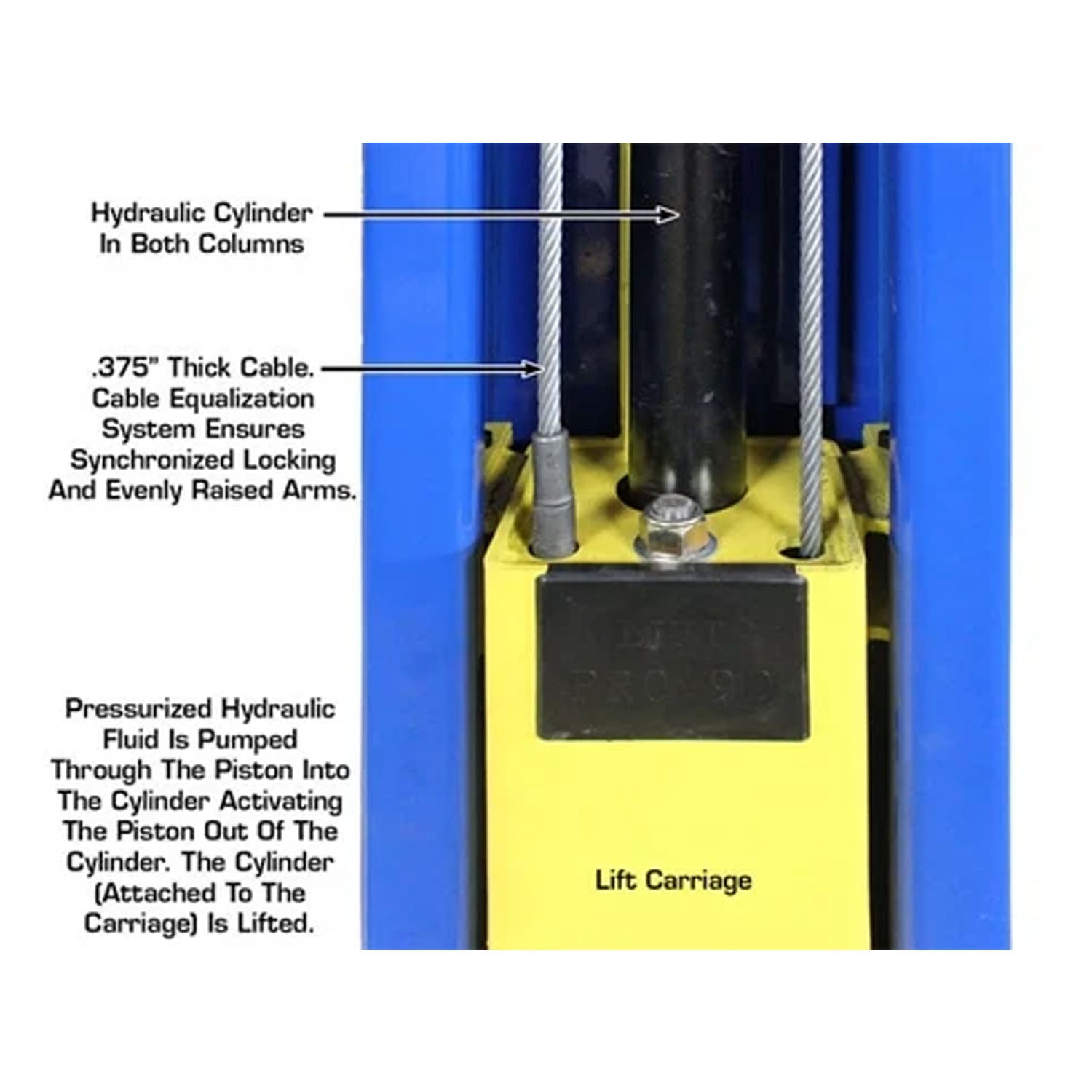

  Cable Diameter	.375"
  Motor/Electrical Requirement	220 volt single (1 phase) (A 30 amp breaker recommended)
  Oil Requirements	3-5 Gallons AWS/AW46 (not included)
  Shipping Weight	1,450 lbs.

• WARRANTY

  Warranty Information

  • 5-Year Structural Warranty

  • 2-Year Hydraulic-Power Warranty
  PRO-9D Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
