Atlas® Platinum PVL14 Alignment Kit 4-Post Lifts #ATEAP-PVL-ALIKIT-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

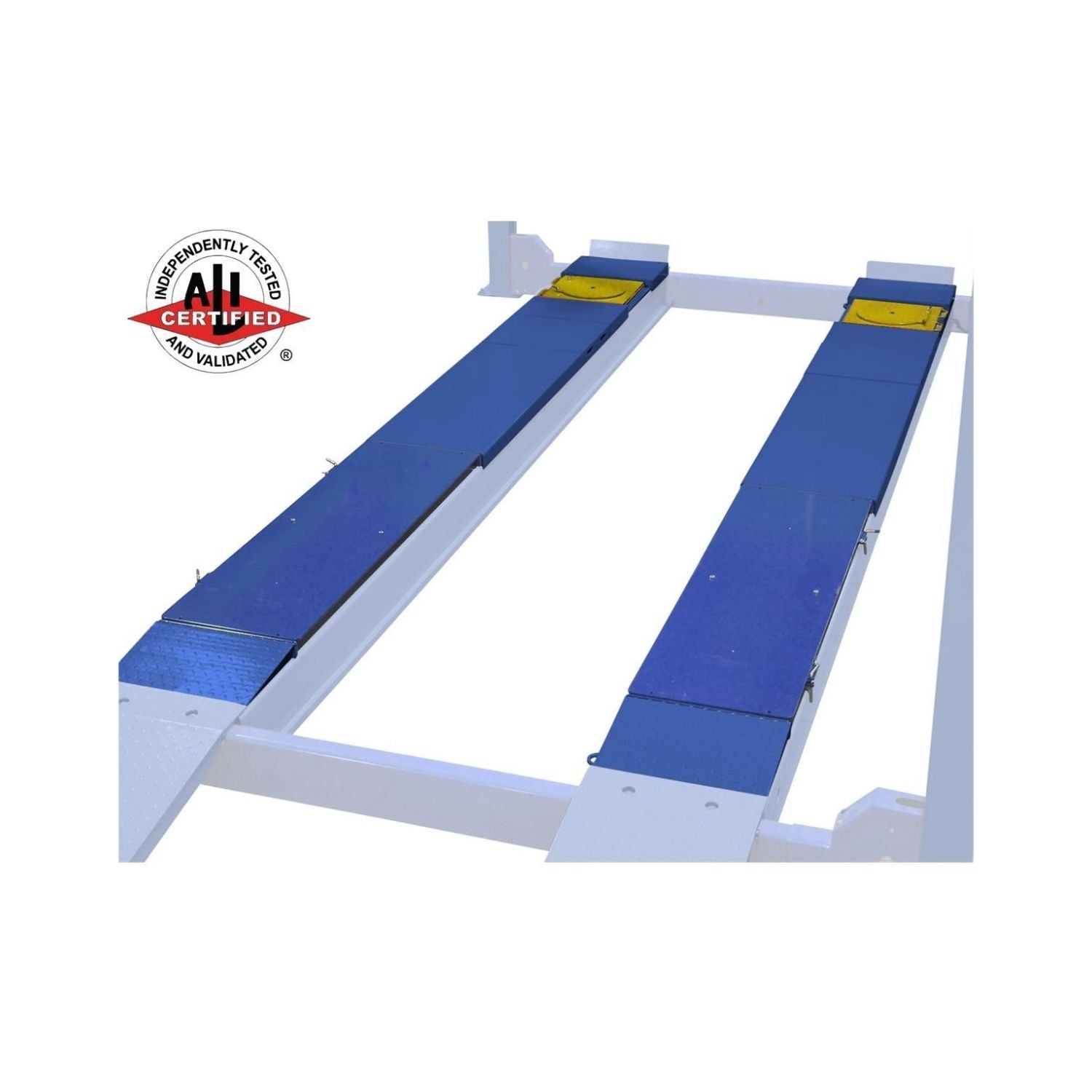

  The Atlas® Platinum Alignment Kit is an ALI-certified accessory package designed to convert the Atlas Platinum PVL14 four-post lift or other compatible commercial-grade four-post lifts into a professional wheel alignment system.

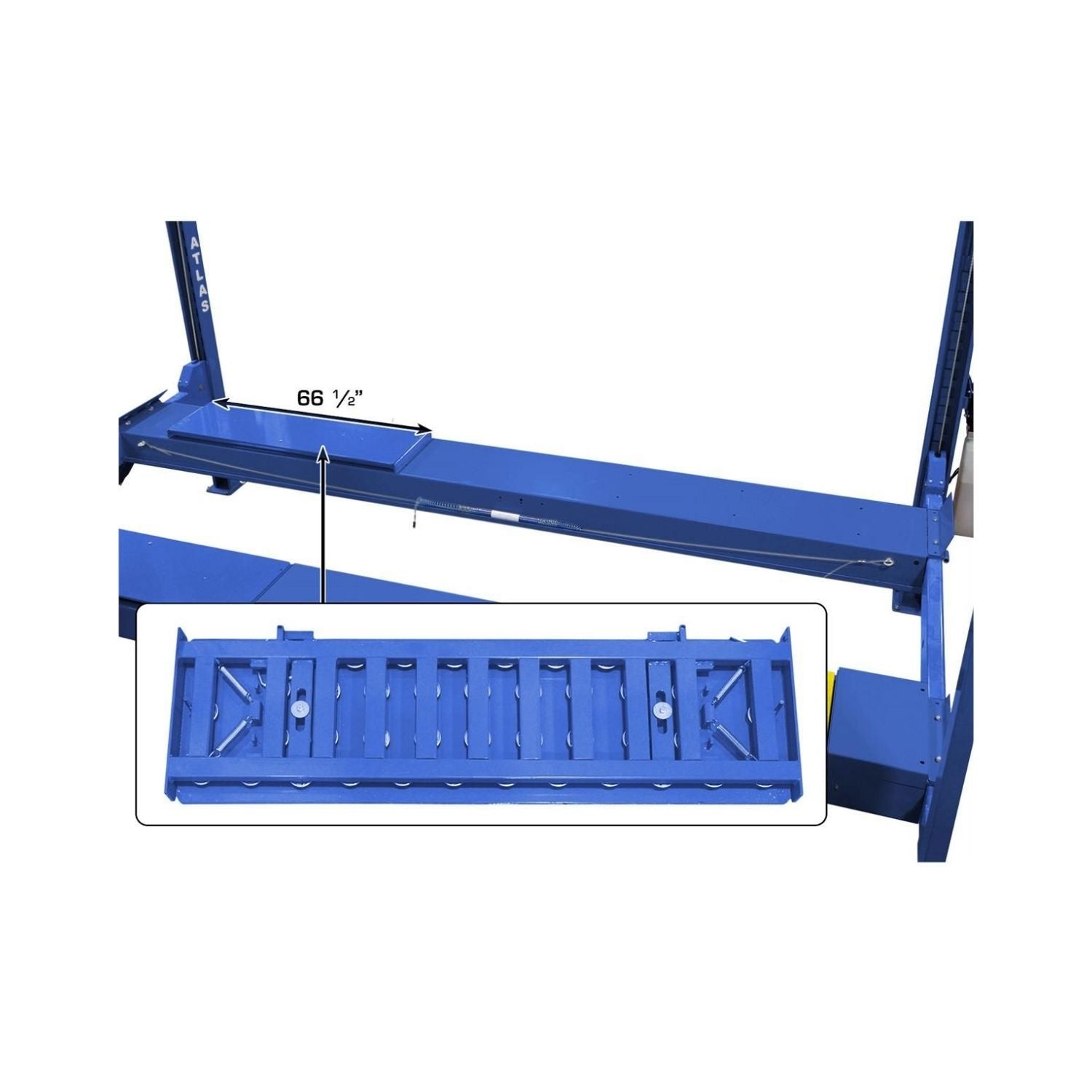

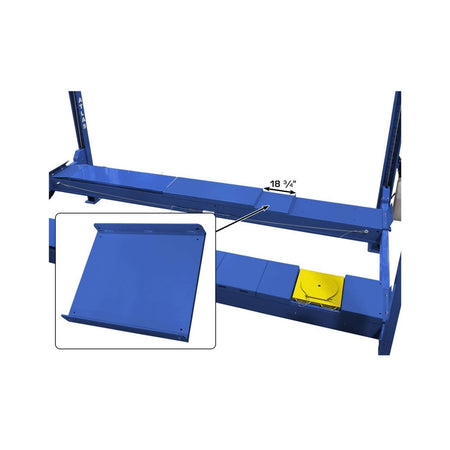

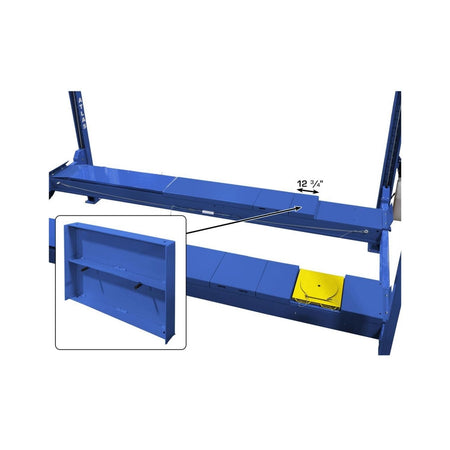

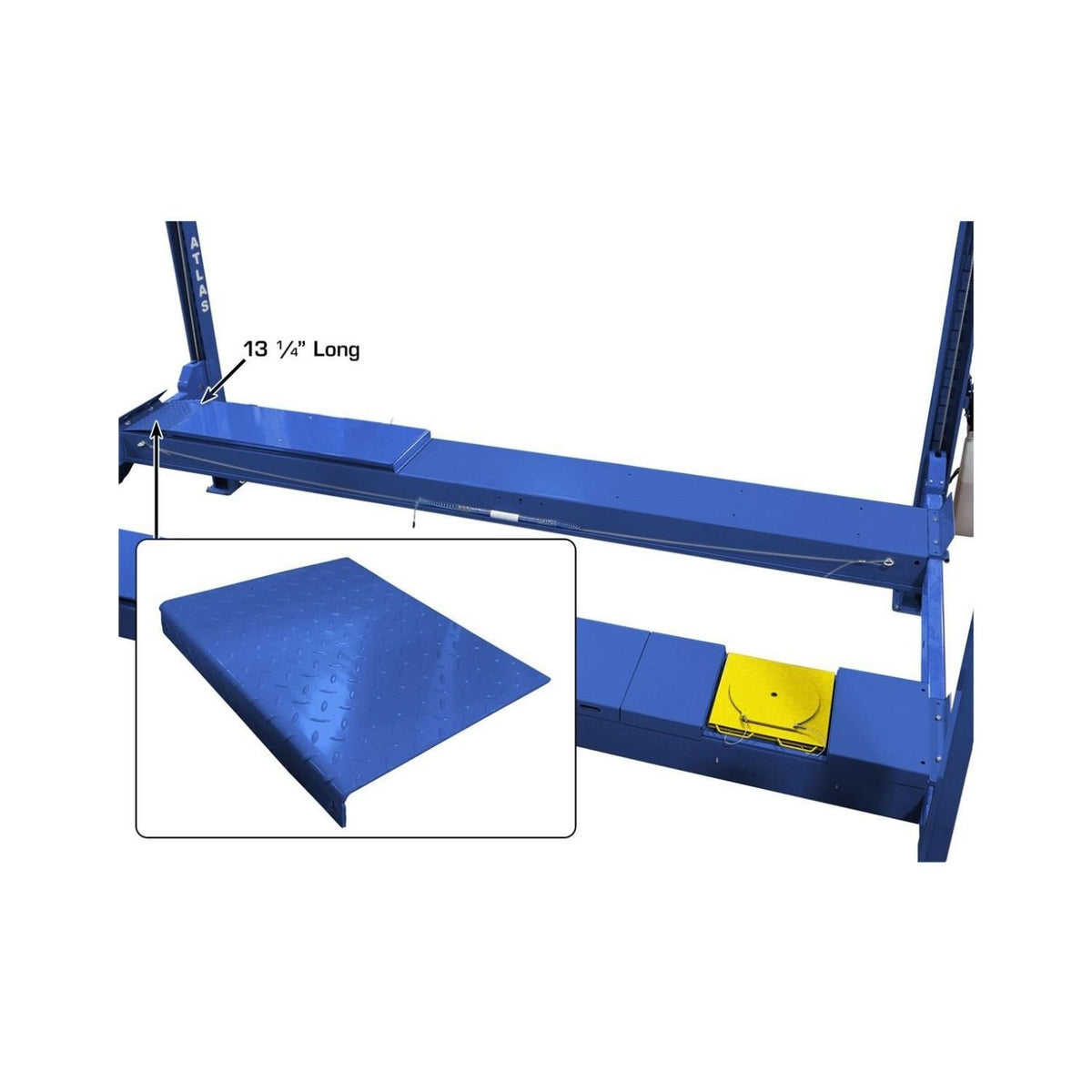

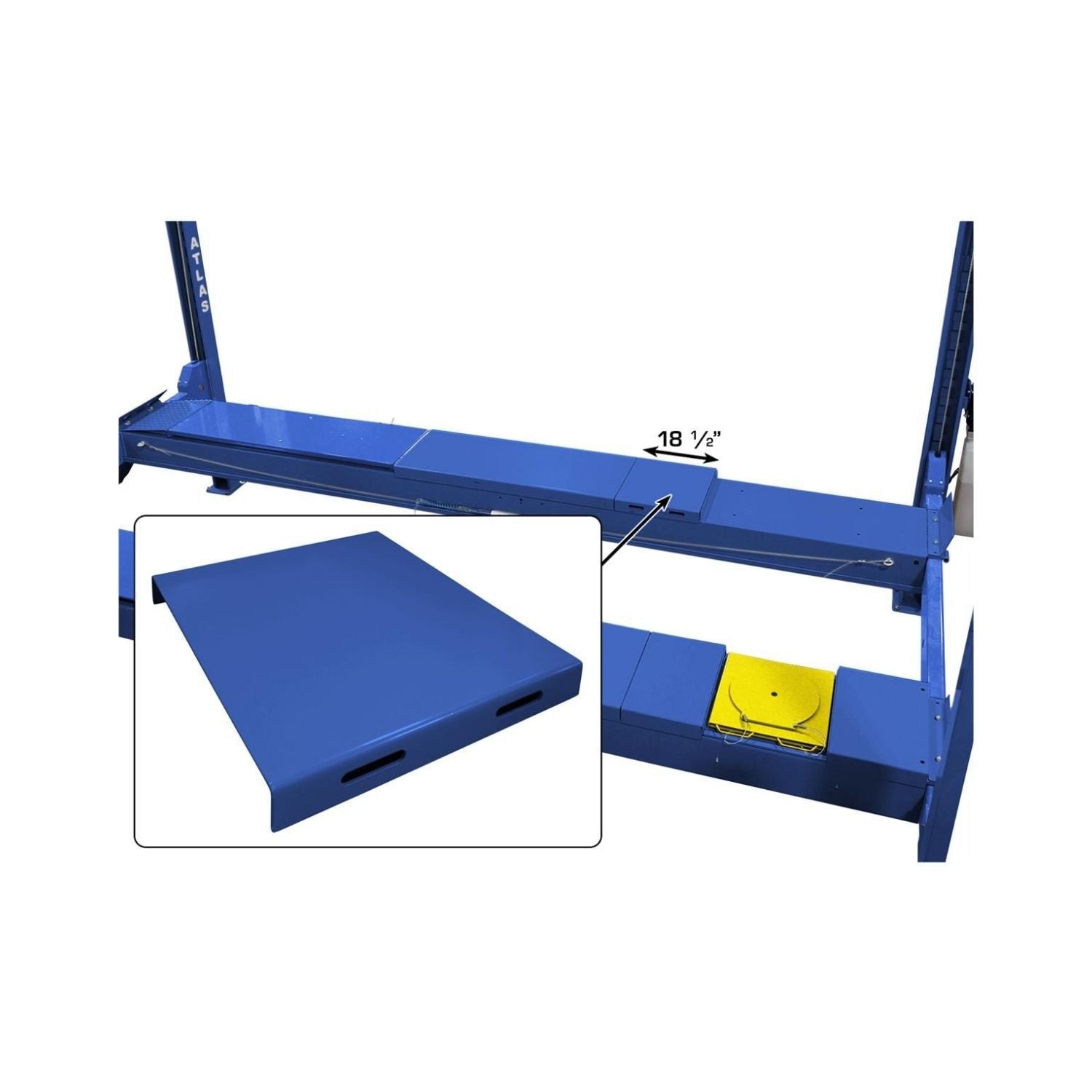

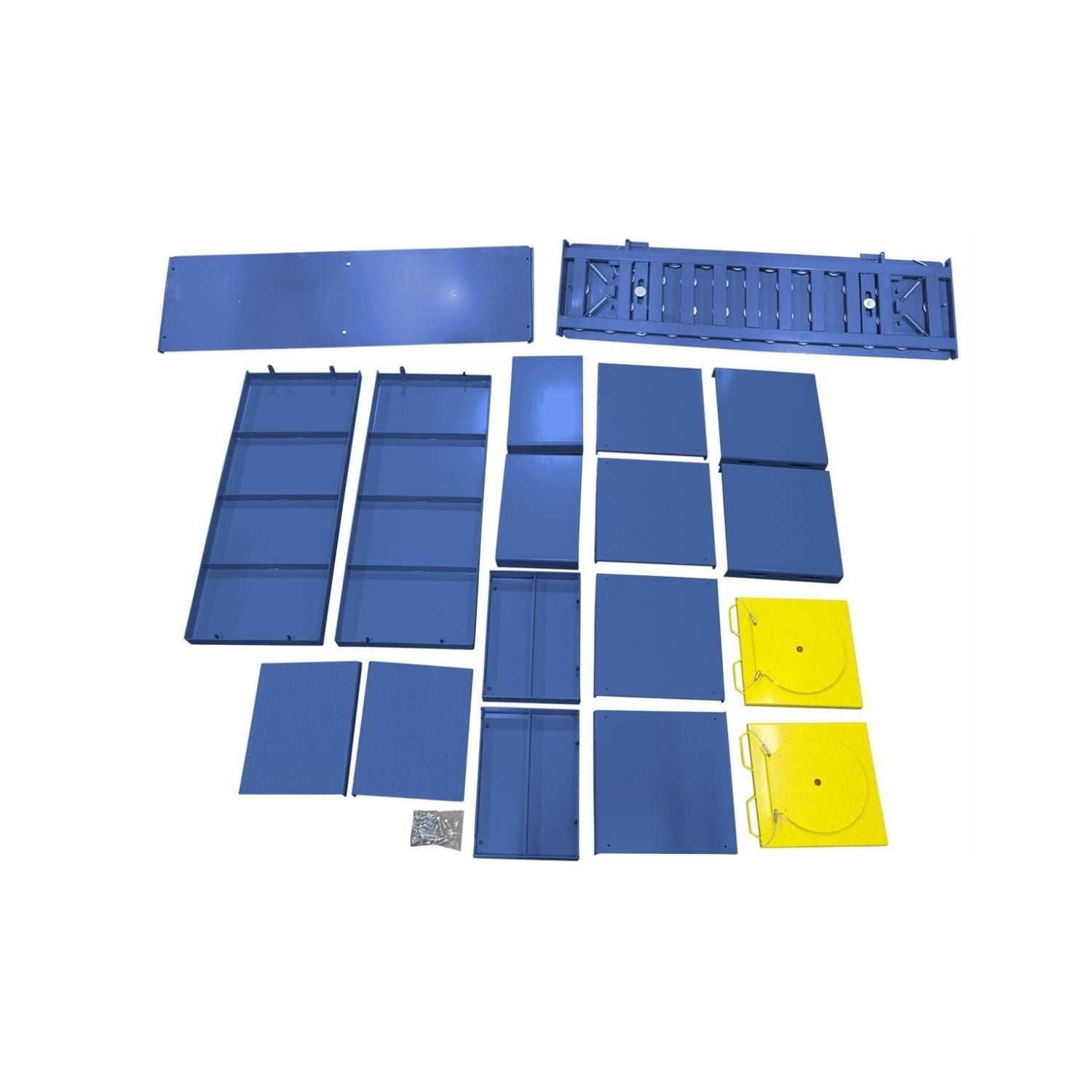

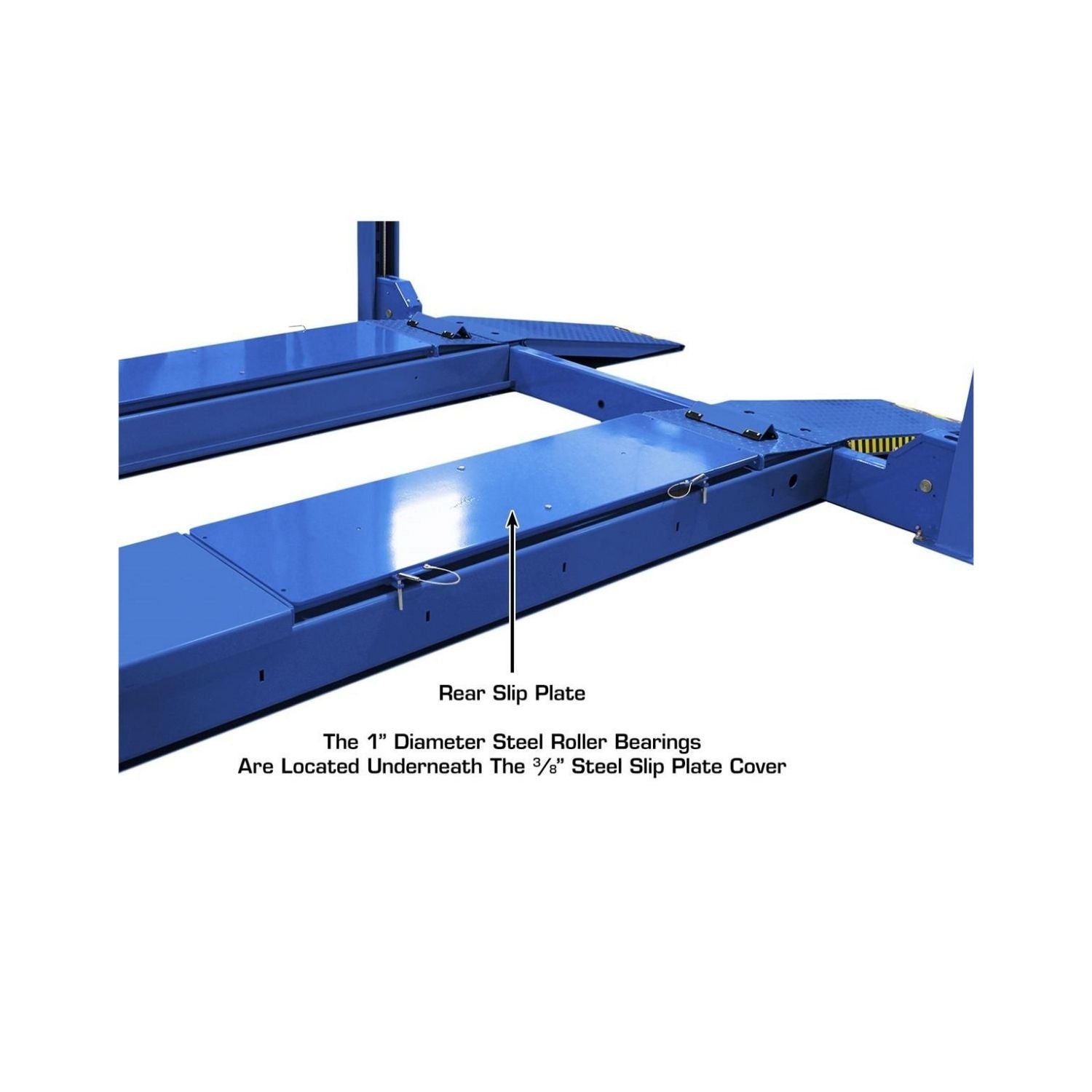

  This complete bolt-on kit includes heavy-duty ball-bearing slip plates, precision alignment turntables, ramps, and spacers needed to perform accurate two-wheel and four-wheel alignments in a professional shop environment. Unlike many permanent recessed alignment systems, the Atlas Platinum Alignment Kit mounts above the runways, allowing easier cleaning, maintenance, and servicing of moving components.

  Its removable design gives shops the flexibility to convert a standard four-post lift into an alignment lift only when needed, avoiding the need to dedicate a lift permanently to alignment work. This makes it ideal for growing automotive shops, fleet facilities, and service centers that need versatility without sacrificing functionality.

• FEATURES AND BENEFITS

  • Capacity: 10,000+ lb — passenger cars, light trucks, and SUVs
  • ALI/ETL certified for commercial shop compliance
  • Symmetric/asymmetric arm configuration for flexible vehicle positioning
  • Heavy-gauge steel column construction for long-term durability
  • Single-point safety lock release for fast, controlled lowering
  • Ships at 1100 lbs

• SPECIFICATIONS

  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-PVL-ALIKIT-FPD

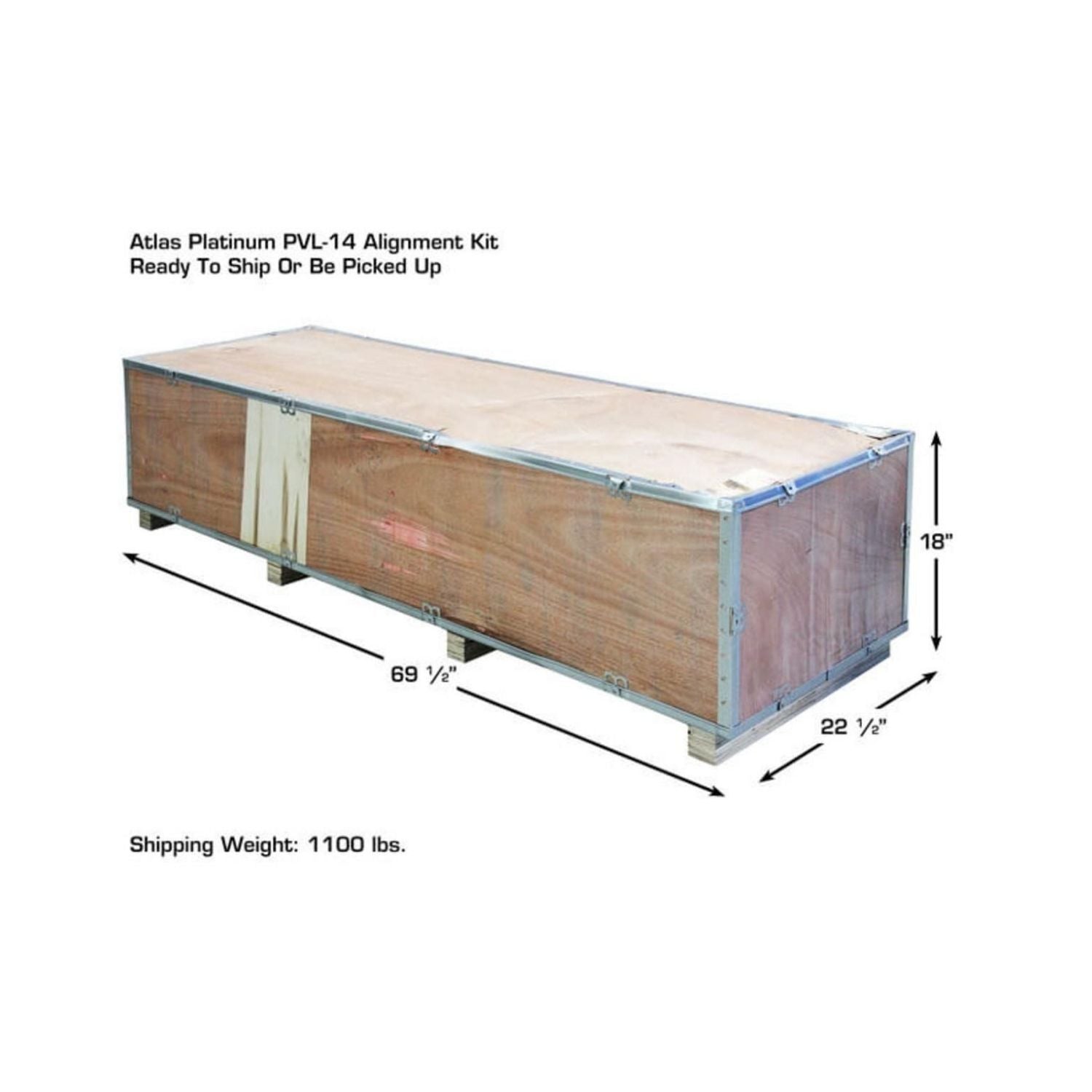

  Dimensions:	70" L × 23" W × 18" H
  UPC:	810524028431
  Country of Origin:	CHN
  Maximum Capacity:	14,000 lb.
  Overall Length:	199 1/3" (16' 7 1/3")
  Overall Width (Each Side):	20 5/8"
  Minimum Wheel Base:	75 2/5" (6' 3 2/5")
  Maximum Wheel Base:	148 2/3" (12' 4 2/3")
  Minimum Turntable Recess:	1 1/2"
  Maximum Turntable Recess:	2"

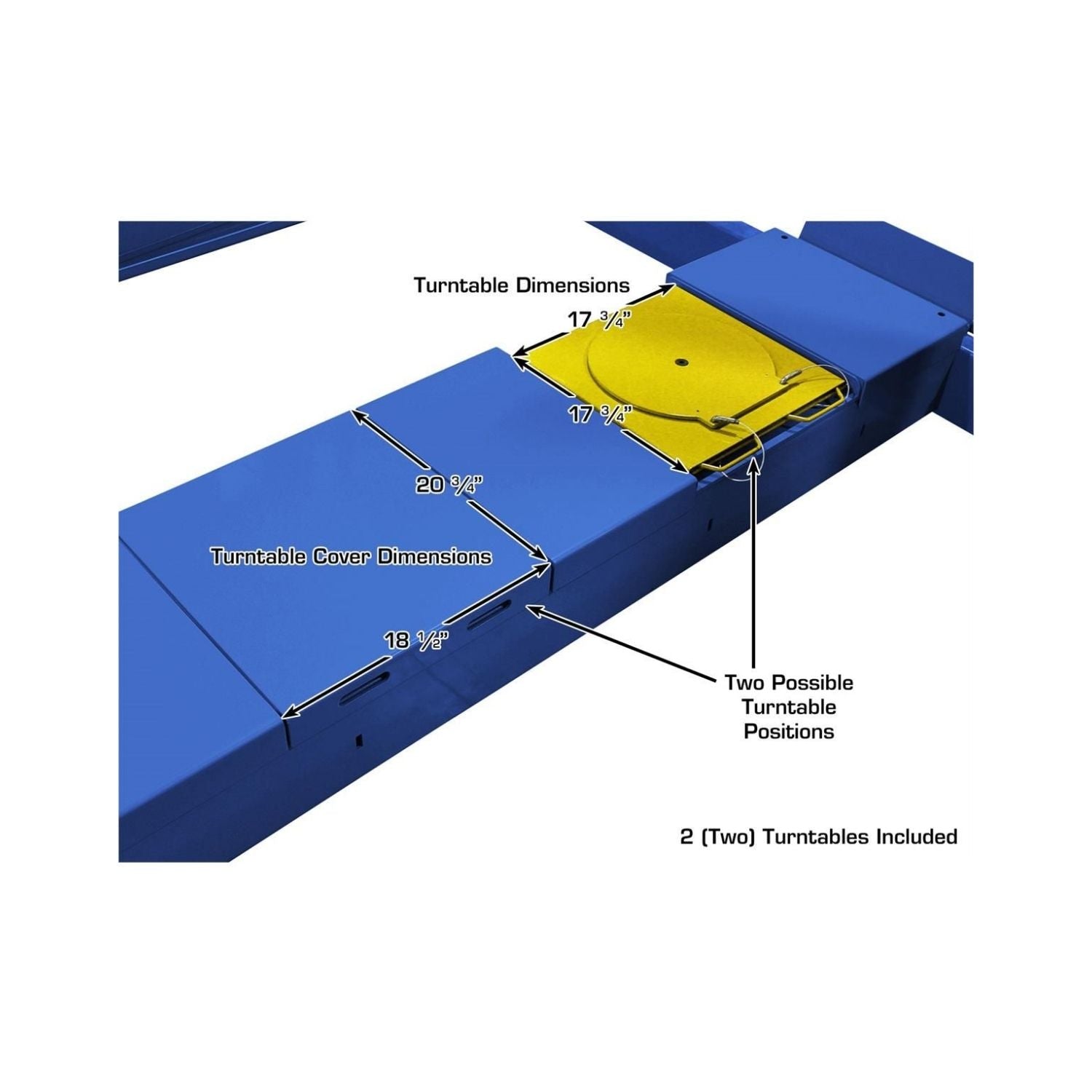

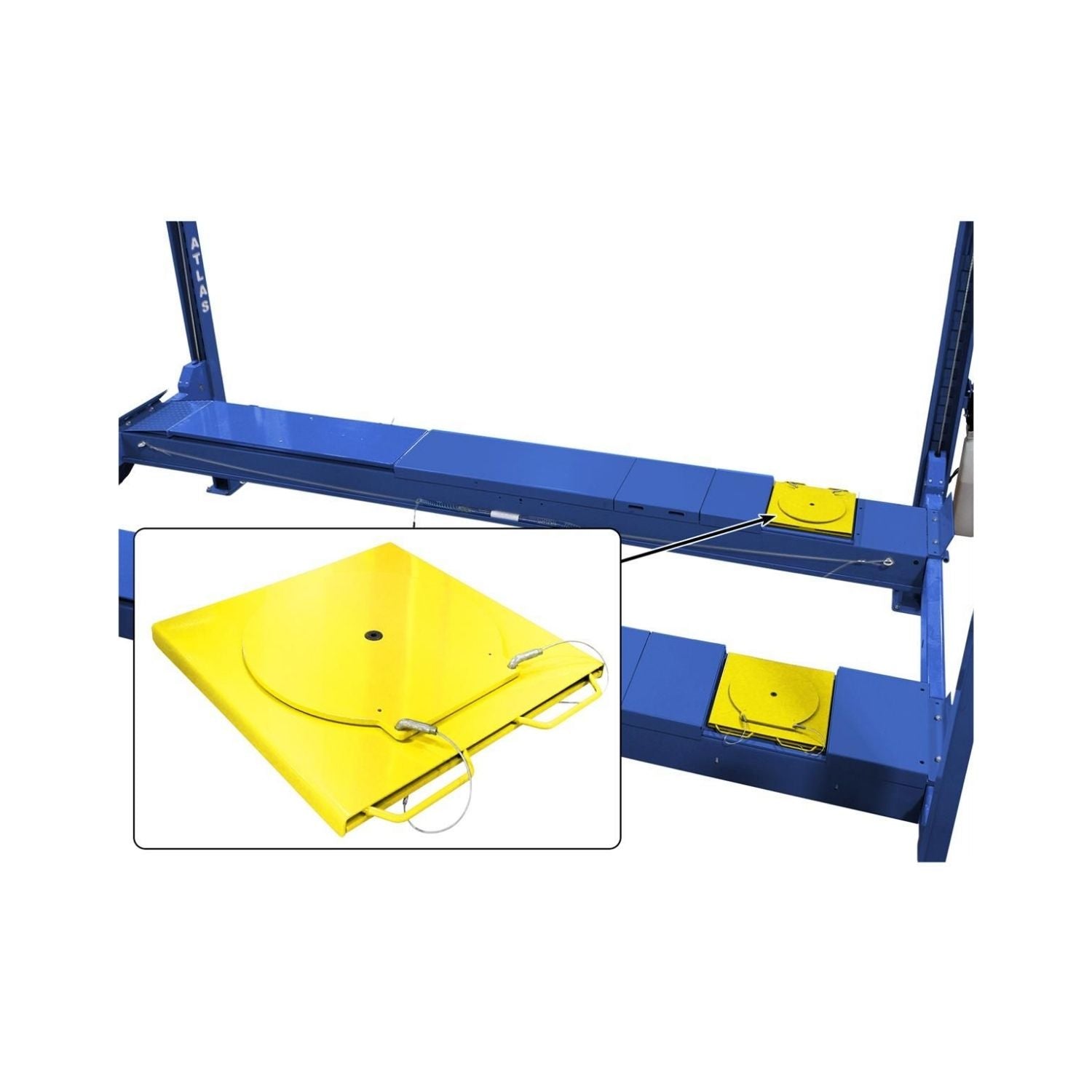

  Turntable Dimensions:	17 1/2" x 17 1/2" x 1 1/2"
  Shipping Weight:	1,100 lbs.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
