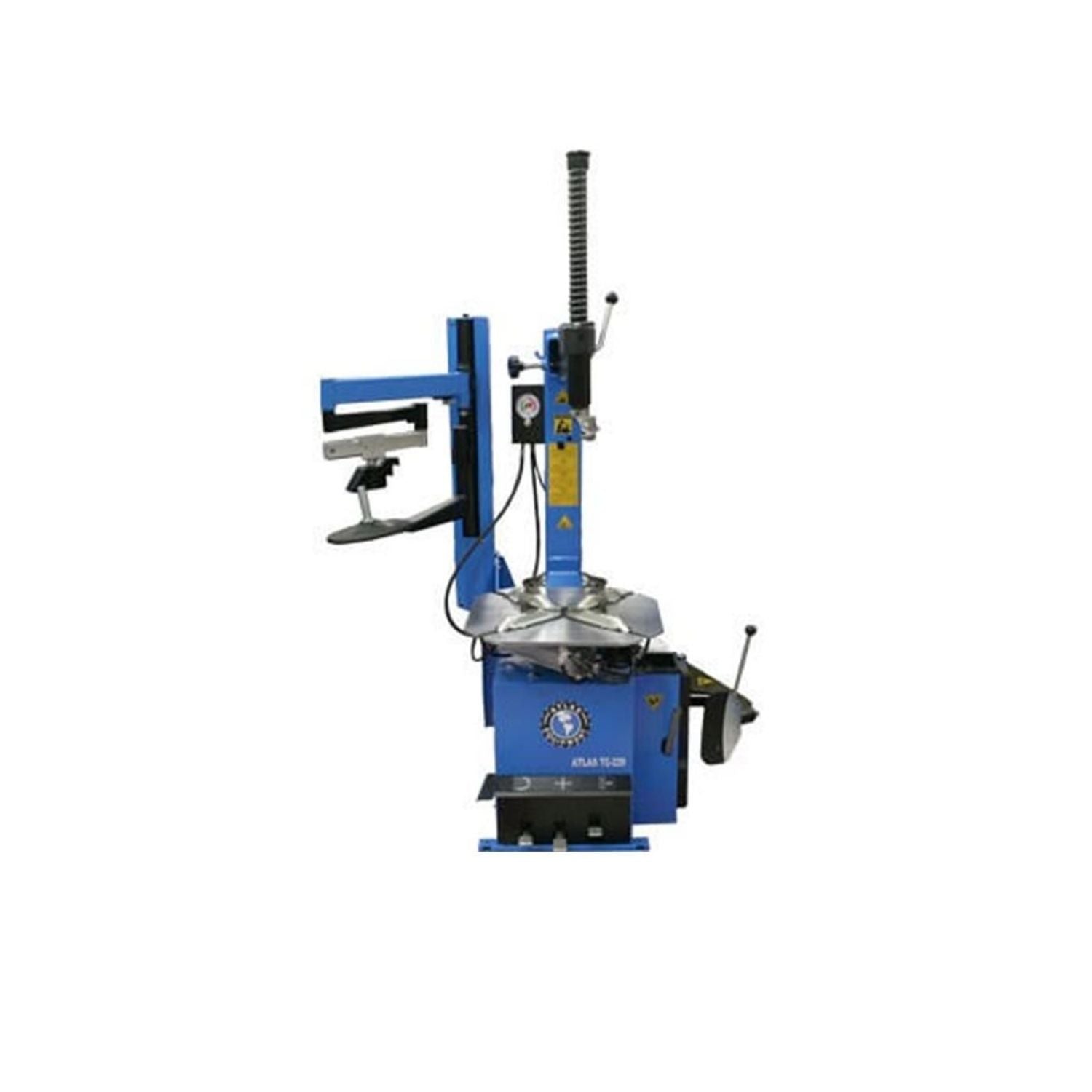

Atlas® TC229LH Tire Changer with Left Hand Assist Arm #ATETC229LH-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas ATLAS Tc229 Tire Changer with Left Hand Arm (Kit) is a professional rim-clamp or center-post tire changer built for high-volume service shops. Designed to handle a broad range of rim diameters and low-profile tires, it reduces mount and demount time on standard and performance fitments. Heavy-gauge cast-iron turntable and pneumatic assist arm deliver consistent performance under daily shop conditions.

• FEATURES AND BENEFITS

  • Rim Clamp/Swing Arm Tire Changer

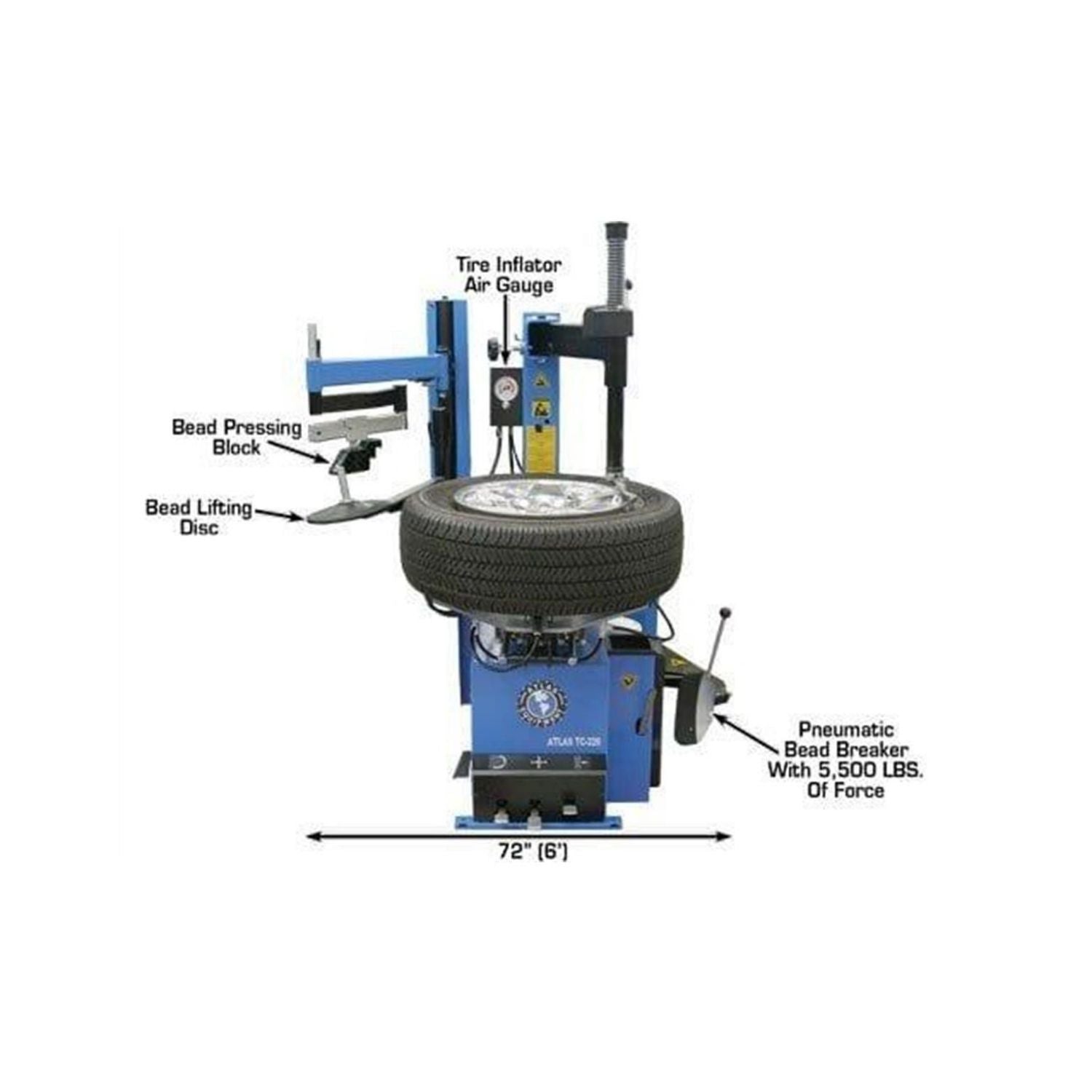

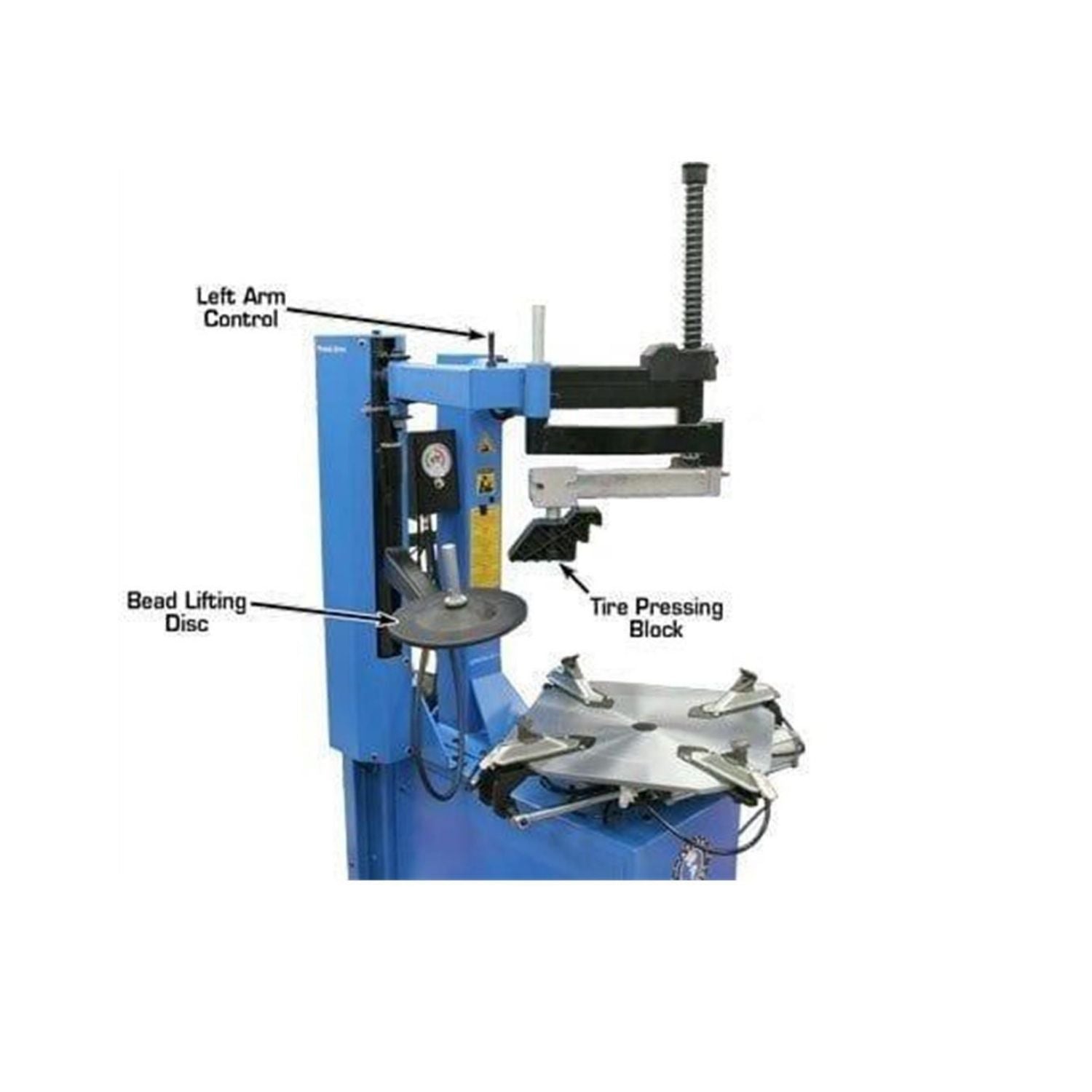

  • Left Hand Assist Arm (pressing block/disk) Included
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included

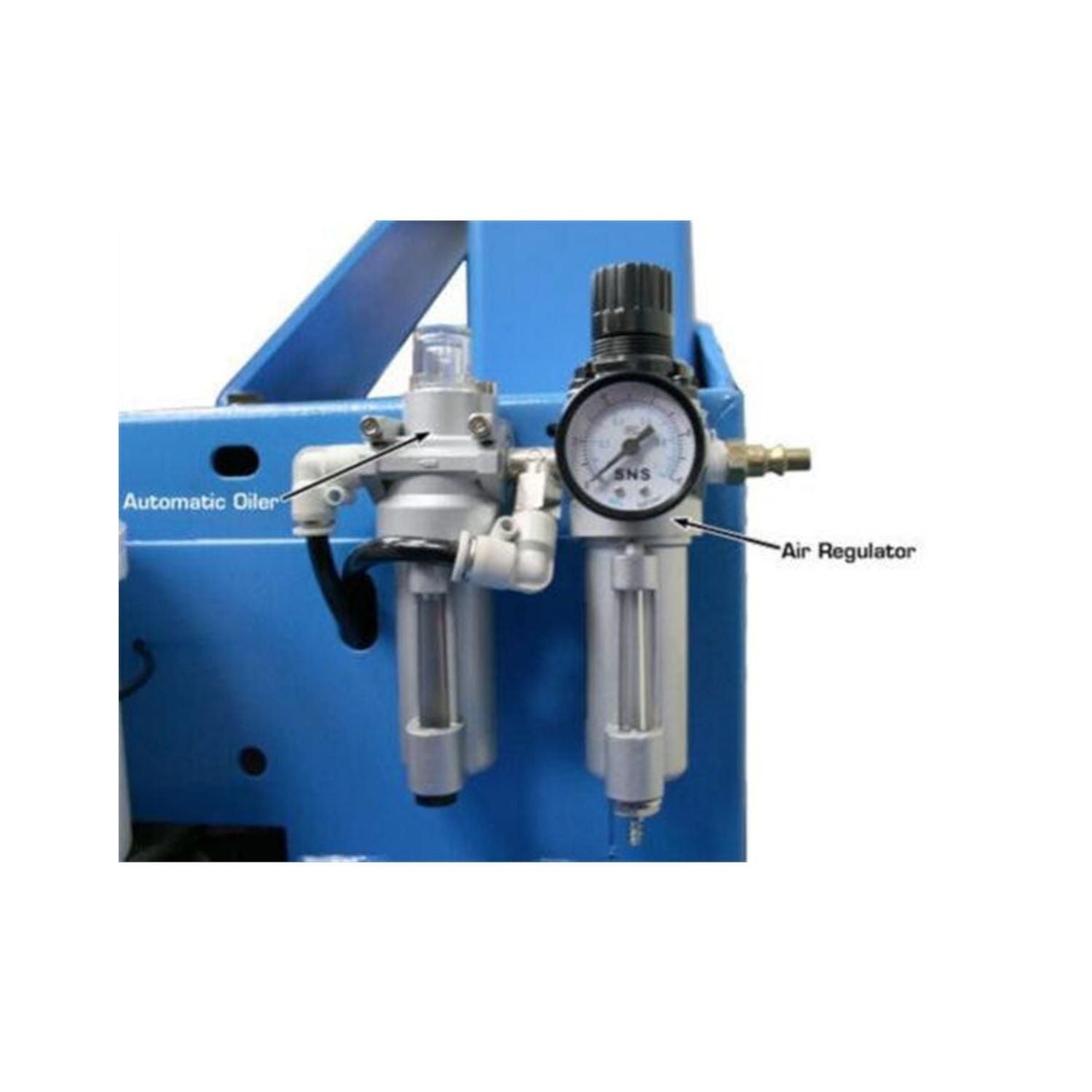

  • Filter/Regulator/Lubricator Included
  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Motorcycle and ATV adapters available (sold separately)
  • Built in "Beadblaster"
  • Replacement Parts & Wear Items Always in Stock
  • 1 Year Parts Only Warranty
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETC229LH

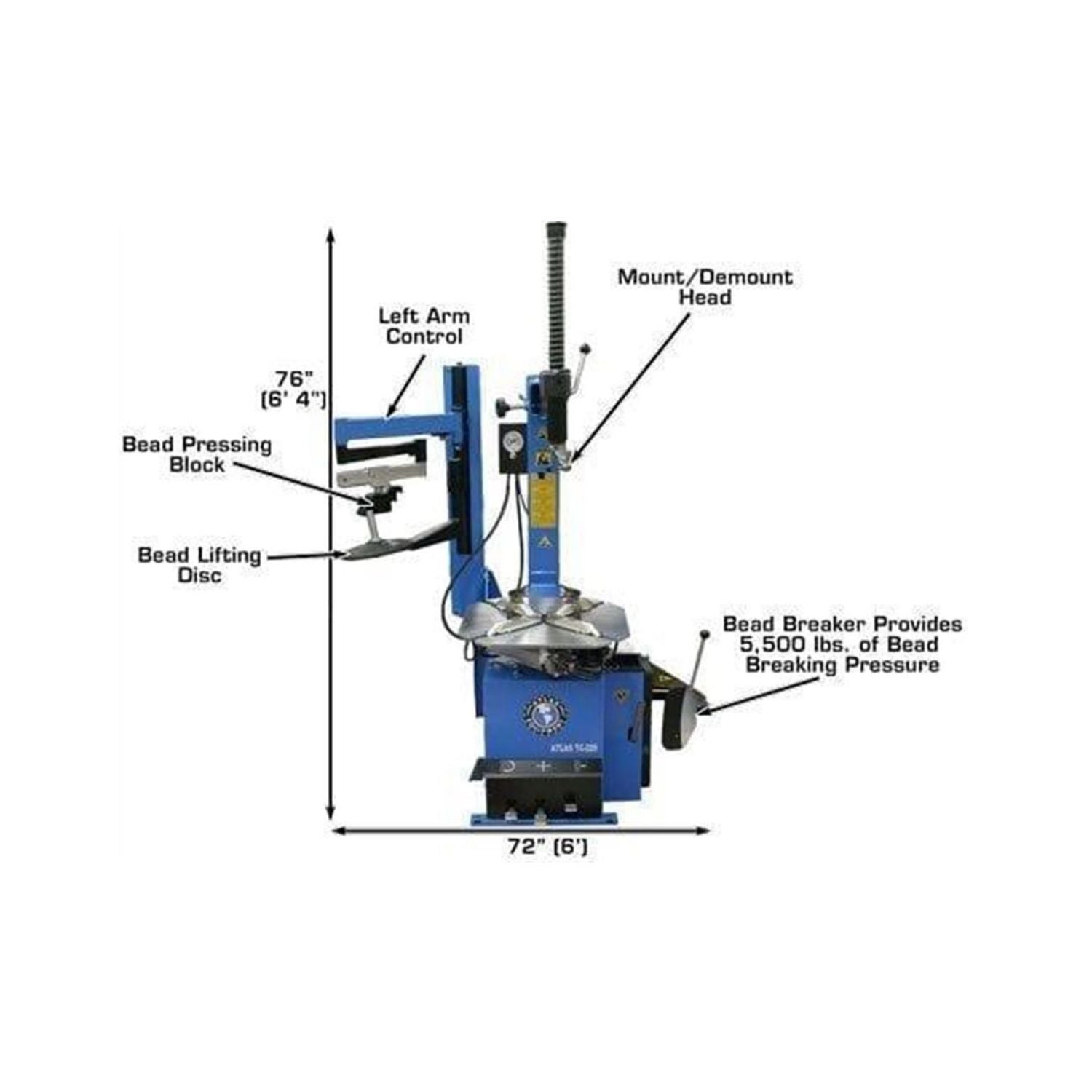

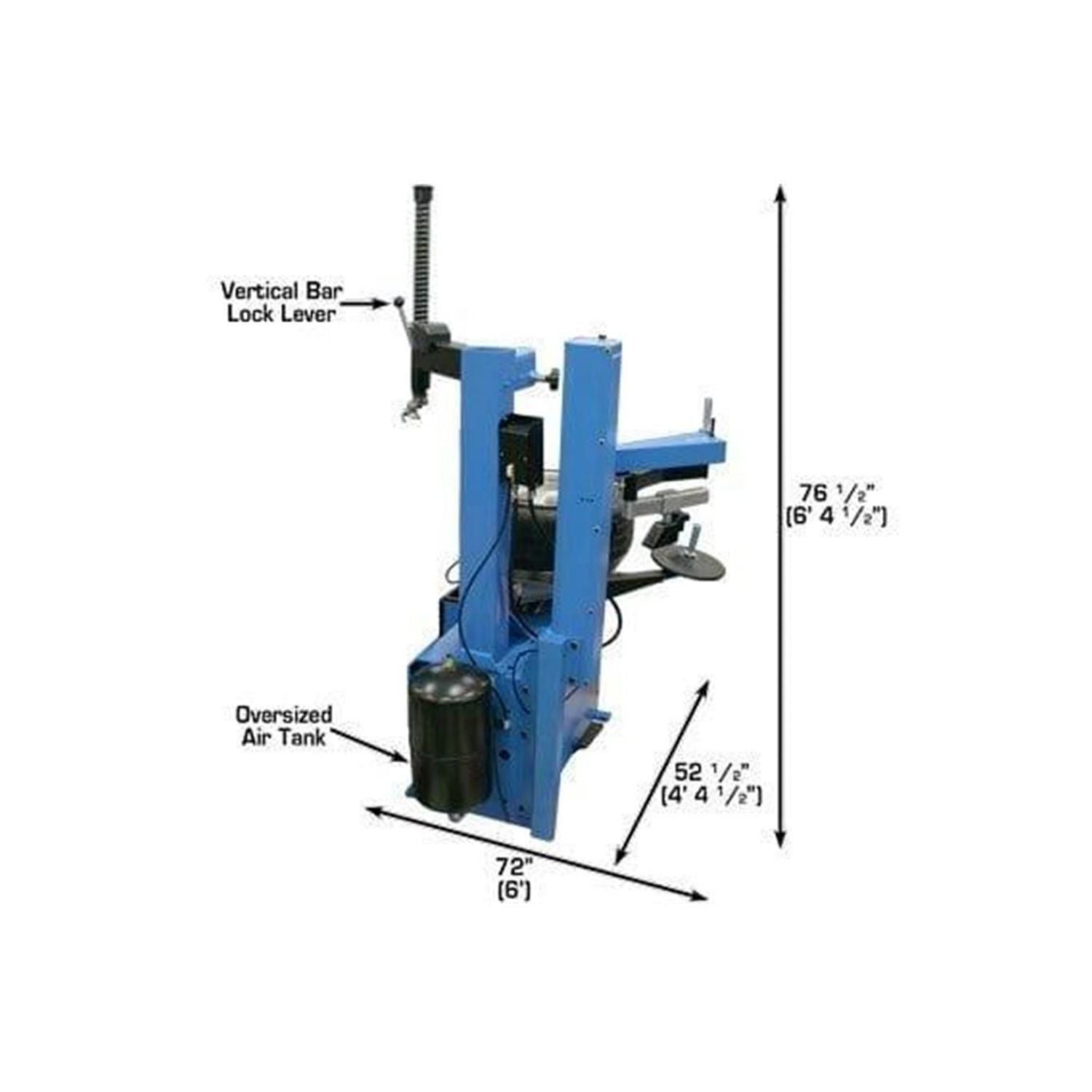

  Dimensions:	77" L × 50" W × 49" H
  UPC:	810524028066
  Country of Origin:	CHN
  External Locking Rim Dimensions (Narrow → Wide):	9 3/4" to 23 1/4"
  Internal Locking Rim Dimensions (Narrow → Wide):	11 5/8" to 25 1/4"
  Maximum Tire Diameter:	39"
  Maximum Wheel Width (Bead Breaker):	13"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.

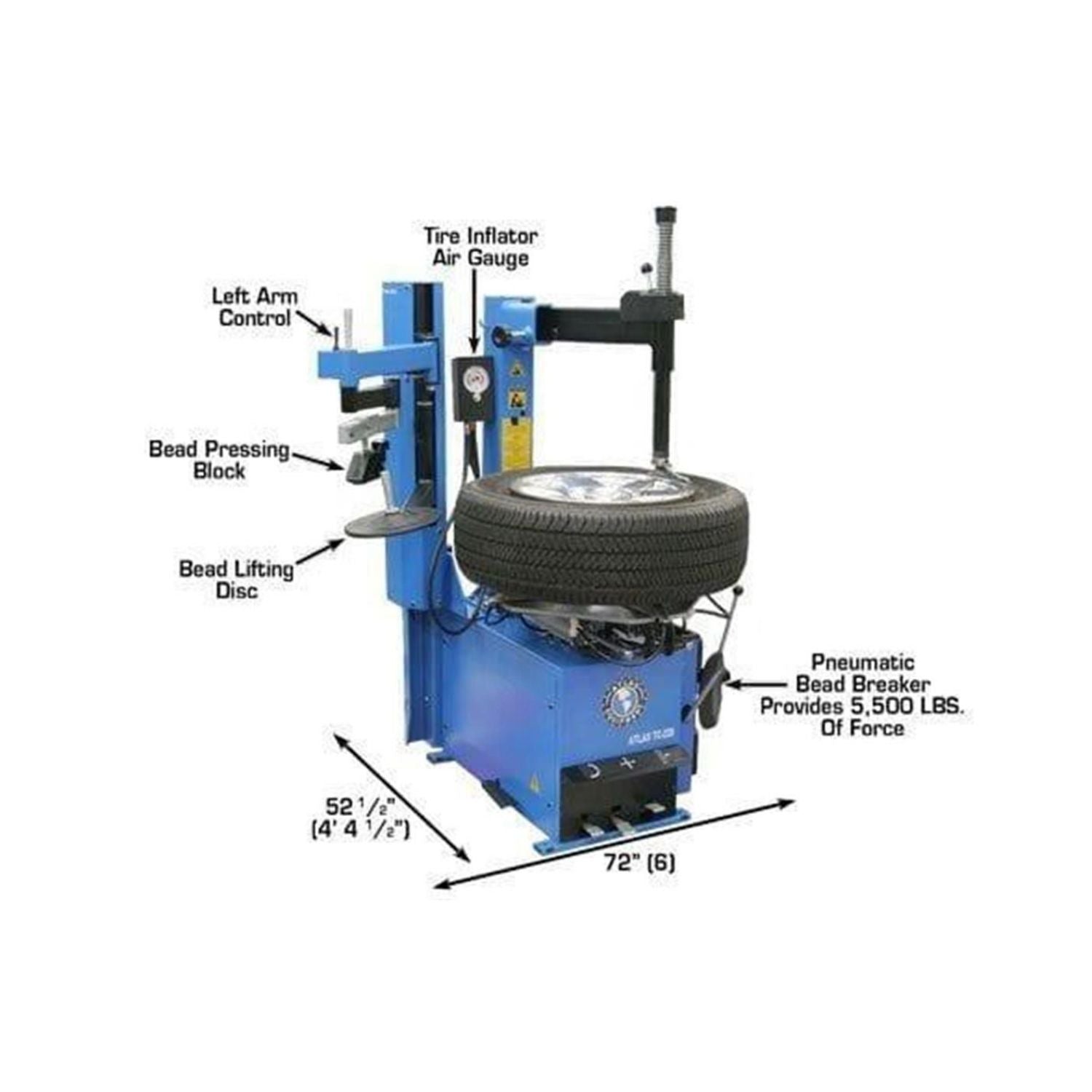

  Bead Breaker:	5,500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt

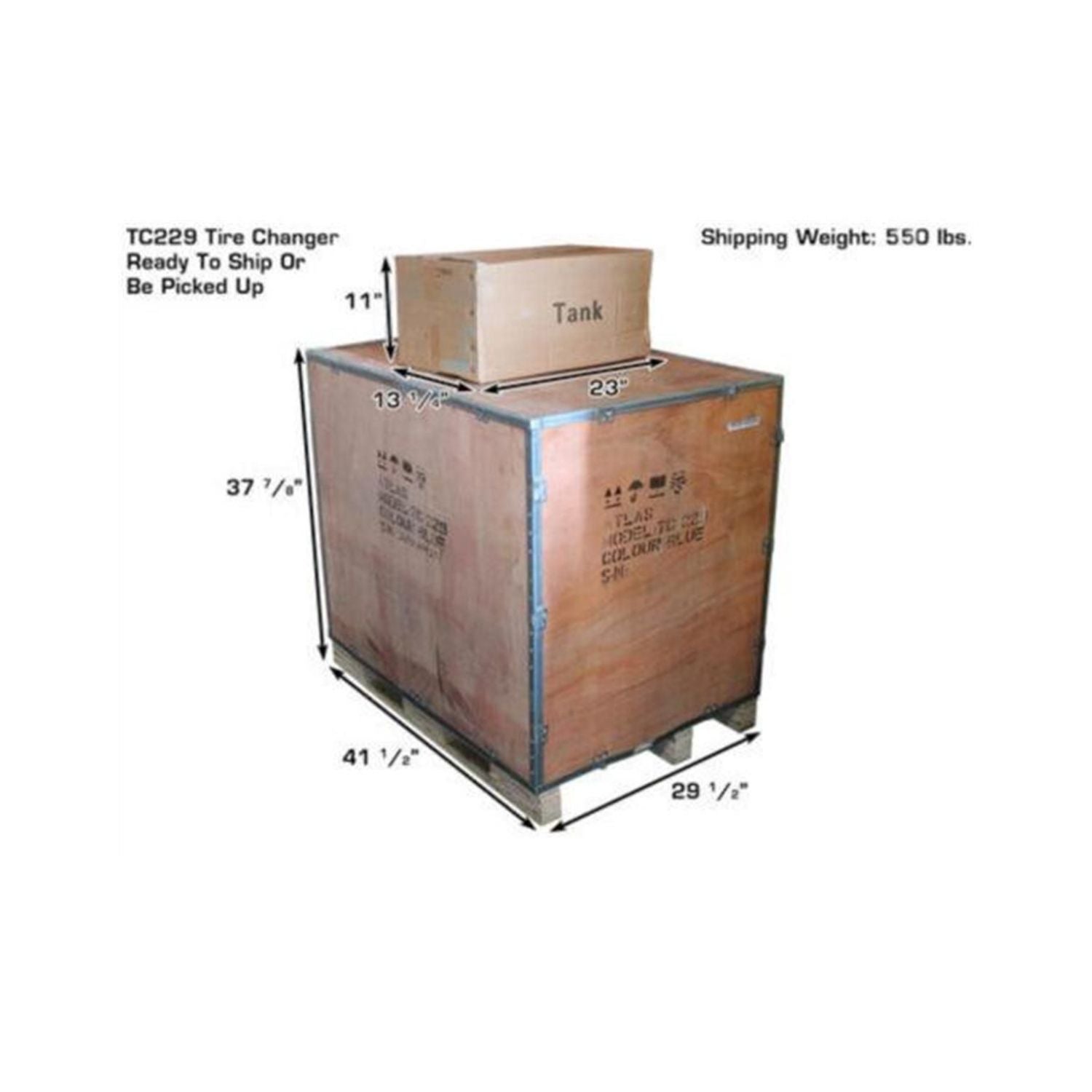

  Shipping Weight:	700 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
