Atlas® TC755DAA Tire Changer with Dual Assist Arms #ATETC755DAA-FPD
Couldn't load pickup availability
| Brand | Atlas® Automotive Equipment |
| Part Number | ATETC755DAA-FPD |
| Dimensions | 51" L × 45" W × 40" H |
| UPC | 810524027441 |
| Country of Origin | China |
| Rim Compatibility | Steel, Aluminum, Alloy |
| External Locking Rim Range (3 positions) | 11 7/8"–26" / 12 7/8"–27" / 13 3/4"–28" |
| Internal Locking Rim Range (3 positions) | 13 7/8"–27 7/8" / 14 5/8"–28 7/8" / 15 5/8"–29 7/8" |
Atlas® TC755DAA Tire Changer with Dual Assist Arms
A single-assist-arm changer becomes a real bottleneck when a shop is running back-to-back low-profile and performance tire jobs — one tech ends up wrestling a stiff sidewall solo while the machine sits idle waiting on the second hand it doesn't have. The Atlas® TC755DAA solves that with dual pneumatic assist arms built into the same tilt-back platform, so both sides of the wheel get help at once.
The TC755DAA's closest sibling is the standard Atlas TC755 — both share the identical 28" max rim range, 47" max tire diameter, and 5,500 lb. bead breaker force, so the real difference is the second assist arm. That extra arm adds roughly $2,000 to the price, which only pays off if stiff-sidewall volume actually justifies it.
Who the TC755DAA Is Built For
- A high-volume shop that services a steady mix of low-profile and performance tires where a single assist arm creates a real production bottleneck during busy hours.
- A tire shop that's had techs strain themselves manually holding a stiff sidewall in place — the dual assist arms take that physical load off the operator from both sides.
- A commercial garage running larger wheels up to the 28" max rim range and 47" max tire diameter that wants the tilt-back column's easier loading versus a fixed swing-arm changer.
- A shop that's outgrown its base TC755 and is ready to pay the roughly $2,000 premium for genuinely faster cycle times on difficult tires.
- An operation that fights stuck or aged beads regularly — the built-in beadblaster plus 5,500 lb. bead breaker force handles those without a second attempt.
- A bay training newer technicians where dual assist arms make stiff-sidewall jobs more forgiving and less physically demanding to learn on.
What the TC755DAA Is NOT Built For
Shops that don't need a second assist arm for controlling stiff sidewalls should look at the standard Atlas TC755 instead — it covers the identical 28" max rim range and 47" max tire diameter at a lower price without the dual assist arms.
What Makes the TC755DAA Different

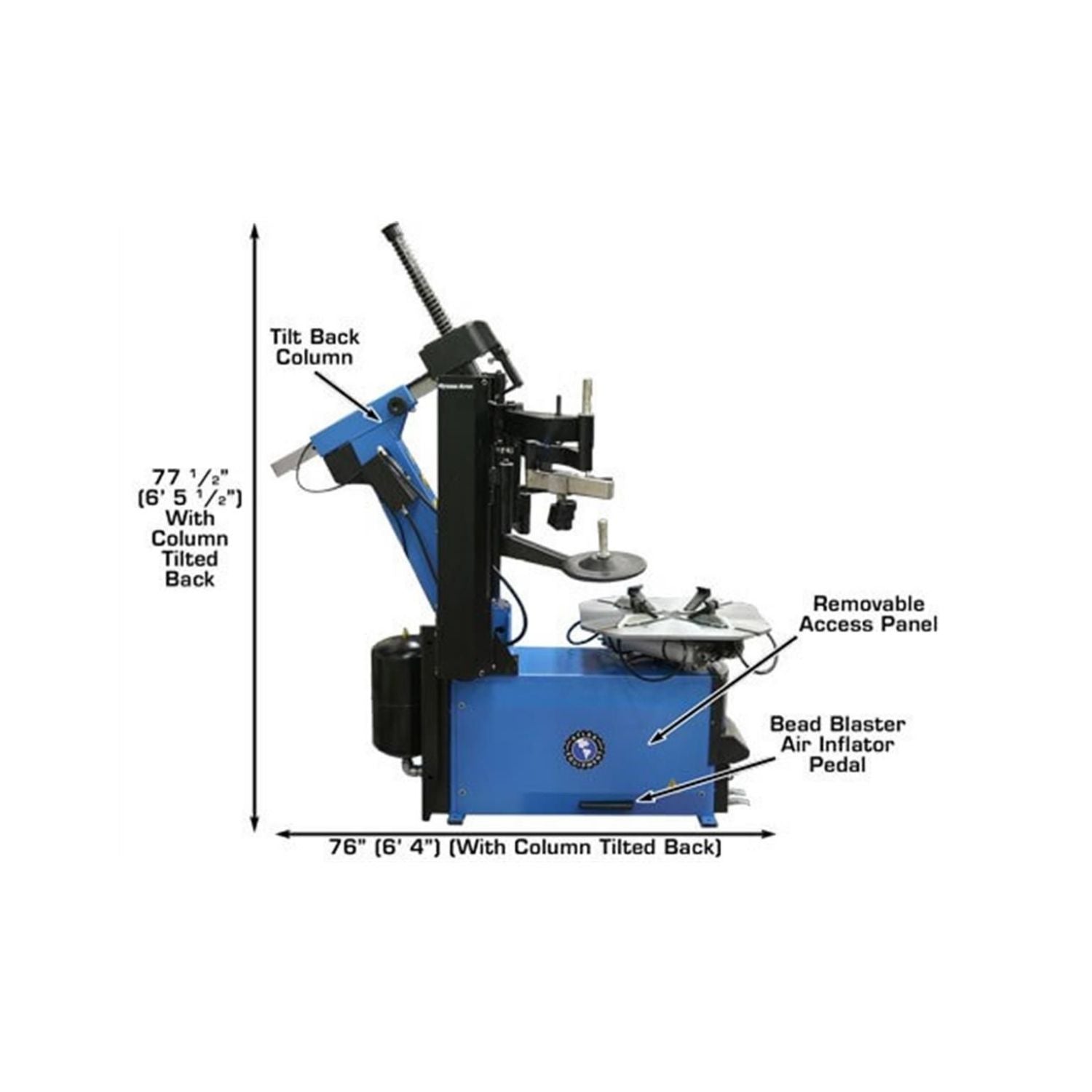

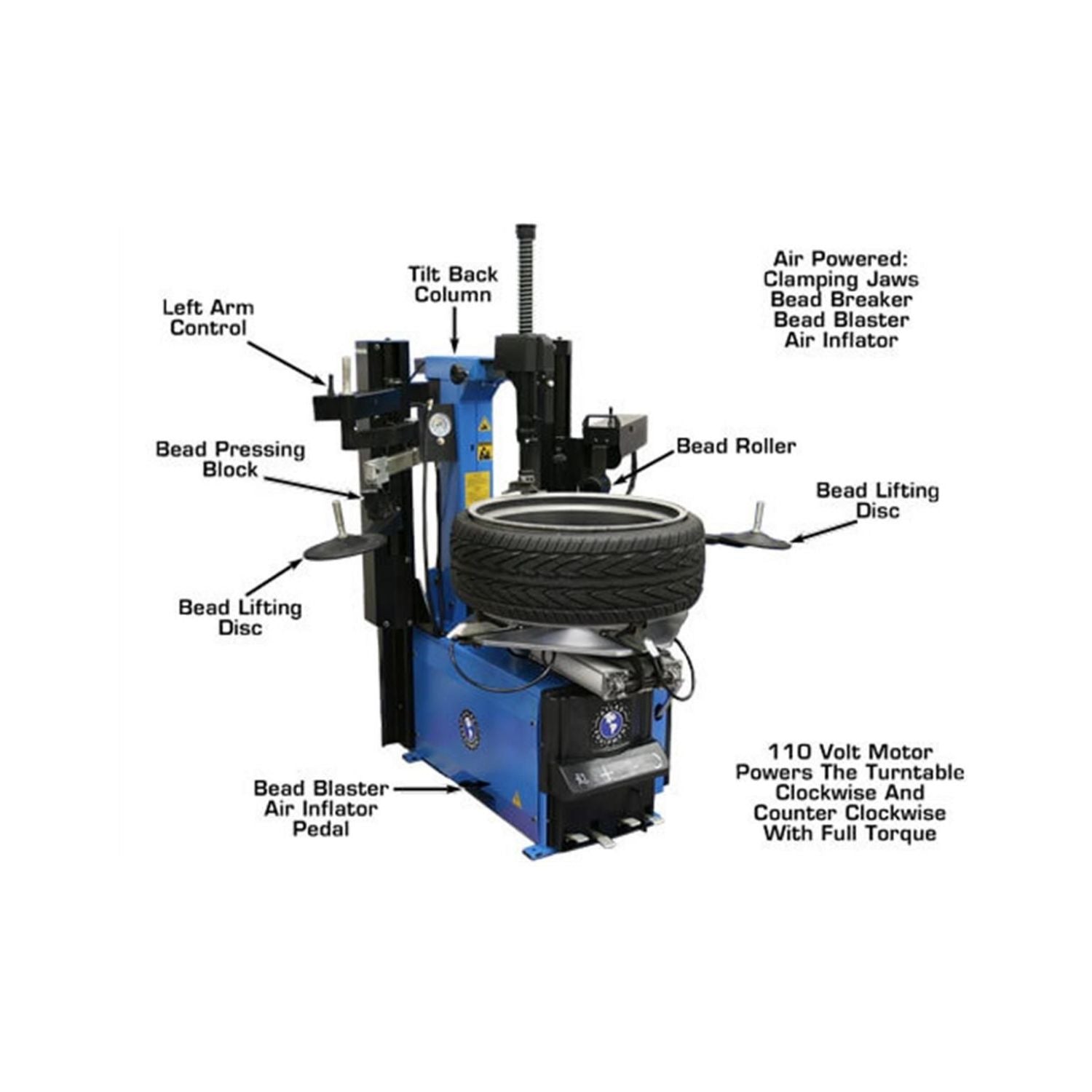

Tilt-Back Column Design
Tilts the entire column back for easier wheel loading and unloading versus a fixed swing-arm setup.

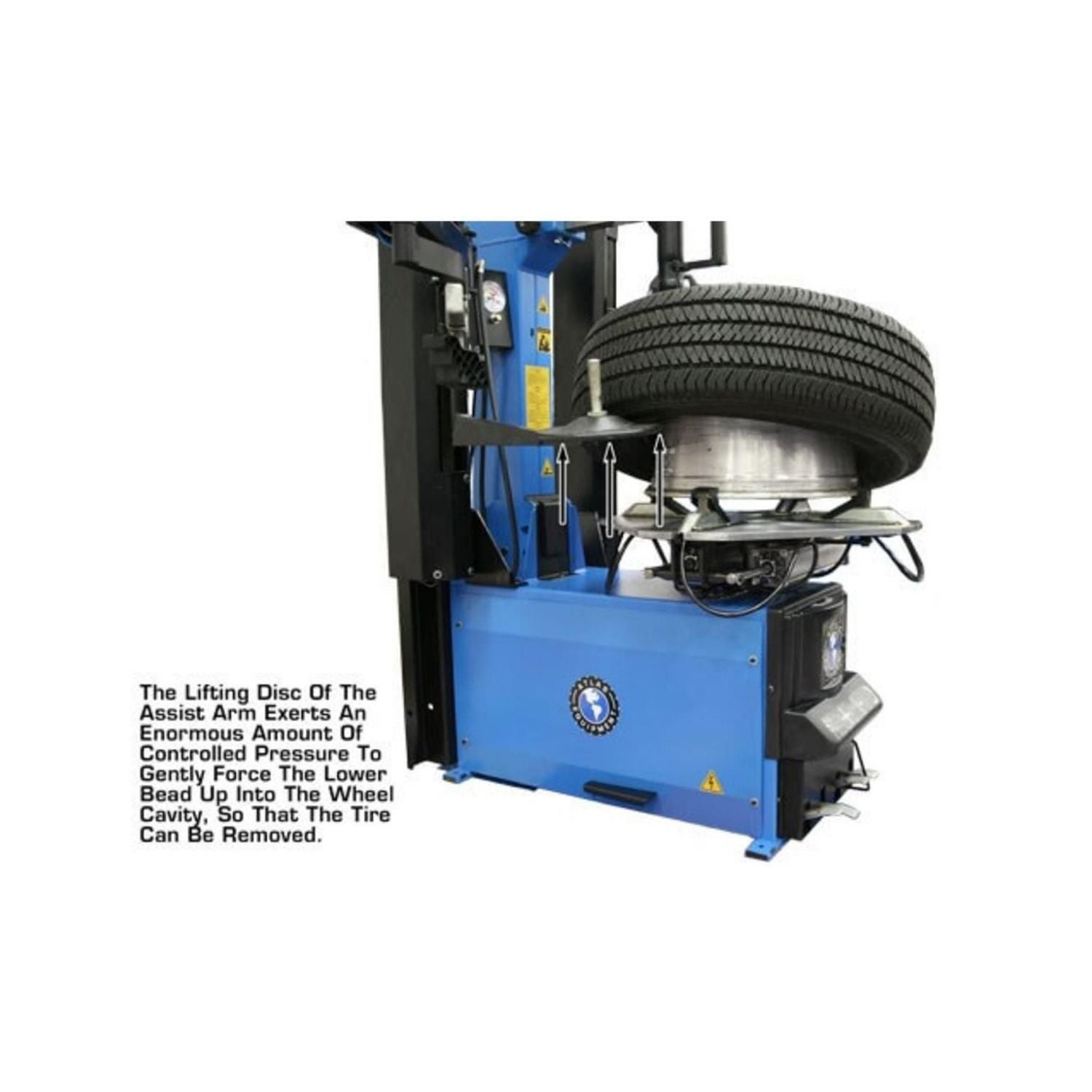

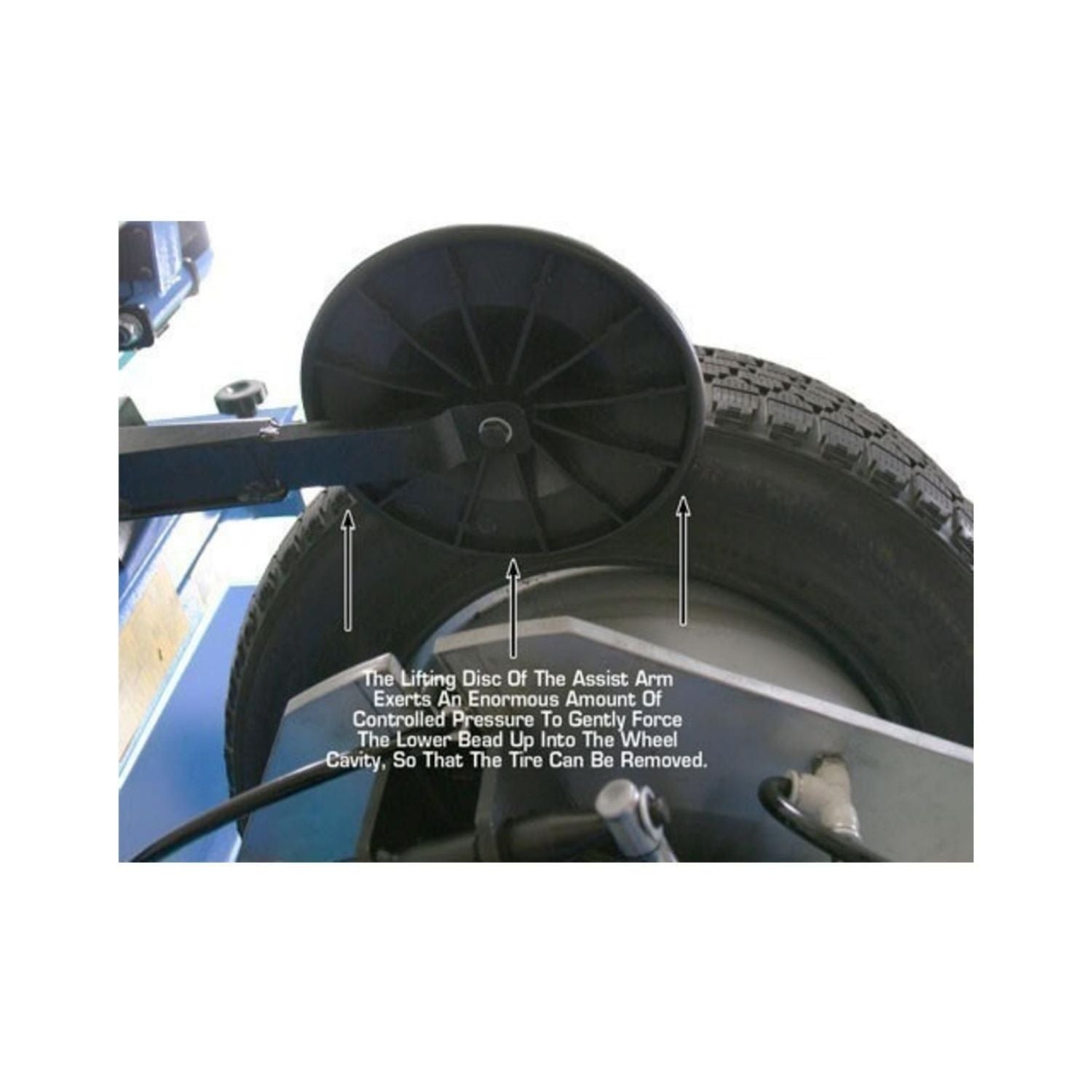

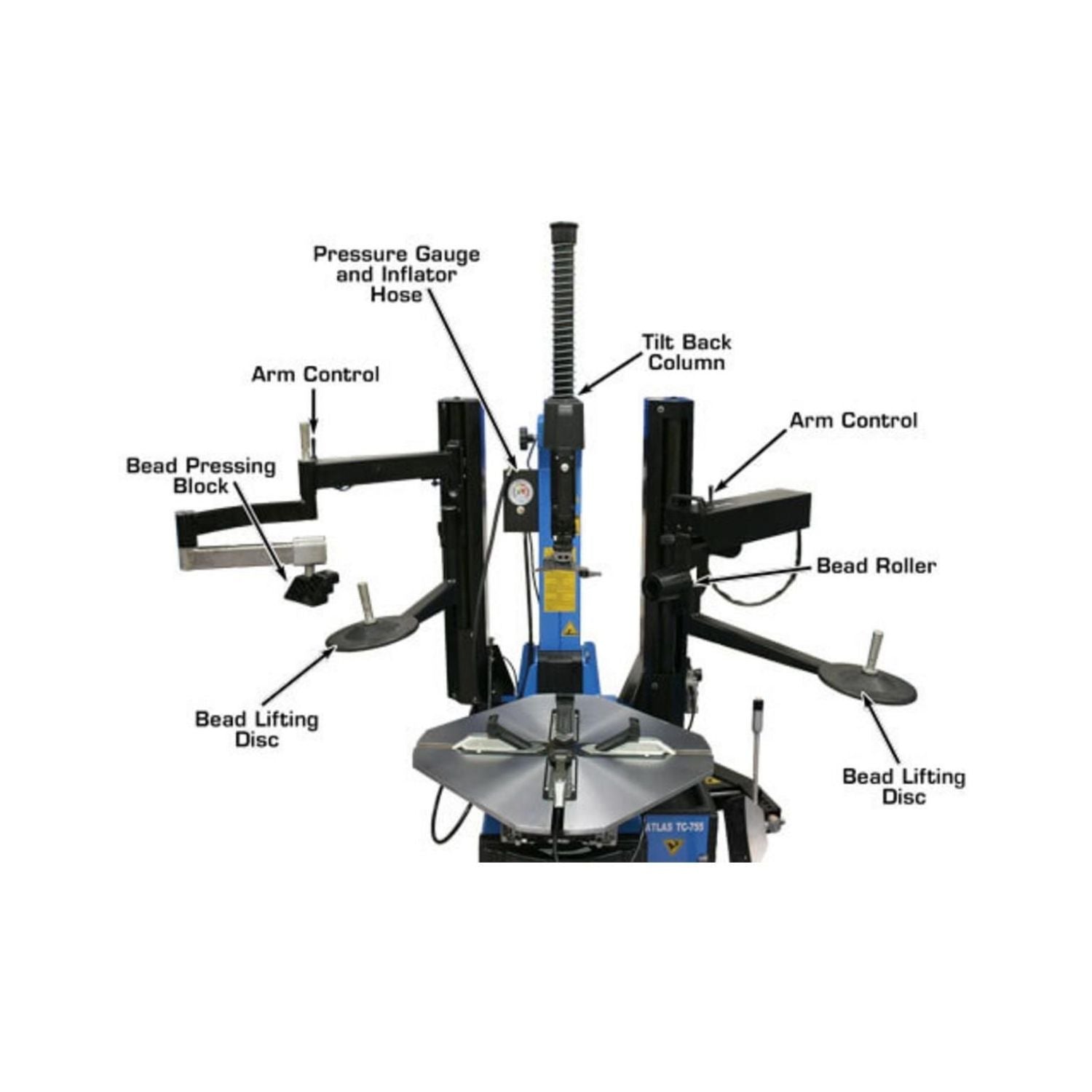

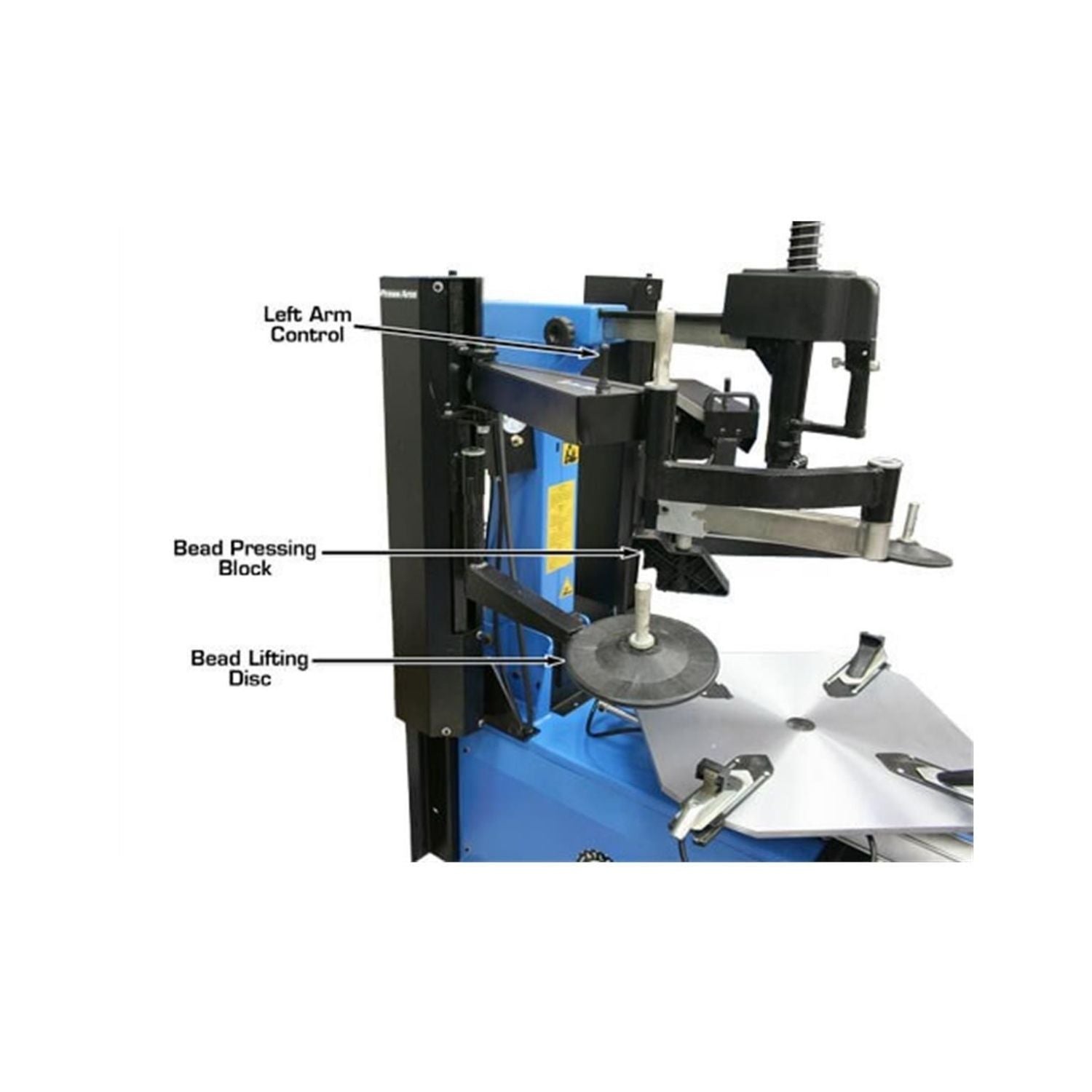

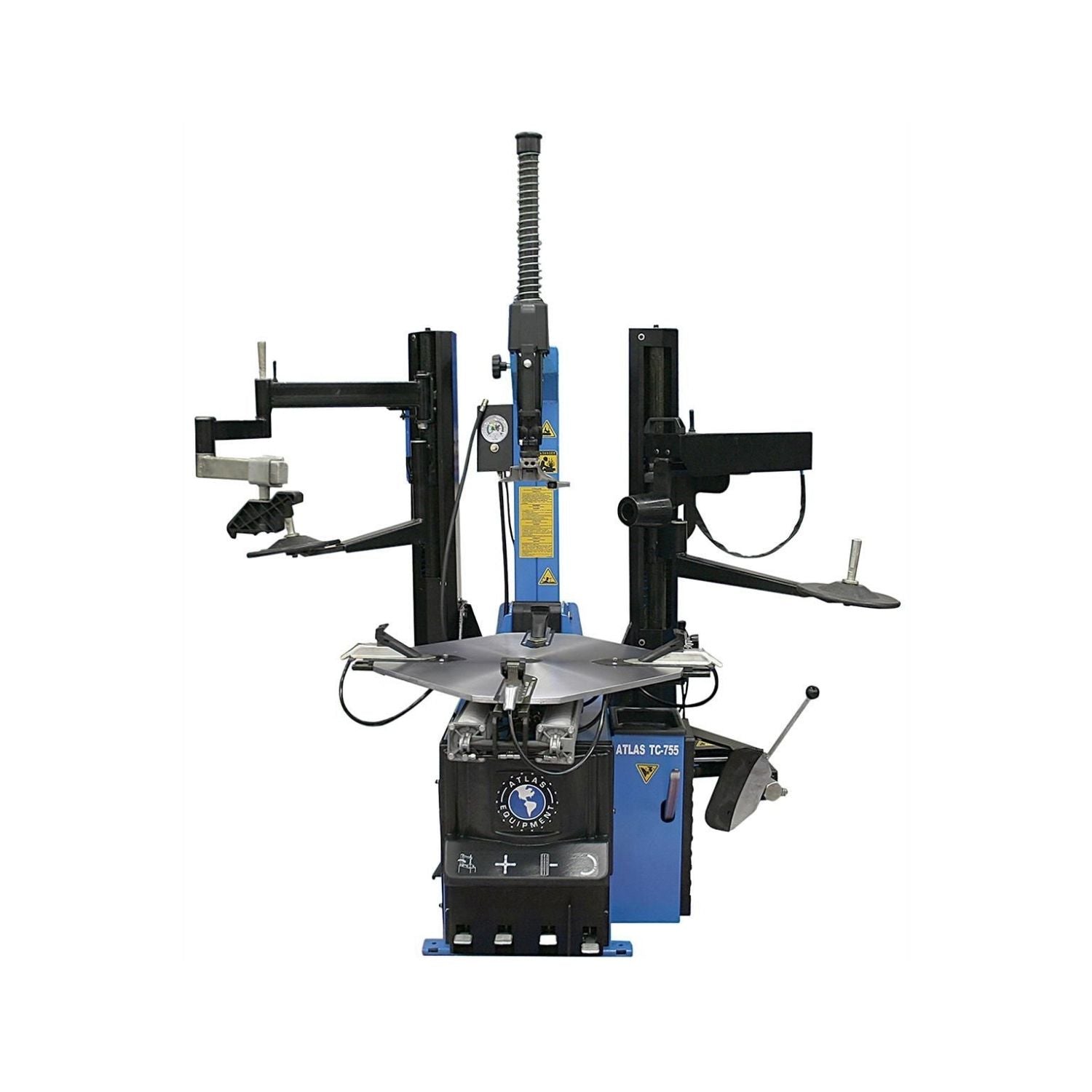

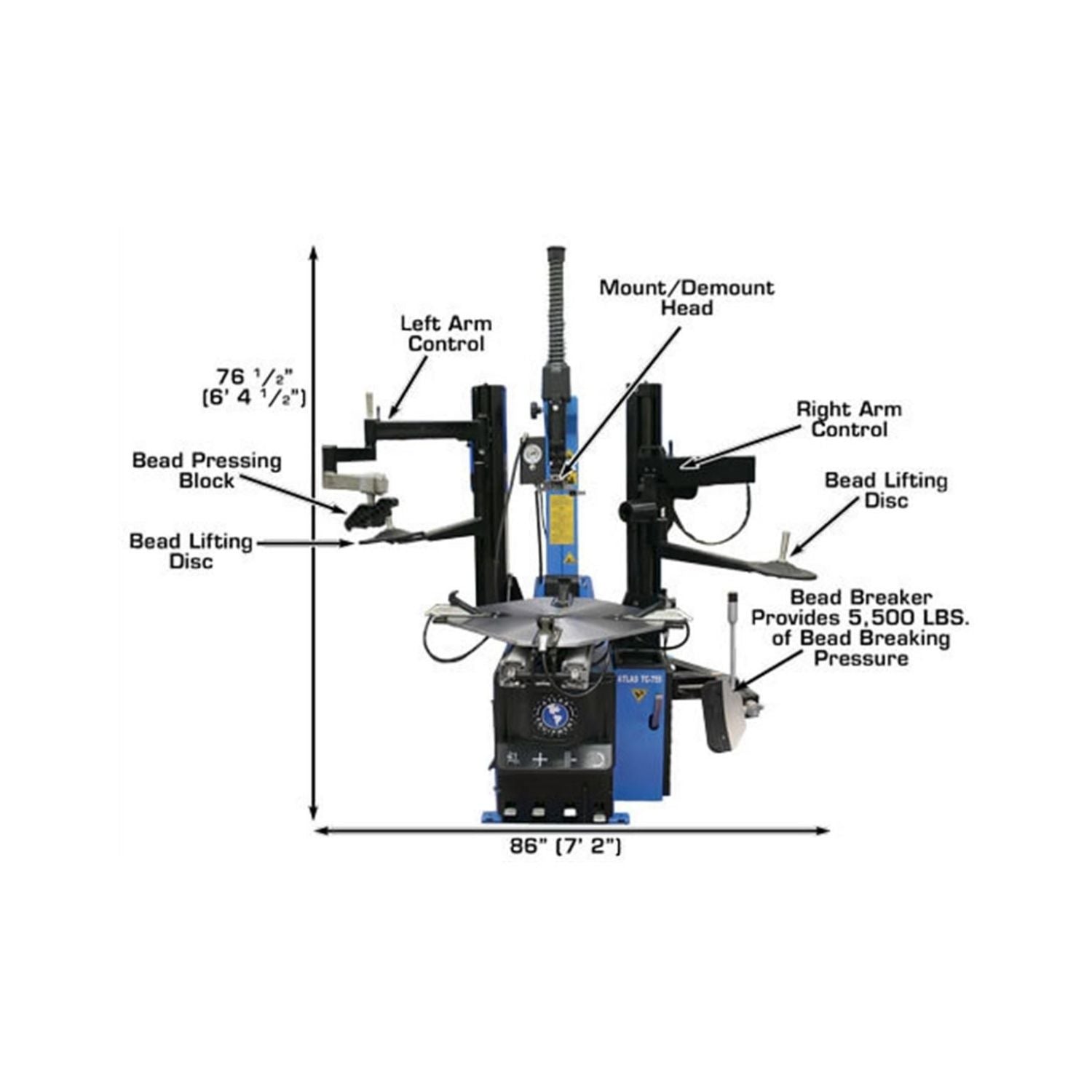

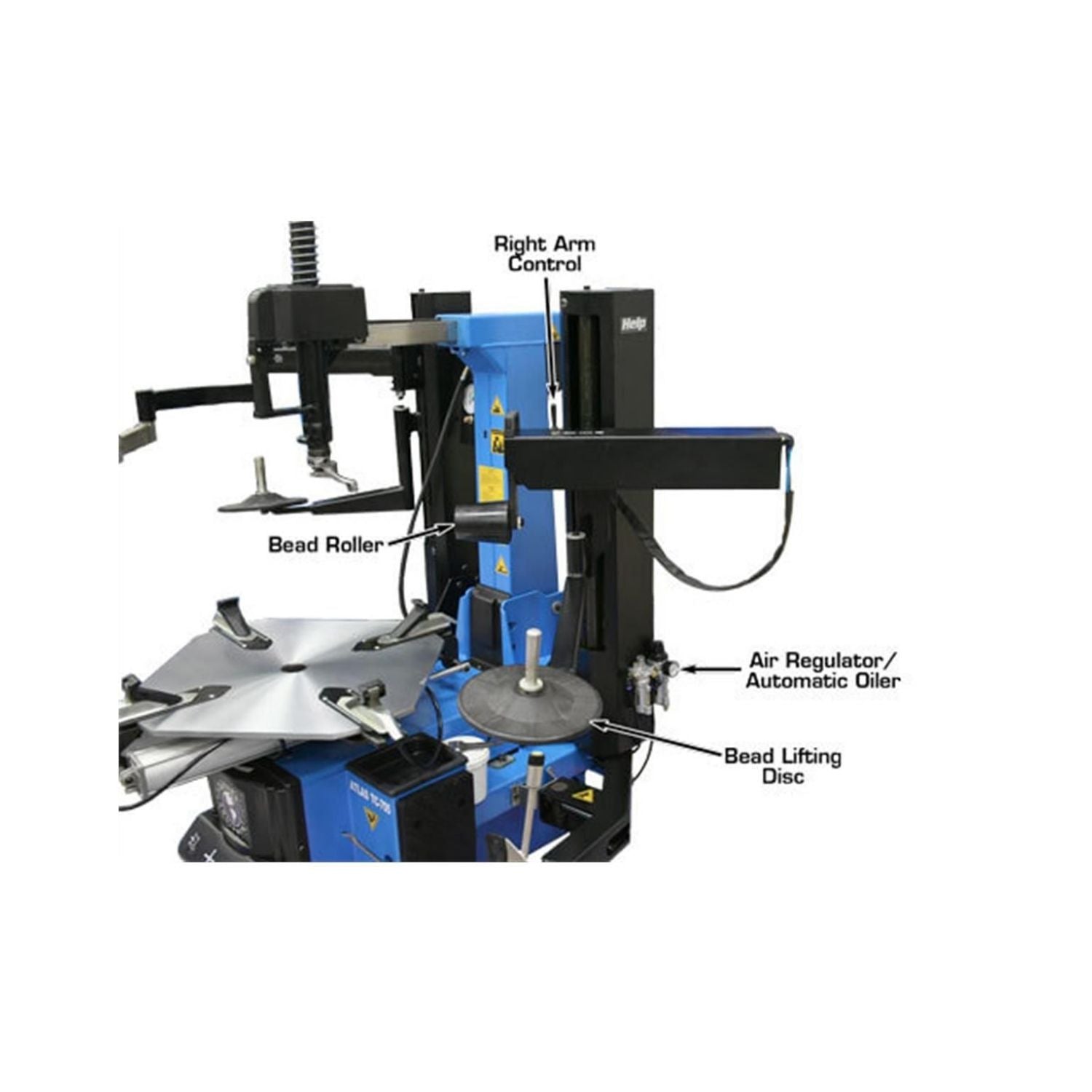

Dual Assist Arms Included
Both assist arms come standard, giving technicians control from either side of the wheel during mount/demount on stiff sidewalls.
Built-In Beadblaster
Integrated air-blast bead seating gets stubborn low-profile and performance tires seated fast without a separate tool.

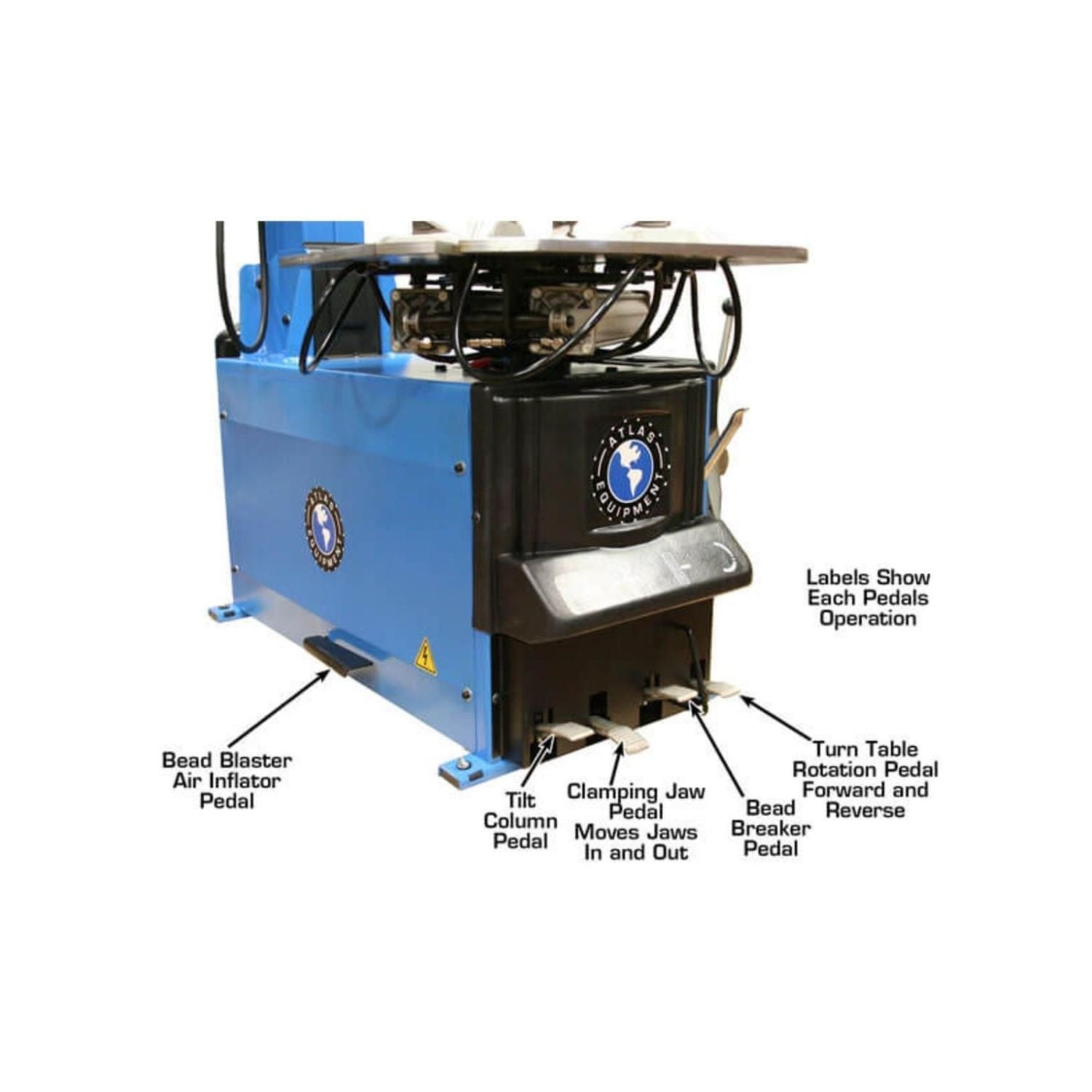

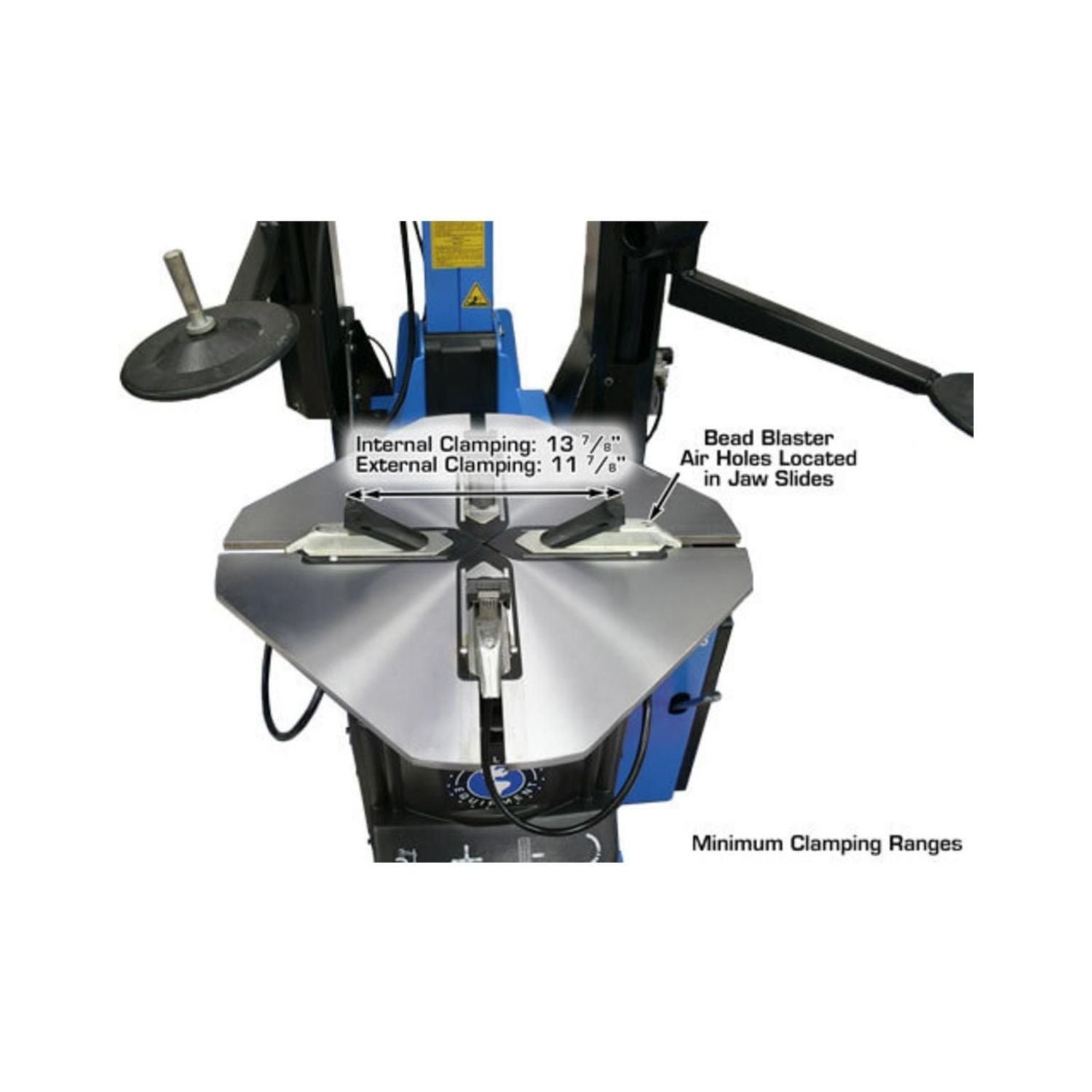

Adjustable 3-Position Jaws + Button-Controlled Bead Breaker
Stretches the clamping range from 11 7/8" up to 28" on one machine, with one-handed bead breaker control operated at the blade.

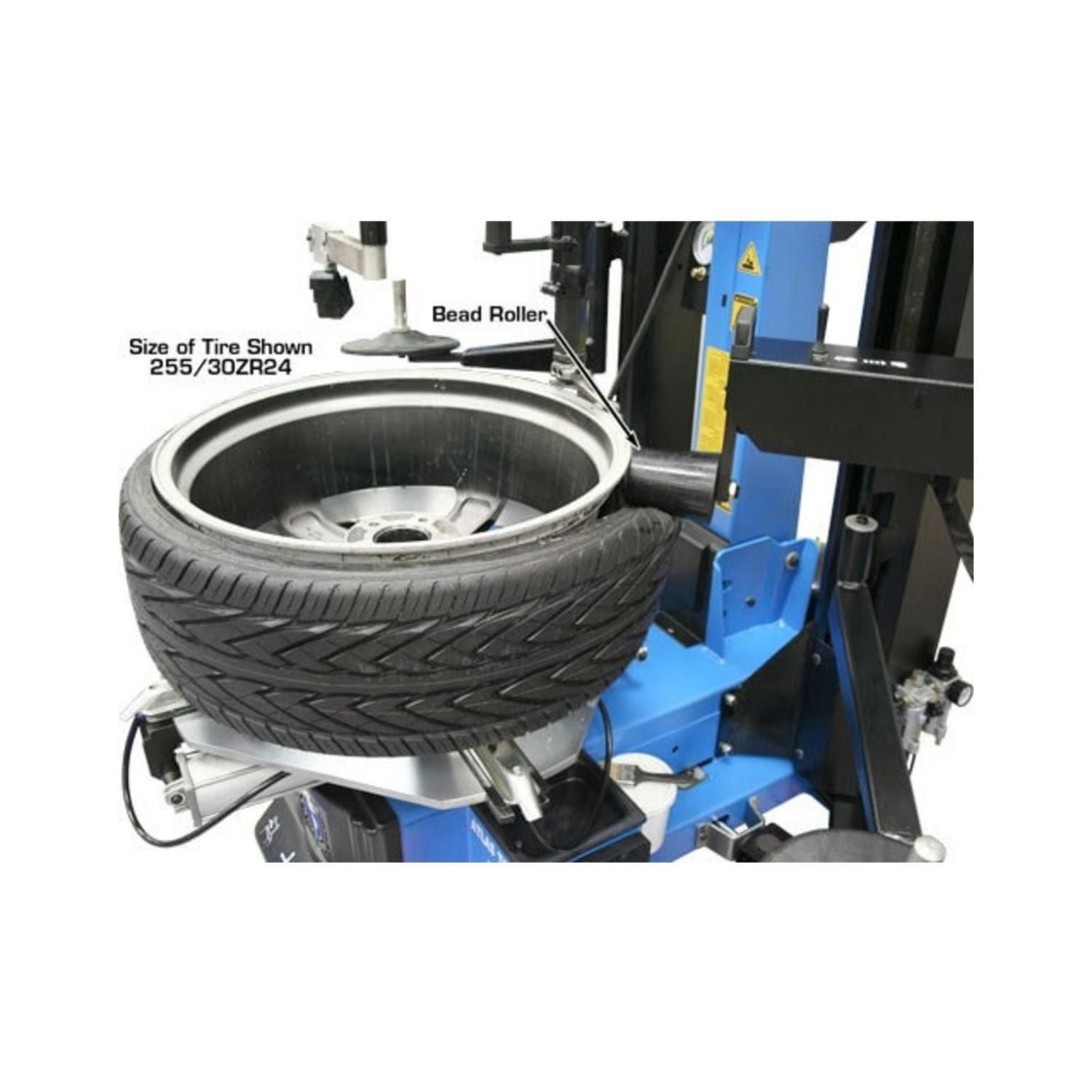

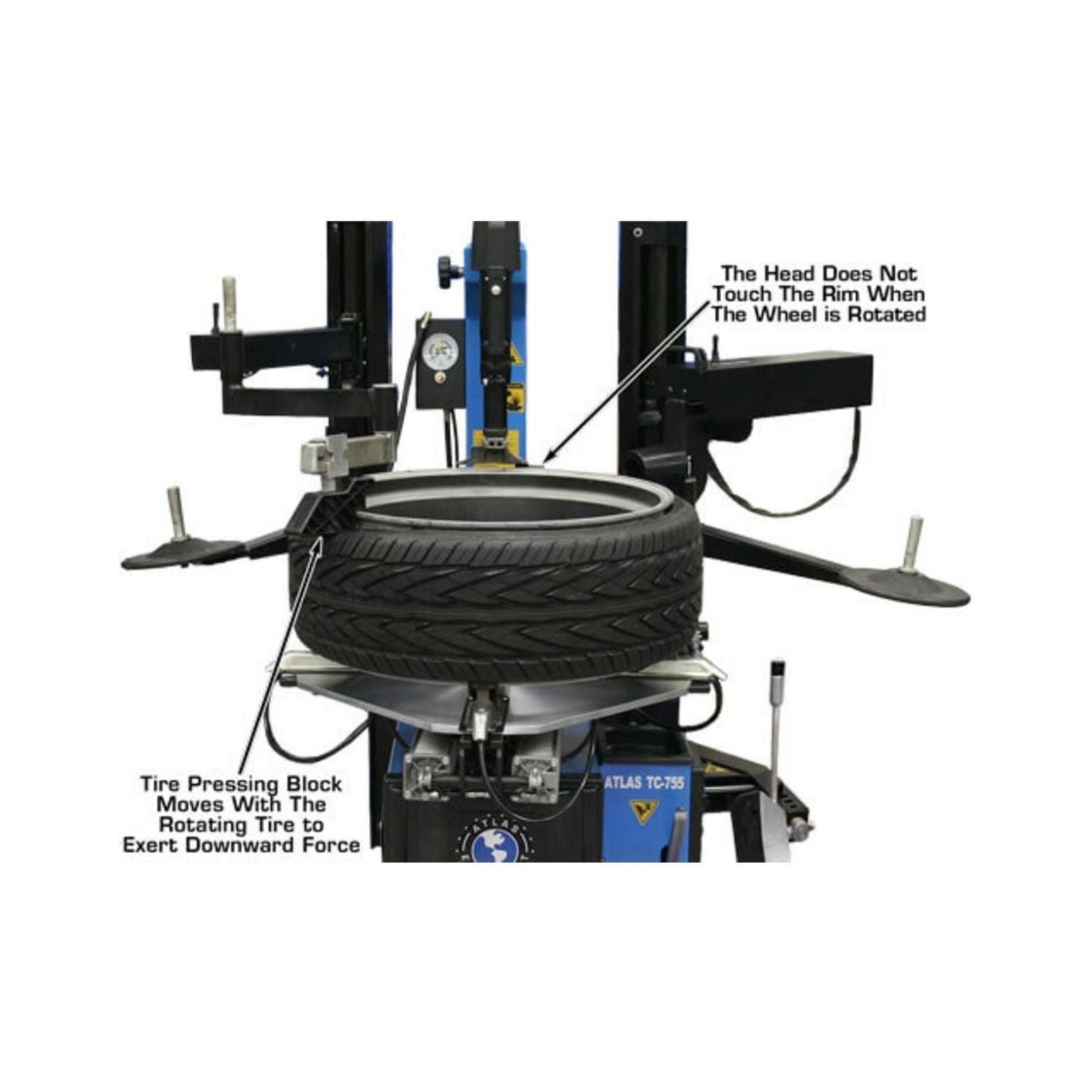

Extra-Large Turntable + Metal Mount/Demount Head
More clearance for bigger wheel-and-tire assemblies, with metal roller or replaceable plastic inserts to protect wheel finishes.
- High-volume low-profile/performance tire work
- Shops wanting two-sided sidewall control
- Budget-conscious shops on standard tires
- Low-volume bays that don't need dual arms
TC755DAA vs. TC755 — Which Fits Your Shop?
| Spec | TC755DAA | TC755 |
|---|---|---|
| Rim/Clamping Range | 11 7/8"–26" / 12 7/8"–27" / 13 3/4"–28" | 11 7/8"–26" / 12 7/8"–27" / 13 3/4"–28" |
| Max Wheel/Tire Diameter | 47" | 47" |
| Power Supply | 110V | 110V |
| Price | $5,899.00 | $3,899.00 |
| Best fit | Tilt-Back Rim-Clamp Tire Changer with Dual Assist Arms | Tilt-Back Rim-Clamp Tire Changer with Bead Blaster |
Not sure which model is right for your shop? Call (844) 480-6059 and we'll help you decide.
Full Specifications — TC755DAA
| Brand | Atlas® Automotive Equipment |
| Part Number | ATETC755DAA-FPD |
| Dimensions | 51" L × 45" W × 40" H |
| UPC | 810524027441 |
| Country of Origin | China |
| Rim Compatibility | Steel, Aluminum, Alloy |
| External Locking Rim Range (3 positions) | 11 7/8"–26" / 12 7/8"–27" / 13 3/4"–28" |
| Internal Locking Rim Range (3 positions) | 13 7/8"–27 7/8" / 14 5/8"–28 7/8" / 15 5/8"–29 7/8" |
| Max Tire Diameter | 47" |
| Max Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lb. |
| Air Requirement | 90–110 PSI (do not exceed 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 1,000 lbs. |
⚠️ Setup Requirements
- Power: Confirm your shop's electrical service matches this unit's power supply requirement before ordering.
- Air supply: Confirm shop compressed-air capacity meets the listed air pressure requirement (where applicable).
- Floor space: Confirm clear floor space for the unit's footprint plus operator clearance on all working sides.
- Setup help: Call (844) 480-6059 with any setup or first-use questions.
Atlas Warranty — TC755DAA
Atlas backs the TC755DAA with the following coverage terms.
| Item | Detail |
|---|---|
| Parts | 1 Year |
| Labor | Not included — parts-only coverage |
Warranty service is coordinated through Alamo Equipment & Service. Call (844) 480-6059 with any warranty question.
⚠️ Confirm exact terms at the time of purchase.
Frequently Asked Questions — TC755DAA
Why Buy the TC755DAA from Alamo Equipment & Service?
- We service it. When something needs attention after the sale, we're the same people you call — not a national warranty line.
- We help you pick the right unit. At $5,899.00 with a 28" max rim range and dual assist arms, this is built for high-volume stiff-sidewall work — we'll confirm that matches your shop's daily tire mix before you buy.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right model vs. Atlas TC755? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
