Atlas® AF9G 9HP Gas Air Compressor w/ Honda Engine #ATEMPAF9G-FPD
Couldn't load pickup availability
Atlas Automotive Equipment Shipping
Equipment: Free shipping
Parts: Standard tiered rate
| Model / Part Number | ATEMPAF9G-FPD |
| Horsepower | 9 HP (Honda GX270, Electric Start) |
| Tank | 30 Gallon Horizontal |
| CFM @ 90 PSI | 18 CFM @ 90 PSI |
| Pressure Range | 145–175 PSI |
| Warranty | 1-year parts only |
Atlas® AF9G — 9 HP (Honda GX270, Electric Start) Air Compressor
Mobile techs and outdoor/job-site work need commercial CFM without depending on shore power — a gas engine means the compressor runs the same whether it's parked in the shop or three states away on a service call.
The Atlas® AF9G is a gas-powered 2-stage reciprocating compressor rated for 9 HP (Honda GX270, Electric Start) with a 30 gallon horizontal tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the AF9G Is Built For
- ✅ Field service and roadside repair operations that need a lighter, more compact gas compressor than the 13–14HP AF13G/AF14G models
- ✅ Service trucks with limited bed space where the AF9G's smaller footprint and lighter 267 lb weight matter for mounting
- ✅ Techs running tire equipment and standard pneumatic tools in the field who don't need the higher CFM of the larger gas units
- ✅ Buyers who want the professional-grade features (pneumatic throttle control, head unloaders, charging system) at a lower entry price than the 13HP+ gas models
- ✅ Construction sites and remote job locations without electrical service where moderate, reliable air output is enough for the job
- ✅ Fleet operations standardizing on Honda small-engine equipment for parts and service commonality
What the AF9G Is NOT Built For
- ❌ Heavy-duty field applications needing more than 18 CFM — the 13HP AF13G or 14HP AF14G deliver more airflow for larger tool draw
- ❌ Shop-based operations with standard electrical service already available — an electric AF-series unit delivers more CFM per dollar
- ❌ Indoor, enclosed-space use — like any gas engine, the AF9G needs ventilation and should not run in an unventilated shop bay
What Makes the AF9G Different
Commercial 2-Stage Pump
The AF9G uses a 3-Cylinder, 2-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 18 CFM @ 90 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Plus Package Upgrades
gas-powered unit; includes pneumatic throttle control, head unloaders, and charging system as standard.
Power Requirements
gas-powered, no electrical hookup required.
- Lighter field/mobile service use
- Smaller footprint, 267 lb weight
- Honda GX270 reliability
- Heavy-duty field use needing more CFM — see AF13G/AF14G
- Shop-based use with power available
AF9G vs. FS-Curtis CA13-H (13 HP Honda Gas, 30 Gal Horizontal) — Which Compressor Is Right for Your Shop?
| Decision Point | AF9G | FS-Curtis CA13-H (13 HP Honda Gas, 30 Gal Horizontal) |
|---|---|---|
| Horsepower / Engine | 9 HP, Honda GX270 Electric Start | 13 HP, Honda Gas Drive |
| Tank | 30 Gallon Horizontal | 30 Gallon Horizontal |
| CFM @ 175 PSI | 14.5 CFM | 22 CFM (E57 pump) |
| Best fit | Lighter-duty field use, smaller footprint | Higher HP field use needing more CFM |
Choose the AF9G for a lighter, more compact gas unit at a lower entry price when 18 CFM covers your field needs. Choose the FS-Curtis CA13-H (or Atlas's own AF13G) if your field work needs more horsepower and CFM headroom. Both stay inside Alamo’s catalog — call (844) 480-6059.

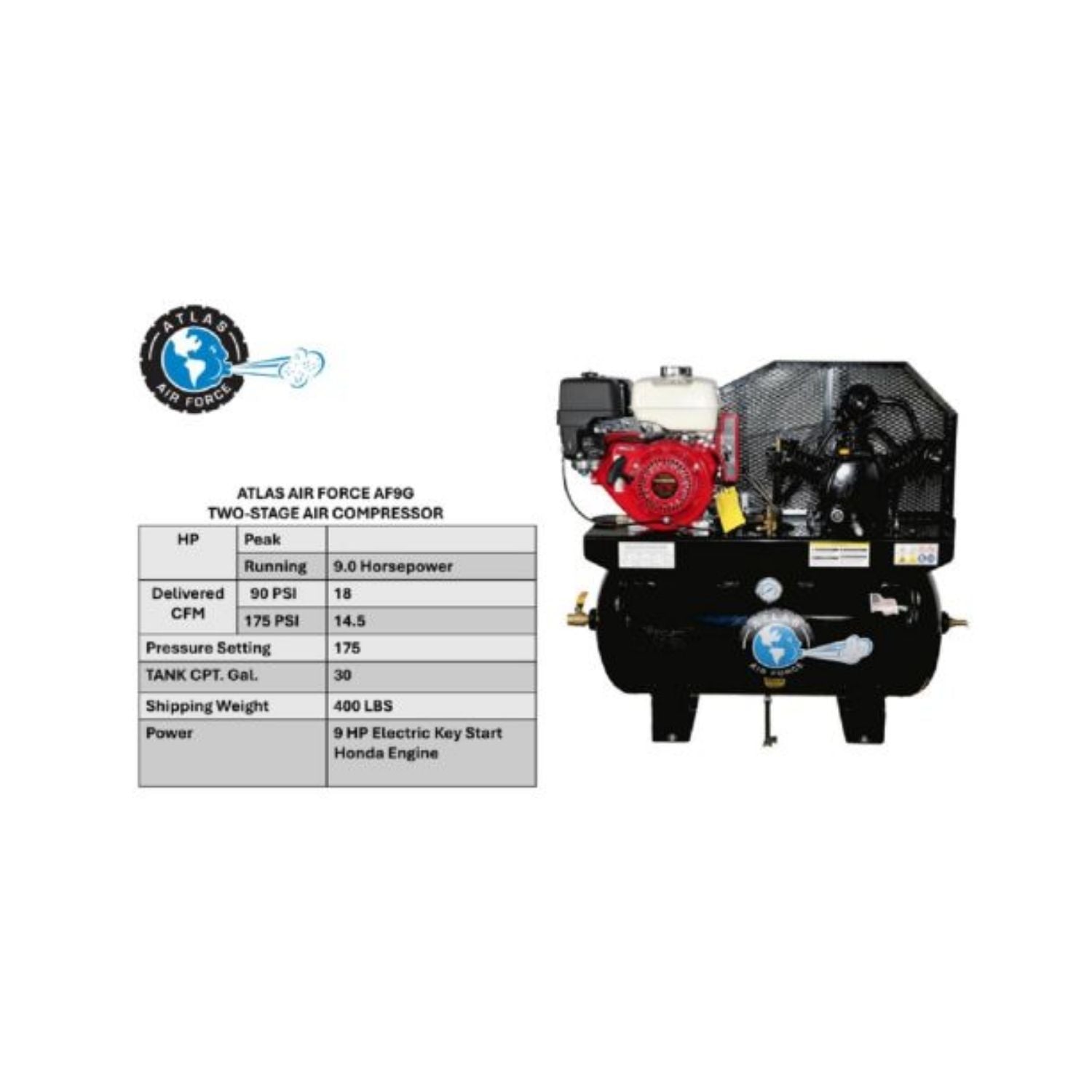

Full Specifications — AF9G
| Model / Part Number | ATEMPAF9G-FPD |
| Horsepower | 9 HP (Honda GX270, Electric Start) |
| Pump | 3-Cylinder, 2-Stage |
| Configuration | Gas-Powered 2-Stage Reciprocating |
| Tank | 30 Gallon Horizontal |
| CFM @ 90 PSI | 18 CFM @ 90 PSI |
| CFM @ 175 PSI | 14.5 CFM @ 175 PSI |
| Pressure Range | 145–175 PSI |
| Overall Dimensions | 46" L × 19" W × 37" H |
| Shipping Weight | 267 lbs |
| Warranty | 1-year parts only |
⚠️ Setup Requirements
- Electrical: gas-powered, no electrical hookup required.
- Floor space: 46" L × 19" W × 37" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 267 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
Atlas® Warranty — AF9G
Atlas® backs the AF9G with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
Frequently Asked Questions — Atlas® AF9G
Why Buy the AF9G from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 9 HP (Honda GX270, Electric Start), 30 Gallon Horizontal tank, 18 CFM @ 90 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the AF9G or the FS-Curtis CA13-H (13 HP Honda Gas, 30 Gal Horizontal) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
