Atlas® AF9P 7.5HP 80 Gallon Commercial Air Compressor w/ Plus Package #ATEMPAF9P-FPD

Atlas® AF9P — 7.5 HP Air Compressor

A 3-4 bay shop running an impact wrench, a tire machine, and a paint gun off the same line at once needs a compressor built for that overlap — not one that's technically rated high enough on paper but chokes the moment two tools pull air simultaneously.

The Atlas® AF9P is a commercial 2-stage reciprocating compressor rated for 7.5 HP with an 80 gallon vertical tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Plus Package — automatic low oil monitor, automatic tank drain, air-cooled aftercooler — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.

Who the AF9P Is Built For

• ✅ A 3-4 bay general repair shop running an impact wrench in one bay, a tire machine in another, and a paint gun in a third — all pulling from the same line at once without the tank running dry mid-job
• ✅ Shops that have outgrown a 60-gallon single-stage unit and are tired of the compressor cycling constantly under daily commercial use
• ✅ An owner who wants the auto tank drain and low-oil monitor built in now, instead of retrofitting them later and paying for downtime when a tech forgets to drain the tank manually
• ✅ Shops running sandblast cabinets or other high-draw equipment alongside standard air tools, where a single-stage compressor's duty cycle becomes the bottleneck
• ✅ A shop planning to add a second technician or a second bay in the next year or two — the AF9P has headroom the smaller AF5/AF6/AF7 models don't
• ✅ Multi-tech operations where the air compressor running out mid-job means a tech standing around instead of billing hours

What the AF9P Is NOT Built For

• ❌ Home garages or single-bay shops doing occasional weekend work — the AF2 20-gallon portable costs a fraction as much and won't sit mostly idle
• ❌ Shops on a tight startup budget that don't need the Plus Package upgrades yet — the standard AF9 without Plus saves real money and can be upgraded later
• ❌ Operations needing more than 23 CFM continuous — look at the AF9-120H or a larger FS-Curtis duplex unit instead

What Makes the AF9P Different

Commercial 2-Stage Pump

The AF9P uses a 3-Cylinder, 2-Stage Cast Iron pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.

CFM & Pressure Output

Delivers 23 CFM @ 90 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.

Plus Package Upgrades

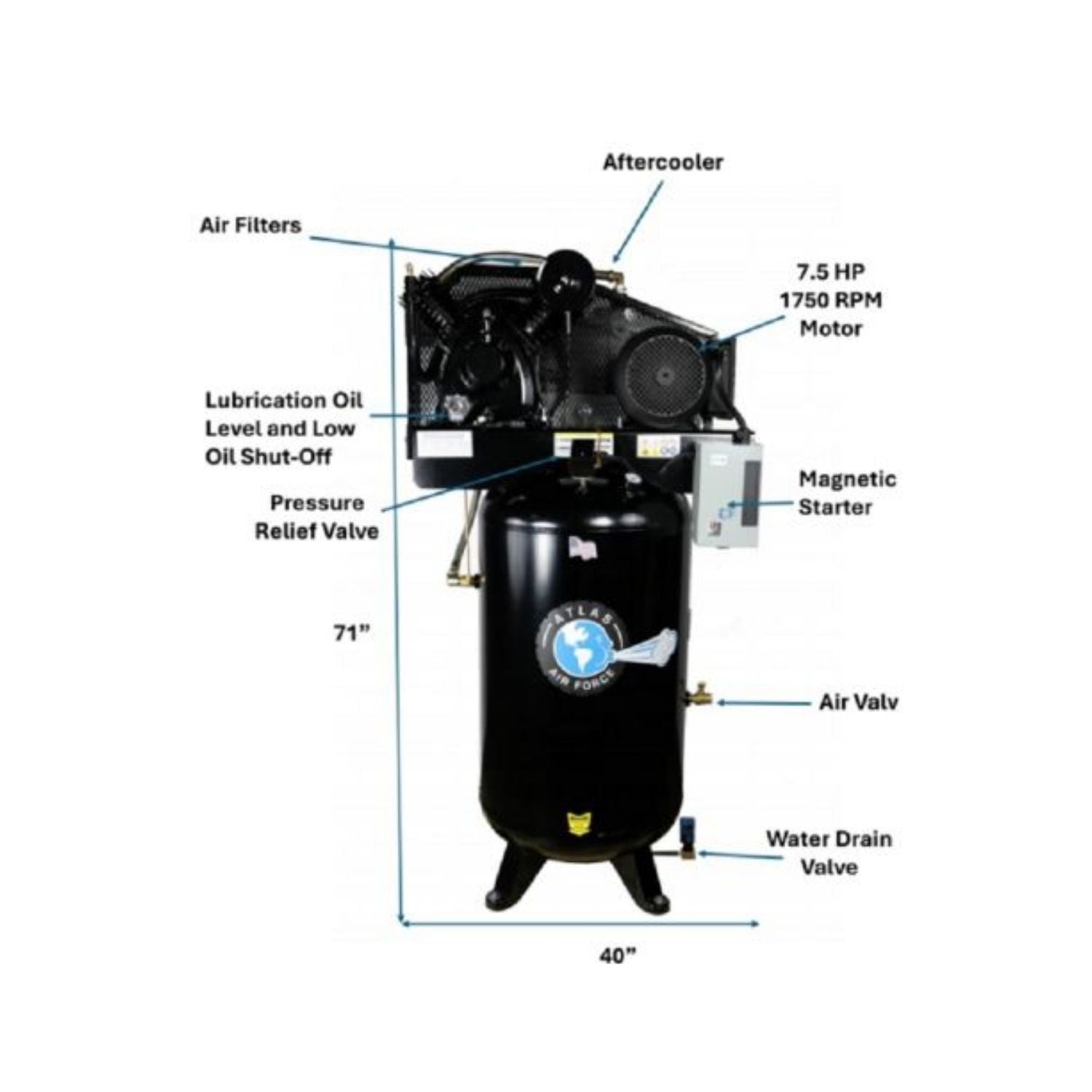

Includes automatic low oil monitor, automatic tank drain, air-cooled aftercooler — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.

Power Requirements

220V, 1-Phase, 40 Amp Breaker, #8 Wire Required. Confirm your panel and breaker sizing with an electrician before delivery.

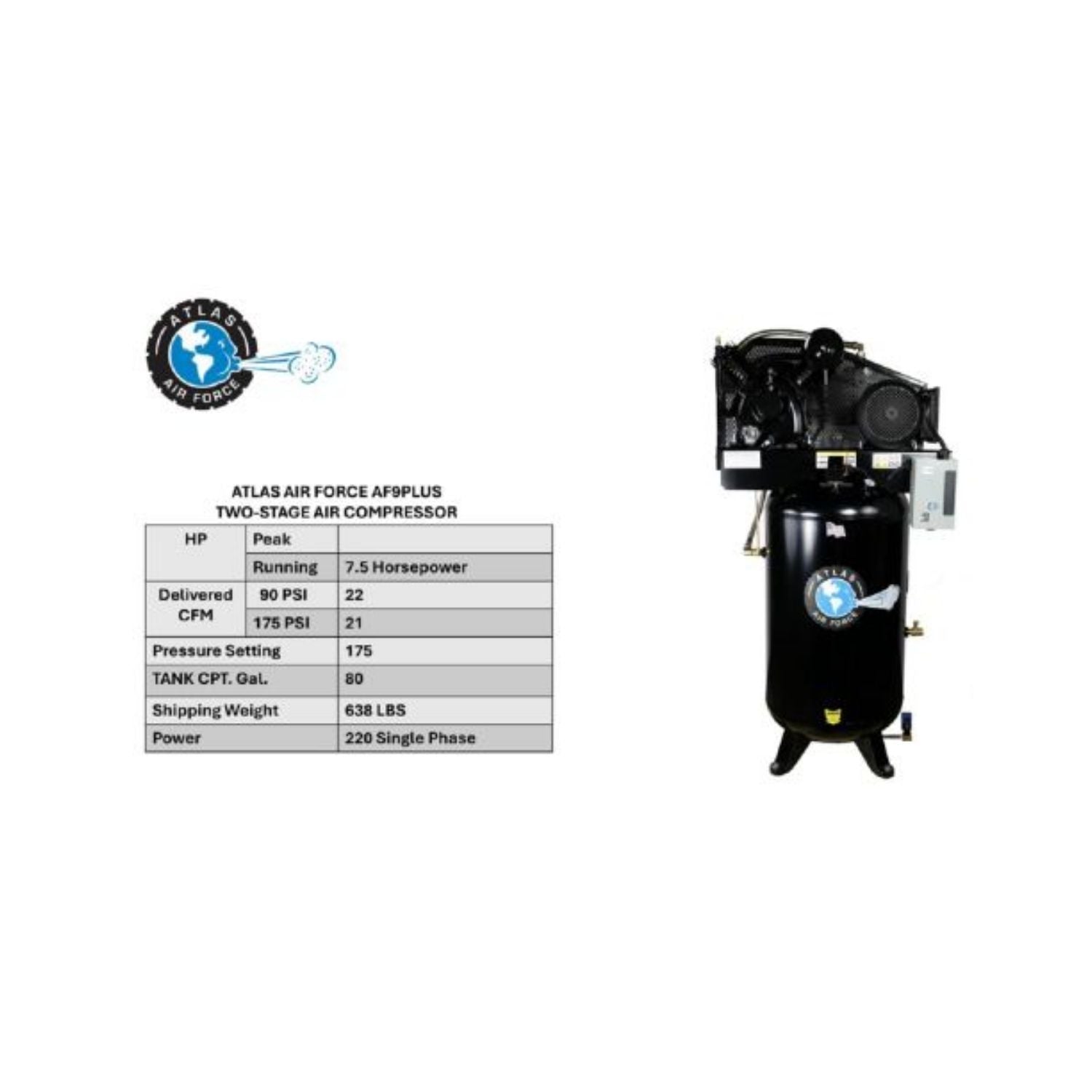

Full Specifications — AF9P

Atlas® Warranty — AF9P

Atlas® backs the AF9P with a 1-year parts-only warranty.

Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
