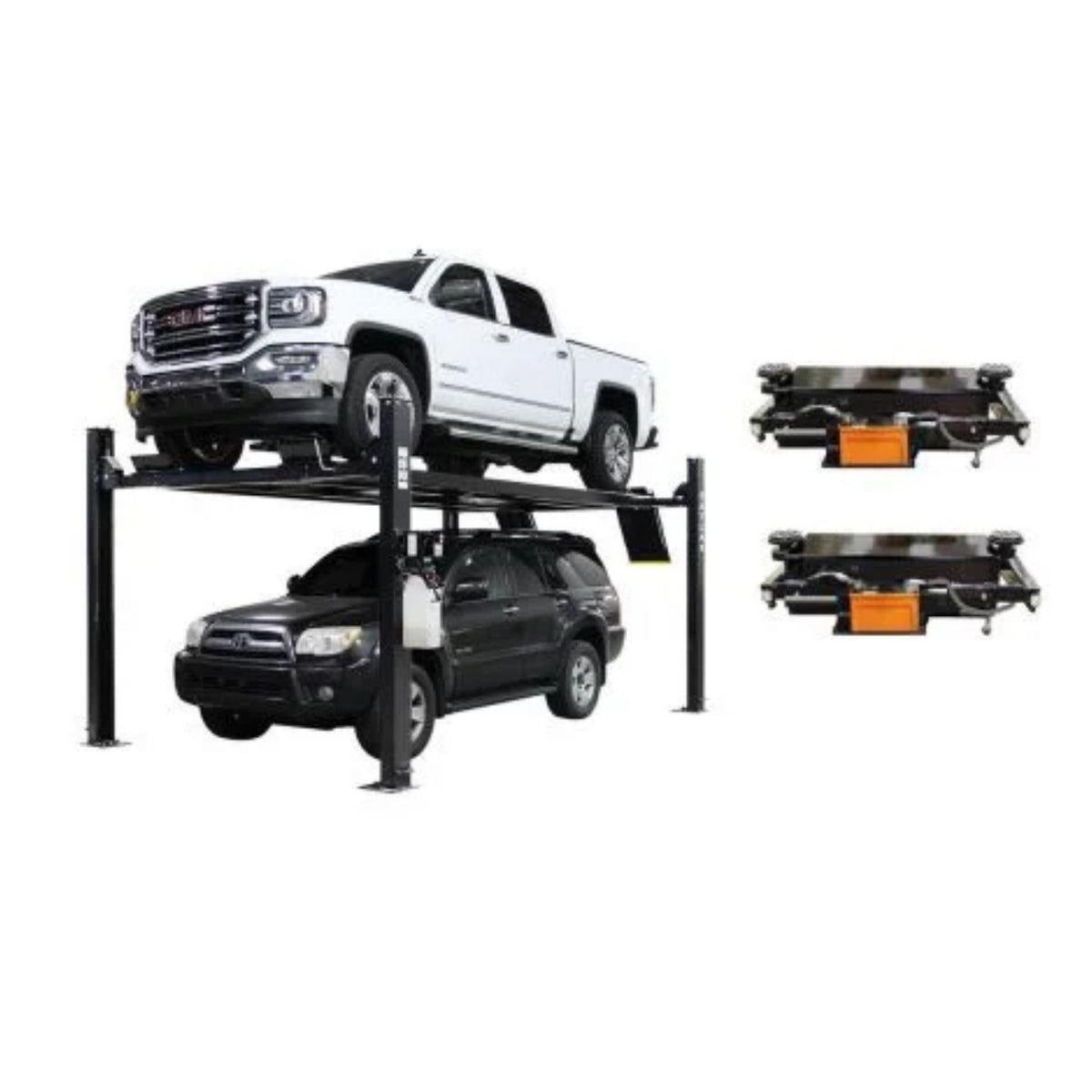

Atlas® APEX9 ALI-Cert Lift w/ 2 RJ45 Air Jacks #ATEAPEX9-COMBO3-FPD
Couldn't load pickup availability
| Lift | APEX9 — 9,000 lb, ALI certified |
| Jacks | 2x PROJACK45 air-operated (combo spec) |
| Power | 110V, 30A |
| Warranty | Lift 5/2 yr |
- 110 volt, 30 amp breaker
- Dedicated circuit — have an electrician confirm
- Standard residential-panel territory
- Air-operated combo jacks need shop air at the point of use
- Confirm the drop before install
- The lift itself runs on 110V
- 133 7/8" overall width, 227 1/2" length with ramps
- 184" max wheelbase — full-size trucks
- Confirm vehicle raised height before ordering
Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks — Lift Combo Package
A home or light-commercial shop that buys a certified lift and then shops jacks separately usually ends up with an unmatched set — different jack tracks, different pad heights, different warranty paths. The Atlas APEX9 combo solves it as a system: the ALI-certified 9,000 lb Apex 9 four-post plus TWO air-operated rolling jacks specified for this lift by the manufacturer.
The Apex 9 is the certification story (independently tested to ANSI/ALI ALCTV, stated on the manufacturer's page) with commercial-grade weight behind it — 2,975 lbs of lift, heavier than the Garage PRO9000 — and the included air jacks ride its runway tracks for wheel service on the same certified platform.
Who the Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks Is Built For
- Buyers who need the ALI certification question answered — the Apex 9 in this combo is certified to ANSI/ALI ALCTV (manufacturer's page statement), and the jacks arrive matched to it instead of sourced separately.
- Serious home shops and light-commercial operations — 9,000 lbs of certified capacity with included air jacks is the one-order version of a service-ready certified bay.
- Truck and SUV owners — the Apex 9's 184" max wheelbase and 196 1/2" runways hold full-size trucks, and the 2x included air jacks (4,500 lbs each, per the combo's spec) service both axles.
- Shops with compressed air — the included jacks are air-operated (combo configuration); the garage with a compressor gets the full combo capability.
- Warranty-driven buyers — the Apex 9 carries 5 years structural / 2 years hydraulic (parts), the strongest coverage in the Atlas portable 4-post line.
What the Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks Is NOT Built For
This is not the budget combo — the certification and the dual air jacks are priced accordingly, and buyers who don't need ALI certification should compare the PRO9000 combo honestly. The combo's jacks follow the manufacturer's combo spec (which differs from the standalone RJ45A page — the combo's configuration is what ships), and the lift is 110V 30A.
Important sizing note: measure bay width (133 7/8" with motor), length (227 1/2" with ramps), ceiling against the 99" columns plus vehicle at full rise, and confirm shop air for the jacks before purchase.
What Makes the Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks Different
The lift: Apex 9 — the certified platform
9,000 lbs, ALI certified to ANSI/ALI ALCTV, 2,975 lbs of machine with 86" of rise and runway tracks for the included jacks — the certification and the weight both real.
The jacks: two air-operated rolling bridges
4,500 lbs each in the combo's configuration, riding the Apex 9's tracks — both axles serviced on the certified lift, per the manufacturer's combo spec.
The system argument
Certified lift plus matched jacks in one order — one freight bill, one warranty path, no jack-fit guessing.
Best For
- ALI-certification-required buyers
- Serious home / light commercial
- Full-size trucks & SUVs
- Shops with compressed air
Not Ideal For
- Budget buyers (see PRO9000 combo)
- 2-post shops
- Airless garages (jacks need air)
APEX9 combo vs the PRO9000 combo — the certified comparison
| Spec | APEX9 Combo (this page) | PRO9000 Combo |
|---|---|---|
| Lift capacity | 9,000 lbs | 9,000 lbs |
| ALI certified | Yes (lift component) | No |
| Lift warranty | 5 yr structural / 2 yr hydraulic | 2 yr / 1 yr |
| Jacks included | 2x air-operated (combo spec) | RJ45A jack(s) — count per mfr listing |
| Lift shipping weight | 2,975 lbs | 2,300 lbs |
| Best for | Certification-required work | HD hobbyist use |
The certification, the stronger warranty, and the dual air jacks are the trade — whether the shop needs the badge and the coverage decides it.
Full Specifications - Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks
| Lift — capacity | 9,000 lbs |
| Lift — type | 4-post free-standing/portable ALI CERTIFIED heavy duty lift |
| Lift — ALI | Certified to ANSI/ALI ALCTV (manufacturer page statement) |
| Lift — lifting height | 86" |
| Lift — clearance under runways | 81 1/4" |
| Lift — columns | 99" |
| Lift — overall width | 121 7/8" w/o motor / 133 7/8" w/ motor |
| Lift — runway length | 196 1/2" |
| Lift — max wheelbase | 184" |
| Lift — power | 110V, 30A |
| Lift — shipping weight | 2,975 lbs |
| Lift — included | Steel ramps, jack tray, 4 drip trays, 2 wheel chocks, caster kit w/ polyurethane wheels |
| Jacks (2x) — capacity | 4,500 lbs each (combo configuration, per manufacturer combo page) |
| Jacks (2x) — operation | Air-operated |
| Jacks (2x) — arm adjustment | 39 1/2"–64 3/4" (combo spec) |
| Jacks (2x) — max height w/ adapters | 18 1/2" |
| Jacks (2x) — locking heights | Two: 7 3/8" and 10 1/2" |
| Jacks (2x) — fits between runways | 35"–54 1/2" (combo spec) |
⚠️ Installation Requirements
- Free-standing portable lift design — position per the included manual; no permanent anchoring
- Electrical: 110 volt, 30 amp breaker — have an electrician confirm the dedicated circuit
- Accessory installs per its own setup (jacks roll onto tracks; floor panels drop into the runway gap)
- Confirm vehicle raised height against the ceiling before ordering
- Alamo delivers it — and services the lifts we sell
Atlas® Automotive Equipment Warranty - Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks
The Apex 9 carries the strongest coverage in the Atlas portable 4-post line, and the combo routes everything through Alamo.
| Component | Coverage Term |
|---|---|
| Lift — steel structure (Apex 9) | 5 years |
| Lift — hydraulics (Apex 9) | 2 years (parts only) |
| Jacks — parts | 1 year (parts only, per combo page) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks
What does the combo include?
The ALI-certified Apex 9 9,000 lb four-post lift plus TWO air-operated rolling jacks in the manufacturer's combo configuration (4,500 lbs each, per the combo page's spec).
Is the ALI certification for the whole combo?
The certification applies to the lift — the Apex 9 is independently tested to ANSI/ALI ALCTV (stated on the manufacturer's own product page). The jacks are accessories to the certified platform.
Why do the jack specs look different from the standalone RJ45A page?
The manufacturer's combo page publishes its own jack configuration for this package — the combo's spec is what ships with this order. We present the combo's spec, not the standalone page's.
What power and air does it need?
The lift runs on 110V/30A; the air jacks need shop air at the point of use.
Why Buy the Atlas APEX9 ALI-Cert Lift + 2x RJ45 Air Jacks from Alamo Equipment & Service?
- We sell what fits. Certification needs, ceiling, air, vehicle mix — we confirm the combo fits before you order.
- We deliver it. One freight bill, lift plus jacks, coordinated by us.
- We service it. The 5/2 lift warranty and jack coverage route through one shop — Alamo.
- We know the certification trade. Apex 9 vs PRO9000 — whether the badge matters for YOUR shop is the honest question, and we'll answer it.
- One system, one order. Certified lift with the jacks the manufacturer matched to it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
