| Atlas SKU | ATEATEDGE-STDA23 |
| Ravaglioli Part Number | STDA23/BTH |
| Product Type | Remote Measuring System / Level & Height Gauge |
| Primary Function | Wheel Alignment Measurement Accessory |
| Remote-Control Function | Yes |
| Chassis Height Measurement | Yes |
| Axle Inclination Measurement | Yes |
| GTIN / EAN | 4057612825152 |
| Country of Origin | Italy |

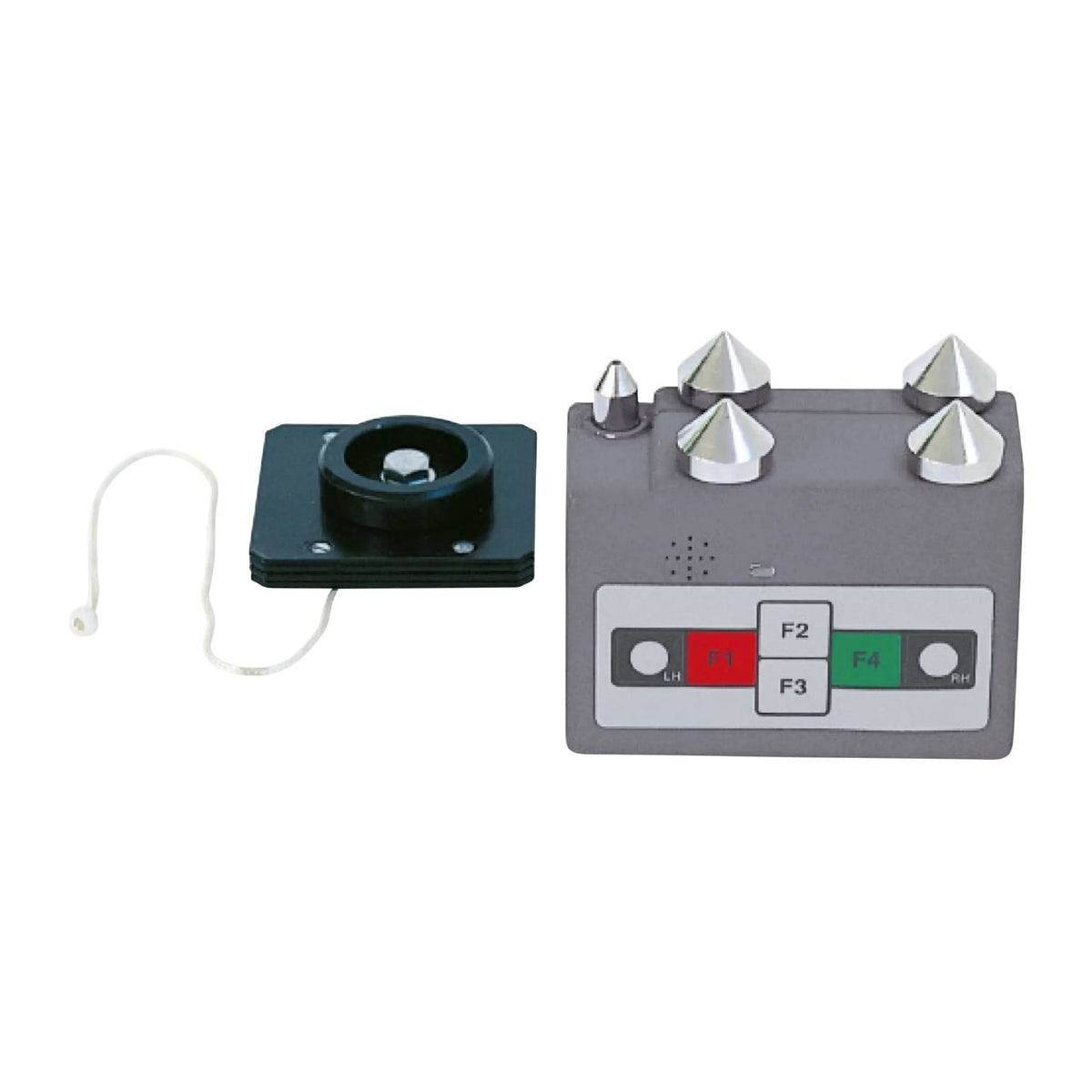

Atlas Edge Remote Measuring System / Level & Height Gauge #ATEATEDGE-STDA23
The Atlas Edge ATEATEDGE-STDA23 is based on Ravaglioli STDA23/BTH, a Remote Measuring System (RMS) accessory for compatible wheel-alignment equipment. Ravaglioli also identifies the accessory as a level and height gauge.
The STDA23/BTH combines three alignment-support functions in one accessory: remote operation of the alignment system, chassis-height measurement, and axle-inclination measurement. These measurements can be used by compatible alignment software to select or adjust vehicle alignment specifications based on chassis height or axle inclination.
RMS Functions
- Remote-control function for compatible alignment-system operations
- Chassis-height measurement
- Axle-inclination measurement
- Supports alignment procedures that use height- or inclination-dependent vehicle specifications
- Designed to improve measurement efficiency and consistency when supported by the alignment database
Compatibility & Fitment
Ravaglioli lists STDA23/BTH as an optional accessory across multiple wheel-alignment platforms, including TD2.0 WiFi, TD8080, TD6000, and other compatible Ravaglioli alignment systems. Compatibility should be confirmed against the exact Atlas Edge or Ravaglioli aligner before ordering.
| Alignment Platform | STDA23/BTH Status |
|---|---|
| RAV TD2.0 WiFi | Optional Accessory |
| RAV TD8080 | Optional Accessory |
| RAV TD6000 | Optional Accessory |
| Other Compatible Ravaglioli / Atlas Edge Systems | Verify Exact Model |
Frequently Asked Questions
Questions before ordering? Call (817) 865-3707 with your alignment-system model so we can help confirm compatibility.
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
