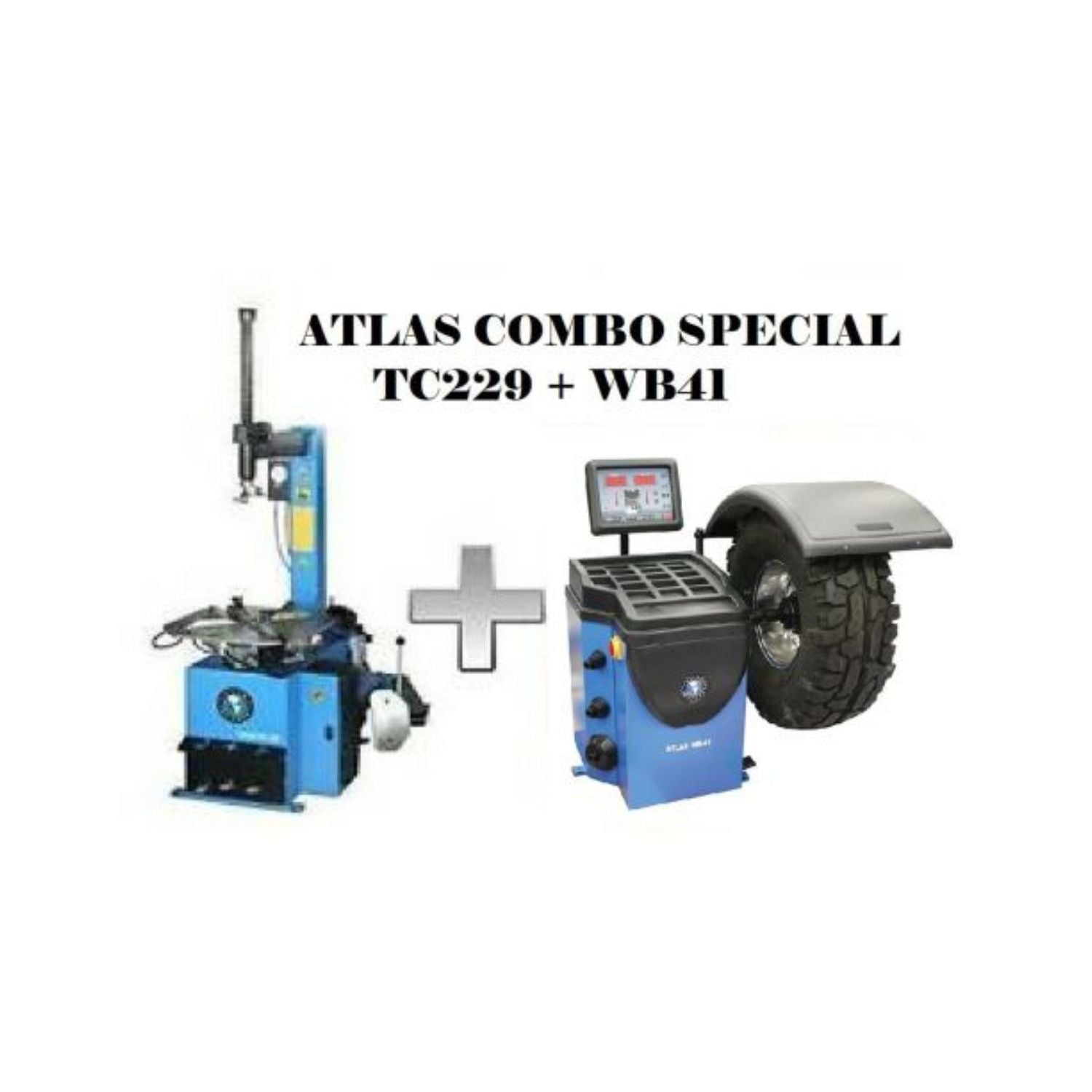

Atlas® TC229 & WB41 Combo Package #ATETCWB-COMBO5-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC229 & WB41 Combo Package combines a commercial-grade tire changer and computerized wheel balancer into one complete wheel service solution for automotive repair shops, tire stores, and general service facilities. Designed for everyday passenger vehicle and light truck applications, this package provides the essential equipment needed for mounting, demounting, and balancing modern wheel and tire assemblies.

  The package includes the Atlas TC229 Tire Changer, featuring a rim-clamp swing-arm design with an integrated Beadblaster inflation system for easier tire bead seating, along with the Atlas WB41 Computerized Wheel Balancer, which delivers dependable balancing performance with user-friendly computerized operation and accurate wheel balancing capability. Together, these machines help improve workflow efficiency while supporting a wide variety of routine tire service applications.

  Ideal for startup shops, smaller commercial garages, and existing facilities upgrading equipment, the TC229 & WB41 combo offers reliable commercial-grade performance, simple operation, and excellent overall value for daily wheel service work.

• FEATURES AND BENEFITS

  Atlas® TC229 Tire Changer

  • Rim Clamp/Swing Arm Tire Changer

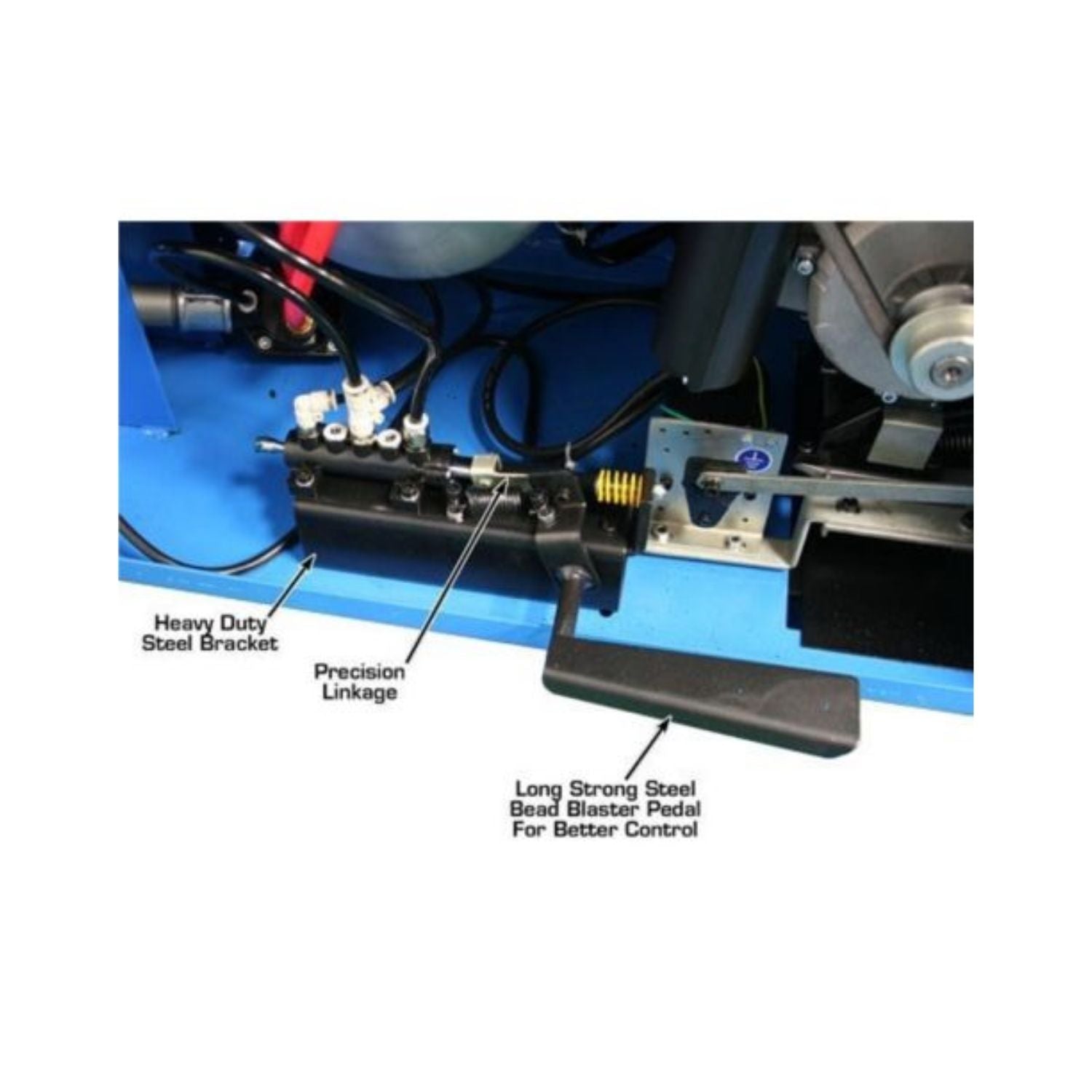

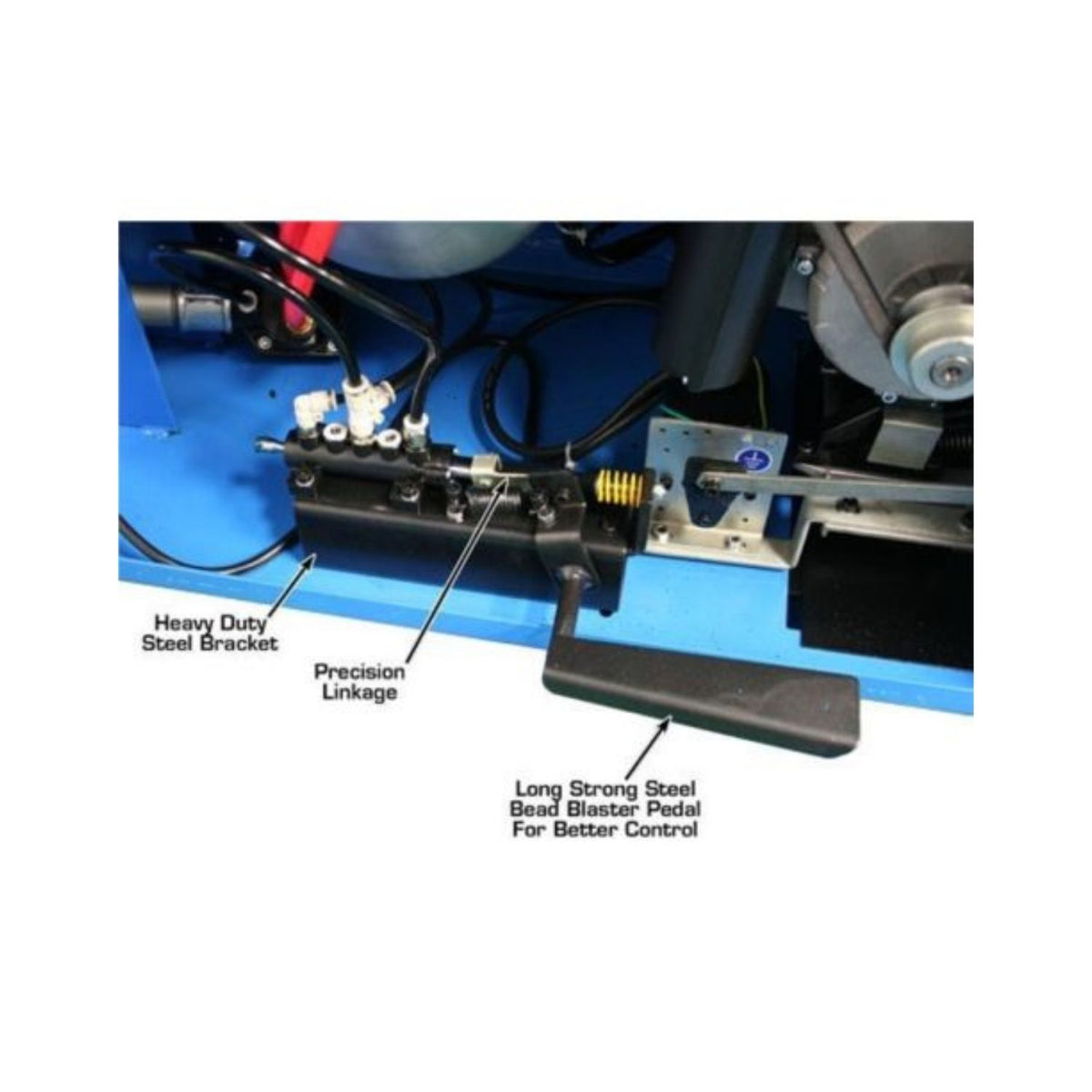

  • Built-in "Beadblaster"
  • Adjustable jaws, 3 mounting positions

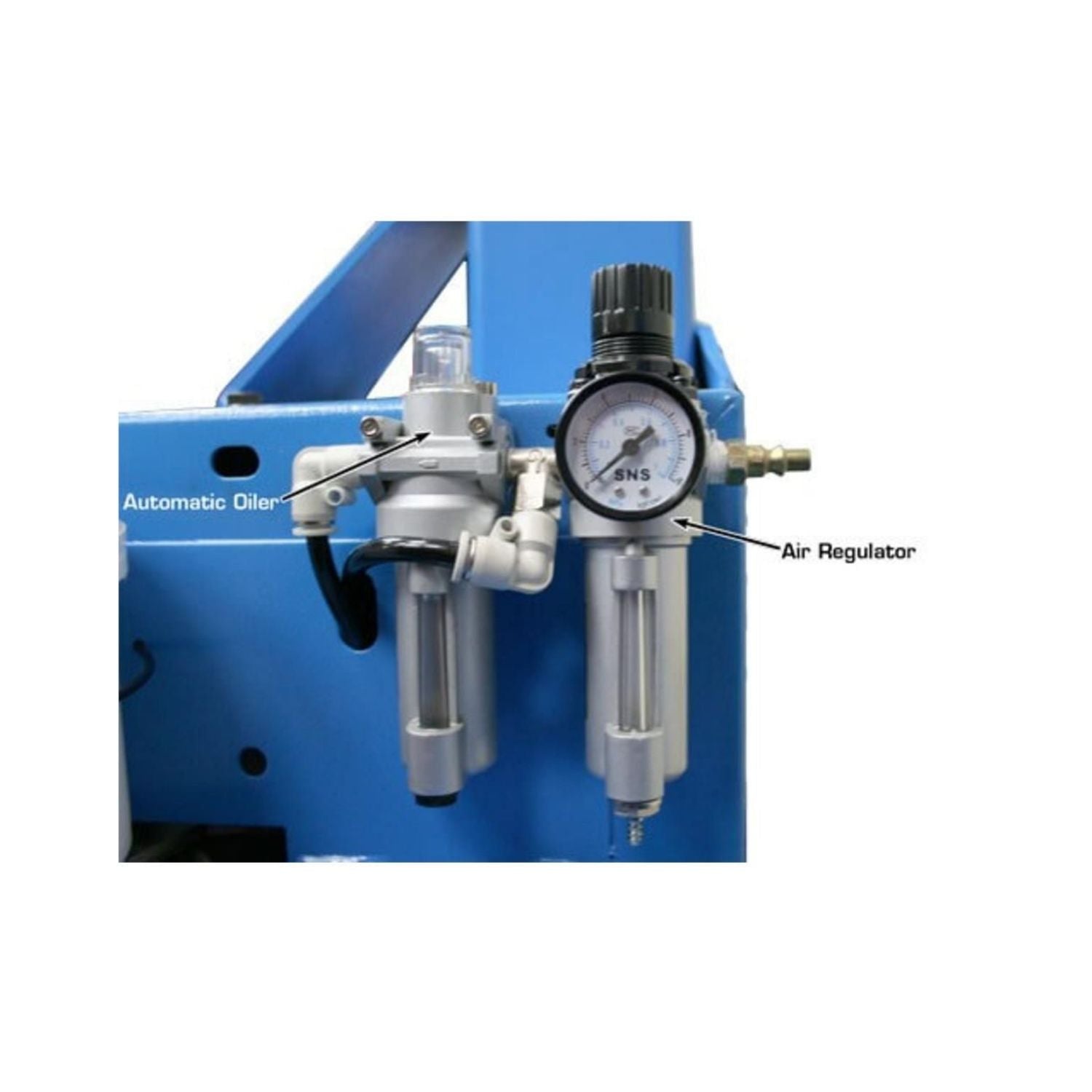

  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included

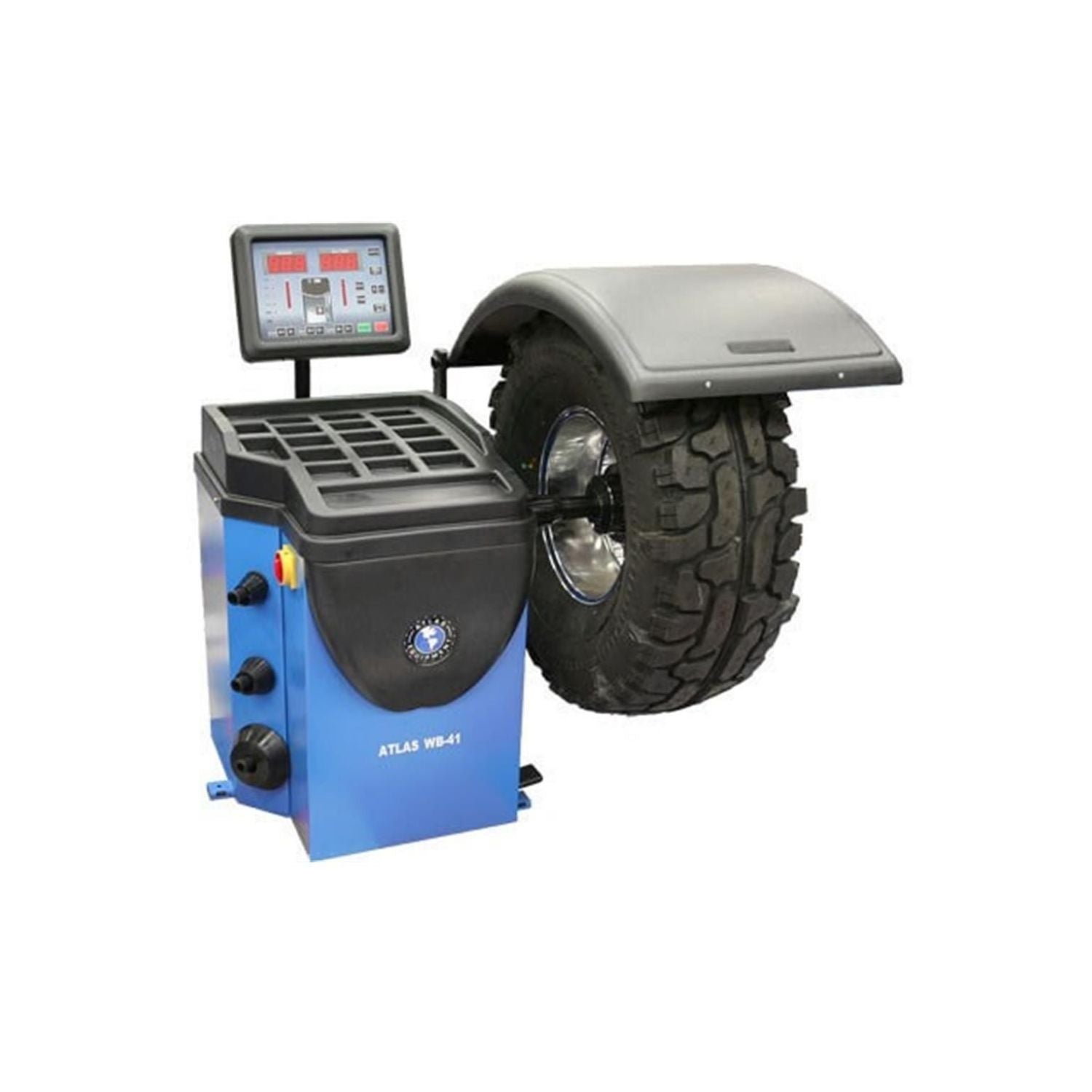

  Atlas® WB41 Wheel Balancer

  • Computer Controlled Spin Balancer

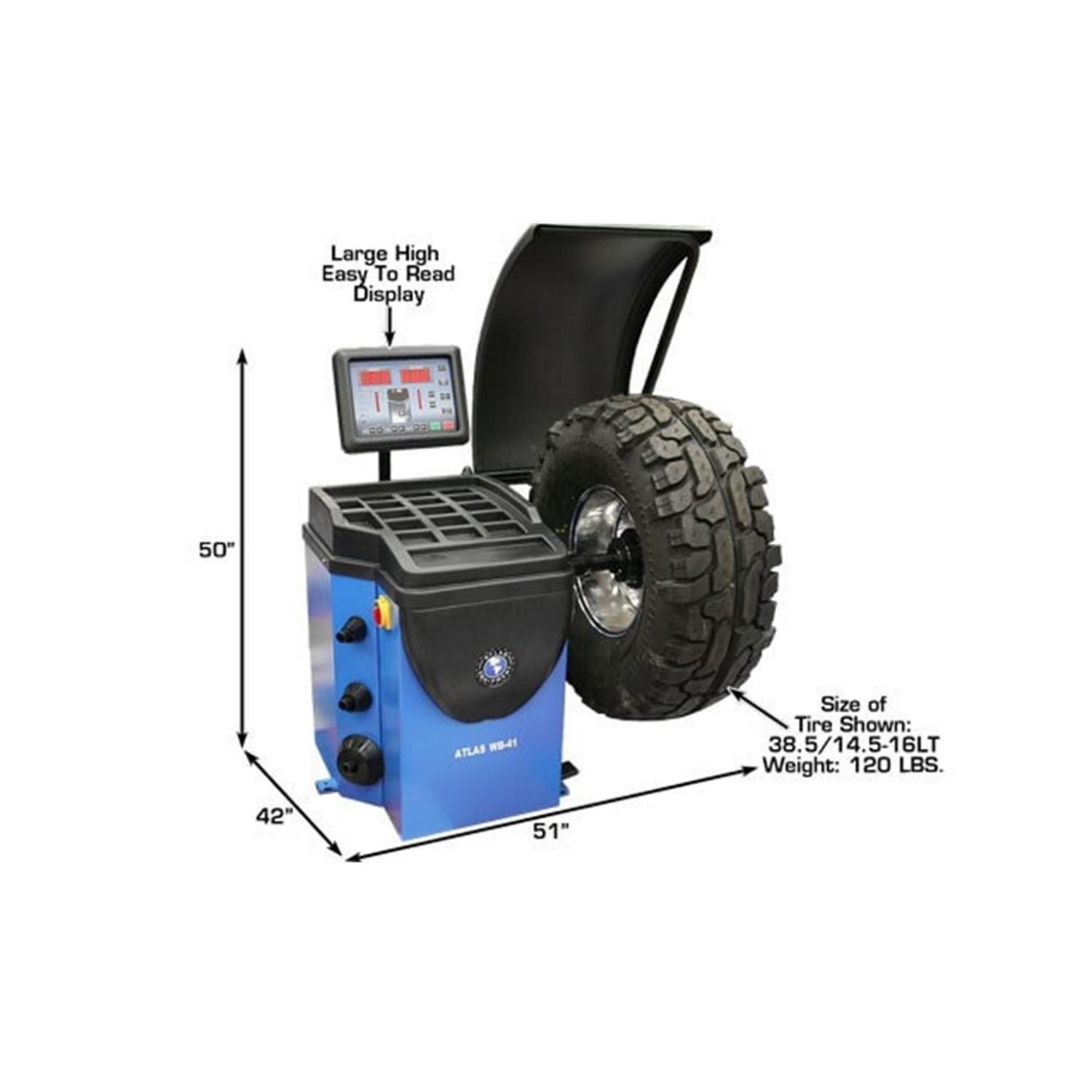

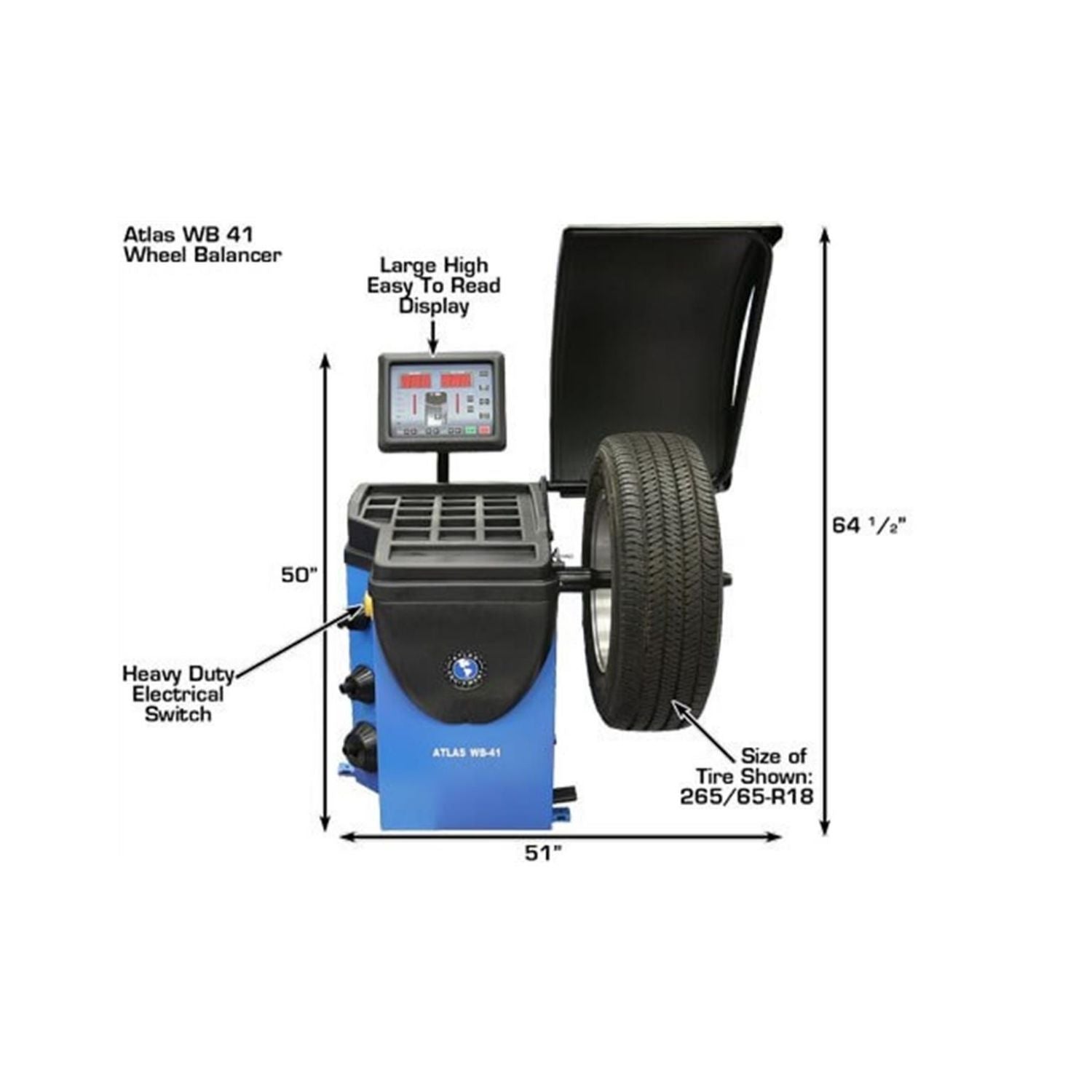

  • Raised, Easy to Read Display
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches

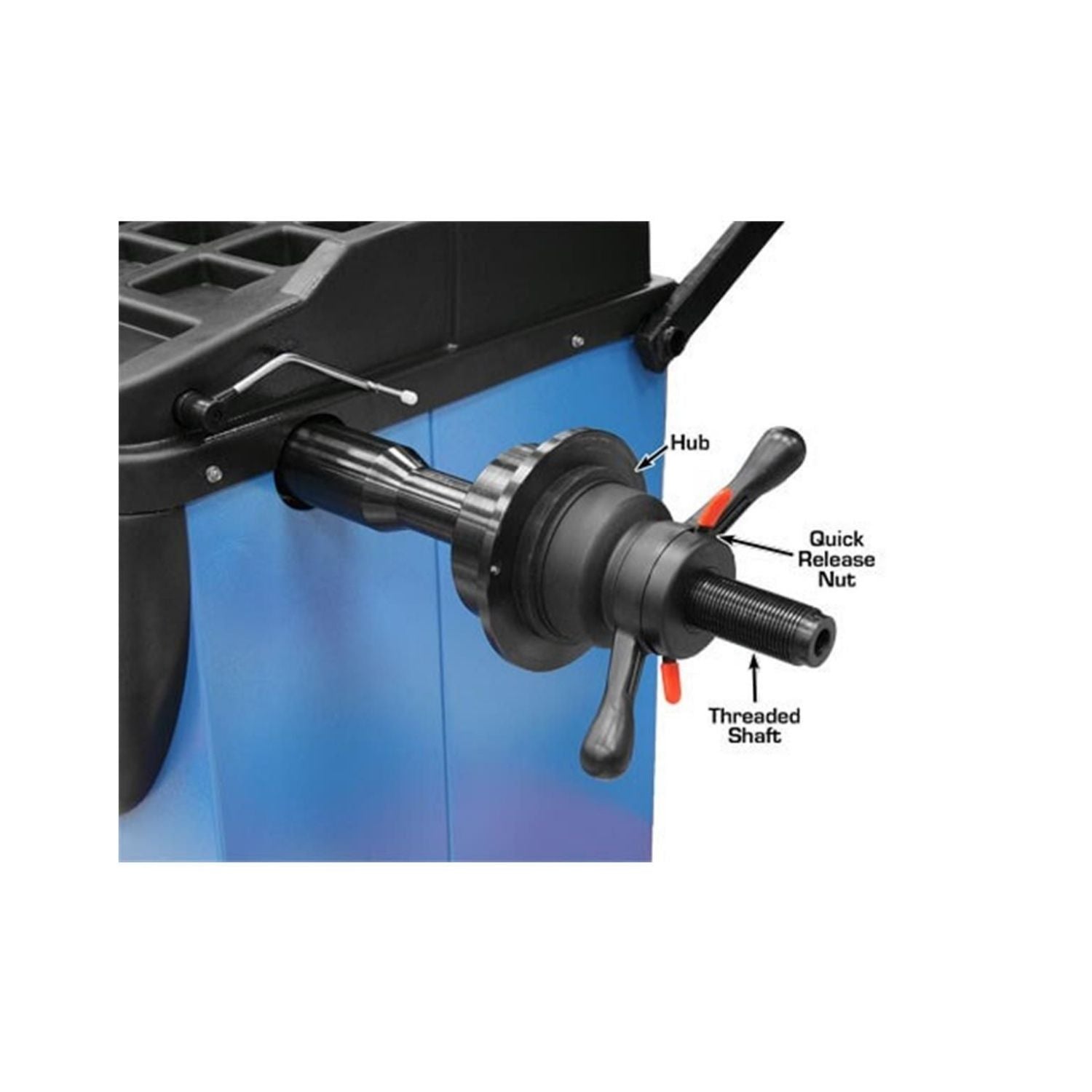

  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® TC229 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO5-FPD
  Dimensions:	45" L × 38" W × 30" H
  External Locking Rim Dimensions:	9 3/4" to 23 1/4"
  Internal Locking Rim Dimensions:	11 5/8" to 25 1/4"
  Maximum Tire Diameter:	39"
  Maximum Wheel Width (Bead Breaker):	13"

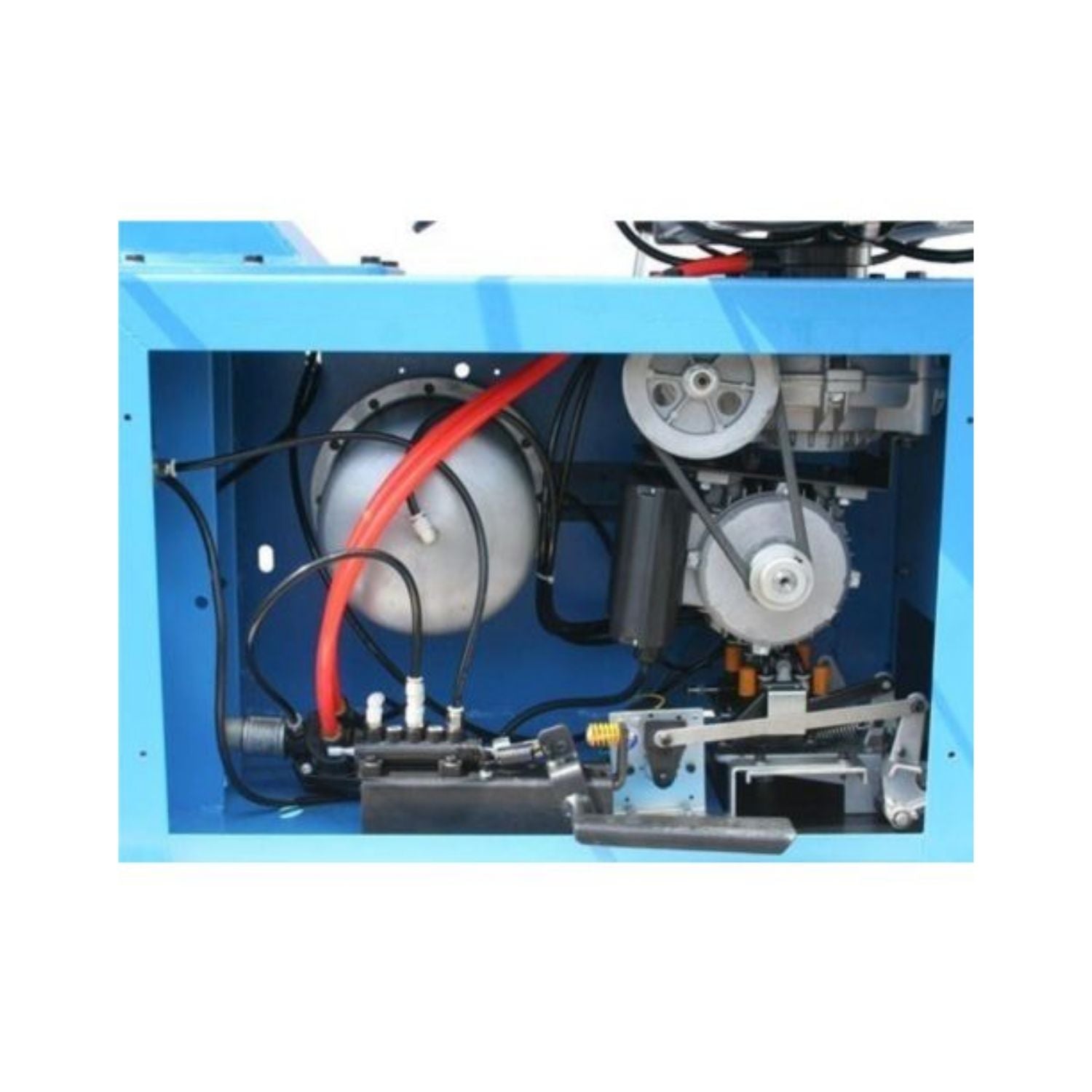

  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	550 lbs
  UPC:	810524029070
  Country of Origin:	CHN

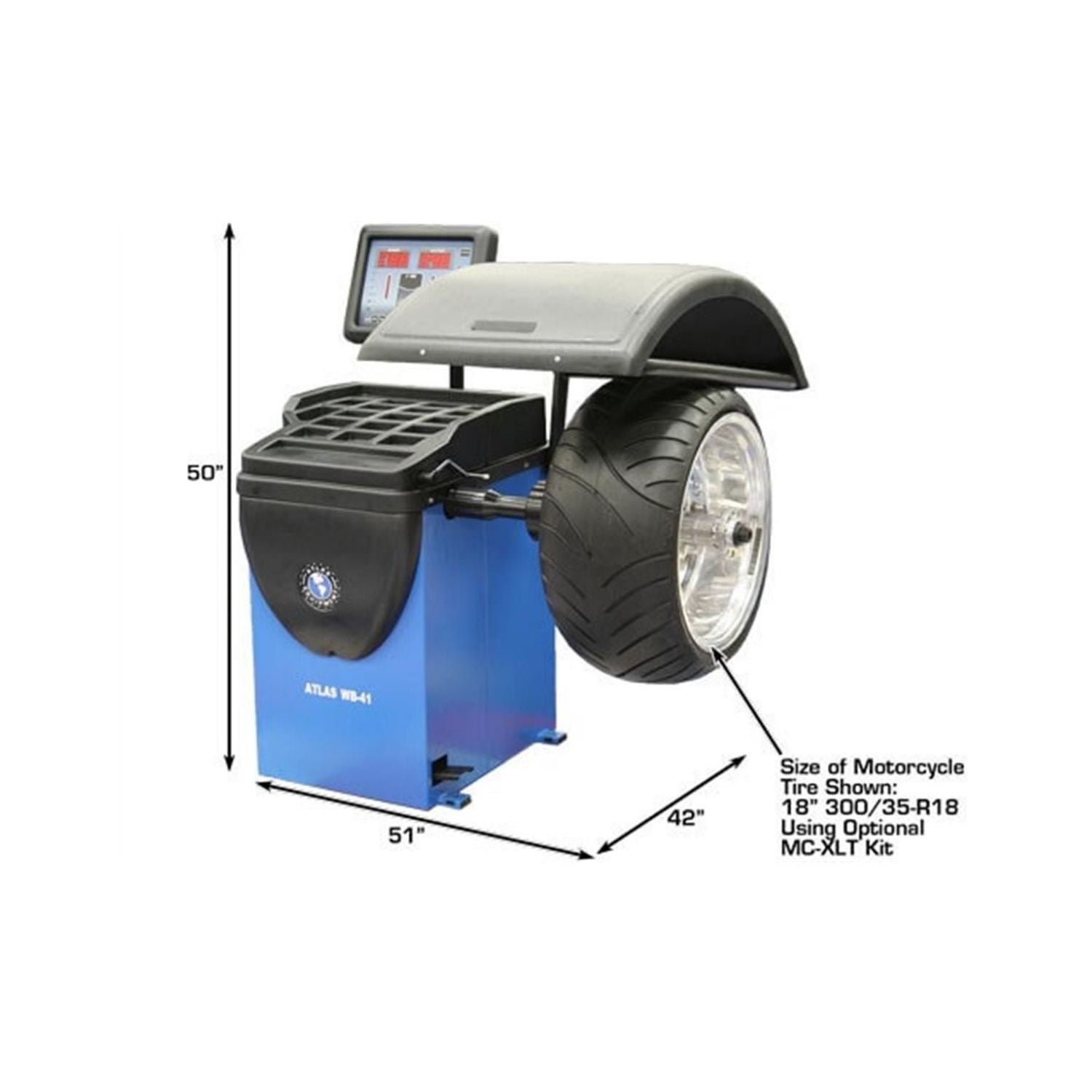

  Atlas® WB41 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32"
  Rim Width:	1 1/2" - 20"

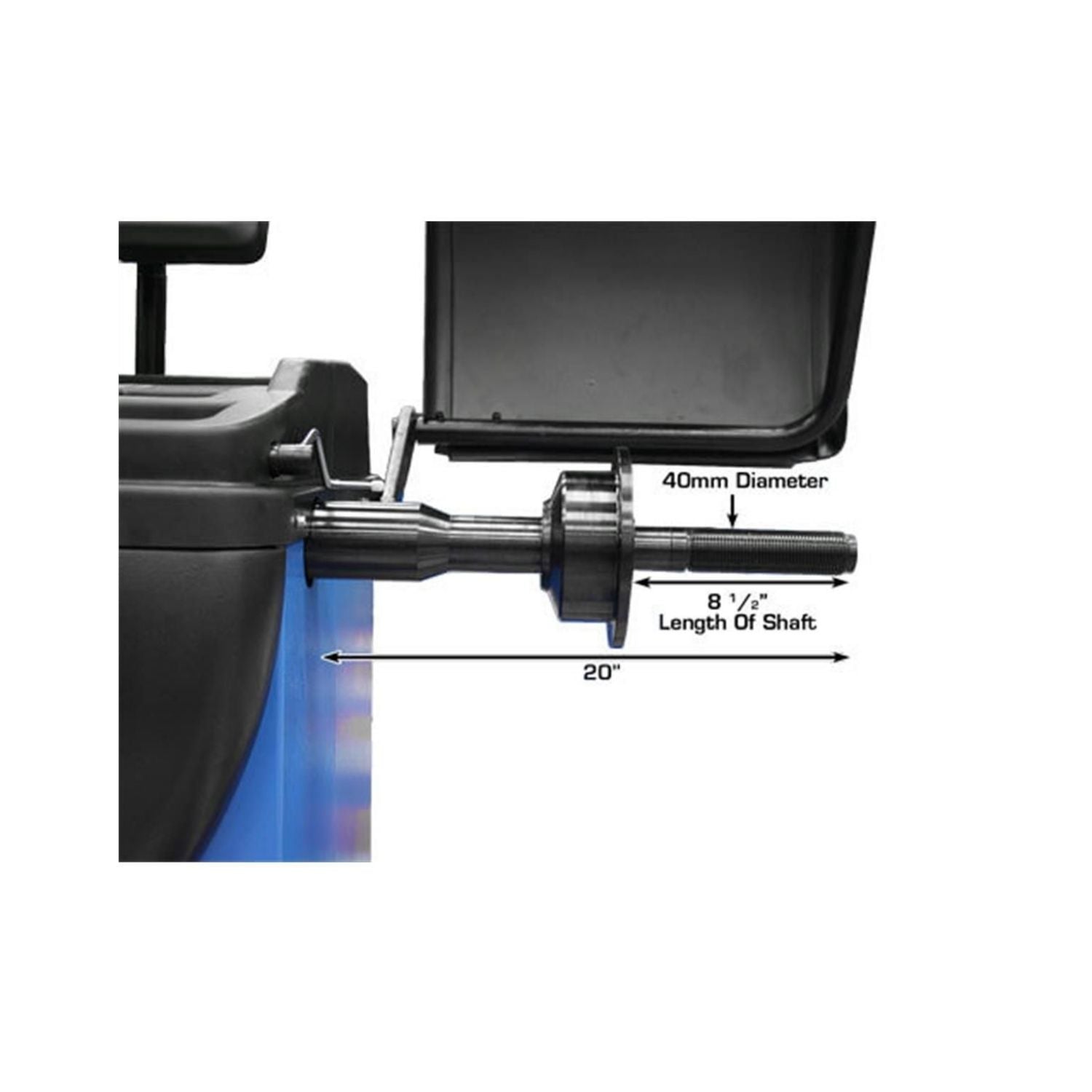

  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	All Dimensions Manual
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt

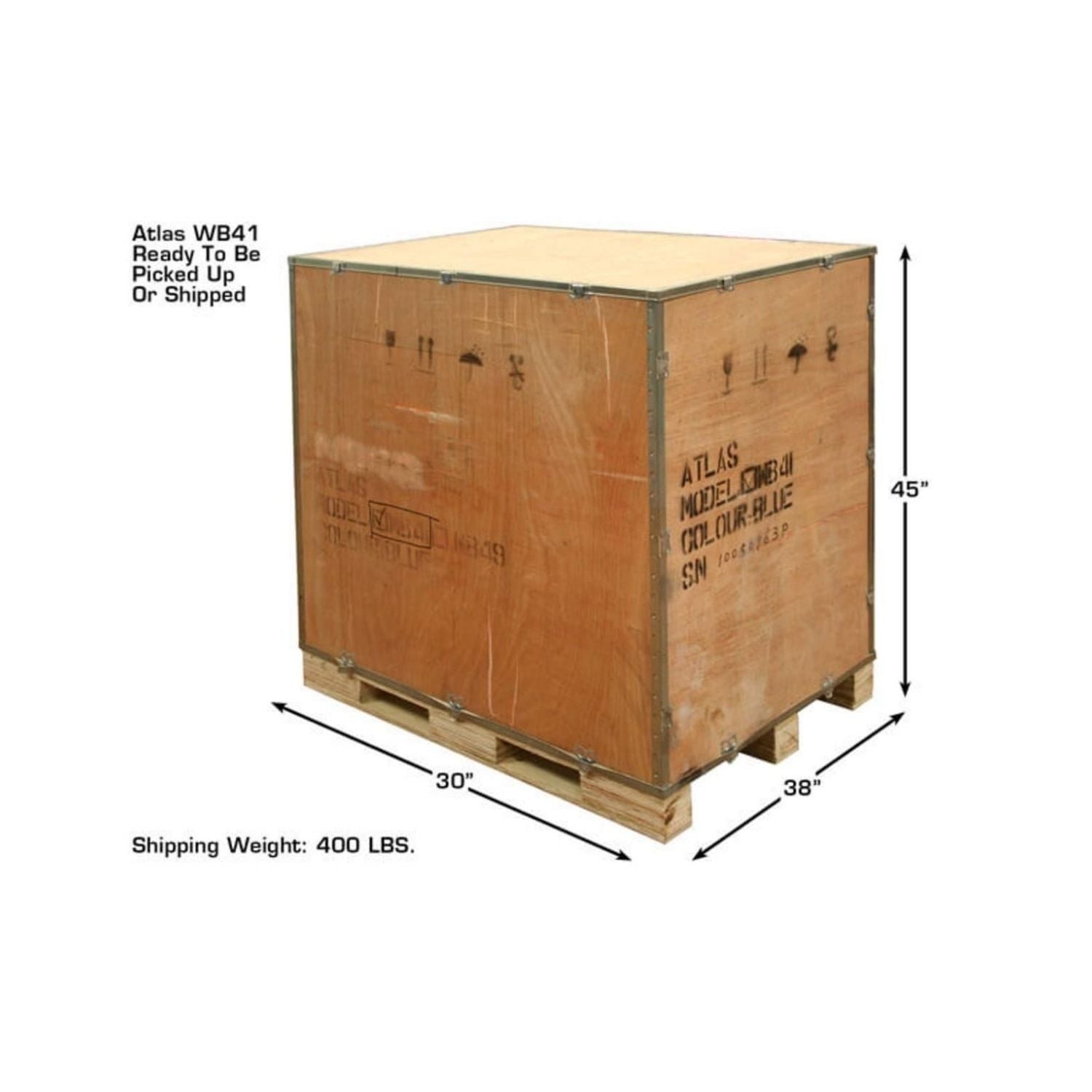

  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
