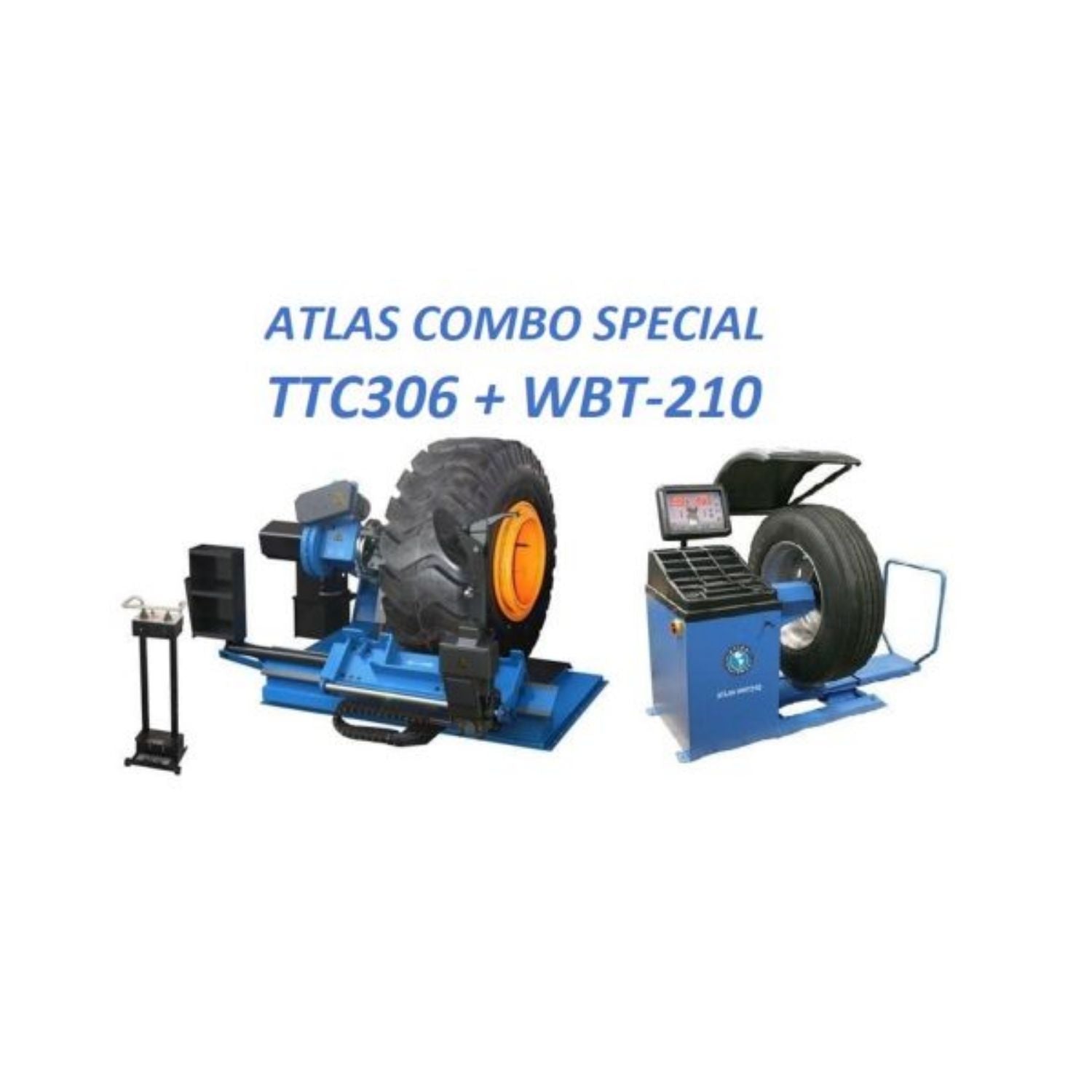

Atlas® TC306 & WBT210 Combo Package #ATETTCWB-COMBO4-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas® TC306 & WBT210 Combo Package is a professional heavy-duty tire service solution designed for commercial truck shops, fleet maintenance facilities, agricultural service centers, and industrial tire operations. This combo package combines the Atlas® TC306 truck tire changer with the Atlas® WBT210 computerized heavy-duty wheel balancer for efficient mounting, demounting, and balancing of large commercial wheel assemblies.
The TC306 tire changer features a powerful electric/hydraulic drive system, self-centering four-jaw chuck, and mobile control unit for servicing truck, bus, tractor, and off-road tires with precision and control. The WBT210 wheel balancer delivers computerized balancing performance with static and dynamic balancing modes, rapid optimization, self-diagnosis, and self-calibration for accurate wheel balancing results.
Built for demanding shop environments, this combo package provides reliable heavy-duty tire service performance for commercial and industrial applications.
-
FEATURES AND BENEFITS
Atlas® TC306 Truck Tire Changer
- 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions
- Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
- Handles rims from 14" to 56" and tire diameters in excess of 97"
- Accommodates tires with a max width of up to 53"
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit Available (Sold Separately)
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- Clamping Extensions Included
Atlas® WBT210 Heavy Duty Spin Balancer
- Cone sets for car and light truck tires included
- Cone and spacer set for truck, bus, or implement tires included
- Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
- Pneumatic wheel lift (external air supply required - NOT INCLUDED)
- Automatic start/stop when hood is lowered/raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-Diagnosing and Calibrating
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers & Wheel Width Caliper Included
- Both Machines 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATETTCWB-COMBO4-FPD Dimensions: 146" L × 94" W × 72" H Weight: 2985 lbs UPC: 810524027168 Country of Origin: CHN Atlas® TTC306 Specifications
Max Tire Diameter: 98" (8' 2") Max Tire Width: 53" Rim Clamping Range: 14" - 46" Rim Clamping Range w/ Extensions: 47" - 56" Max Wheel Weight: 3968 lbs Clamping Power: 13173 lbs Operating Pressure: 0 - 1885 psi Acoustic Pressure: 70dBA Bead Breaker Force: 5930 lbs Tool Arm Positioning: Automatic Tool Head Positioning: Automatic Construction: Single Piece Frame w/ Solid Floor-Plate Hydraulic Motor Power: 3HP 220v +/- 5% (209-231 volts) 3phase, 30 amp breaker required Chuck Motor Power: 3.5-4HP 220v +/- 5% (209-231 volts) 3phase, 30 amp Atlas® WBT-210 Specifications
Max Tire Diameter: 47" Rim Sizes (Cars And Light Trucks): 10"-32" Rim Width: 1 1/2"-20" Shaft Size: 40mm Max. Wheel Weight: 440 lbs. Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode Data Entry: All Dimensions Manual
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
