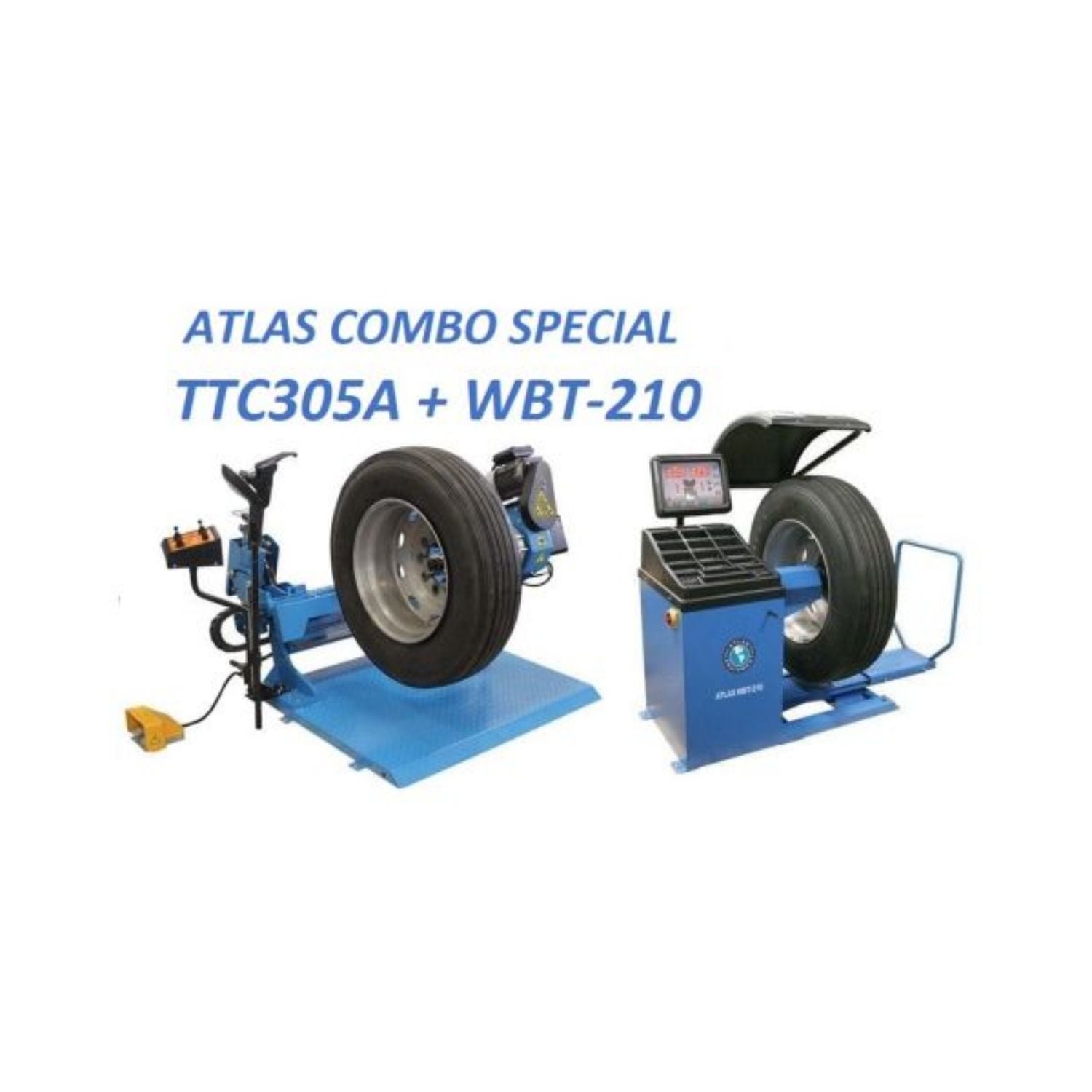

Atlas® TC305A & WBT210 Combo Package #ATETTCWB-COMBO2-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC305A & WBT210 Combo Package is a professional heavy-duty tire service solution designed for commercial truck shops, fleet maintenance facilities, agricultural operations, and industrial tire service centers. This combo package includes the Atlas® TC305A truck tire changer and the Atlas® WBT210 computerized wheel balancer for efficient tire mounting, demounting, and wheel balancing operations on large commercial wheel assemblies.

  The TC305A tire changer features a powerful electric/hydraulic drive system, self-centering four-jaw chuck, and movable control unit for handling truck, bus, tractor, and earthmover tires with ease. The WBT210 wheel balancer delivers computerized balancing with static and dynamic modes, rapid optimization, and self-calibration for accurate balancing results on both passenger and heavy-duty commercial wheels. Built for demanding daily use, this combo package provides dependable performance and durability for professional tire service environments.

• FEATURES AND BENEFITS

  Atlas® TC305A Automatic Truck Tire Changer

  • Fully Automatic Truck Tire Changer
  • Handles rims from 8" to 26" and tire diameters in excess of 55"
  • Accommodates tires with a max width of up to 30 1/2"
  • Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
  • Bead Breaker
  • Interchangeable Mount/Demount and Roller Heads
  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions
  • Mounted Control Unit w/ additional Foot Pedal Controls
  • Heavy Duty Tire Tool Included
  • Rim Clamps for Steel and Alloy Wheels Included
  • Alloy Rim Adapter Set w/ Plastic Inserts Included




  Atlas® WBT210 Heavy Duty Spin Balancer

  • Cone sets for car and light truck tires included
  • Cone and spacer set for truck, bus, or implement tires included
  • Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
  • Pneumatic wheel lift (external air supply required - NOT INCLUDED)
  • Automatic start/stop when hood is lowered/raised
  • Static and dynamic balancing modes
  • Rapid optimization (OPT)
  • Self-Diagnosing and Calibrating
  • Exceptional stability in reading the unbalance between planes
  • Display in grams or ounces, and in mm or inches
  • Wheel Weight Pliers & Wheel Width Caliper Included
  • Both Machines 1 Year Parts Only Warranty
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETTCWB-COMBO2-FPD
  Dimensions:	121" L × 69" W × 50" H
  Weight:	2475 lbs
  UPC:	810524028691
  Country of Origin:	CHN

  Atlas® TC305A Specifications

  Max Tire Diameter:	55"
  Max Tire Width:	30 1/2"
  Rim Clamping Range:	8" - 26" (w/ adapters)
  Max Wheel Weight:	838 lbs
  Clamping Power:	6600 lbs
  Operating Pressure:	0 - 1885 psi
  Acoustic Pressure:	<70dBA
  Bead Breaker Force:	3990 lbs
  Tool Arm Positioning:	Automatic
  Tool Head Positioning:	Automatic
  Construction:	Single Piece Frame w/ Solid Floor-Plate
  Hydraulic Motor Power:	2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
  Chuck Motor Power:	3HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
  Shipping Weight:	1490 lb

  Atlas® WBT-210 Specifications

  Max Tire Diameter:	47"
  Rim Sizes (Cars And Light Trucks):	10"-32"
  Rim Width:	1 1/2"-20"
  Shaft Size:	40mm
  Max. Wheel Weight:	440 lbs.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
