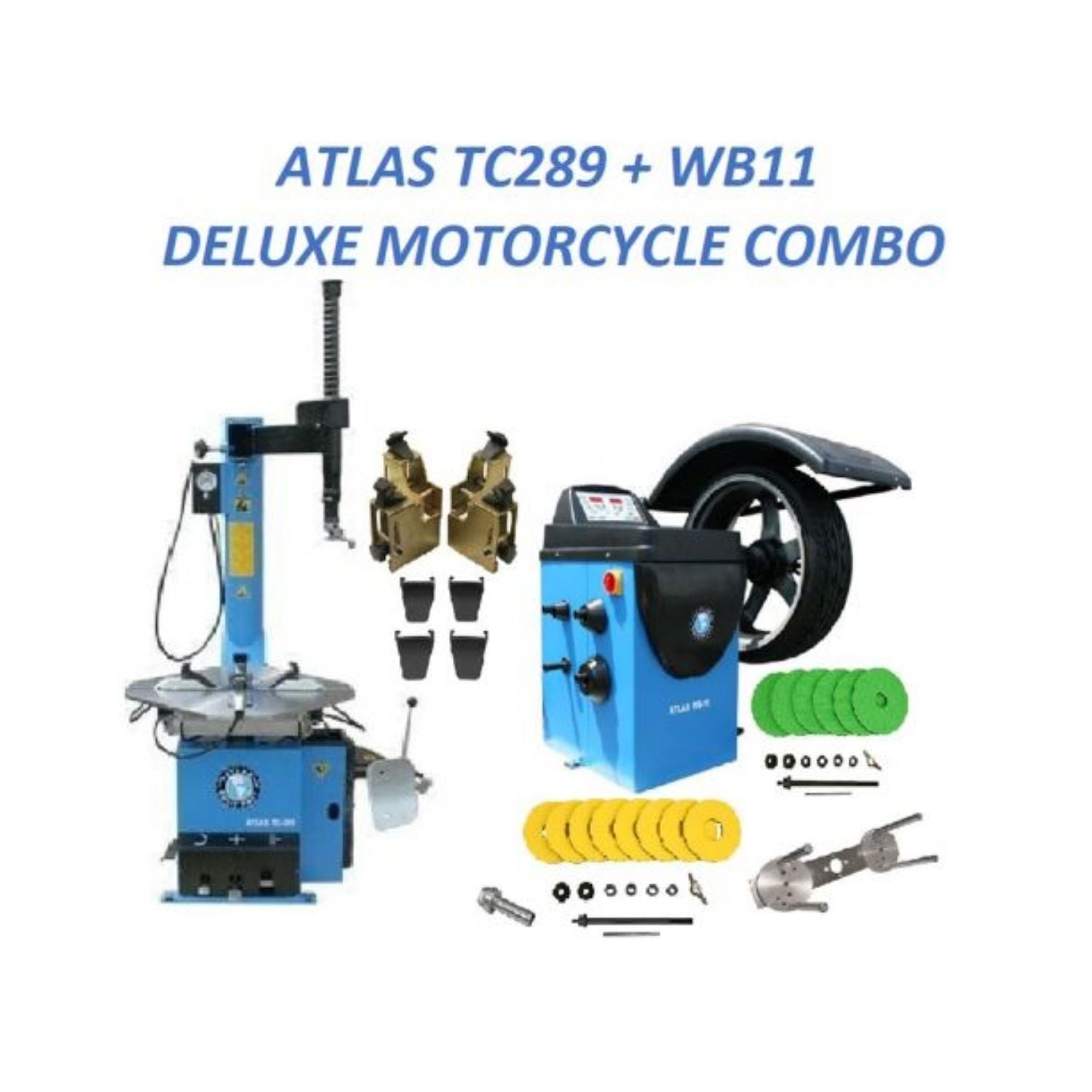

Atlas® TC289 & WB11 Deluxe Motorcycle Combo Package #ATETCWB-MC-COMBO2-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC289 & WB11 Deluxe Motorcycle Combo Package is a professional tire service solution designed for motorcycle shops, powersports dealers, farms, homeowners, and commercial service centers. This combo package includes the Atlas® TC289 rim-clamp swing arm tire changer with deluxe motorcycle adapters and the Atlas® WB11 computerized wheel balancer for efficient tire mounting, demounting, and wheel balancing operations.

  The TC289 tire changer features an extra-large turntable, built-in beadblaster system, adjustable bead breaker plate, and three mounting positions to accommodate a wide range of motorcycle and automotive wheel sizes. The WB11 wheel balancer provides static and dynamic balancing modes, rapid optimization, and self-calibration for precise wheel balancing performance. Both machines operate on 110V power, are CE approved, and include essential tire service accessories for professional shop applications.

• FEATURES AND BENEFITS

  Atlas® TC289 Tire Changer

  • Rim Clamp/Swing Arm Tire Changer
  • Extra Large Turntable, More Clearance
  • Built-in "Beadblaster"
  • Adjustable Bead Breaker Plate
  • Adjustable jaws, 3 mounting positions
  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included




  Atlas® WB11 Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® TC289 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-MC-COMBO2-FPD
  Dimensions:	85" L × 48" W × 40" H
  External Locking Rim Dimensions:	11 7/8" to 27 7/8"
  Internal Locking Rim Dimensions:	13 7/8" to 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	620 lbs
  UPC:	810524027144
  Country of Origin:	CHN




  Atlas® WB11 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	All Dimensions Manual
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt
  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
