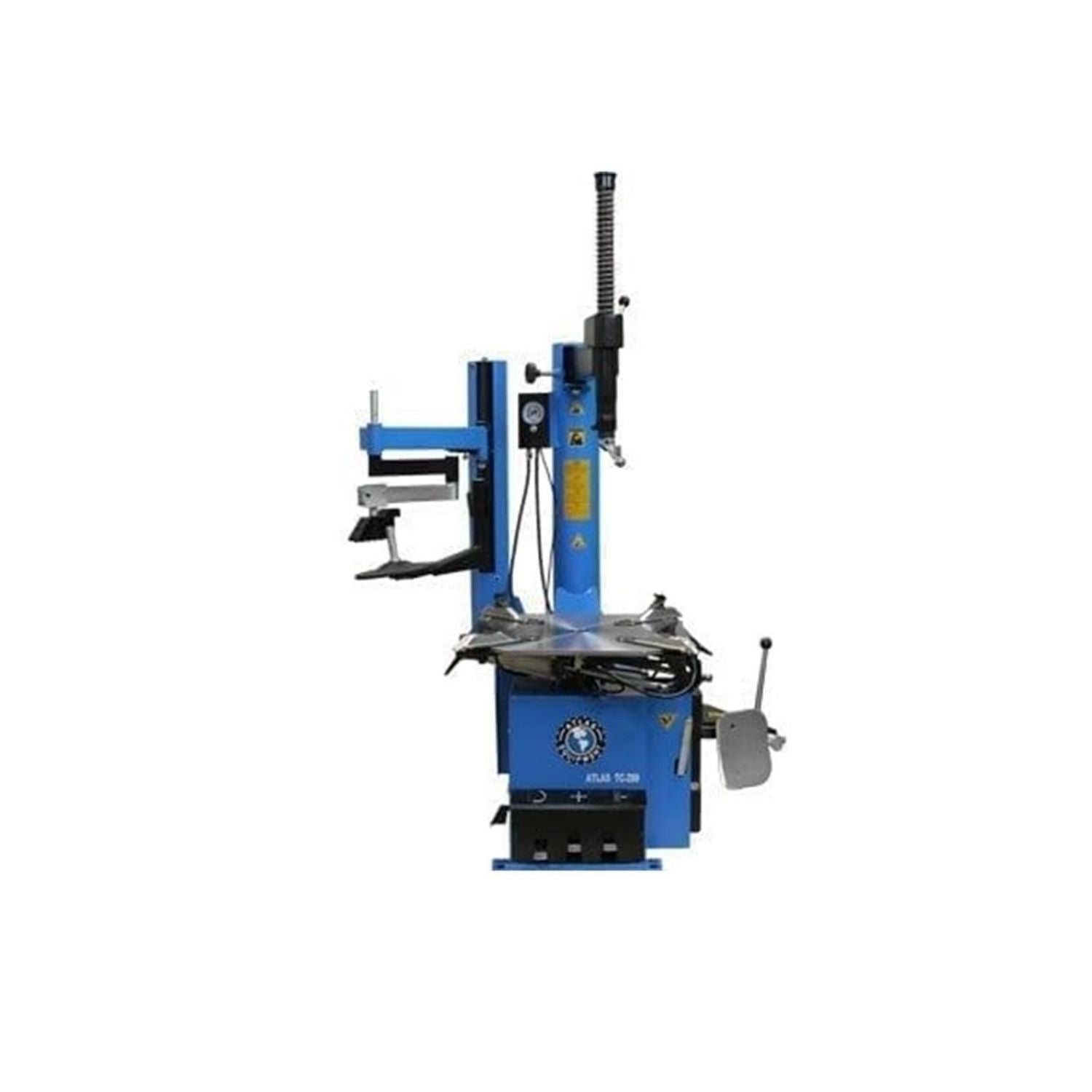

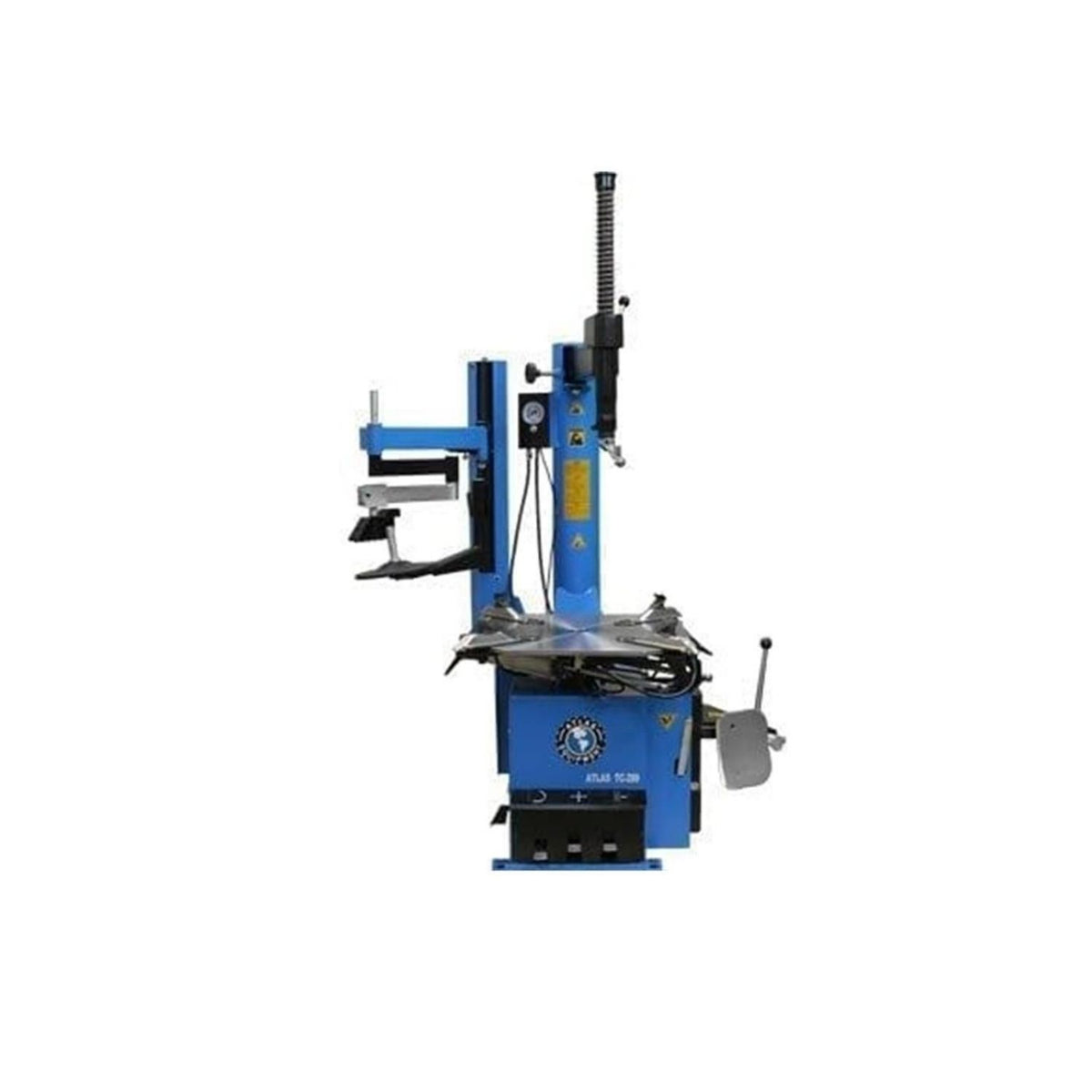

Atlas® TC289LH Tire Changer with Left Hand Assist Arm #ATETC289LH-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC289LH Tire Changer is an extra-large commercial-grade rim-clamp swing-arm tire changer equipped with the Atlas® Left Hand Assist (LHA) Arm for easier servicing of oversized wheels, low-profile tires, stiff-sidewall tires, and larger SUV/light truck applications.

  Built on the heavy-duty TC289 platform, the TC289LH is ideal for medium-sized tire shops, automotive repair facilities, fleet operations, farm use, and serious homeowners working with larger wheel and tire packages. The included Left Hand Assist Arm helps technicians control difficult tire beads during mounting and demounting procedures, acting like an extra set of hands while reducing technician fatigue and improving tire handling efficiency.

• FEATURES AND BENEFITS

  • Large Rim Clamp/Swing Arm Tire Changer
  • Extra-Large turntable, more clearance

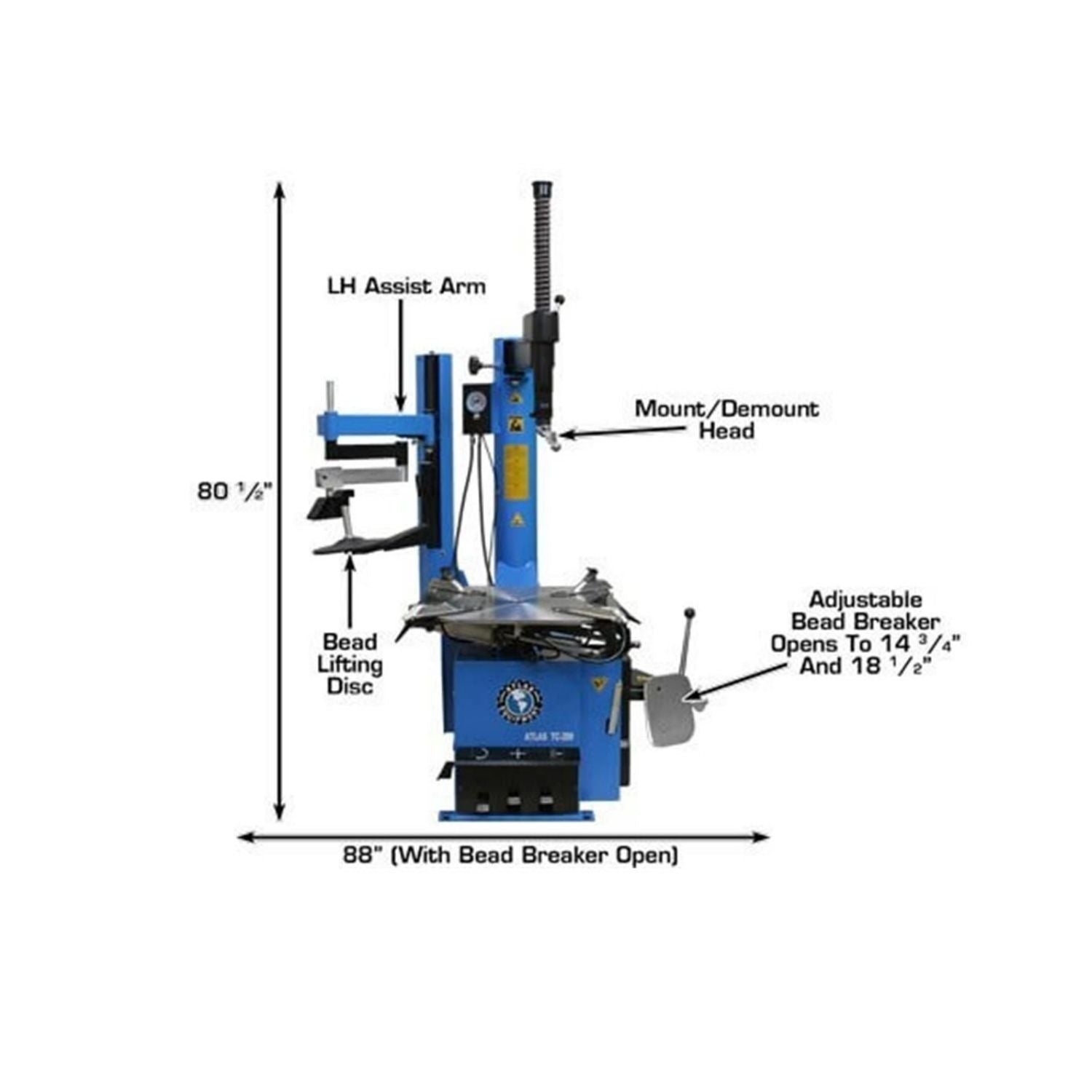

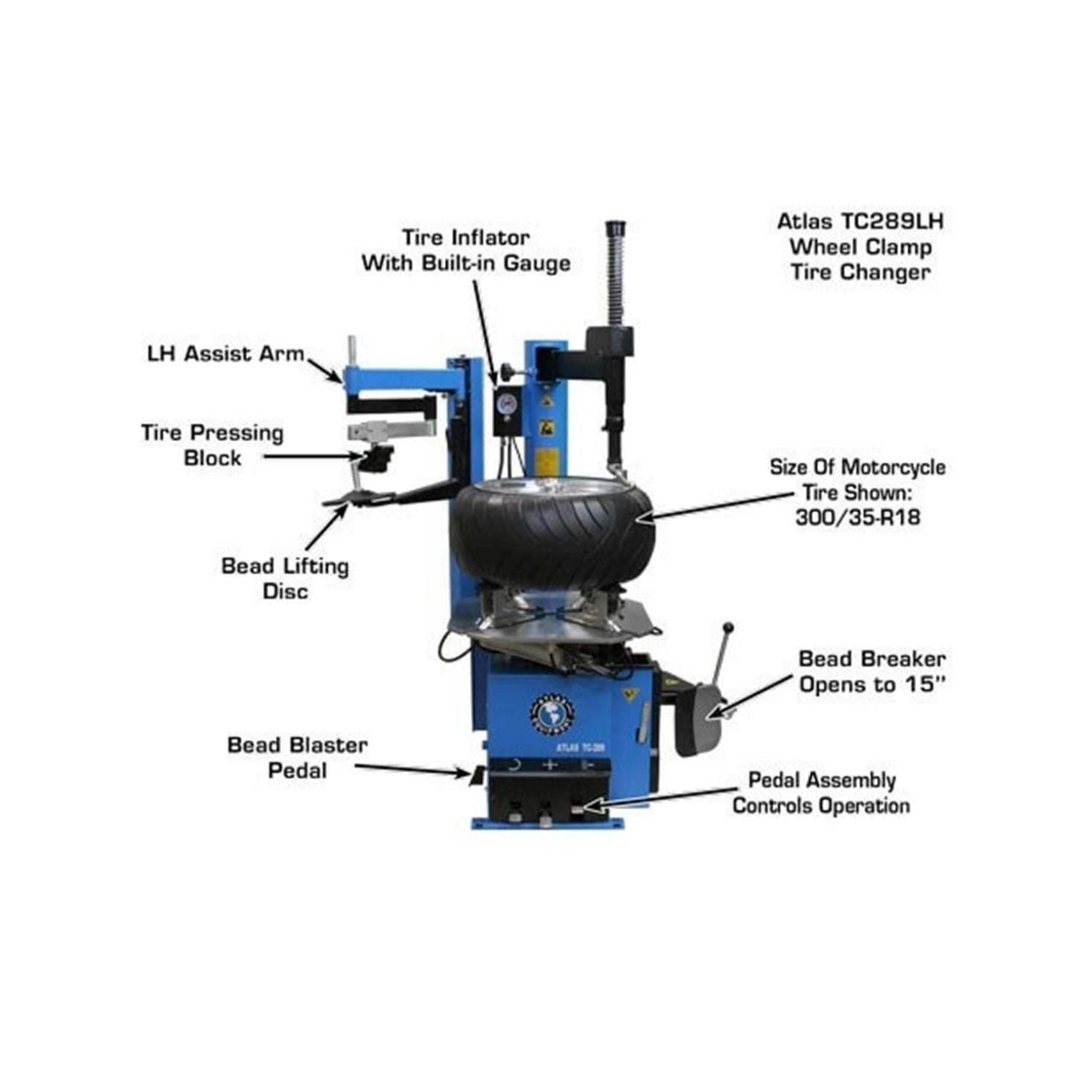

  • Left Hand Assist Arm (pressing block/disk) Included

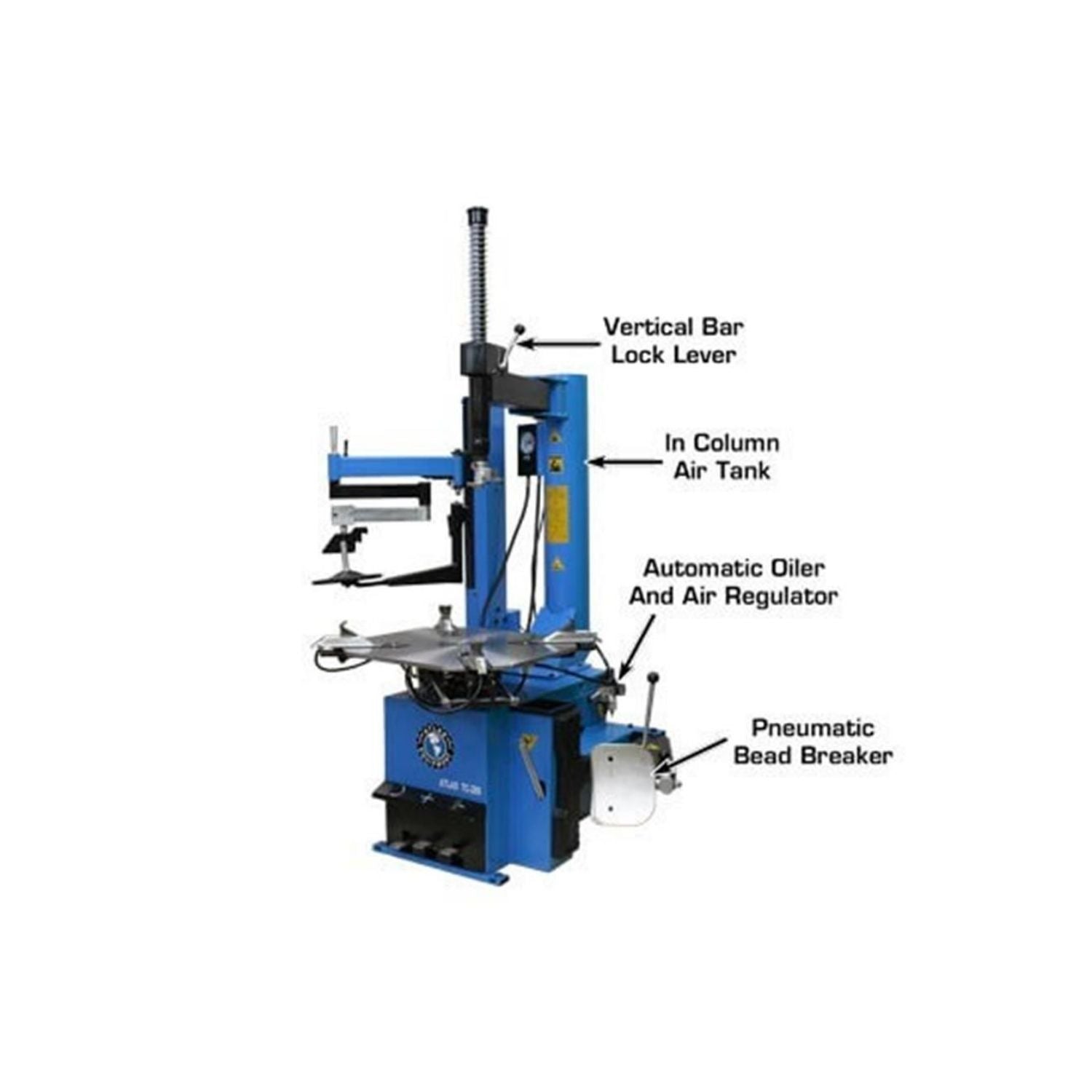

  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Adjustable Bead Breaker Plate
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included
  • Filter/Regulator/Lubricator Included
  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Motorcycle and ATV adapters available (sold separately)
  • Built in “Beadblaster”
  • Replacement Parts & Wear Items Always in Stock
  • 1 Year Parts Only Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETC289LH-FPD

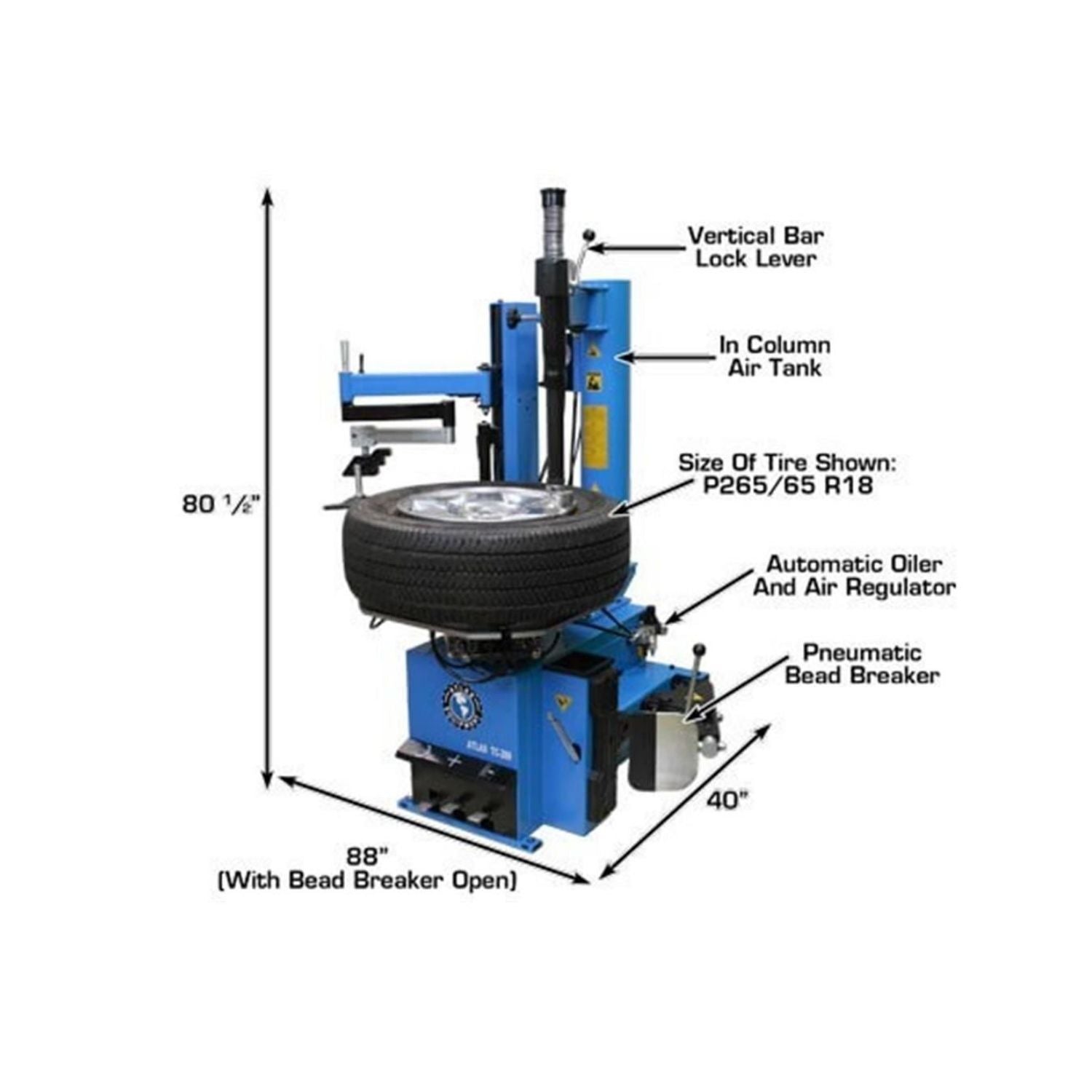

  Dimensions:	81" L × 54" W × 49" H
  UPC:	810524027458
  Country of Origin:	CHN
  Rims:	Steel, Aluminum, Alloy
  External Locking Rim Dimensions (3 Positions):	1) 11 7/8" - 26" 2) 12 7/8" - 27" 3) 13 3/4" - 28"
  Internal Locking Rim Dimensions (3 Positions):	1) 13 7/8" - 27 7/8" 2) 14 5/8" - 28 7/8" 3) 15 5/8" - 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs
  Bead Breaker:	5,500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Operating Voltage:	110volt
  Shipping Weight:	800 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
