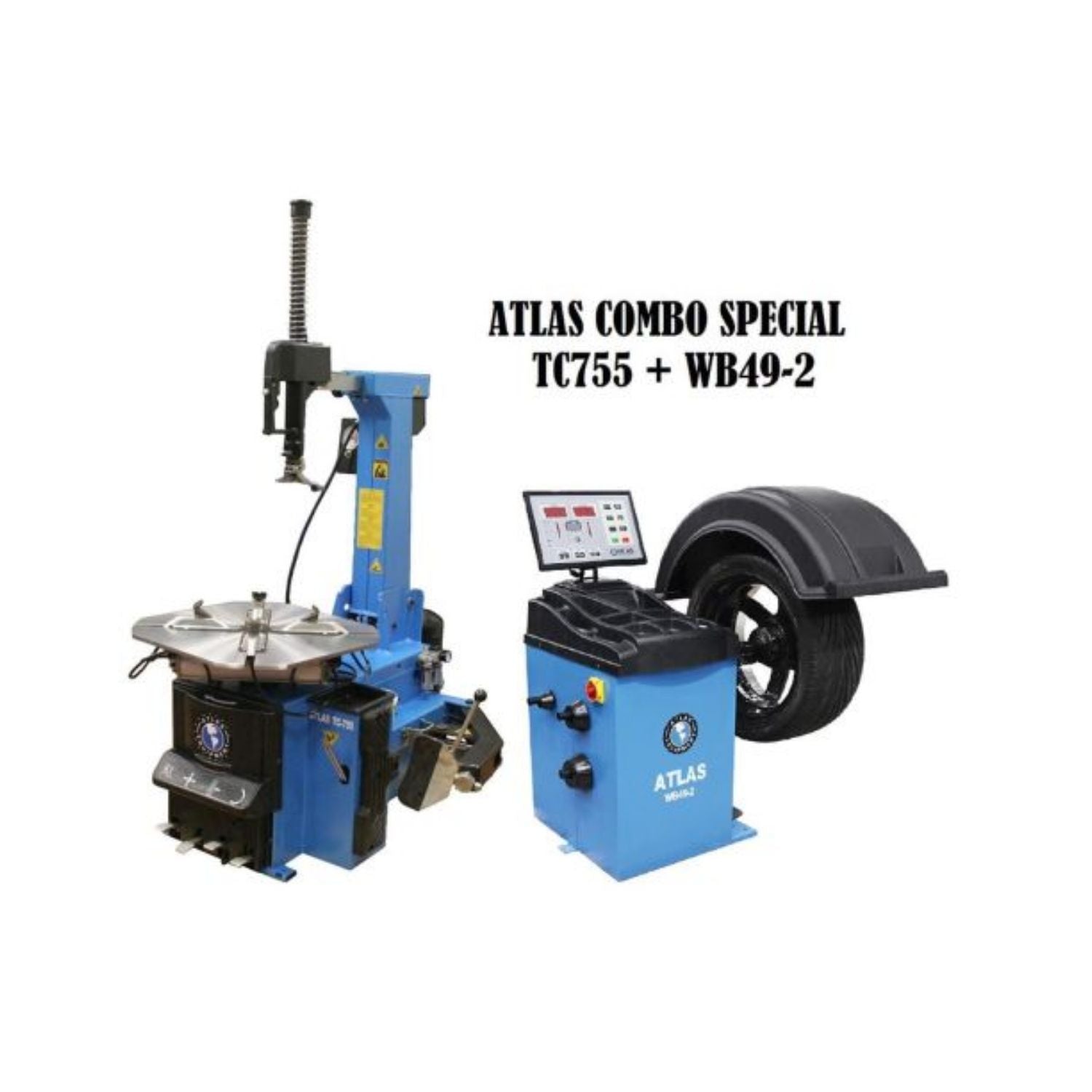

Atlas® TC755 & WB49-2 Combo Package #ATETCWB-COMBO3-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC755 & WB49-2 Combo Package combines a heavy-duty commercial tire changer and premium computerized wheel balancer into one complete wheel service solution for professional tire shops and automotive repair facilities. Designed for high-volume daily use, this package delivers dependable tire changing and wheel balancing capability for passenger vehicles, SUVs, light trucks, alloy wheels, and low-profile tire applications.

  The package includes the Atlas TC755 Tire Changer, featuring a heavy-duty tilt-back design with advanced wheel handling capability for larger and more difficult tire assemblies, along with the Atlas WB49-2 Computerized Wheel Balancer, which provides fast and accurate balancing performance with automatic 2D wheel measurement and premium balancing functions. Together, these machines help improve shop efficiency while supporting a wide range of modern wheel and tire service applications.

  Ideal for busy commercial shops upgrading equipment or building a new service bay, the TC755 & WB49-2 combo offers professional-grade durability, modern wheel service capability, and reliable daily performance for demanding shop environments.

• FEATURES AND BENEFITS

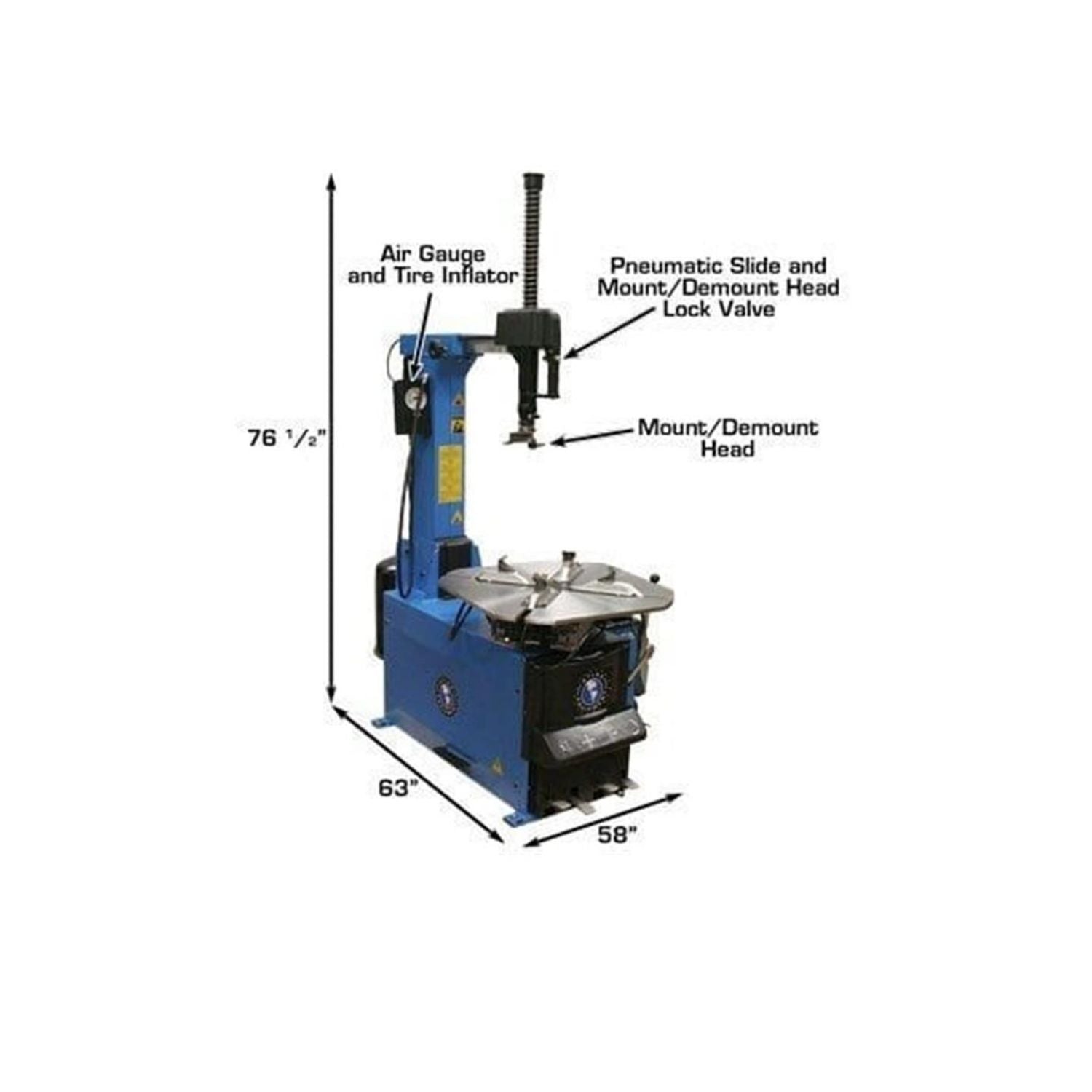

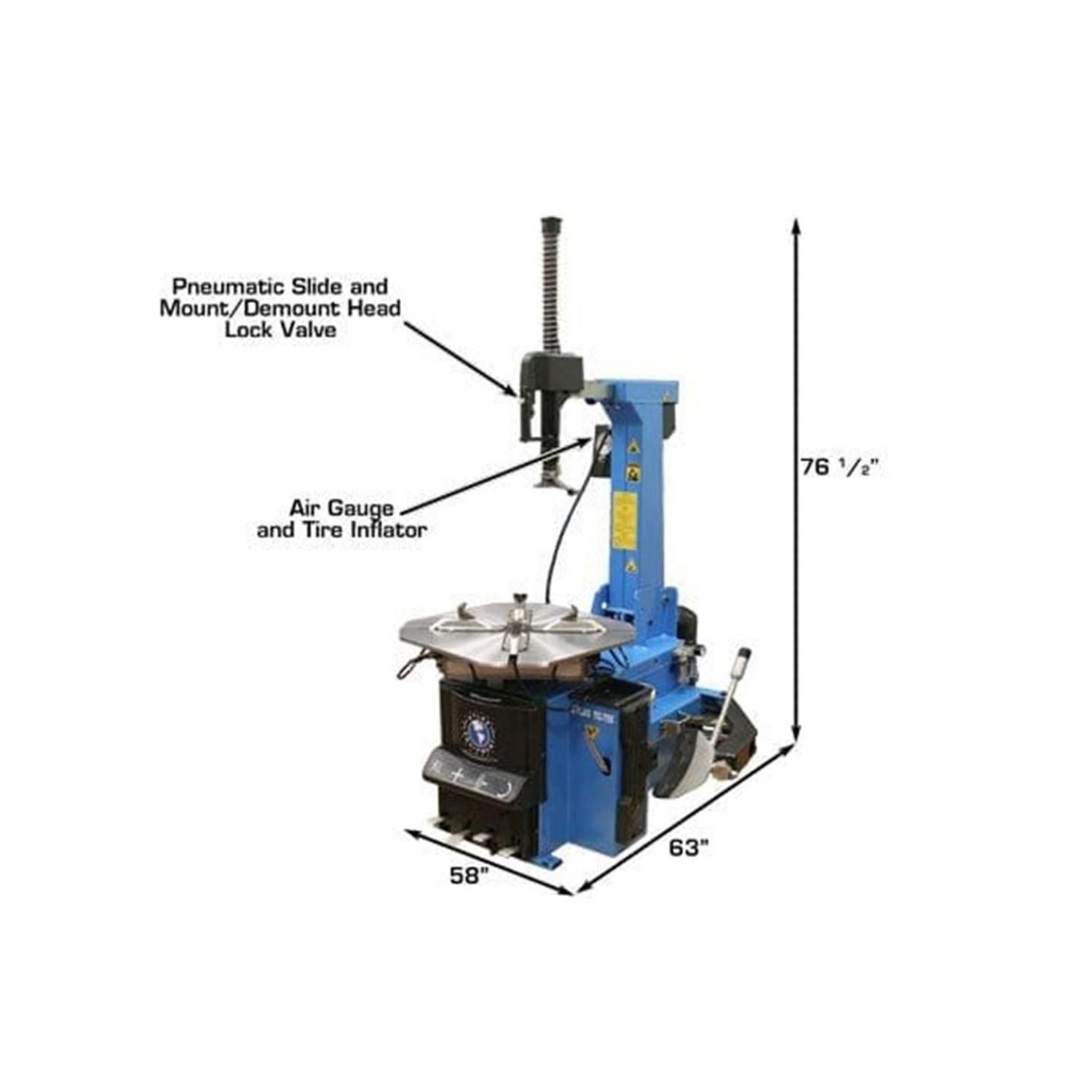

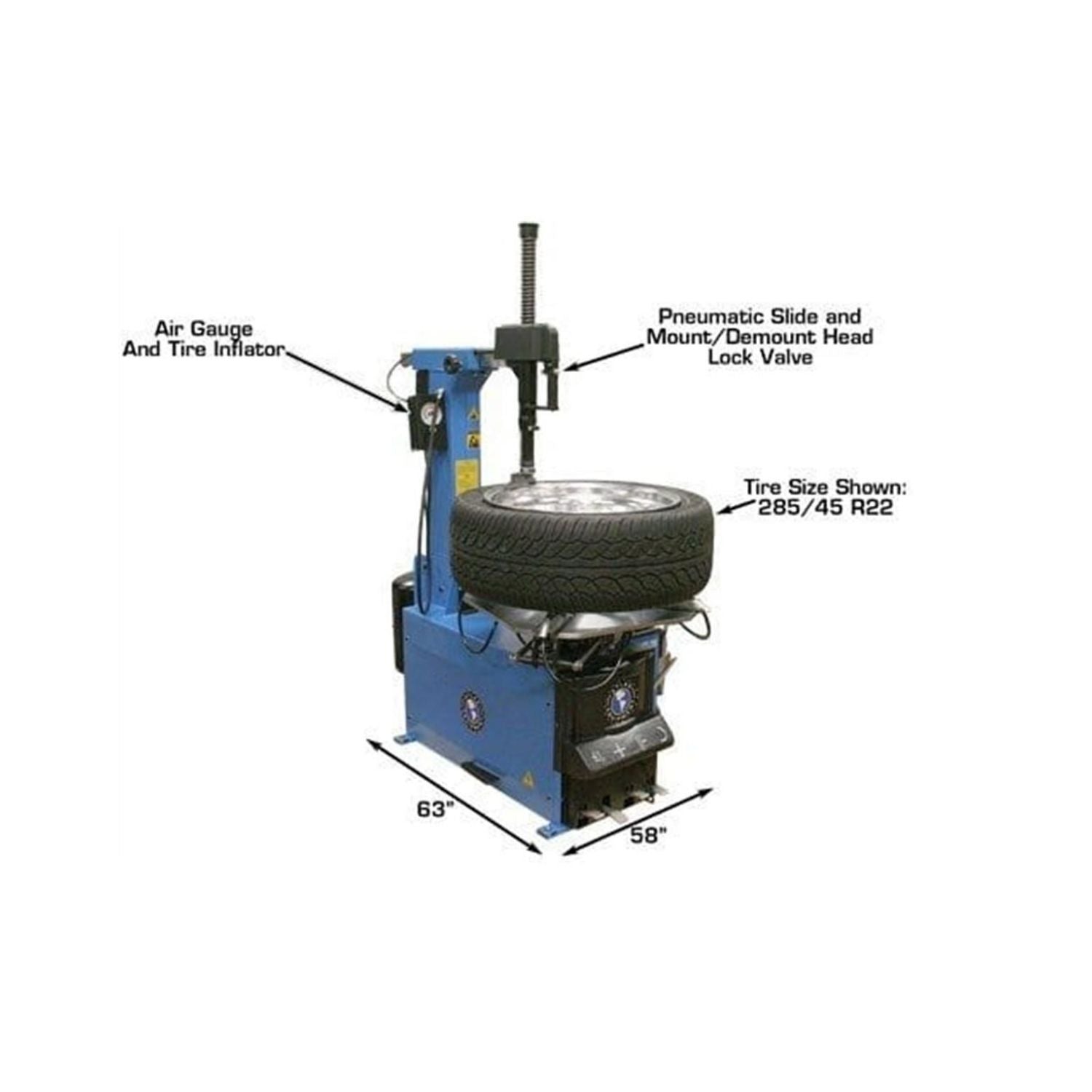

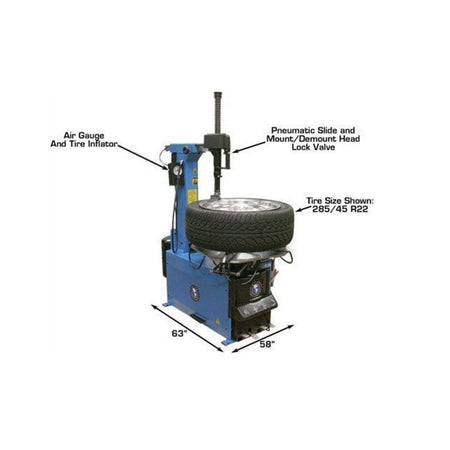

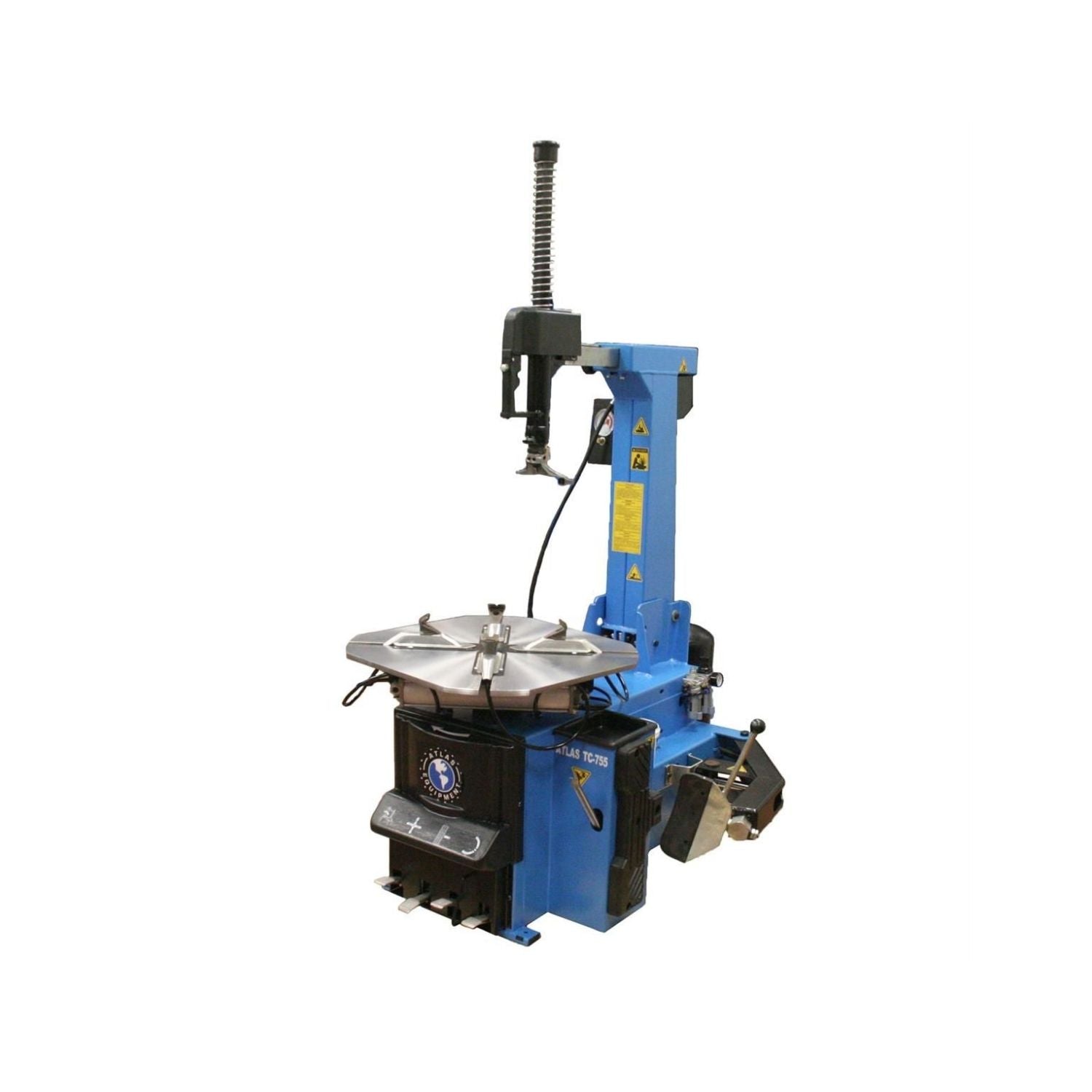

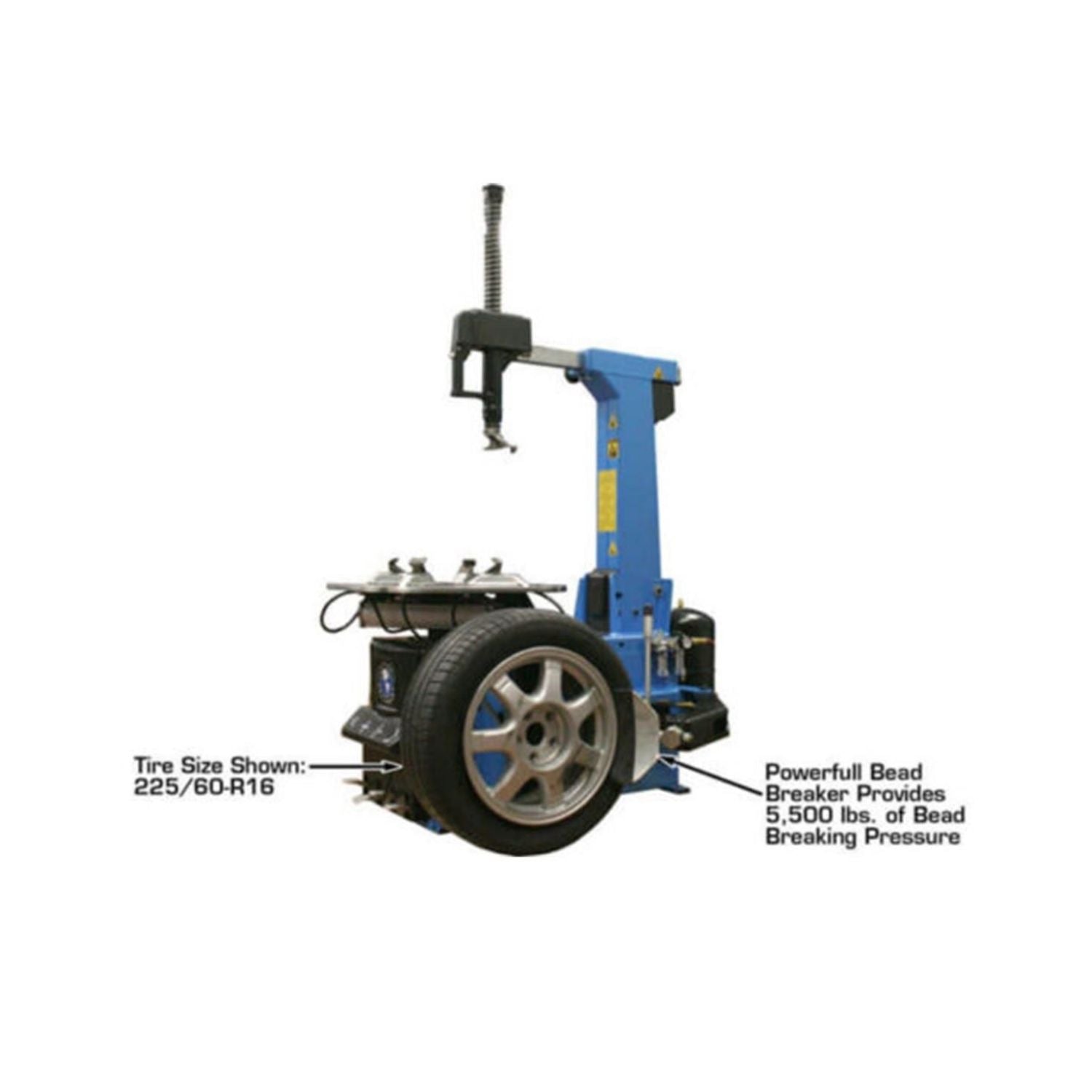

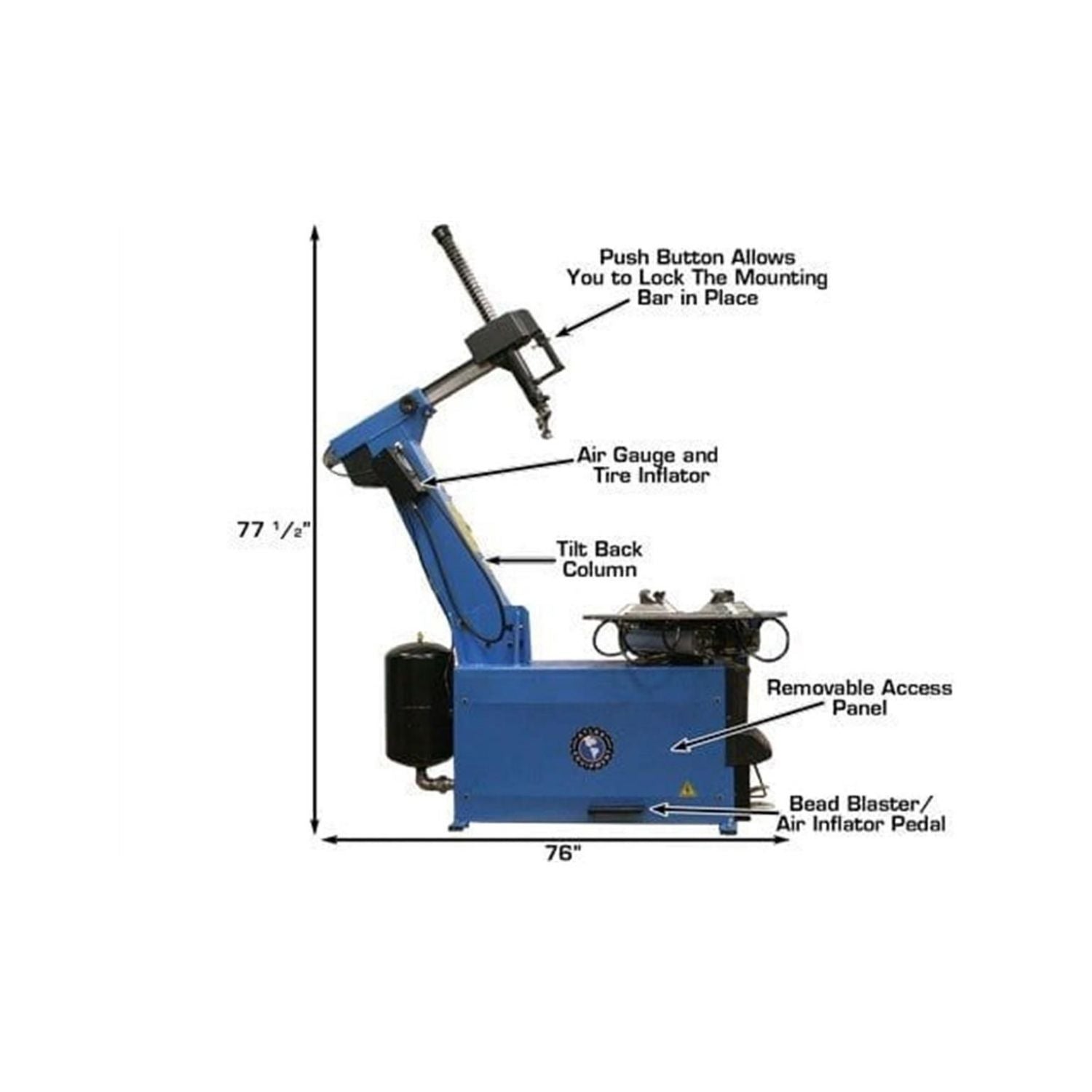

  Atlas® TC755 Tire Changer

  • Tilt-Back Column Tire Changer
  • Rim-Clamp Style
  • Extra-Large turntable, more clearance
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable

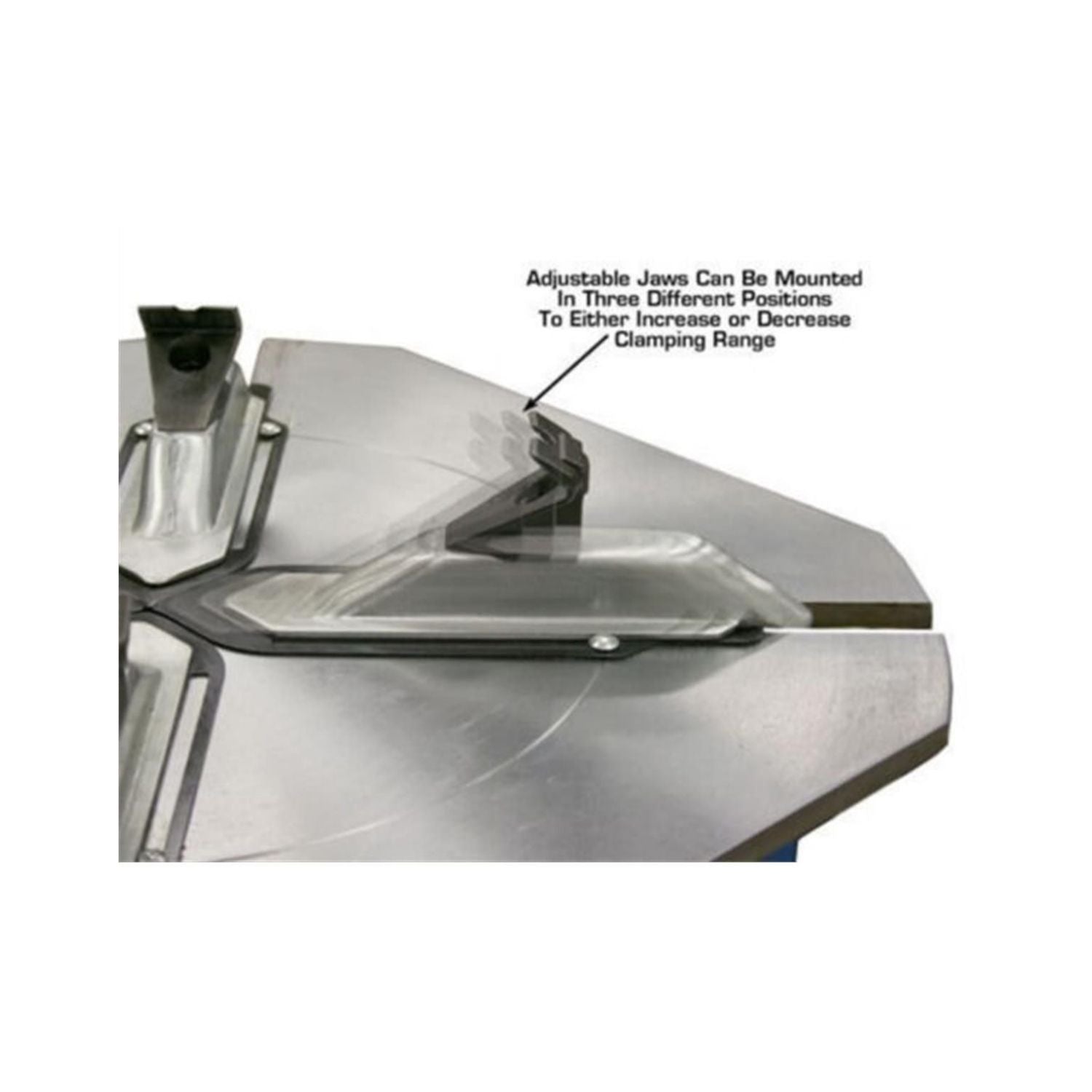

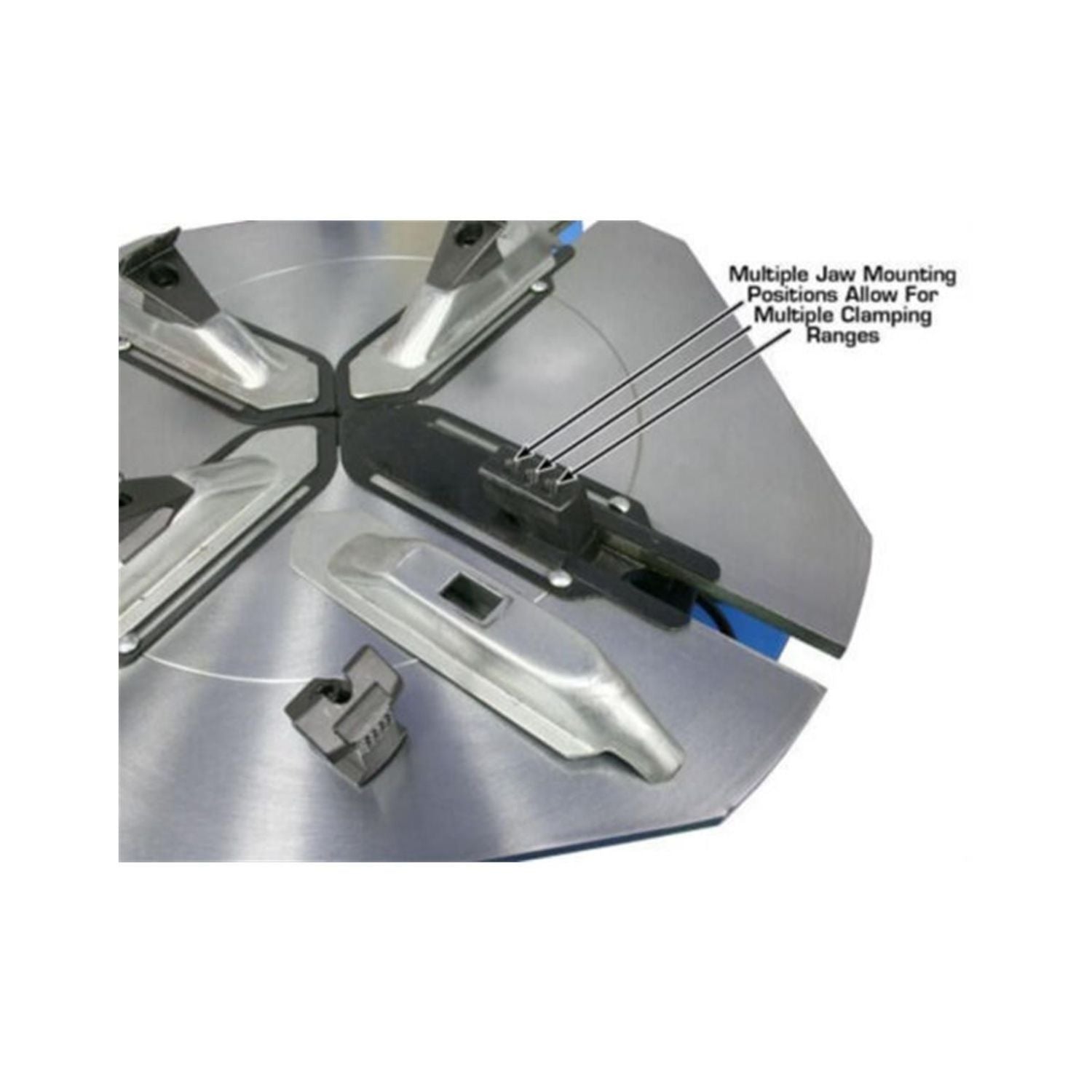

  • Adjustable jaws, three mounting positions

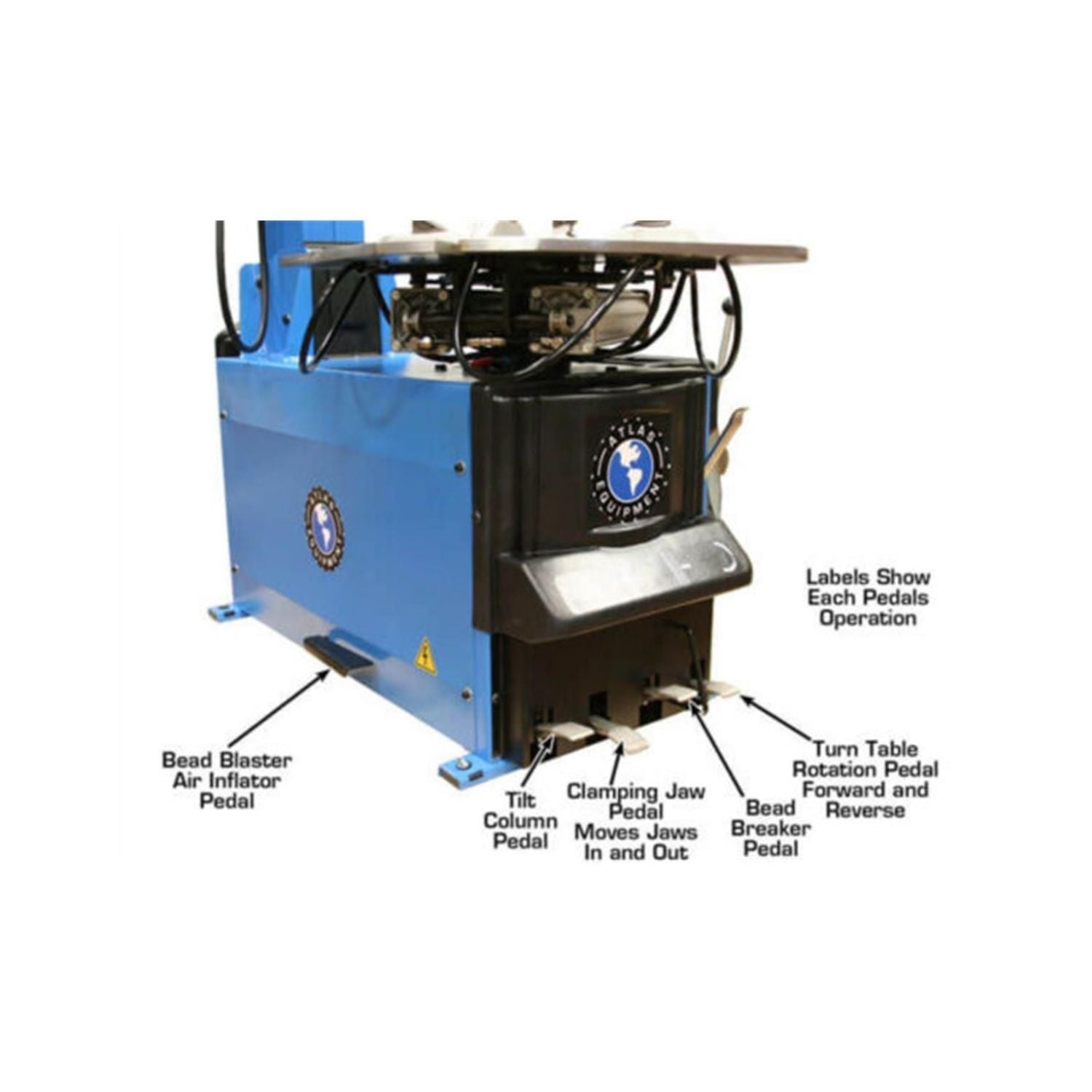

  • Button-Controlled Bead Breaker (operated at blade)

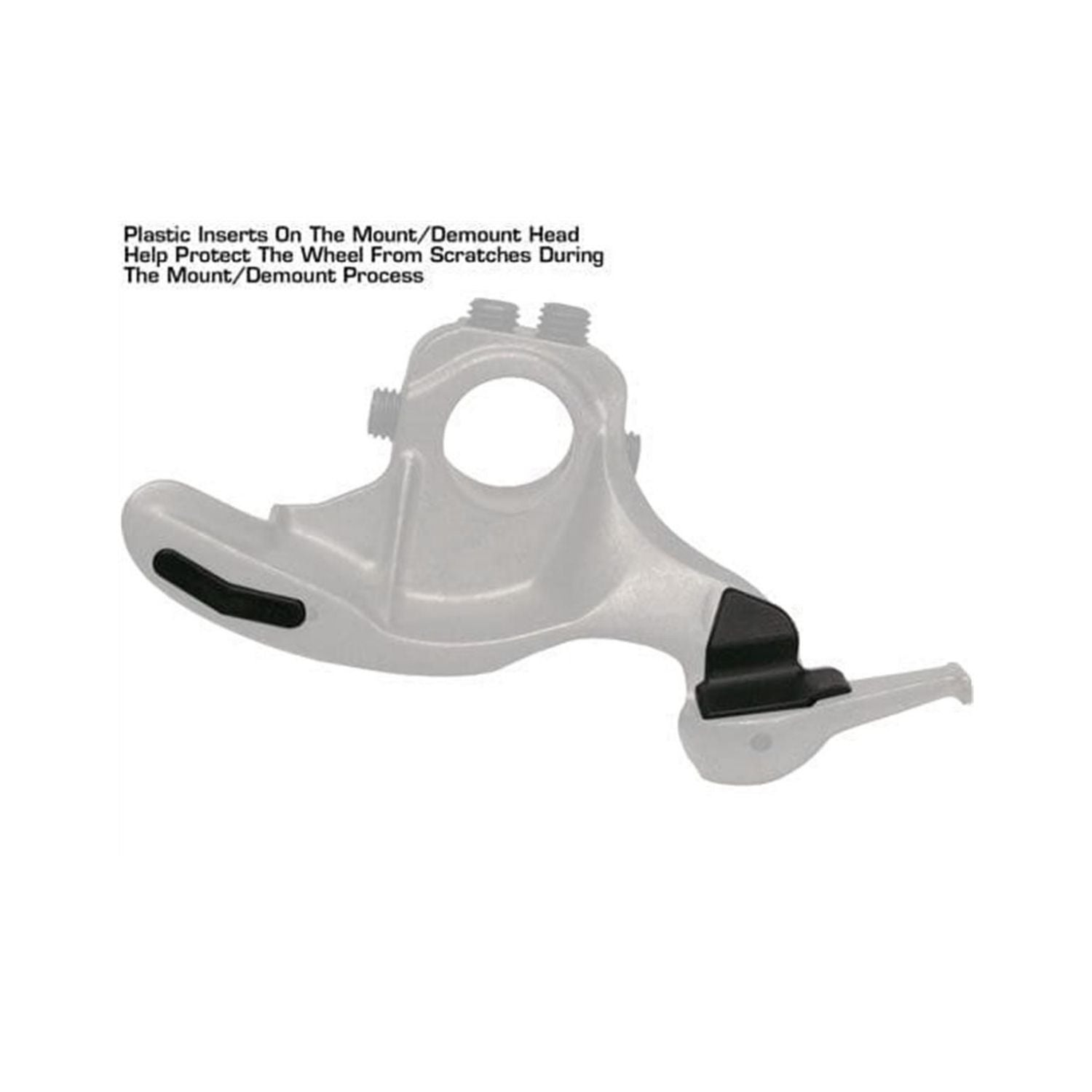

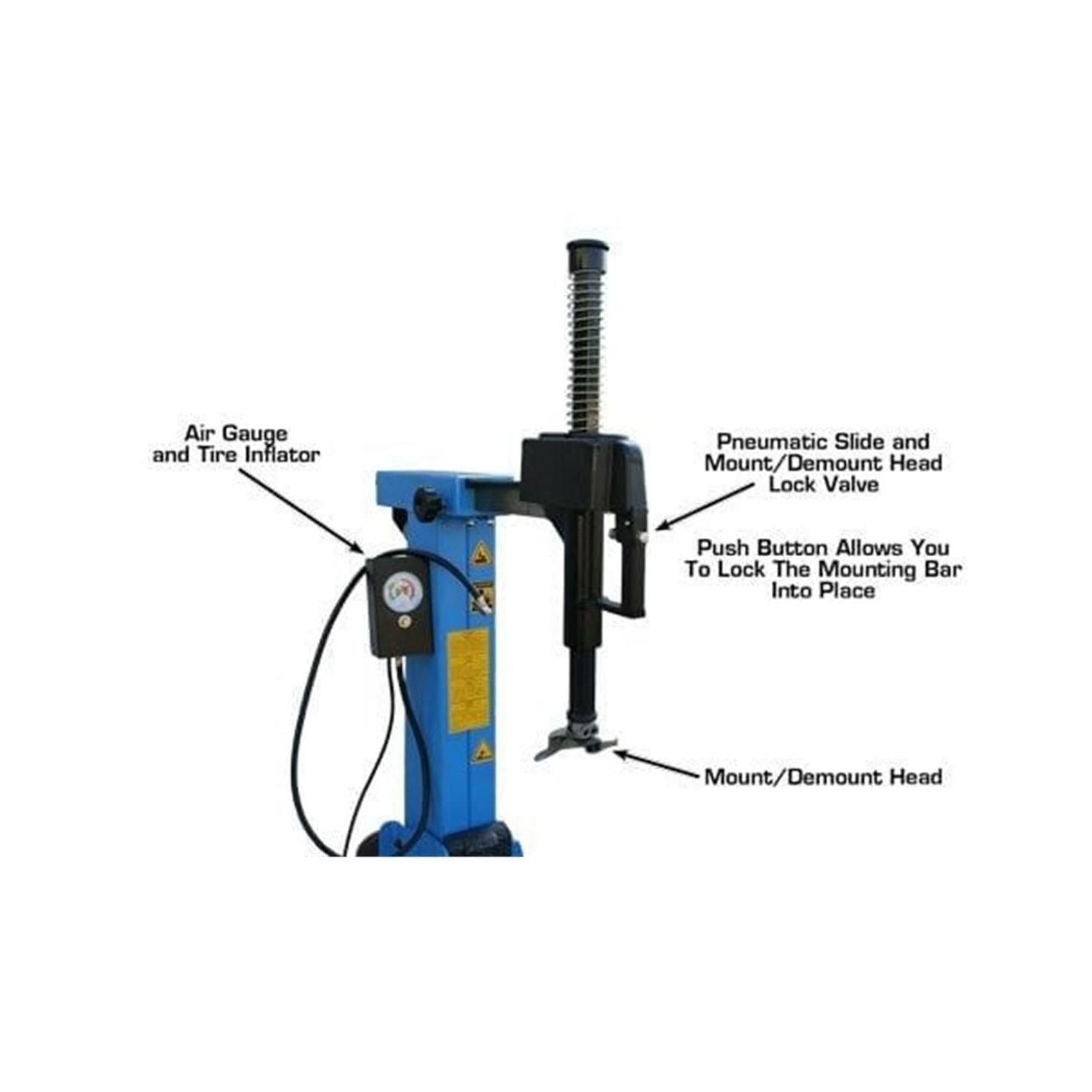

  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included

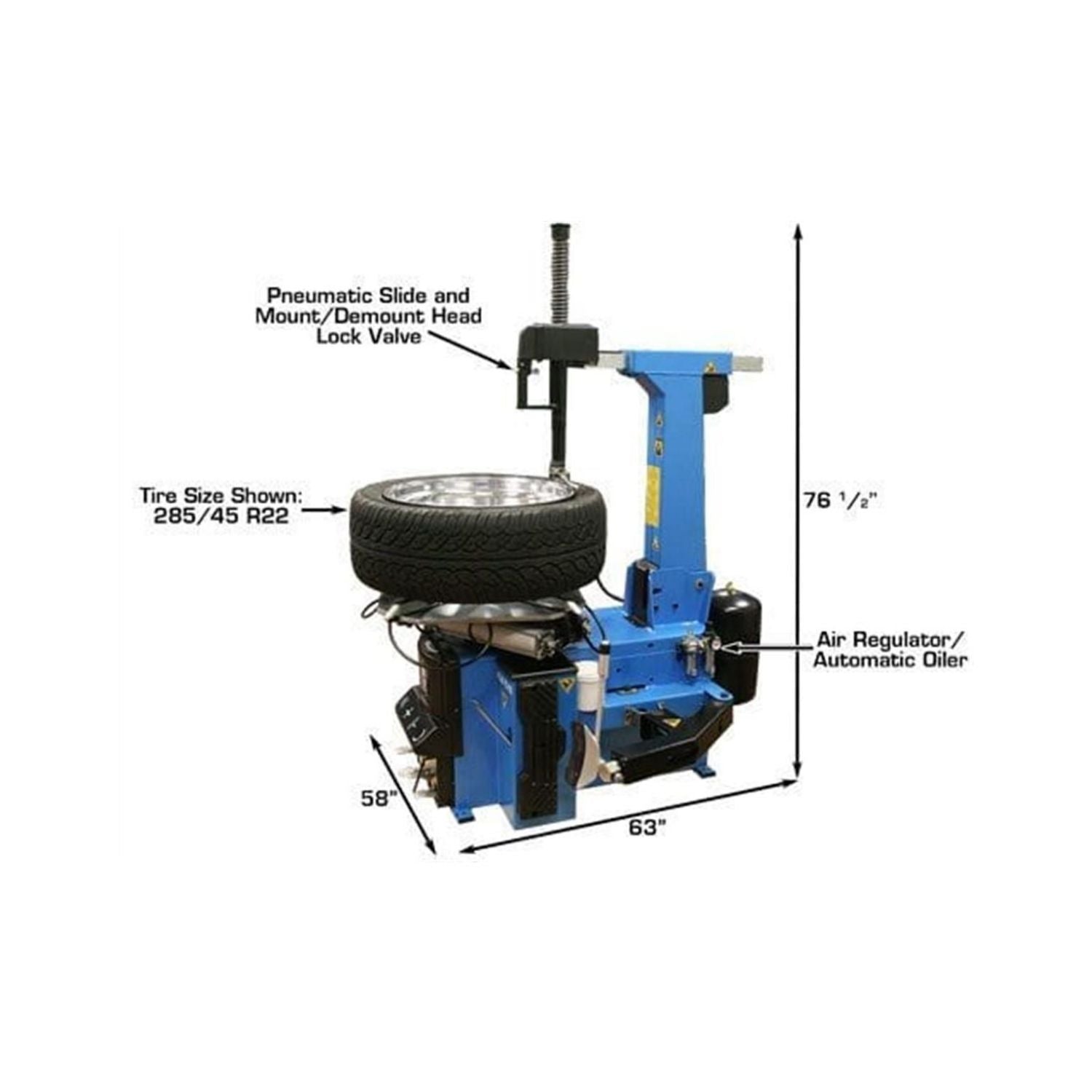

  • Filter/Regulator/Lubricator Included

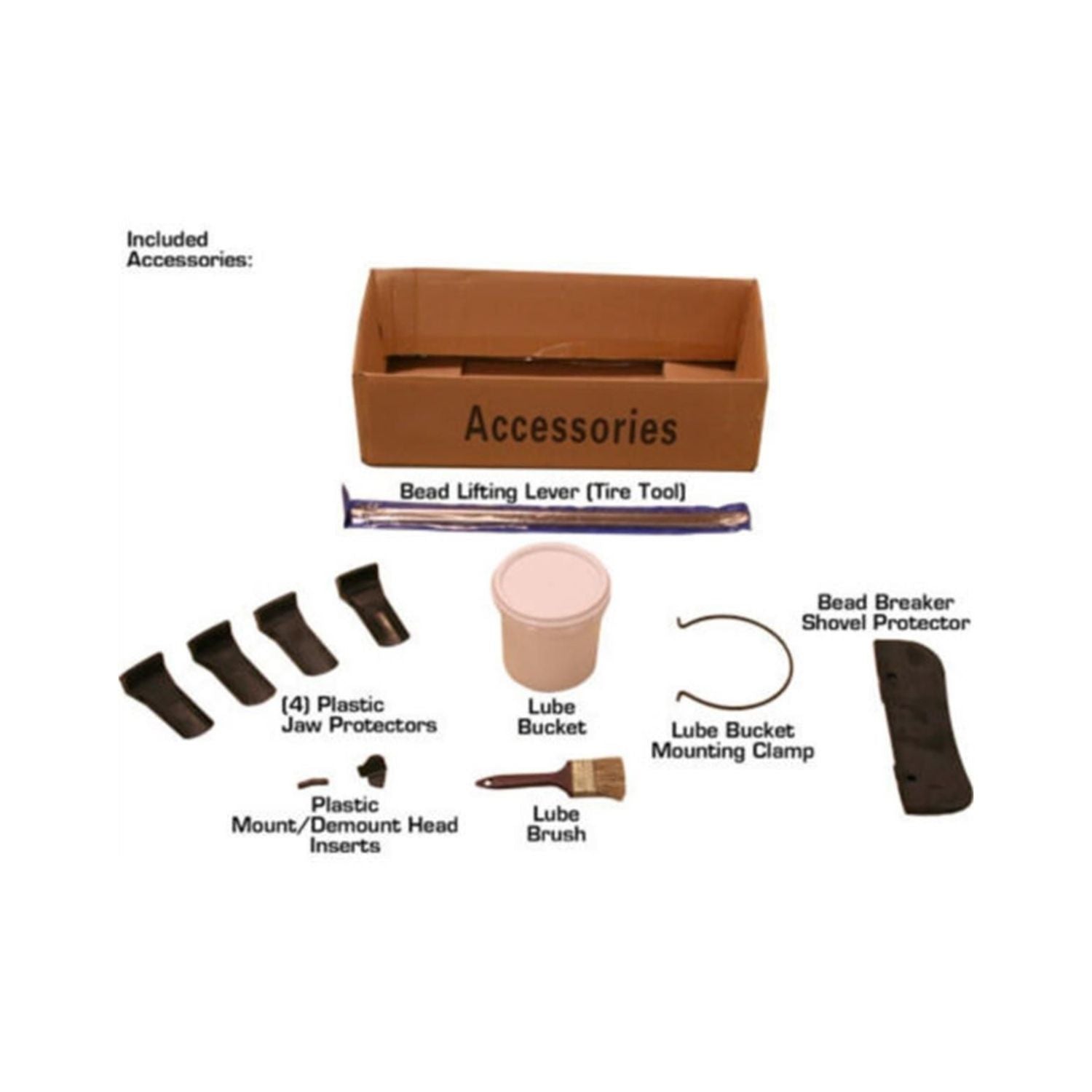

  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Built in "Beadblaster"




  Atlas® WB49-2 Wheel Balancer

  • Computer Controlled Motorized Spin Balancer
  • Raised, Easy to Read Display
  • Large Wheel Weight Tray
  • Automatic 2D Data Entry
  • Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
  • Split-Weight Function for hiding weights behind spokes
  • Automatic LED Light
  • Auto-Positioning
  • Automatic and pedal operated brake.
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-Diagnosing and Self-calibrating
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • No anchor-down installation needed
  • Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers


• SPECIFICATIONS

  Atlas® TC755 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO3-FPD
  Dimensions:	80" L × 46" W × 45" H
  Weight:	1000 lbs
  UPC:	810524029056
  Country of Origin:	CHN

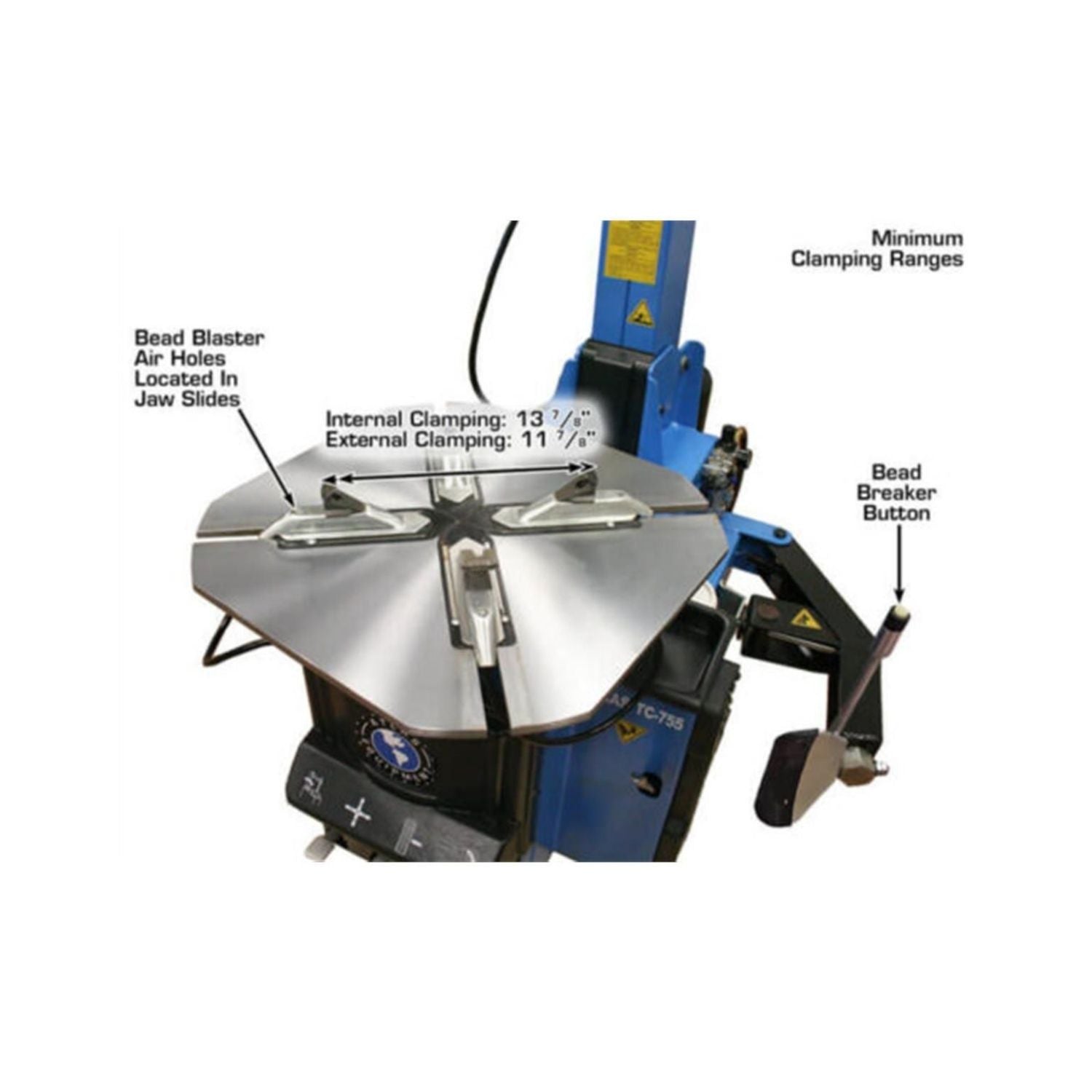

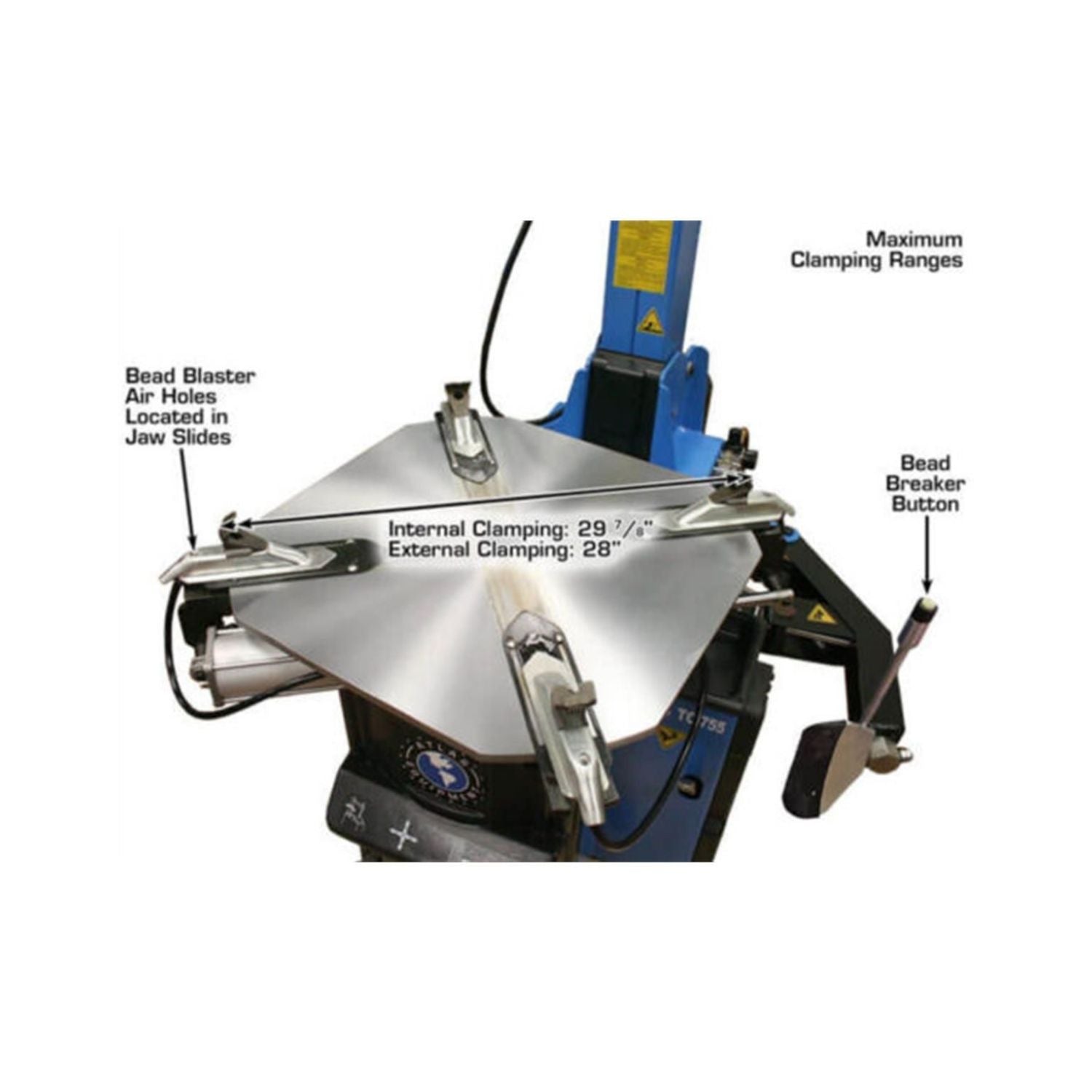

  External Locking Rim Dimensions:	11 7/8" to 27 7/8"
  Internal Locking Rim Dimensions:	13 7/8" to 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.

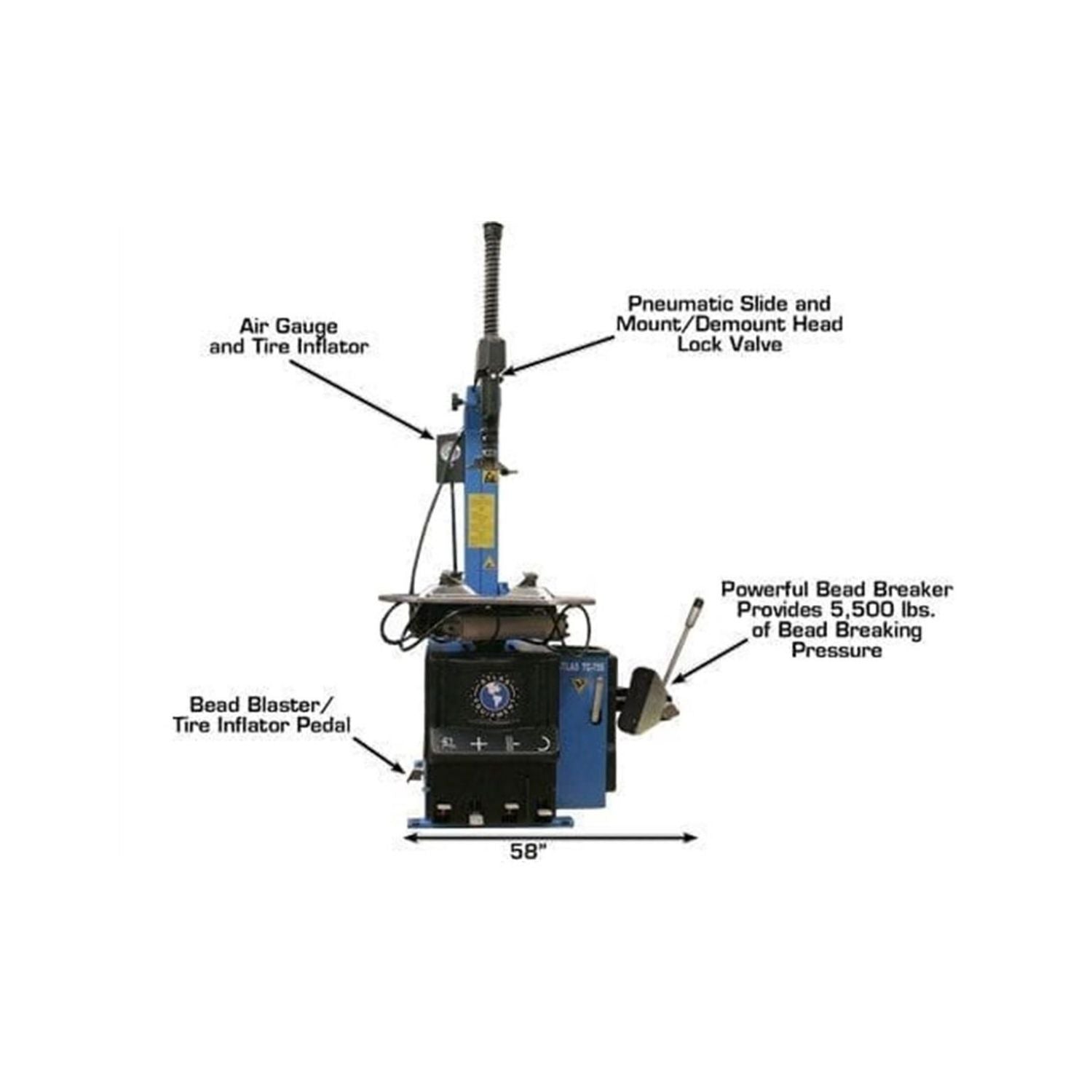

  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	700 lbs




  Atlas® WB49-2 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32" (Manual Data Entry May be Required over 23")
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	Automatic 2D (Automatic 3D Optional)
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt
  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
