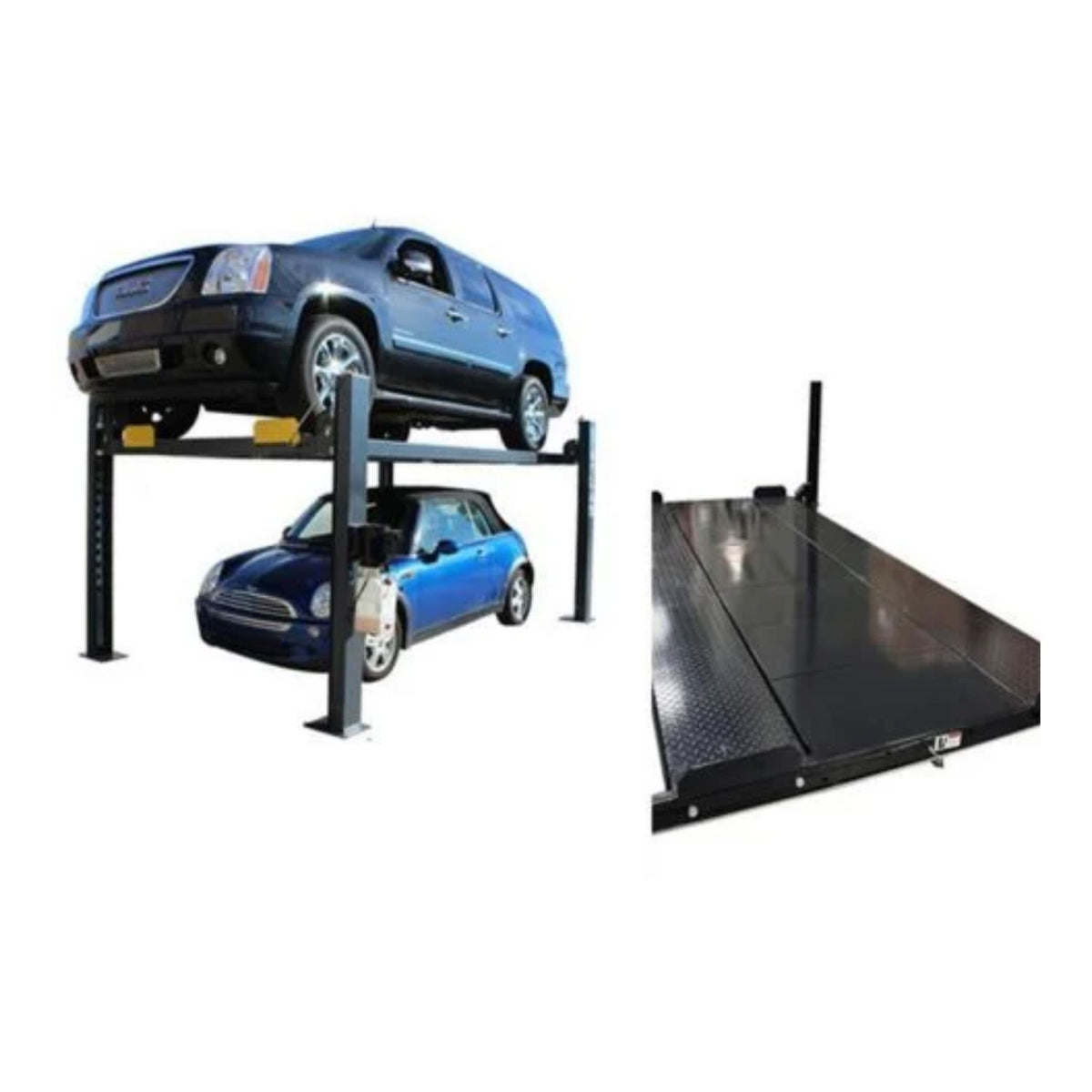

Atlas® 408SL + PRO-FLOOR Combo #ATEATTD-408SL-FP8-COMBO-FPD
Couldn't load pickup availability
| Lift | 408SL — 8,000 lb Super Deluxe |
| Floor Panels | 8-piece PRO-FLOOR set |
| Power | 110V, 30A |
| Warranty | Lift 2/2 yr |
- 110 volt, 30 amp breaker
- Dedicated circuit — have an electrician confirm
- Standard residential-panel territory
- Column height + vehicle at full rise — measure lights and door tracks
- Floor panels add storage ABOVE the raised vehicle
- Confirm both heights before ordering
- Check max wheelbase against the lift's spec
- Panels rate 400 lbs per section — storage, not parking
- Confirm loaded vehicle weight before ordering
Atlas 408SL + PRO-FLOOR Combo — Lift + PRO-FLOOR Combo
A hobbyist lift that parks one car and leaves the garage's upper half empty is a bay working at half capacity — and most owners discover it after the lift is installed. The Atlas 408SL + PRO-FLOOR combo solves it in one order: the Super Deluxe 8,000 lb lift (commercial-grade construction at a hobbyist price) plus the 8-piece floor panel set that closes the runway gap into a storage deck.
The 408SL brings the stronger hobbyist warranty terms (2 years structural AND 2 years hydraulic — parts only) and the Super Deluxe construction: bent columns for strength, larger column sections, cables hidden inside. The panels add the second story: storage above the raised vehicle at 400 lbs per section — bought together, with the fit guaranteed by the manufacturer's pairing.
Who the Atlas 408SL + PRO-FLOOR Combo Is Built For
- Value-driven home buyers who still want commercial-grade construction — the 408SL's Super Deluxe frame (bent columns, hidden cables, larger sections) with the storage deck included in one order.
- Warranty comparers in the hobbyist tier — 2/2 (structural/hydraulic, parts only) beats the Garage PRO line's 2/1, and the 408SL keeps it in this combo.
- Homeowners doubling garage capacity — the PRO-FLOOR panels turn the lift into a two-level system: vehicle below, 400 lb-per-section storage above.
- Restoration shops storing projects — a long-term park with parts storage above it, in one order and one warranty path.
- Buyers comparing the APEX8 pairing — the APEX8 adds ALI certification and 5/2 coverage; the 408SL is the honest value when the badge isn't the requirement.
What the Atlas 408SL + PRO-FLOOR Combo Is NOT Built For
This is not the certified pairing — the APEX8 combo carries the ALI certification and the stronger warranty; the 408SL is the value side of the same two-level idea. No bridge jacks here (wheel service needs a different pairing), and the panels are storage, not parking.
Important sizing note: measure bay width (117 1/2" with motor), ceiling against the 83" columns PLUS raised vehicle PLUS storage deck, and confirm the storage plan fits 400 lbs per section before purchase.
What Makes the Atlas 408SL + PRO-FLOOR Combo Different
The lift: 408SL Super Deluxe
8,000 lbs, commercial-grade construction — bent columns for strength, larger column sections, cables hidden inside — with the hobbyist line's better warranty terms (2/2).
The panels: PRO-FLOOR
The 8-piece set closes the runway gap into a storage deck — 400 lbs per section, no fasteners, guaranteed to fit this lift by the combo.
The system: two levels, one order
The 8-piece set closes the runway gap into a storage deck — 400 lbs per section, no fasteners, guaranteed to fit this lift by the combo, one freight bill.
Best For
- Value two-level garages
- 2/2-yr warranty tier
- Restoration storage
- Commercial-grade home builds
Not Ideal For
- Certification needs (see APEX8 combo)
- Wheel-service needs (see jack combos)
- Vehicle parking on panels
What the combo changes vs buying the pieces separately
| Buy the Combo | Buy Separately | |
|---|---|---|
| Component matching | panel set is the manufacturer's pairing for the 408SL's runway gap | you verify panel fit yourself |
| Freight | one inbound freight bill, one delivery day | lift and panels arrive as separate freight |
| Setup | panels drop into the runway gap at delivery — no fasteners | separate deliveries to coordinate |
| Service path | one warranty path through Alamo | two purchase trails to track |
The value lift plus its matched storage deck — bought together, guaranteed to work as one.
Full Specifications - Atlas 408SL + PRO-FLOOR Combo
| Lift — capacity | 8,000 lbs |
| Lift — type | 4-post 'Super Deluxe' portable hobbyist lift, commercial-grade construction |
| Lift — lifting height | 73 1/4" (not on lock) |
| Lift — clearance under runways | 68 1/2" |
| Lift — columns | 83" |
| Lift — overall width | 109 5/8" w/o motor / 117 1/2" w/ motor |
| Lift — runway length | 166 3/4" |
| Lift — max wheelbase | 154" |
| Lift — power | 110V, 30A (plug not included) |
| Lift — shipping weight | 1,965 lbs |
| Lift — construction | Columns with two special bends for strength; larger column size; cables hidden in columns and cross tube |
| Lift — included | Caster kit, steel ramps, jack tray, 4 drip trays, wheel stops |
| Panels — set | Complete 8-piece floor panel set: 6 middle + 2 end pieces |
| Panels — capacity | 400 lb per section |
| Panels — dimensions | 37.25" wide x 19.5" deep x 4" tall |
| Panels — purpose | Close the gap between runways: storage above the vehicle, additional parking space underneath |
⚠️ Installation Requirements
- Free-standing portable lift design — position per the included manual; no permanent anchoring
- Electrical: 110 volt, 30 amp breaker — have an electrician confirm the dedicated circuit
- PRO-FLOOR panels drop into the runway gap — no fasteners; 400 lb capacity per section
- Confirm vehicle raised height AND panel-deck storage height against the ceiling
- Alamo delivers it — and services the lifts we sell
Atlas® Automotive Equipment Warranty - Atlas 408SL + PRO-FLOOR Combo
The 408SL carries the hobbyist line's better terms — 2 years on structure AND hydraulics — with the panels' lack of published warranty noted honestly.
| Component | Coverage Term |
|---|---|
| Lift — steel structure (408SL) | 2 years |
| Lift — hydraulics (408SL) | 2 years (parts only) |
| PRO-FLOOR panels | No published warranty |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas 408SL + PRO-FLOOR Combo
What does the combo include?
The 408SL 8,000 lb Super Deluxe lift plus the complete 8-piece PRO-FLOOR panel set (6 middle + 2 end panels).
How does the 408SL warranty compare?
2 years structural / 2 years hydraulic (parts only) — stronger than the Garage PRO line's 2/1 in the same hobbyist class. The APEX8's 5/2 is the step above.
Can I park on the panels?
No — 400 lbs per section is storage. The deck holds parts and bins, not vehicles.
Why buy the combo instead of the pieces separately?
Guaranteed fit and logistics: the PRO-FLOOR set is the manufacturer's own pairing for the 408SL's runway gap, everything ships on one freight bill, and the panels drop in at delivery.
Why Buy the Atlas 408SL + PRO-FLOOR Combo from Alamo Equipment & Service?
- We sell what fits. Value, warranty, or certification — we'll match the pairing to what the garage actually needs.
- We deliver it. One freight bill for lift and panels.
- We service it. The 2/2 warranty routes through Alamo.
- We know the two-level math. Ceiling plus vehicle plus storage deck — checked before you order.
- One system, one order. The Super Deluxe and its matched deck.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
