Atlas® Alignment Wheel Stands with Turntables #ATEATLAS-WHLSTD-FPD

Atlas® Alignment Wheel Stands with Turntables #ATEATLAS-WHLSTD-FPD

The Atlas Alignment Wheel Stand & Turntable Package provides four steel wheel stands and four alignment turntables for shops that want alignment capability without dedicating floor space to a permanent 4-post alignment lift.

The four stands support up to 6,000 lbs combined, with a 1,500 lb capacity per stand. Each stand provides a 19.5-inch square solid-steel platform with a 0.38-inch-thick top plate and a 39-1/2-inch working height that positions the vehicle wheels at a practical height for alignment sensors.

Product Features

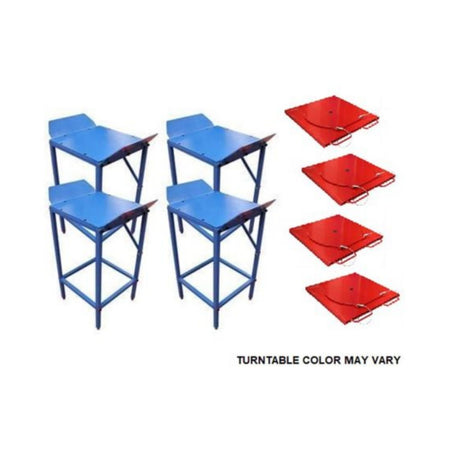

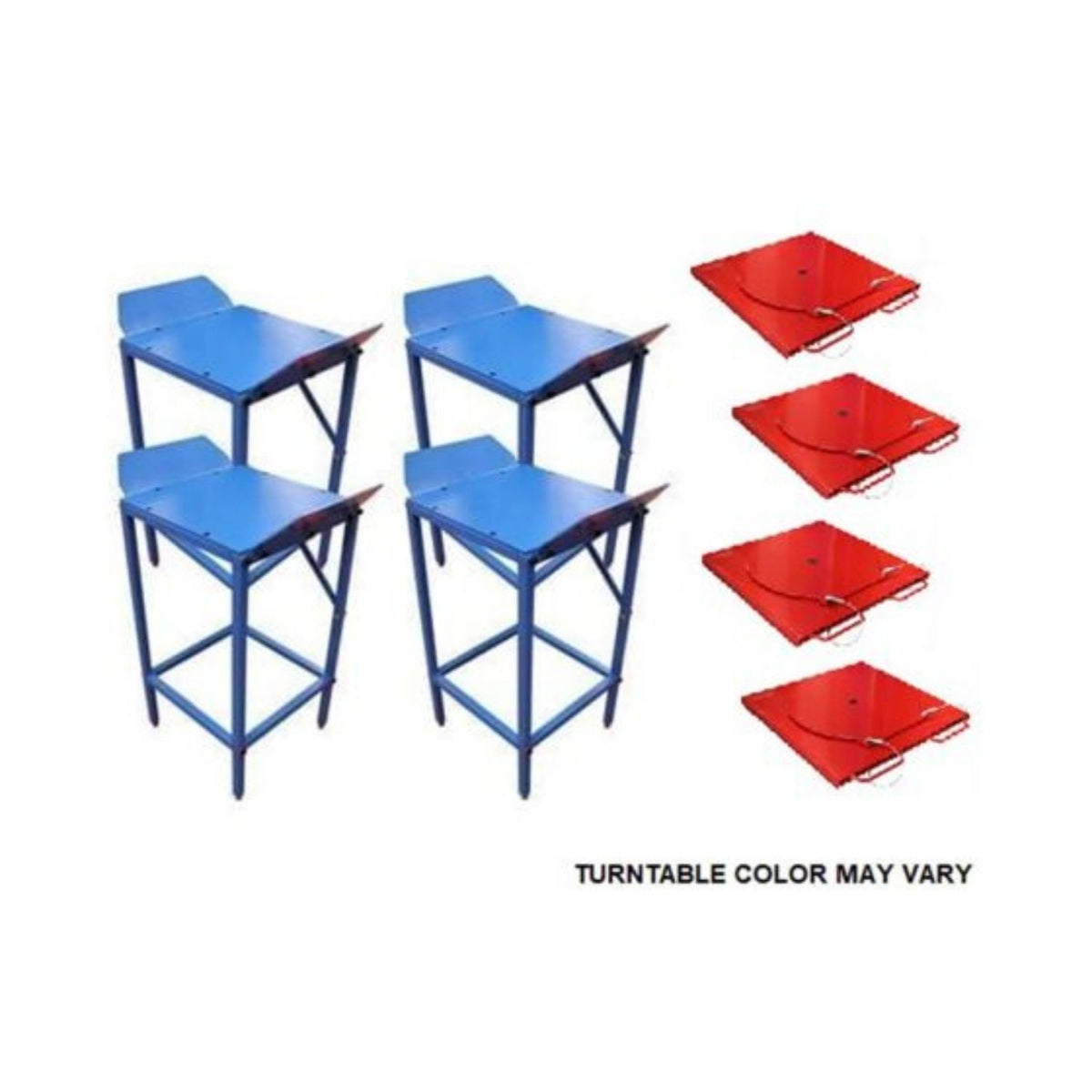

• Includes four steel wheel stands
• Includes four alignment turntables
• 6,000 lb combined vehicle capacity
• 1,500 lb capacity per stand
• 19.5" x 19.5" solid-steel stand surface
• 0.38"-thick top steel plating
• 39-1/2" stand height
• Stands can be leveled for wheel-alignment use
• Designed for shops without room for a dedicated 4-post alignment rack
• Turntable color may vary

Alignment Applications

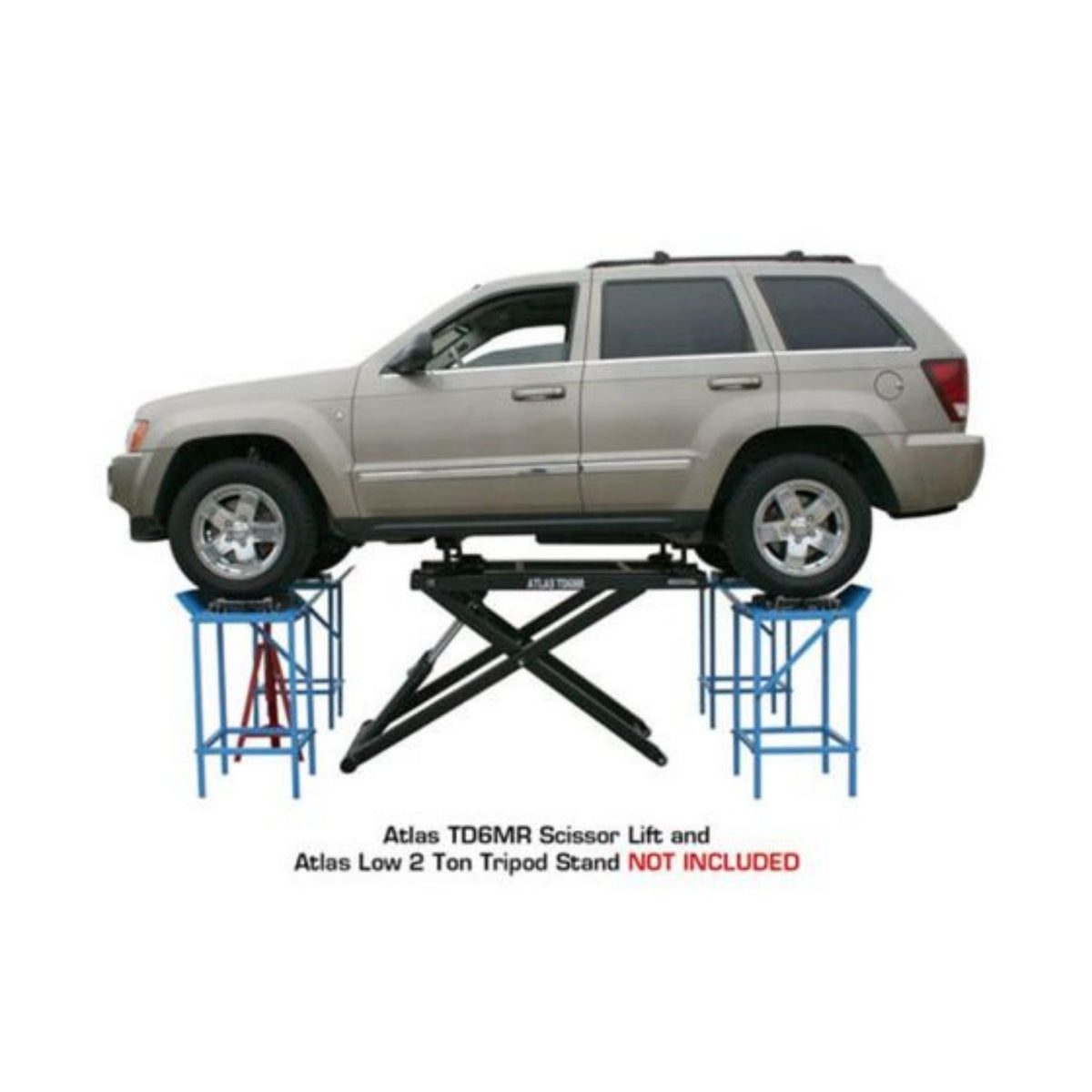

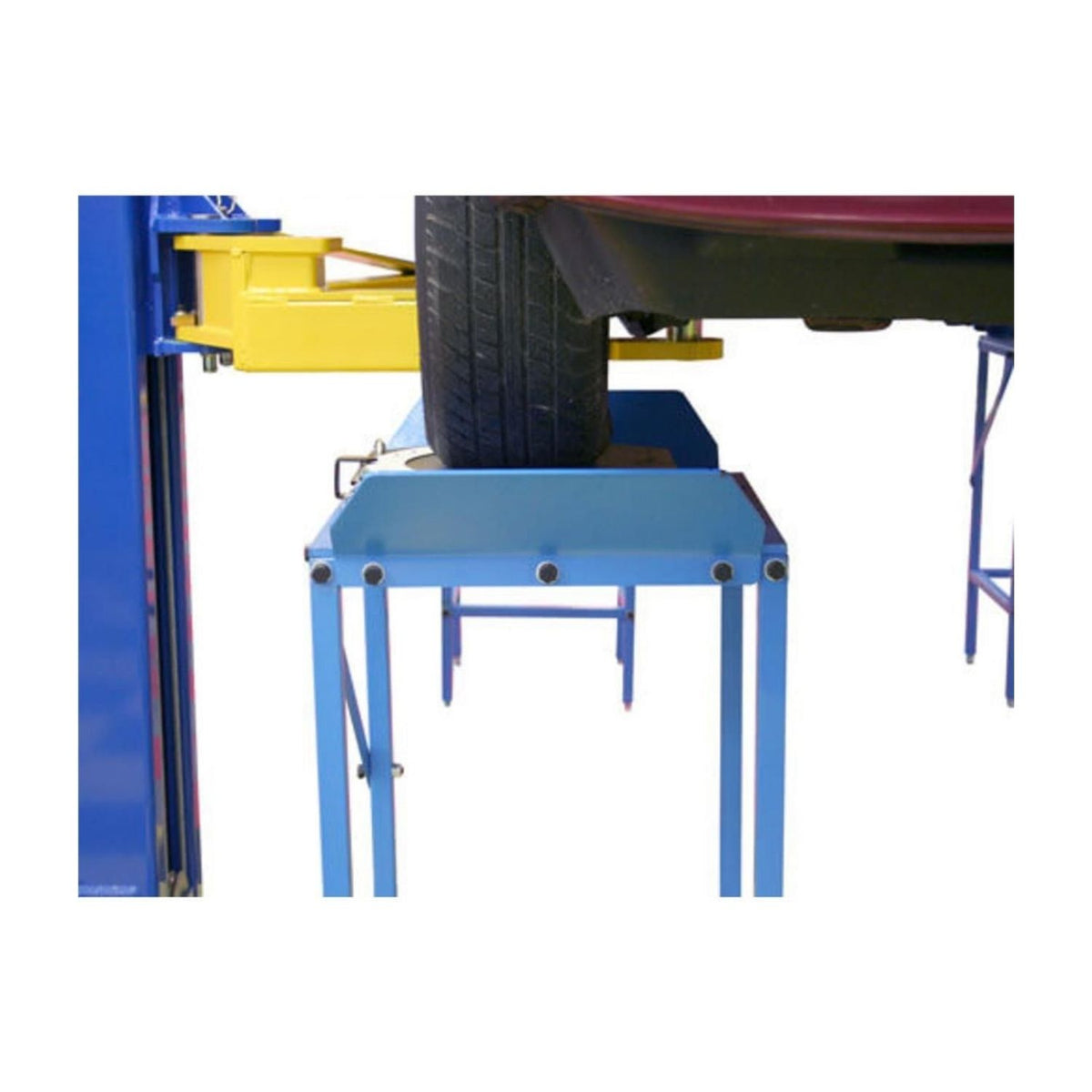

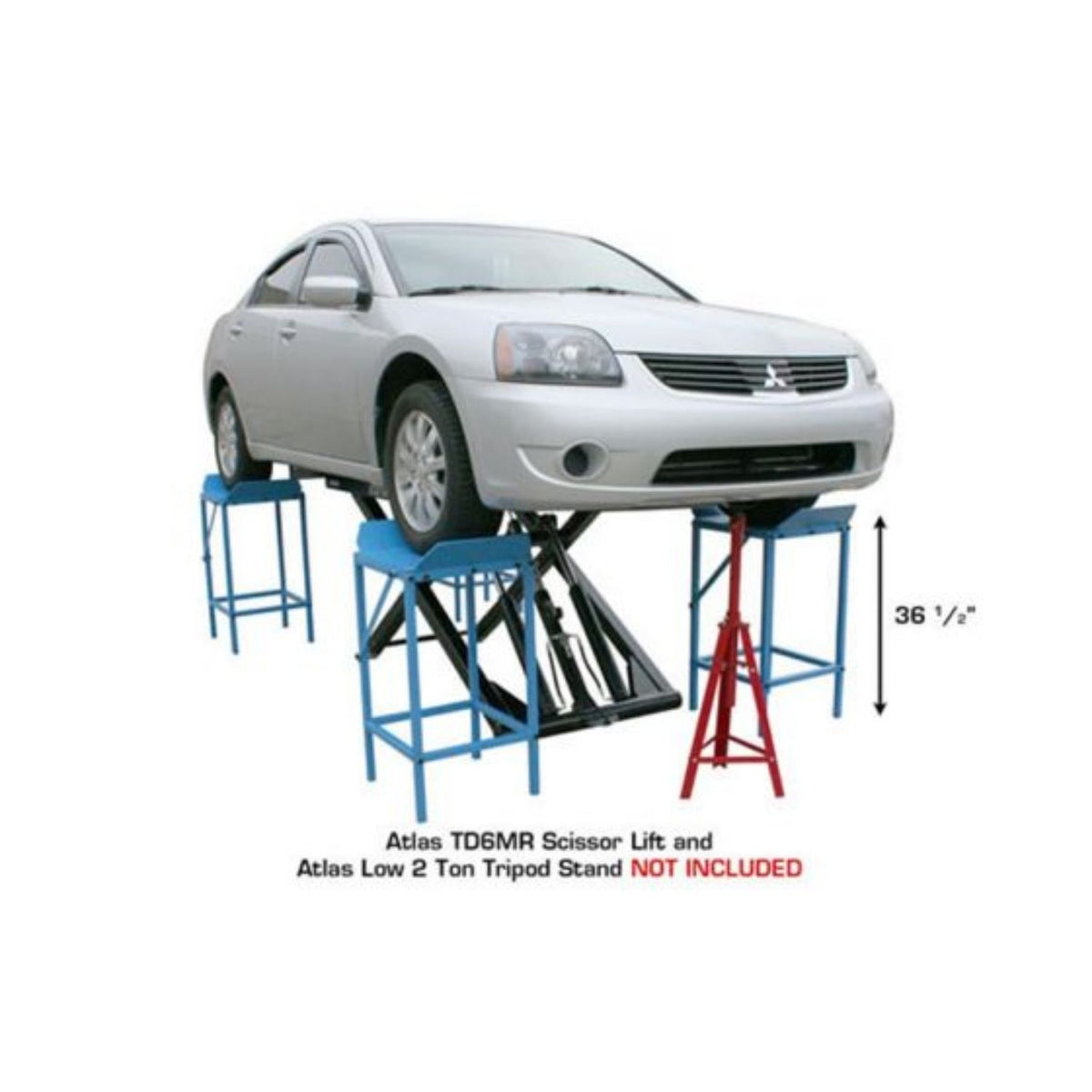

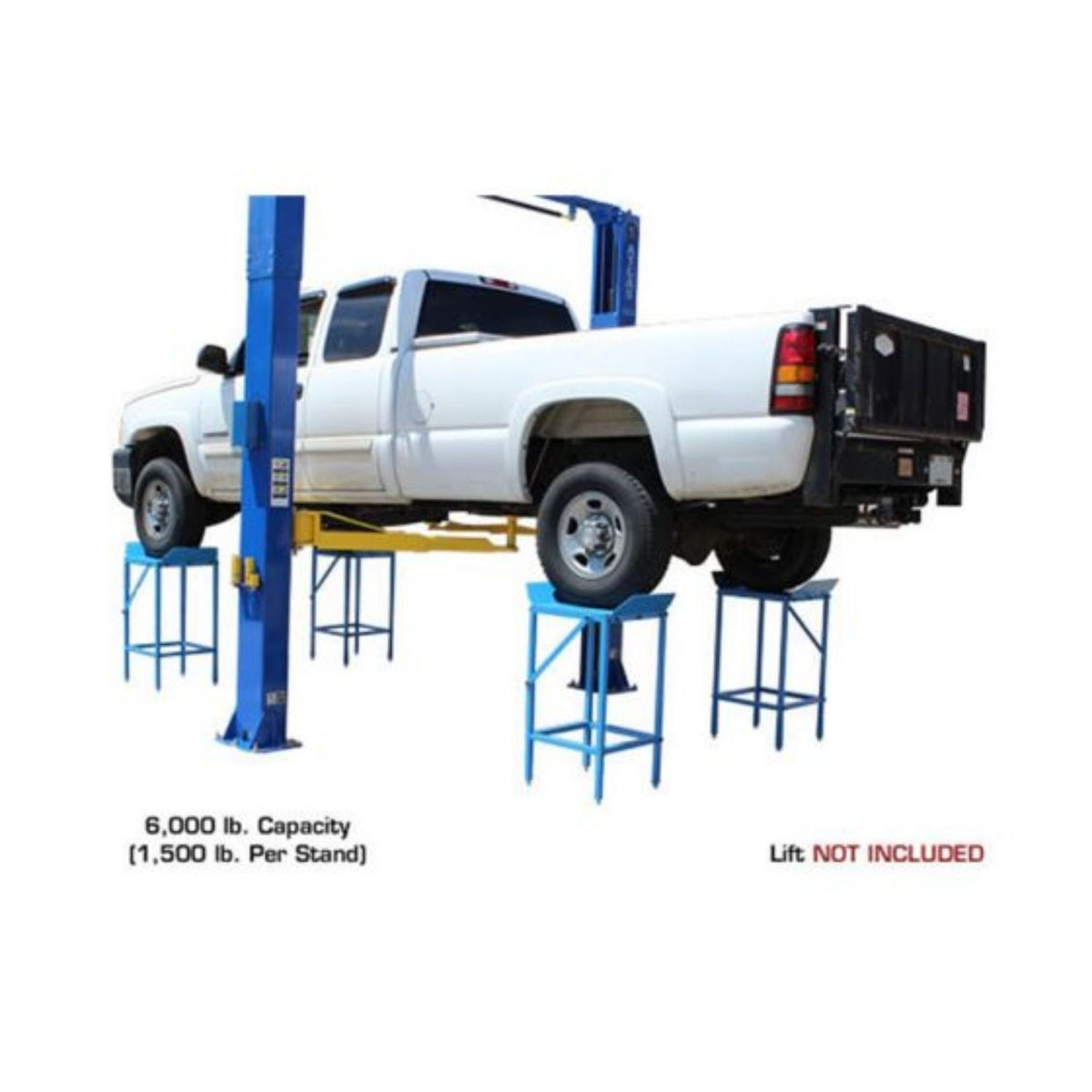

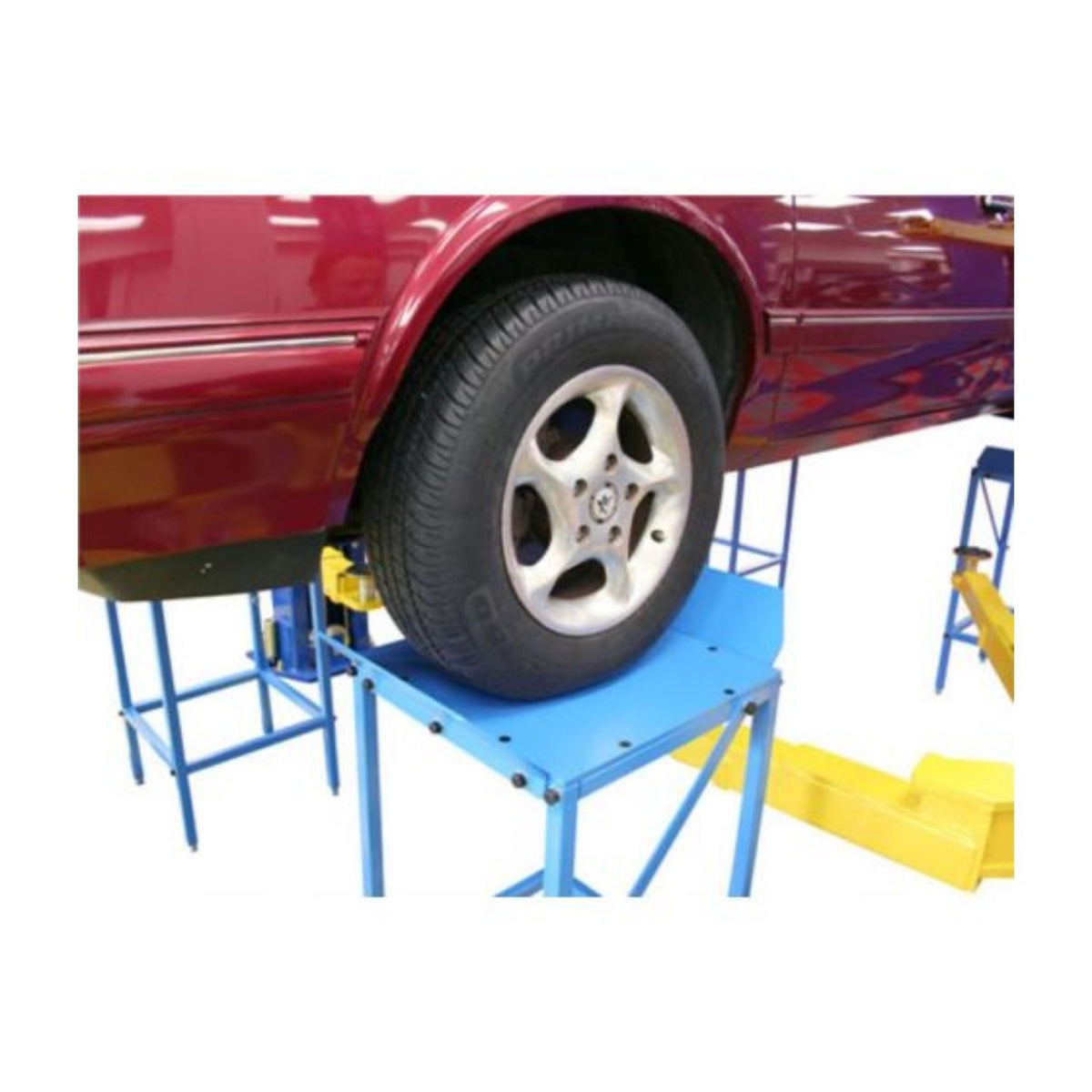

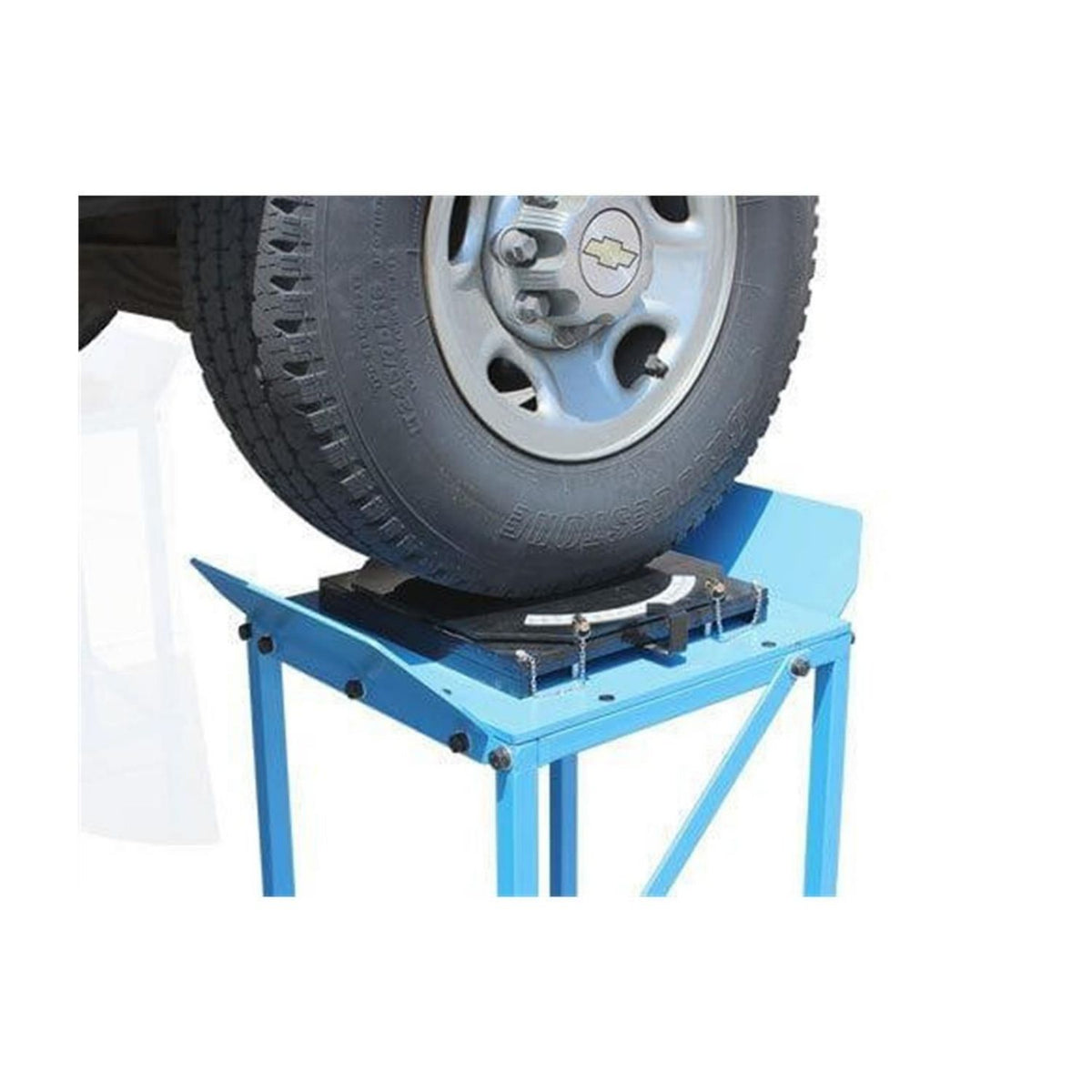

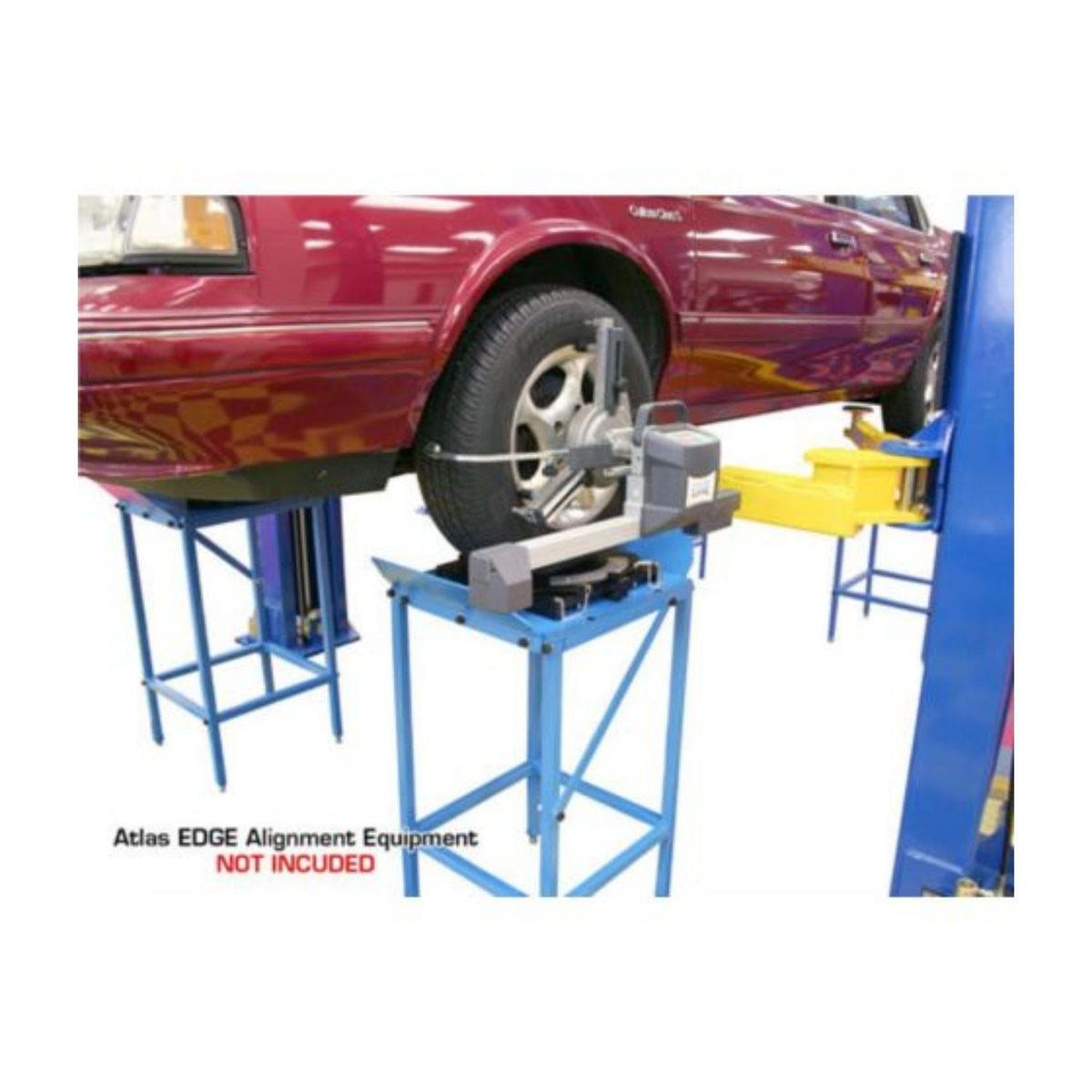

Atlas specifically designed these stands for shops using 2-post or mid-rise lifts that need an alternative way to support the vehicle by its wheels during alignment work. A turntable is positioned on each stand, allowing the vehicle to remain wheel-supported while the lift arms can be used when needed for runout compensation or front- and rear-end adjustments.

Additional Shop Uses

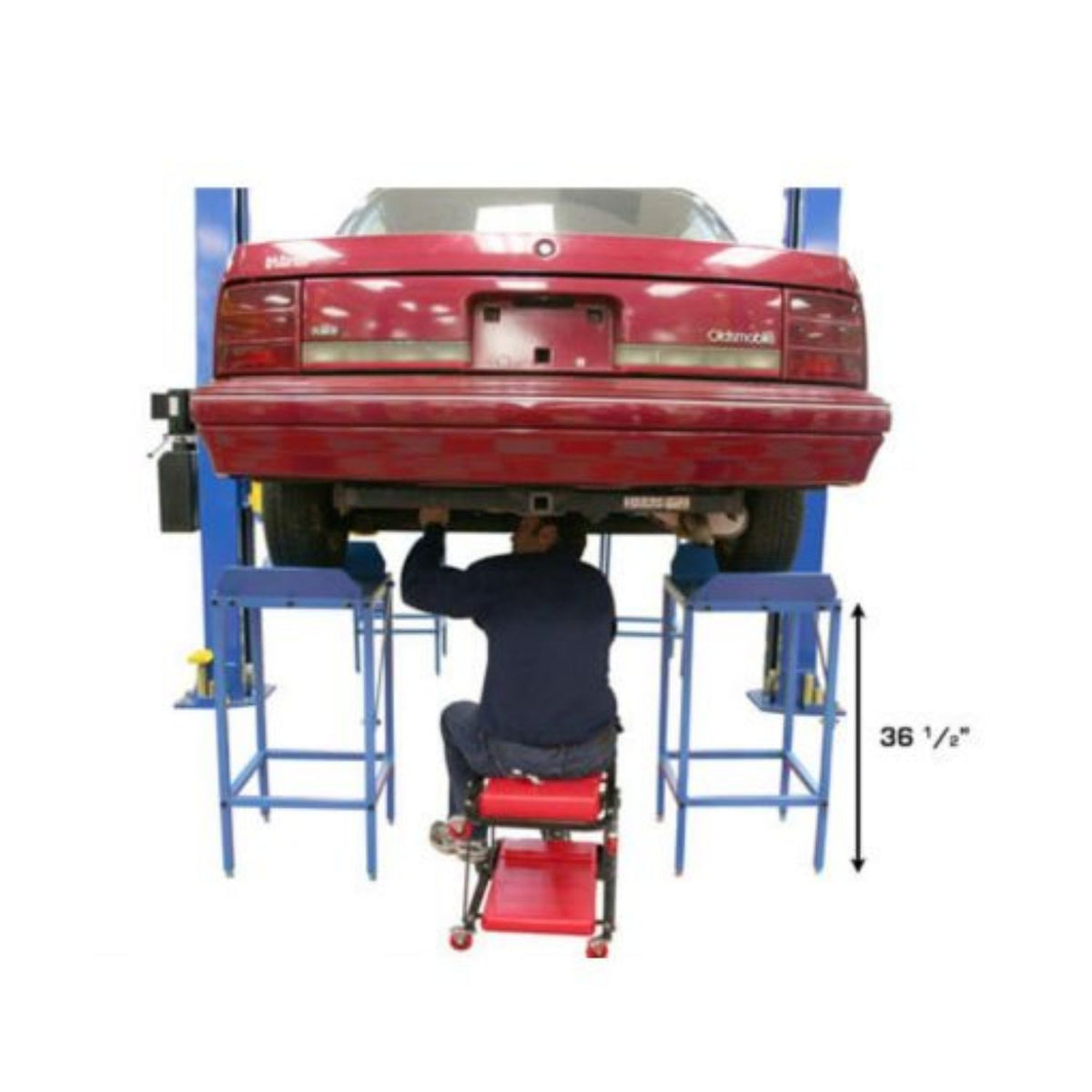

Beyond alignment work, Atlas also recommends the wheel stands for undercar service applications including exhaust work and suspension adjustments or installation.
