Atlas® Automotive Equipment

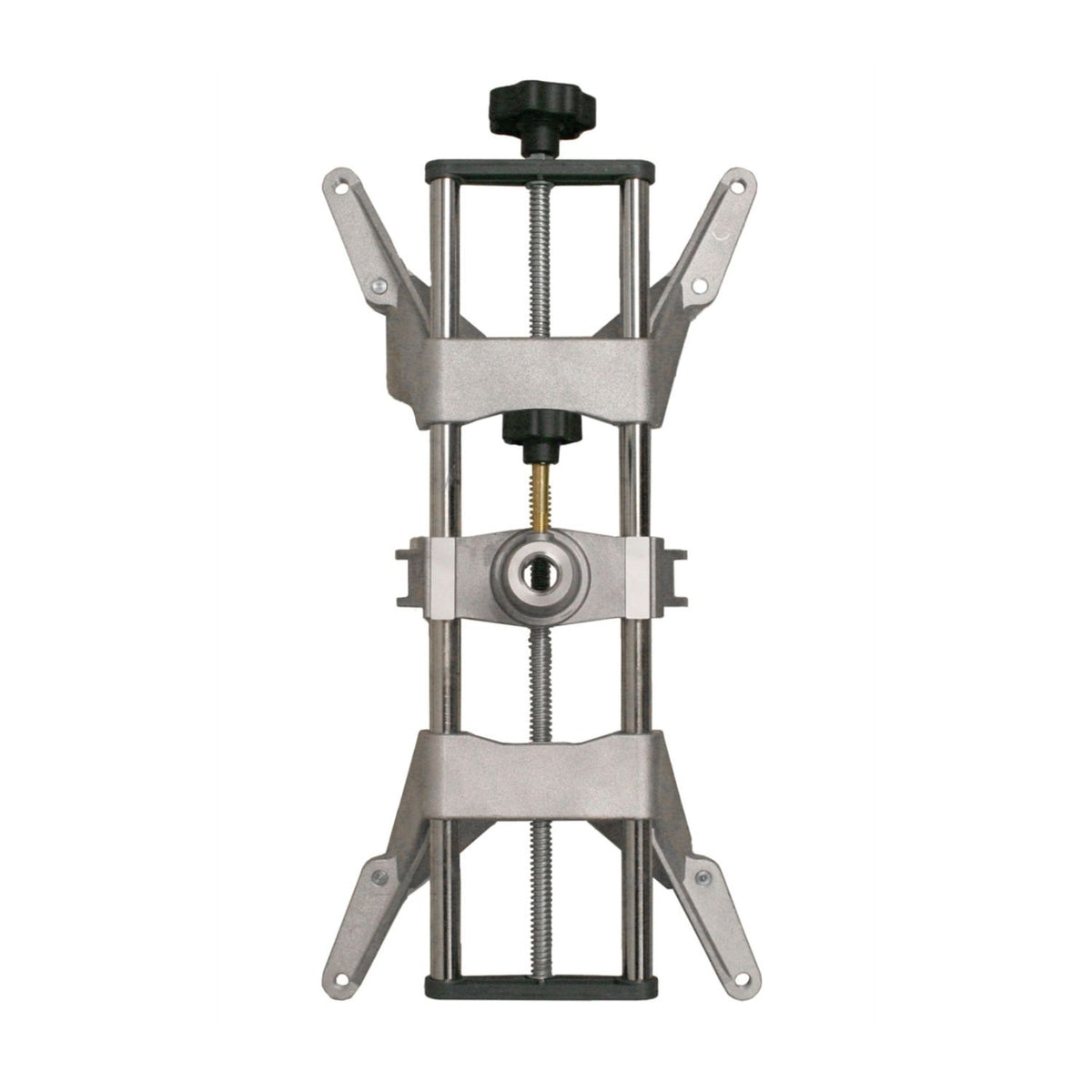

Atlas® Edge 4-Point Wheel Clamps (RAV) #ATEATEDGE-4POINTCLAMP-RAV

SKU: ALMATLATEATEDGE4POINTCLAMPRAV
(0)
$3,449.99
Available to order
Usually ships between 1 and 3 business days.

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (817) 865-3707

For Will Call Options, call (817) 865-3707 or message and save $250!
Specifications
Atlas SKU ATEATEDGE-4POINTCLAMP-RAV
Product Type 4-Point Wheel Clamp Set
Clamp Style Self-Centering 4-Point
Rim Range 10" - 24"
Claws Removable
Application Passenger-Car Wheel Alignment
Runout Procedure Required on Traditional 4-Point Clamp Configurations
Compatibility Verify Exact Atlas Edge / Ravaglioli Aligner Before Ordering

Atlas® Edge 4-Point Wheel Clamps (RAV) #ATEATEDGE-4POINTCLAMP-RAV

The Atlas Edge ATEATEDGE-4POINTCLAMP-RAV is a RAV-style 4-point wheel-clamp set for compatible Atlas Edge wheel-alignment systems. Ravaglioli identifies this clamp style as self-centering and designed for passenger-car rims from 10 to 24 inches.

The removable-claw design allows the clamps to secure to compatible wheel rims during alignment measurement. Traditional 4-point clamp configurations require a runout-compensation procedure before final alignment measurements are taken.

Product Features

  • Self-centering 4-point wheel-clamp design
  • For passenger-car wheel-alignment applications
  • Fits 10" to 24" rims
  • Removable claws
  • Traditional 4-point clamp configuration
  • Designed for compatible Atlas Edge / Ravaglioli alignment systems

Compatibility & Fitment

Ravaglioli uses 4-point wheel clamps across several CCD alignment platforms, and Atlas Edge systems are offered in both traditional 4-point and FastClamp configurations. Confirm your exact aligner model and existing clamp type before ordering.

Alignment System Compatibility Note
Atlas Edge TD2.0 Select Uses traditional 4-point rolling-runout clamps
Atlas Edge 501 4-Point Configuration Uses traditional 4-point clamps; confirm exact replacement set
Other Atlas Edge / Ravaglioli Systems Verify exact model, clamp type, and mounting configuration
⚠ Verify clamp configuration before ordering: Atlas Edge systems may use traditional 4-point clamps, upgraded non-runout 4-point clamps, or 3-point FastClamps. Confirm the exact clamp style required by your alignment system.

Frequently Asked Questions

What wheel sizes do these clamps fit?

Ravaglioli lists its traditional self-centering 4-point clamp style for rims from 10 to 24 inches.

Do these clamps use removable claws?

Yes. Ravaglioli lists removable claws on its self-centering 4-point wheel clamps.

Do traditional 4-point clamps require runout compensation?

Yes. Atlas alignment procedures require runout compensation when traditional 4-point wheel clamps are used.

Will these clamps fit every Atlas Edge aligner?

No. Atlas Edge systems use different clamp technologies depending on the model and package. Confirm the exact aligner and clamp configuration before ordering.

Questions before ordering? Call (817) 865-3707 with your Atlas Edge aligner model so we can help confirm the correct wheel-clamp set.



Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.

Atlas Warranty Information

  • 5-Year Structural Warranty
  • 2-Year Hydraulic-Power Warranty
