Atlas® Edge TD 2.0 WiFi Aligner Deluxe #ATEATEDGE-TD-2.0-DELUXE
Couldn't load pickup availability
| Model | Edge TD2.0 WiFi Deluxe |
| SKU | ATEATEDGE-TD-2.0-DELUXE |
| System Type | Wireless CCD Wheel Alignment System |
| Optical System | 8-Camera / CCD |
| Wheel Clamps | 4 x STDA46EU 4-Point Non-Runout Clamps |
| Communication | WiFi + Bluetooth |
| Display / Control | Tablet Included |
| Alignment App | TEQ-LINK |
| Compatible Lift Types | Two-Post, Four-Post, Scissor, Pit, Alignment Rack |
| Charging Panel Power | 115/230VAC, 50/60Hz |
| Maximum Panel Power | 100W |
| Shipping Weight | 375 lbs |
| Warranty | 2-Year Parts Warranty |
- 2 charging/storage panels
- 4 wall pegs for wheel clamps
- Wall-mount layout keeps floor area open
- 115/230VAC
- 50/60Hz
- 100W max charging-panel load
- Keep charging panels powered when storing sensors
- Two-post lifts
- Four-post lifts
- Scissor lifts
- Pit lifts
- Traditional alignment racks

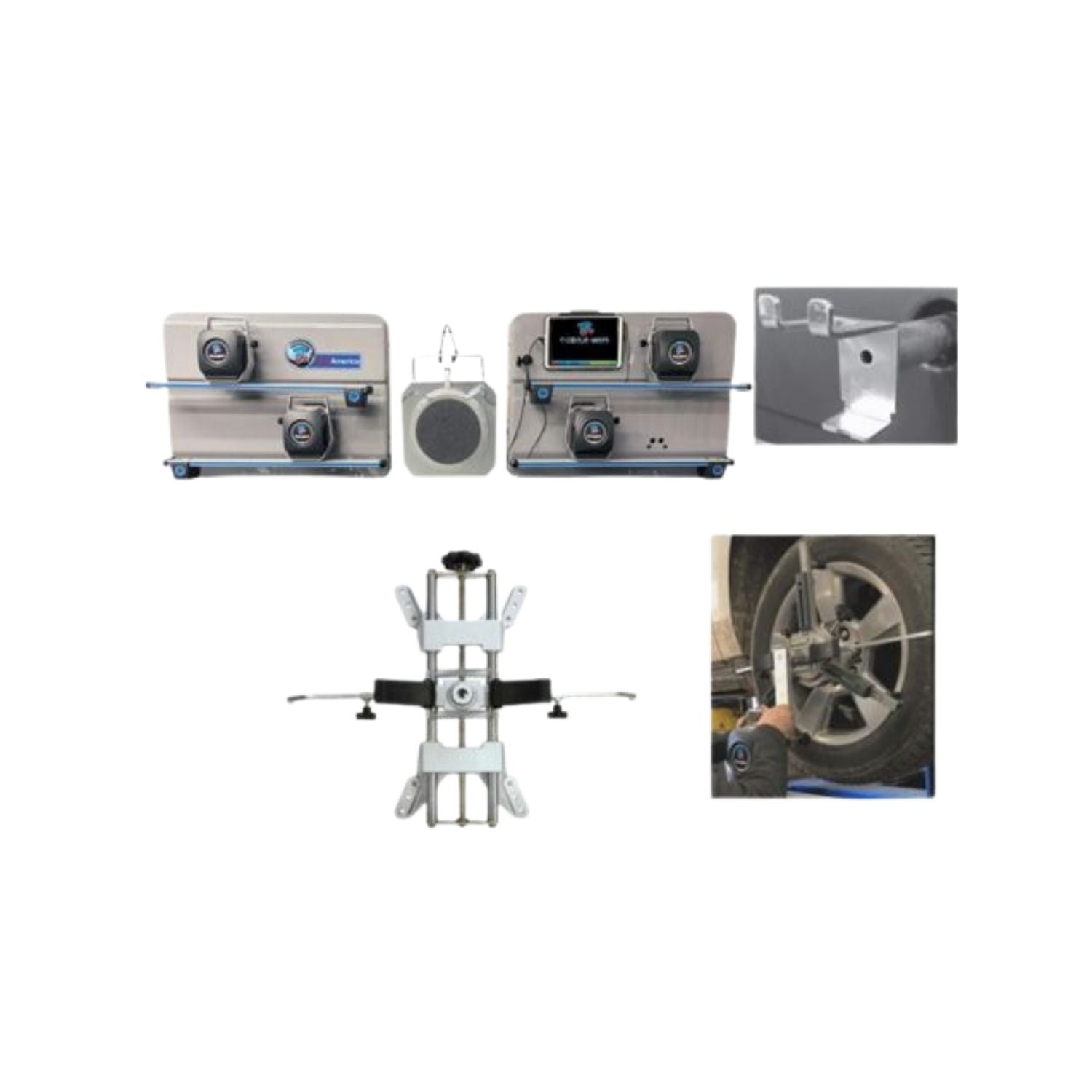

Atlas Edge TD2.0 WiFi Aligner Deluxe
The Atlas Edge TD2.0 Deluxe is a portable Ravaglioli wireless wheel-alignment system built around the TD2.0 8CCD platform. It can be used with traditional alignment racks as well as compatible two-post, four-post, scissor, and pit-lift setups.
The Deluxe package upgrades the clamp system to four STDA46EU 4-point non-runout wheel clamps while retaining the tablet-based, tower-free alignment workflow.
Deluxe Package Highlights
- 4 x STDA46EU 4-point non-runout wheel clamps
- Tablet-controlled operation
- WiFi + Bluetooth wireless communication
- 8-camera optical measuring system
- Wall-mounted charging and storage
- Pair of alignment turntables
- Two-post lift adapters
- Brake pedal depressor and steering wheel lock
- TEQ-LINK reporting application
Product Features
STDA46EU Non-Runout Clamps
The Deluxe package uses upgraded 4-point non-runout wheel clamps, reducing the compensation steps associated with conventional rolling-runout clamps.
Portable TD2.0 Platform
The measurement heads move with the vehicle rather than relying on a fixed alignment tower.
8CCD Measurement
Eight optical CCD measurement paths provide four-sided vehicle measurement capability.
Multi-Lift Operation
The system can be used with two-post, four-post, scissor, pit, and conventional alignment-lift applications.
Tablet and TEQ-LINK
The included tablet provides the primary operating interface, while TEQ-LINK supports digital reporting.
Full Specifications - Deluxe
| SKU | ATEATEDGE-TD-2.0-DELUXE |
| Alignment Platform | Ravaglioli TD2.0 WiFi |
| Optical System | 8CCD / 8-Camera |
| Wheel Clamps | 4 x STDA46EU 4-Point Non-Runout Clamps |
| Tablet | Included |
| Communication | WiFi + Bluetooth |
| TEQ-LINK | Included |
| Charging Panels | 2 |
| Clamp Storage Pegs | 4 |
| Turntables | Pair Included |
| Two-Post Lift Adapters | 4 Included |
| Brake Pedal Depressor | Included |
| Steering Wheel Lock | Included |
| Shipping Weight | 375 lbs |
| Warranty | 2-Year Parts Warranty |
Warranty Information
Current U.S. dealer documentation lists a 2-year parts warranty and RAVAmerica lifetime call support for the TD2.0 Deluxe package. Manufacturer terms, exclusions, wear-item limitations, and support procedures apply.
❓ Frequently Asked Questions - TD2.0 Deluxe
What is different about the Deluxe package?
The Deluxe package uses STDA46EU 4-point non-runout wheel clamps instead of the rolling-runout clamps supplied with the Select package.
Does the Deluxe package include a VIN scanner?
No. Current package listings show the VIN scanner as part of the Premium package, not the Deluxe package.
