Atlas® Edge TD 2.0 WiFi Aligner Premium #ATEATEDGE-TD-2.0-PREMIUM
Couldn't load pickup availability
| Model | Edge TD2.0 WiFi Premium |
| SKU | ATEATEDGE-TD-2.0-PREMIUM |
| System Type | Wireless CCD Wheel Alignment System |
| Optical System | 8CCD / 8-Camera Optical System |
| Wheel Clamps | 3-Point FastClamps / STDA96 Non-Runout Technology |
| Runout Compensation | Not Required with Premium FastClamps |
| Display / Control | Tablet Included |
| Communication | WiFi + Bluetooth |
| VIN Scanner | Included |
| Reporting App | TEQ-LINK Included |
| Compatible Lift Types | Two-Post, Four-Post, Scissor, Pit & Alignment Rack |
| Charging Panel Power | 115/230VAC, 50/60Hz |
| Maximum Panel Power | 100W |
| Shipping Weight | 375 lbs |
- Premium package includes 4 storage boards
- Stores measuring heads and FastClamps off the floor
- Panels mount to a suitable wall
- Detector charging occurs on the dedicated supports
- 115/230VAC
- 50/60Hz
- Maximum 100W panel power
- Charging panels should remain energized so detector batteries can recharge
- Works with alignment racks
- Works with two-post lifts
- Compatible with non-alignment four-post lifts
- Supports scissor and pit-lift workflows

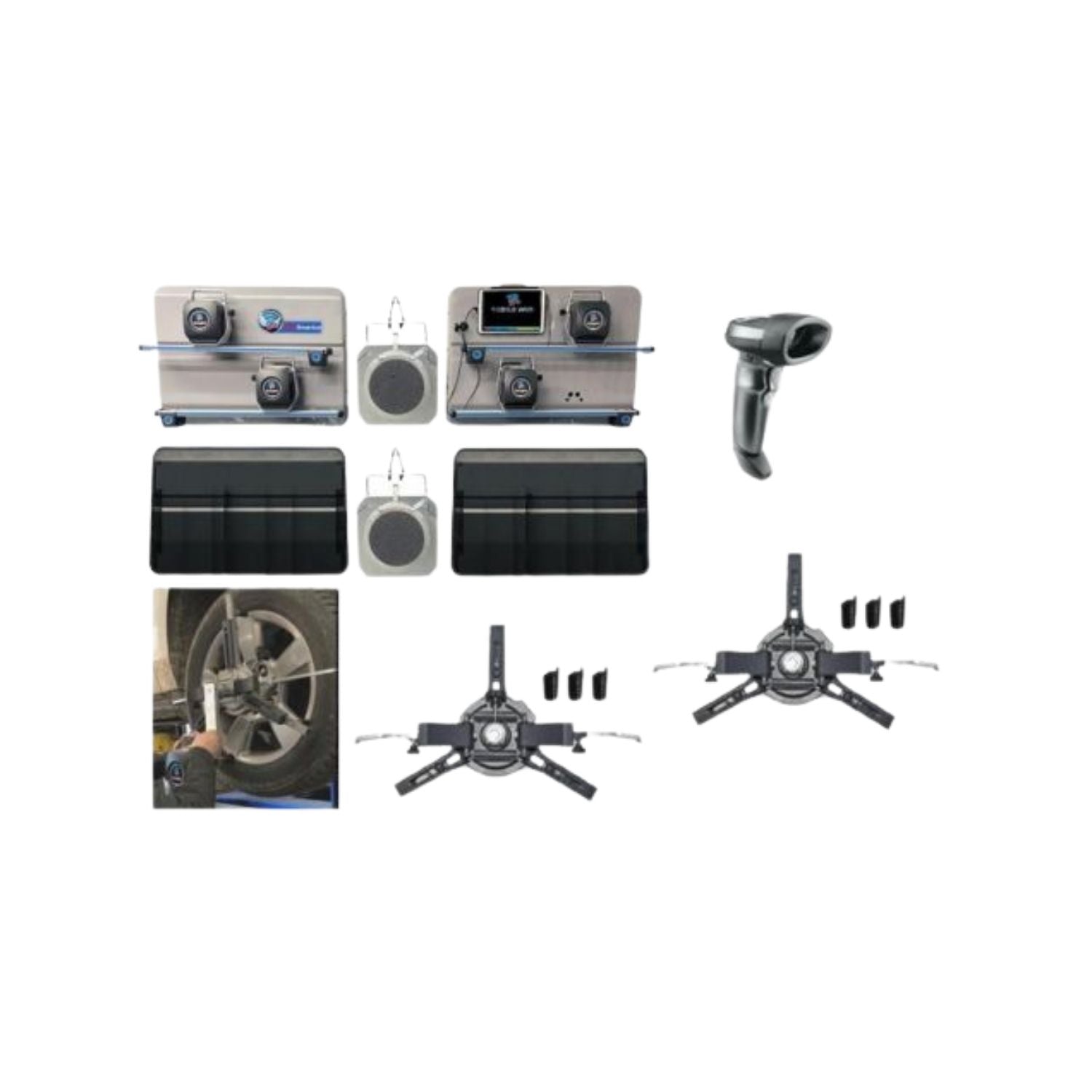

Atlas Edge TD2.0 WiFi Alignment System - Premium Package
The Atlas Edge TD2.0 Premium is a Ravaglioli-built wireless wheel-alignment system designed to perform alignment measurements without a traditional fixed camera tower. Its portable measuring heads communicate wirelessly and can be used across compatible two-post, four-post, scissor, pit, and conventional alignment-rack applications.
The Premium package adds 3-point FastClamps with non-runout technology, eliminating the normal roll-back compensation step required by standard wheel clamps. It also includes a VIN scanner for faster vehicle identification, wall storage for both sensors and clamps, and the TD2.0 calibration package.
Who the Premium Package Is Built For
- Alignment shops looking to reduce wheel-clamp setup time
- Facilities that want non-runout measurement without rolling the vehicle
- Shops using multiple lift styles or multiple alignment bays
- Collision and general repair shops needing a portable alignment platform
- Facilities that want VIN-assisted vehicle selection
- Shops that prefer tablet-based operation rather than a fixed alignment console
Premium Clamp Technology
The Premium package uses 3-point FastClamps that grip the tire and position against the wheel without requiring conventional rim-clamp attachment. Atlas identifies these as non-runout clamps, removing the need to roll the vehicle backward and forward for compensation.
TD2.0 Premium Features
3-Point FastClamps
The Premium package uses lightweight 3-point FastClamps designed for rapid installation without direct rim clamping.
No Roll-Back Compensation
The Premium FastClamp setup eliminates the conventional roll-back or runout-compensation procedure used with standard clamps.
VIN Scanner Included
A wireless VIN scanner is included for vehicle identification and database selection.
8CCD Wireless Measurement
The TD2.0 uses wireless CCD measuring heads to establish measurement paths around all four sides of the vehicle.
WiFi + Bluetooth Communication
WiFi and Bluetooth technologies provide wireless communication between the measuring heads, tablet, and TD2.0 system.
Tablet-Based Operation
The alignment workflow runs from the included tablet, so a traditional desktop alignment PC is not required for normal operation.
TEQ-LINK Reporting
The TEQ-LINK application is included for digital reporting and alignment documentation.
Multi-Lift Compatibility
The portable system can be used with conventional alignment racks, two-post lifts, non-alignment four-post lifts, scissor lifts, and pit-lift setups.
Wall-Mounted Storage
The Premium package includes four storage boards for the measuring instruments and wheel clamps, helping keep the system protected and off the shop floor.
Calibration Package Included
Atlas's TD2.0 package brochure lists a calibration package with calibration software as part of the Premium configuration.
Full Specifications - TD2.0 Premium
| SKU | ATEATEDGE-TD-2.0-PREMIUM |
| Alignment Platform | Ravaglioli TD2.0 WiFi |
| System Type | Wireless CCD Wheel Alignment System |
| Optical System | 8CCD / 8-Camera Optical System |
| Wheel Clamps | 3-Point FastClamps / STDA96 Non-Runout Technology |
| Runout Compensation | Not Required |
| Display / Control | Tablet Included |
| Wireless Communication | WiFi + Bluetooth |
| VIN Scanner | Included |
| Vehicle Database | Included |
| Reporting Application | TEQ-LINK Included |
| Software Updates | Free Software Updates; Vehicle Specification Updates Excluded |
| Storage Boards | 4 Included for Instruments and Wheel Clamps |

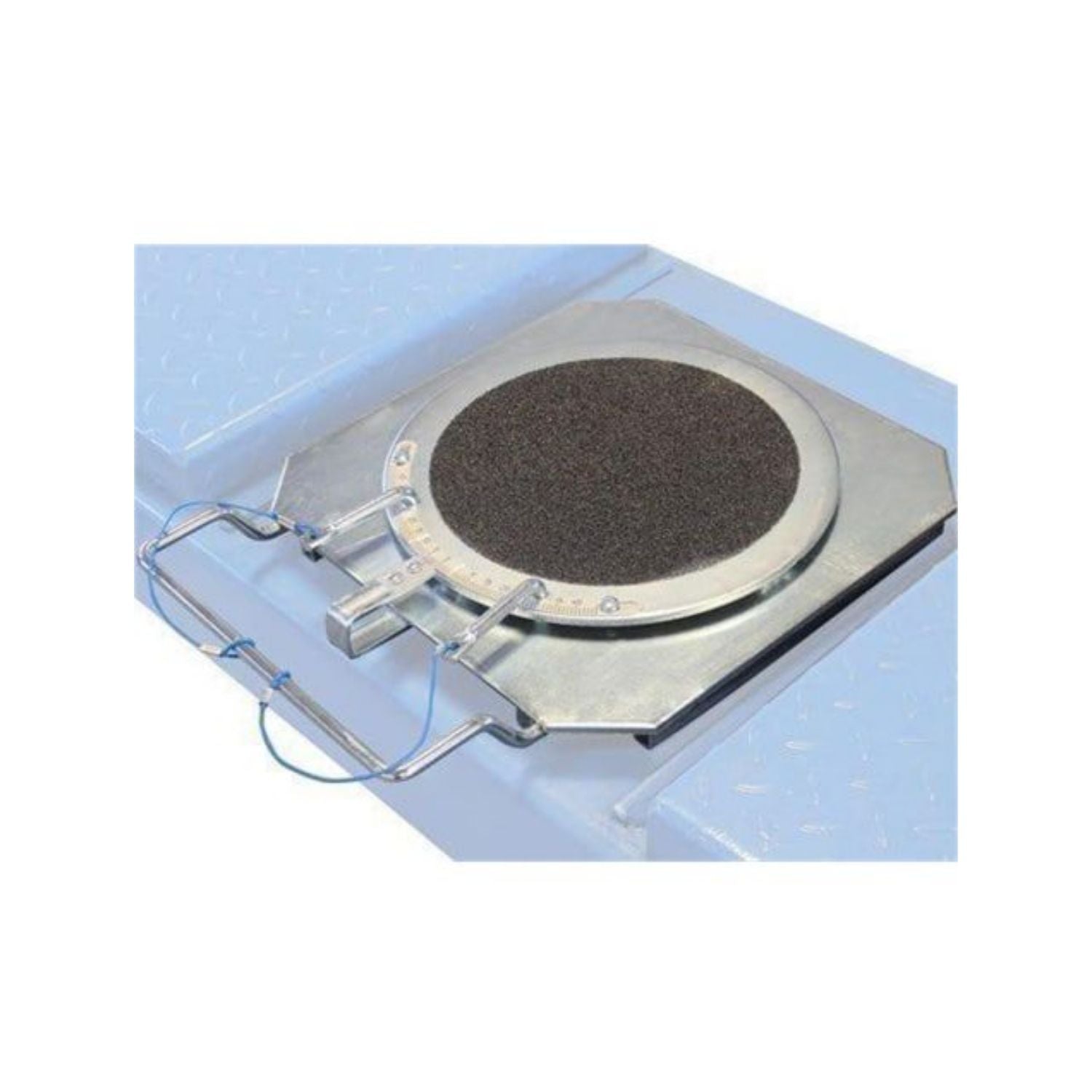

| Turntables | Pair Included |
| Two-Post Lift Adapters | Included |

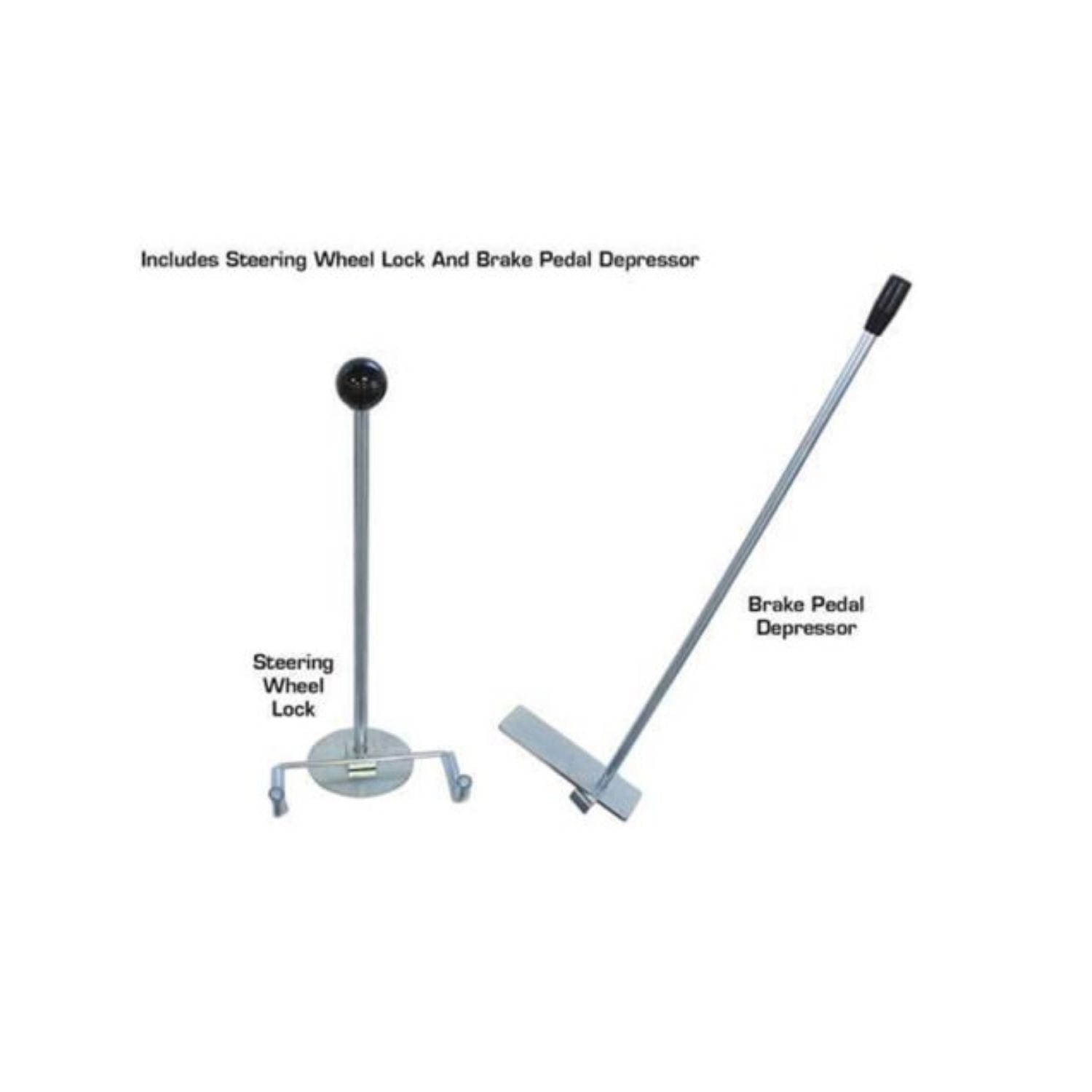

| Brake Pedal Depressor | Included |
| Steering Wheel Lock | Included |
| Calibration Package | Included |
| Compatible Lift Types | Two-Post, Four-Post, Scissor, Pit and Alignment Rack |
| Charging Panel Input | 115/230VAC, 50/60Hz |
| Maximum Panel Power | 100W |
| Detector Charging Voltage | 7.5V DC |
| Shipping Weight | 375 lbs |
| Country of Manufacture | Made in Europe |
⚠️ Setup Notes
- Charging panels: Mount the supplied storage/charging panels to a suitable wall.
- Power: Detector panels require 115/230VAC, 50/60Hz power with a maximum draw of 100W.
- Detector charging: The manual instructs that the charging supply remain powered so detector batteries can recharge.
- Lift setup: Follow the dedicated procedure for the lift style being used.
- Two-post operation: Use the supplied adapters and follow the two-post lift procedure.
- Calibration: Calibration procedures should be performed according to the TD2.0 service documentation.
Warranty & Technical Support
Current U.S. TD2.0 dealer documentation lists a 2-year limited parts warranty with RAVAmerica technical support. Warranty coverage remains subject to the current manufacturer's terms, exclusions, and claim procedures.
| Parts Warranty | 2 Years |
| Technical Support | RAVAmerica Call Support |
| Warranty Reference | See Warranty & Tech Support document above |
Review the current warranty document for complete coverage terms, exclusions, and support procedures.
❓ Frequently Asked Questions - Edge TD2.0 Premium
What is different about the Premium package?
The Premium package adds 3-point FastClamps with non-runout technology, a VIN scanner, additional wall storage boards, and the calibration package while retaining the TD2.0 tablet, wireless sensors, turntables, two-post adapters, and TEQ-LINK application.
Does the Premium package require rolling runout?
No. Atlas specifies that the 3-point FastClamps eliminate the need for roll-back or runout compensation.
Does the Premium package include a VIN scanner?
Yes. A VIN code scanner is included with the Premium package for vehicle identification.
Can the TD2.0 Premium be used on a two-post lift?
Yes. Two-post lift adapters are included, and Atlas/Ravaglioli provides a dedicated two-post operating procedure.
Does it require a desktop alignment computer?
Normal alignment operation is tablet based. A service PC may be required for certain configuration, testing, or calibration procedures described in the service manual.
What power do the TD2.0 charging panels require?
The installation and assistance manual specifies 115/230VAC, 50/60Hz power with a maximum system draw of 100W.
