Atlas® Edge TD 2.0 WiFi Aligner Select #ATEATEDGE-TD-2.0-SELECT
Couldn't load pickup availability
| Model | Edge TD2.0 WiFi Select |
| SKU | ATEATEDGE-TD-2.0-SELECT |
| System Type | Wireless CCD Wheel Alignment System |
| Optical System | 8-Camera / CCD Measuring System |
| Wheel Clamps | 4 x STDA33EU 4-Point Rolling-Runout Clamps |
| Communication | WiFi + Bluetooth |
| Display / Control | Tablet Included |
| Alignment App | TEQ-LINK |
| Compatible Lift Types | Two-Post, Four-Post, Scissor, Pit, Alignment Rack |
| Charging Panel Power | 115/230VAC, 50/60Hz |
| Maximum Power Draw | 100W |
| Shipping Weight | 375 lbs |
| Warranty | 2-Year Parts Warranty |
- Charging/storage panels mount to the wall
- Panels can be installed side-by-side or on opposing walls
- Wall storage keeps sensor heads off the shop floor
- 4 wheel-clamp storage pegs included with Select package
- 115/230VAC
- 50/60Hz
- 100W maximum panel power draw
- Charging panels should remain powered so detector batteries stay charged
- Works with conventional alignment racks
- Can also operate on 2-post lifts
- Compatible with non-alignment 4-post lifts
- Can be used with scissor and pit-lift setups
Atlas Edge TD2.0 WiFi Alignment System - Select Package
The Atlas Edge TD2.0 Select is a portable Ravaglioli wireless wheel-alignment system designed to perform alignments without requiring a traditional fixed-camera alignment tower. The measuring heads attach to the wheels and communicate using WiFi and Bluetooth, allowing the system to move between compatible service bays.

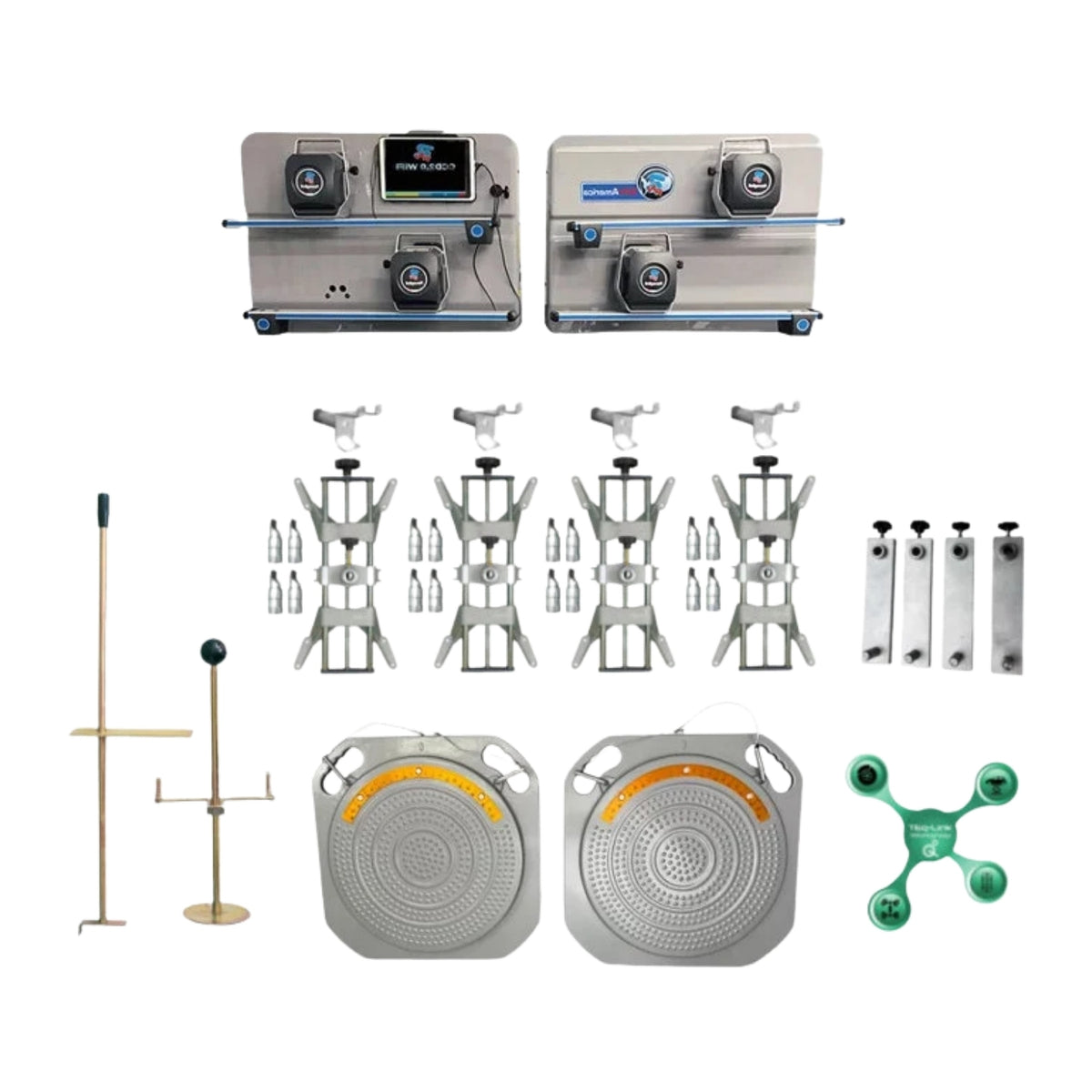

The Select package includes STDA33EU four-point wheel clamps with rolling-runout technology, a tablet, wall-mounted charging panels, clamp storage pegs, two-post lift adapters, alignment turntables, steering and brake locks, and the TEQ-LINK reporting application.
Who the TD2.0 Select Is Built For
- Shops adding alignment capability without dedicating a bay to a fixed tower
- Facilities using multiple lift styles
- Two-post lift alignment workflows
- Four-post and scissor-lift service bays
- Collision and general repair shops that need a portable alignment system
- Shops that prefer tablet-based operation instead of a dedicated alignment PC console
Select Package Clamp Technology
The Select package uses four STDA33EU 4-point wheel clamps. These clamps use rolling-runout compensation, so the vehicle is rolled as part of the compensation procedure. The Deluxe and Premium TD2.0 packages use different clamp technologies.
TD2.0 Select Features
Portable, Tower-Free Alignment
The wireless measuring heads travel with the vehicle instead of relying on a fixed camera tower, allowing the aligner to be used in different bays and with multiple lift styles.
WiFi + Bluetooth Communication
The TD2.0 platform combines WiFi communication with Bluetooth data transmission for wireless operation between the measuring heads and control device.
8-Camera Optical Measuring System
The system uses an eight-camera optical arrangement to establish measurement paths around the vehicle during alignment procedures.
Tablet-Based Operation
A tablet is included, allowing alignment procedures and vehicle data to be accessed without a conventional desktop alignment computer.
TEQ-LINK Reporting
The included TEQ-LINK application supports digital alignment reporting and customer-facing documentation.
Multi-Lift Compatibility
The TD2.0 can be used with conventional alignment racks, two-post lifts, non-alignment four-post lifts, scissor lifts, and pit-lift applications.
Wall-Mounted Charging & Storage
The measuring heads recharge while stored on the supplied charging panels, helping keep the equipment off the shop floor when not in use.
Full Specifications - TD2.0 Select
| SKU | ATEATEDGE-TD-2.0-SELECT |
| Alignment Platform | Ravaglioli TD2.0 WiFi |
| System Type | Wireless CCD Alignment System |
| Optical System | 8 Camera / CCD |
| Wheel Clamps | 4 x STDA33EU 4-Point Rolling-Runout Clamps |
| Display / Control | Tablet Included |
| Wireless Communication | WiFi + Bluetooth |
| Reporting Application | TEQ-LINK |
| Vehicle Database | Included |
| Software Updates | Free software updates; vehicle specification updates excluded |
| Charging Panels | 2 Instrument Storage / Charging Panels |
| Clamp Storage | 4 Wall Storage Pegs |
| Turntables | Pair Included |
| Two-Post Lift Adapters | Included |
| Brake Pedal Depressor | Included |
| Steering Wheel Lock | Included |
| Compatible Lift Types | Two-Post, Four-Post, Scissor, Pit and Alignment Rack |
| Charging Panel Input | 115/230VAC, 50/60Hz |
| Maximum Panel Power | 100W |
| Detector Charging Voltage | 7.5V DC |
| Shipping Weight | 375 lbs |
| Country of Manufacture | Made in Europe |
⚠️ Setup Notes
- Charging panels: Mount to a suitable wall and connect to 115/230VAC power.
- Detector charging: Keep the charging panels powered so the detector batteries remain charged.
- Lift setup: Follow the correct procedure for the specific lift type being used.
- Two-post operation: Use the supplied lift adapters and follow the dedicated two-post lift procedure.
- Calibration: Calibration procedures should be performed according to Ravaglioli service documentation.
Warranty & Technical Support
Current TD2.0 Select documentation lists a 2-year parts warranty. Warranty coverage is subject to the current manufacturer's terms, exclusions, and service procedures.
| Parts Warranty | 2 Years |
| Technical Support | RAVAmerica support available |
| Warranty Reference | See TD2.0 Warranty & Tech Support document above |
Review the current warranty document for complete terms, exclusions, and support procedures before service or warranty work.
❓ Frequently Asked Questions - Edge TD2.0 Select
Does the TD2.0 Select require a dedicated alignment rack?
No. The TD2.0 platform can be used with conventional alignment racks, but it is also designed for two-post lifts, non-alignment four-post lifts, scissor lifts, and pit-lift applications.
Does the Select package require rolling runout?
Yes. The Select package uses STDA33EU 4-point rolling-runout wheel clamps. Other TD2.0 packages use different clamp technology.
Does it require a desktop computer?
No. Normal operation is tablet based. A service PC may be required for certain configuration and calibration procedures described in the technical manual.
What power do the charging panels require?
The installation manual specifies 115/230VAC, 50/60Hz power with a maximum draw of 100W for the charging-panel system.
What is included in the Select package?
The Select package includes the TD2.0 alignment system, four STDA33EU wheel clamps, instrument charging panels, clamp storage pegs, tablet, alignment turntables, two-post lift adapters, brake pedal depressor, steering wheel lock, and TEQ-LINK reporting application.
Why Buy the Edge TD2.0 Select from Alamo Equipment & Service?
- Lift compatibility review. We can help confirm whether the TD2.0 workflow fits your existing two-post, four-post, scissor, or alignment lift.
- Setup planning. Call us to review wall-panel placement, turntable placement, and bay layout.

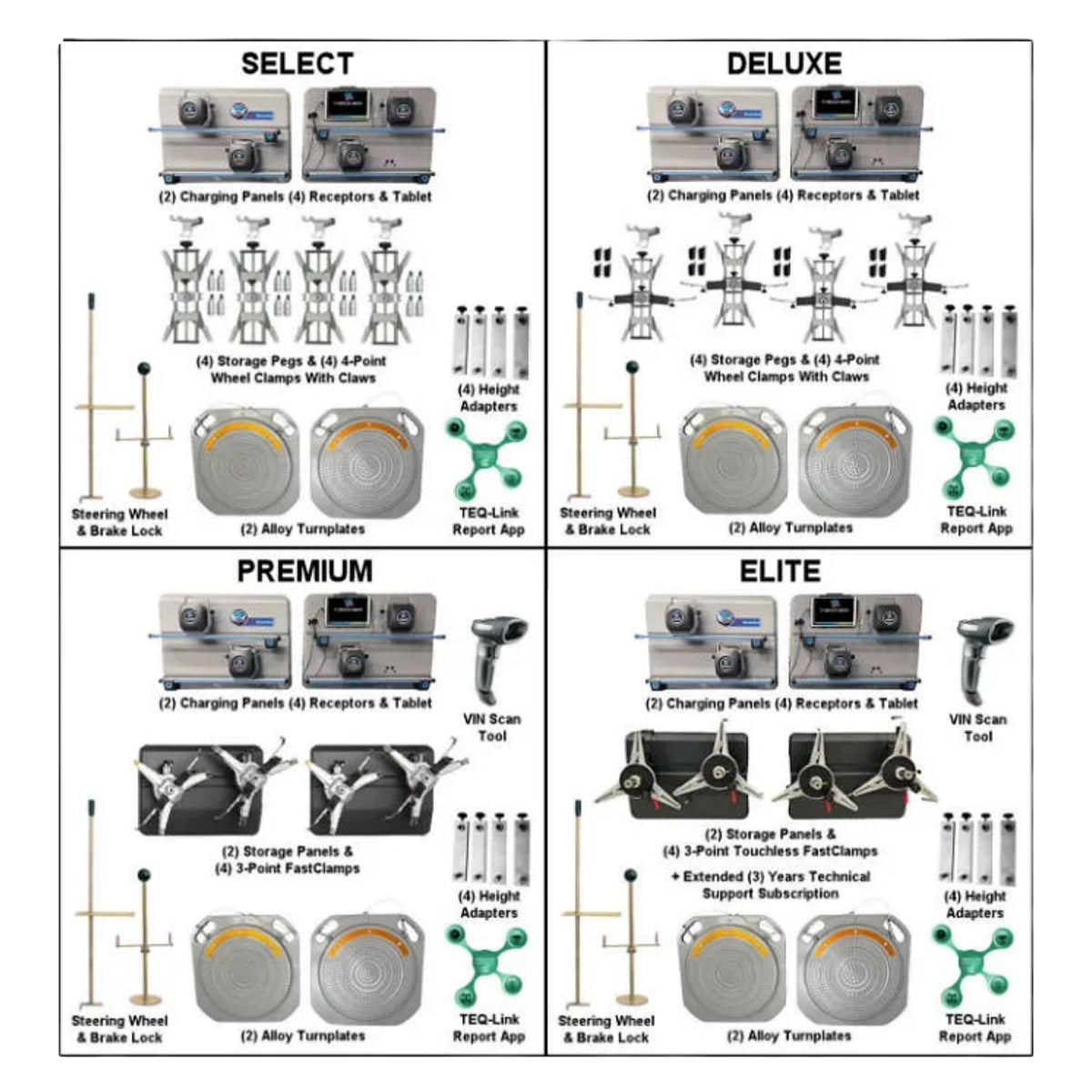

- Package guidance. We can help compare Select, Deluxe, and Premium clamp configurations based on your alignment workflow.
- Service support. Contact Alamo for alignment-equipment service and parts assistance.
Call (817) 865-3707.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
