Atlas LR06 Portable Low-Rise Scissor Lift 6,000 lb #ATEATTD-LR06-FPD
Couldn't load pickup availability
| Model / Part Number | ATEATTD-LR06-FPD |
| Capacity | 6,000 lbs |
| Lift Type | Portable low-rise scissor lift |
| Lifting Configuration | Multi-position manual safety locks, 4" low-profile frame |
| Overall Height | 24" (2') maximum lifting height |
| Minimum Ceiling Height | 7' |
| Overall Width | 70" (5' 10") overall width |
| Drive-Thru Clearance | Portable — repositions within the bay |
| Rise Height | 24" (2') |
| Motor / Electrical | 110V single phase |
| Concrete / Floor Requirement | Portable design — no permanent anchoring required for standard use |
- Portable design — no permanent anchoring required for standard use
- Verify with Alamo before ordering
- 110V single phase
- Have an electrician confirm your circuit before install day
- Plan for 24" (2') maximum lifting height overall lift height
- Measure to lowest obstruction, not peak

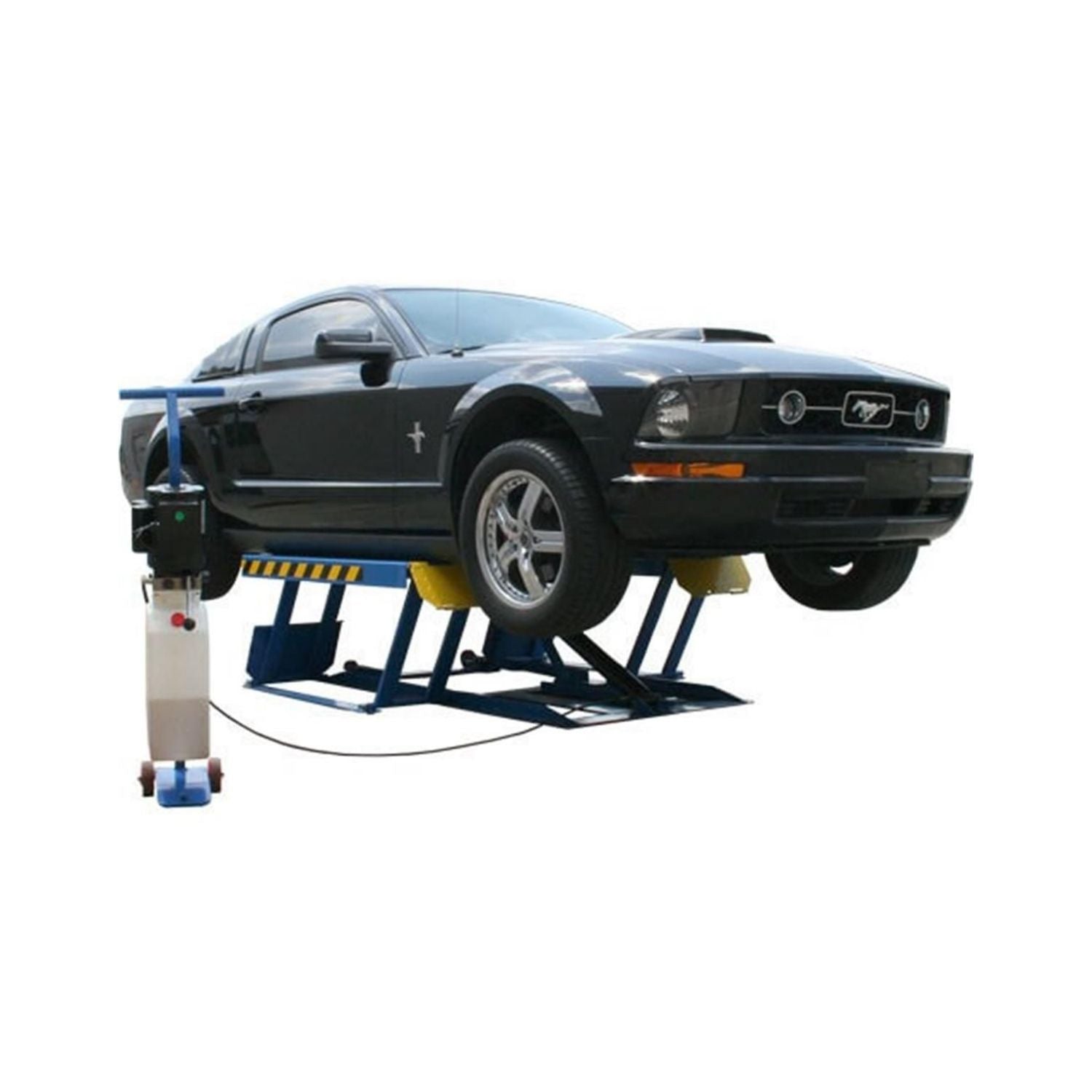

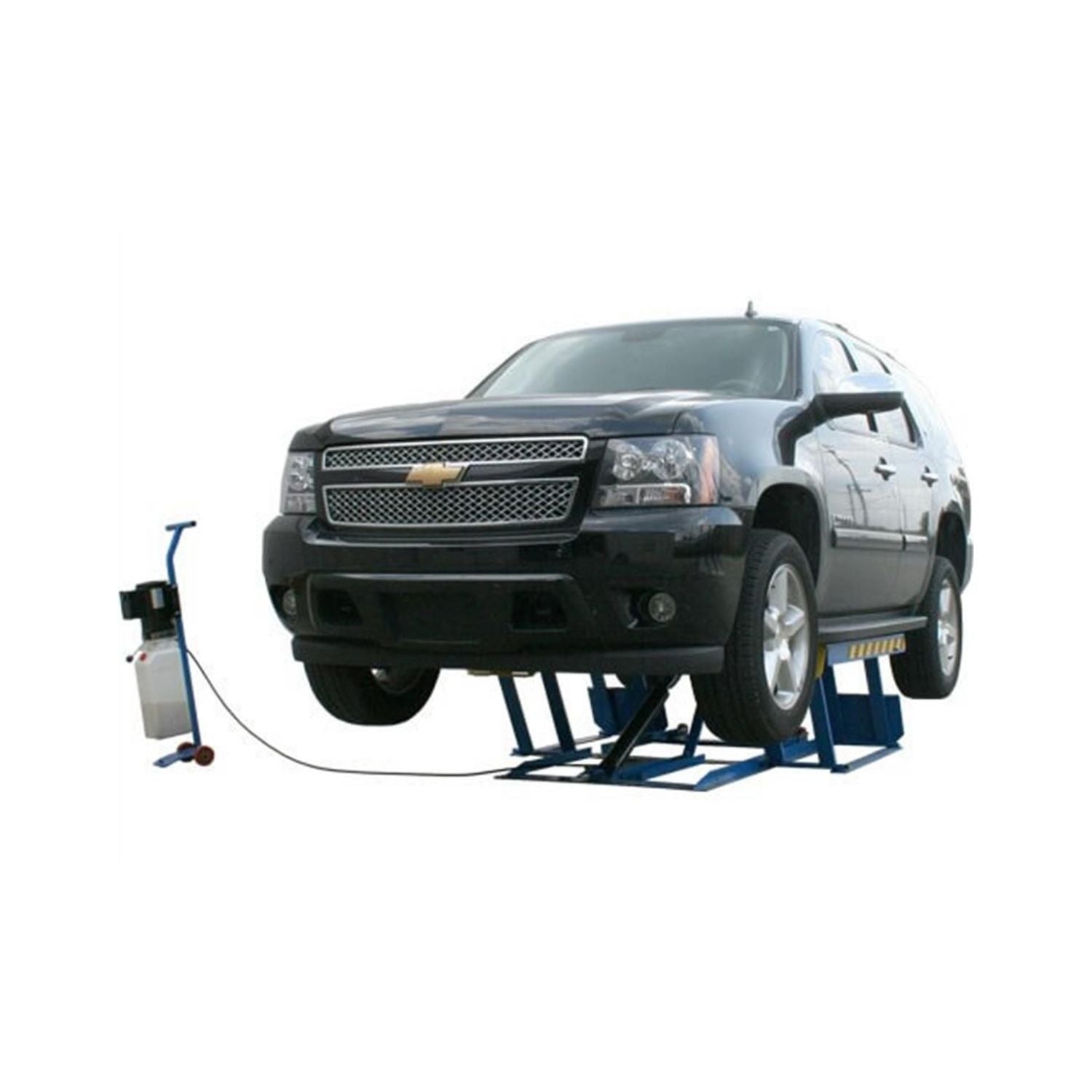

Atlas LR06 — 6,000 lbs Portable low-rise scissor lift
Mobile service work and tight-space shops need a lift that goes where the vehicle is, not the other way around. The Atlas LR06 is a 6,000 lb portable low-rise scissor lift with manual safety locks — no compressed air required — built for quick setup wherever the next job is. Call Alamo at (844) 480-6059 for fit and use-case questions.
Who the LR06 Is Built For
- Mobile service and detailing operations that need a portable low-rise lift they can bring to the vehicle instead of the other way around
- Shops with limited or no compressed air access, since the LR06 uses multi-position manual safety locks instead of an air release
- Quick tire, brake, and general maintenance work performed in tight spaces where a full-size lift would not fit or would not be worth installing
- Techs who need to lift a vehicle just enough for undercarriage access without the time or footprint of a full mid-rise or 4-post setup
- Shops running satellite or overflow bays that don't justify a permanent lift installation but still need real lifting capability on demand
What the LR06 Is NOT Built For
- ❌ Fixed-bay shops that would benefit from a permanently installed lift
- ❌ Full-rise underbody work — step up to a 2-post or 4-post lift
Questions about fit or capacity? Call Alamo at (844) 480-6059.
What Makes the LR06 Different
6,000 lbs of Portable Low-Rise Capacity
Rated for 6,000 lbs with a 24" (2') maximum lifting height, the LR06 is built to get a vehicle just high enough for tire, brake, and undercarriage work without the footprint or setup time of a full-size lift.
Multi-Position Manual Safety Locks — No Air Required
Multi-position manual safety locks mean the LR06 doesn't depend on a compressed air line to operate safely, and its 4" low-profile frame lets it slide under a vehicle with minimal ground clearance.
Runs on Standard 110V Power
The LR06 runs on 110V single-phase power, and its portable design needs no permanent anchoring for standard use — no electrician, no concrete work, just position it and go.
Atlas Warranty, Alamo Support
The LR06 carries Atlas's 2-year structural / 1-year hydraulic parts-only warranty. Every claim runs through Alamo directly — call (844) 480-6059 and we take care of it.
Sized to Move With the Job
At 70" (5' 10") of overall width and a low-profile 24" frame, the LR06 is built to reposition within your shop or load into a service vehicle rather than stay fixed in one bay.
- ✅ Mobile service and detailing operations needing a portable low-rise lift
- ✅ Shops with limited compressed air access — the LR06 uses manual safety locks
- ✅ Quick tire, brake, and general maintenance work in tight spaces
- ❌ Fixed-bay shops that would benefit from a permanently installed lift
- ❌ Full-rise underbody work — step up to a 2-post or 4-post lift
LR06 vs. Atlas 6PL (6,000 lb) — Which Lift Is Right for Your Shop?
| Decision Point | LR06 | Atlas 6PL (6,000 lb) |
|---|---|---|
| Capacity | 6,000 lbs | 6,000 lbs |
| Design | Portable, manual multi-position locks | Fixed open-center, air release |
Choose the LR06 for portability — move it between bays with no fixed installation. Choose the 6PL for a fixed-position open-center bay lift with air-operated release. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — LR06
| Model / Part Number | ATEATTD-LR06-FPD |
| Capacity | 6,000 lbs |
| Lift Type | Portable low-rise scissor lift |
| Lifting Configuration | Multi-position manual safety locks, 4" low-profile frame |

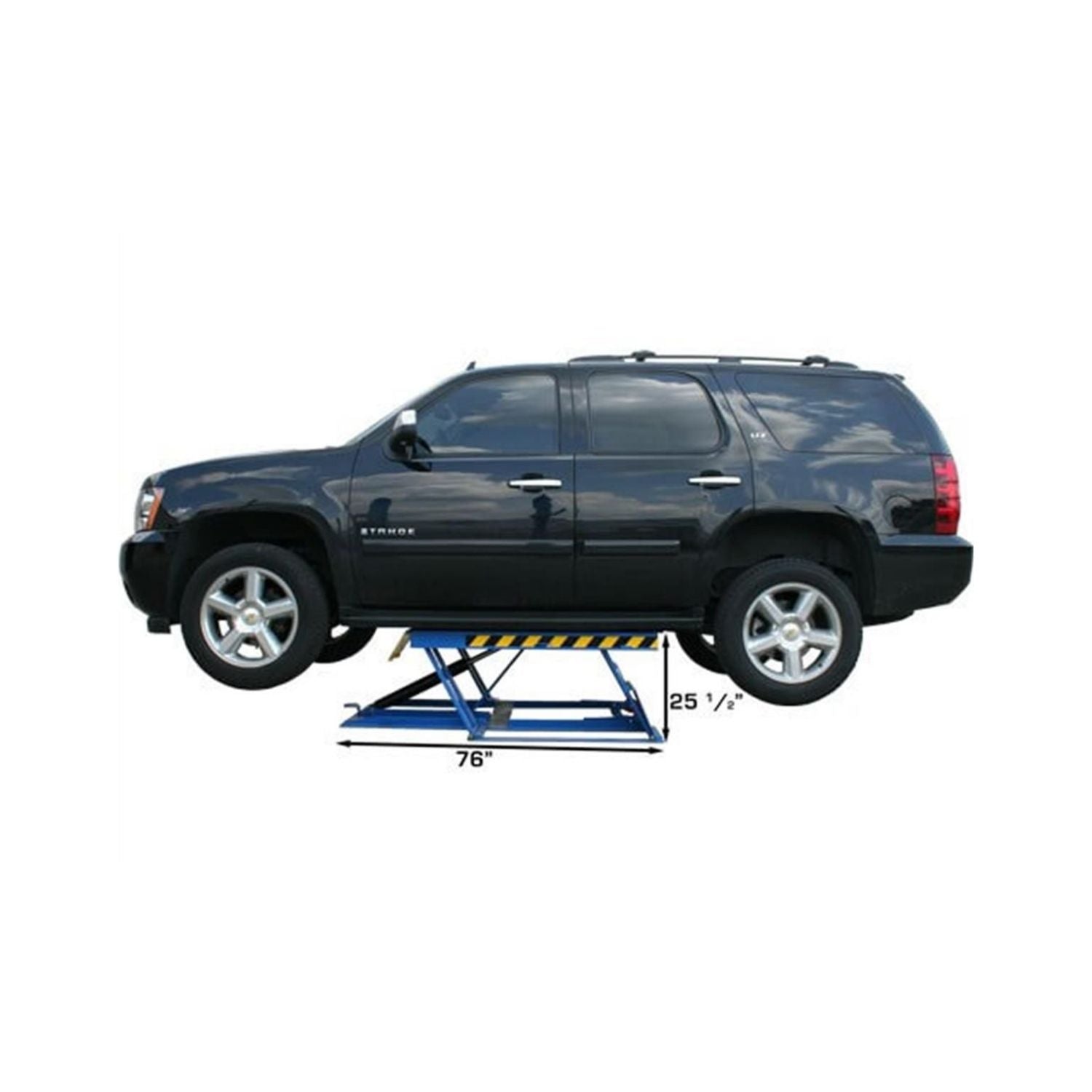

| Overall Height | 24" (2') maximum lifting height |
| Minimum Ceiling Height | 7' |
| Overall Width | 70" (5' 10") overall width |
| Drive-Thru Clearance | Portable — repositions within the bay |
| Rise Height | 24" (2') |
| Motor / Electrical | 110V single phase |
| Concrete / Floor Requirement | Portable design — no permanent anchoring required for standard use |
| Warranty | 2-year structural / 1-year hydraulic — parts only |

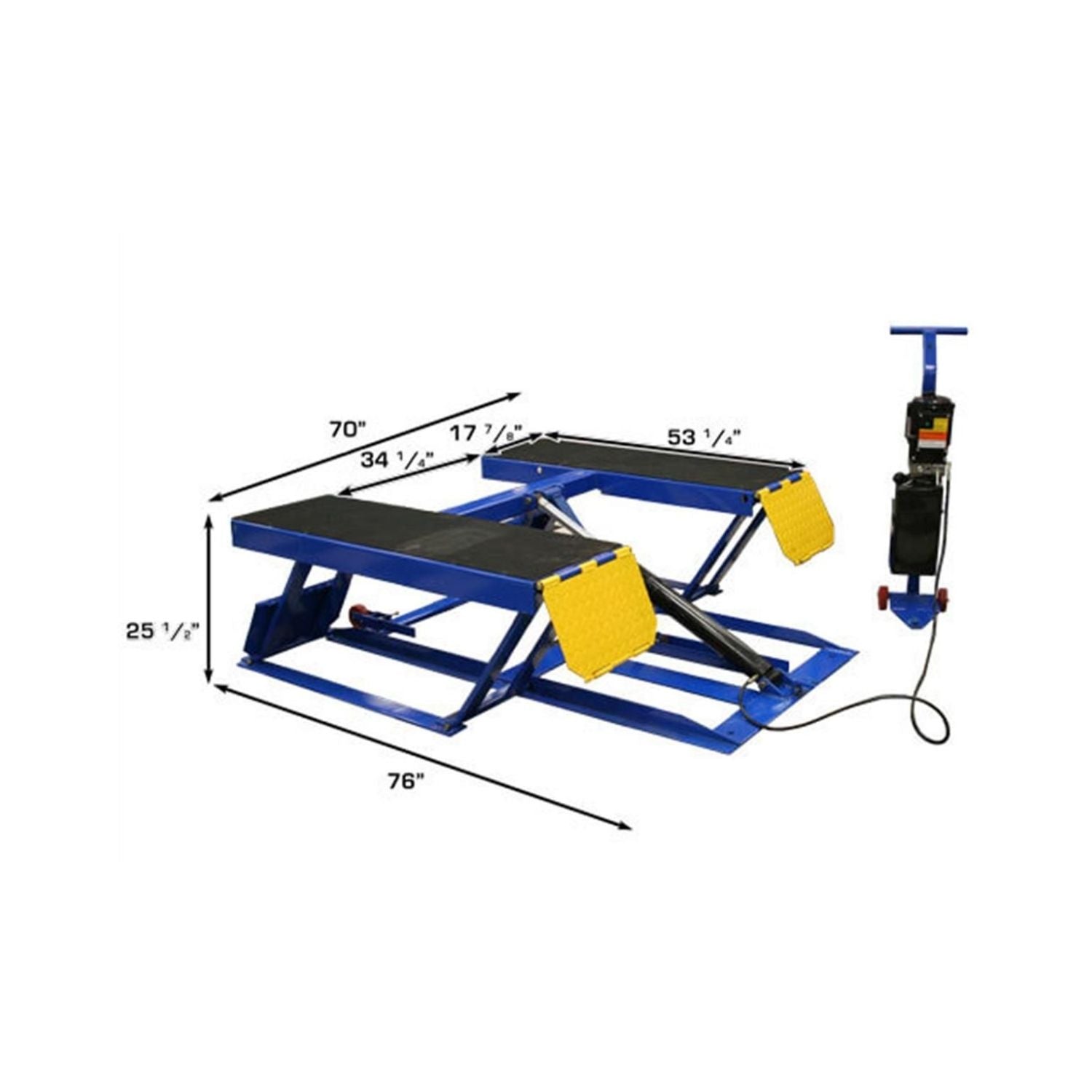

| Overall Pad Length | 53 1/4" (4' 5 1/4") |
| Locking Position Heights | 12 1/4", 18 1/2", 22 1/4" |

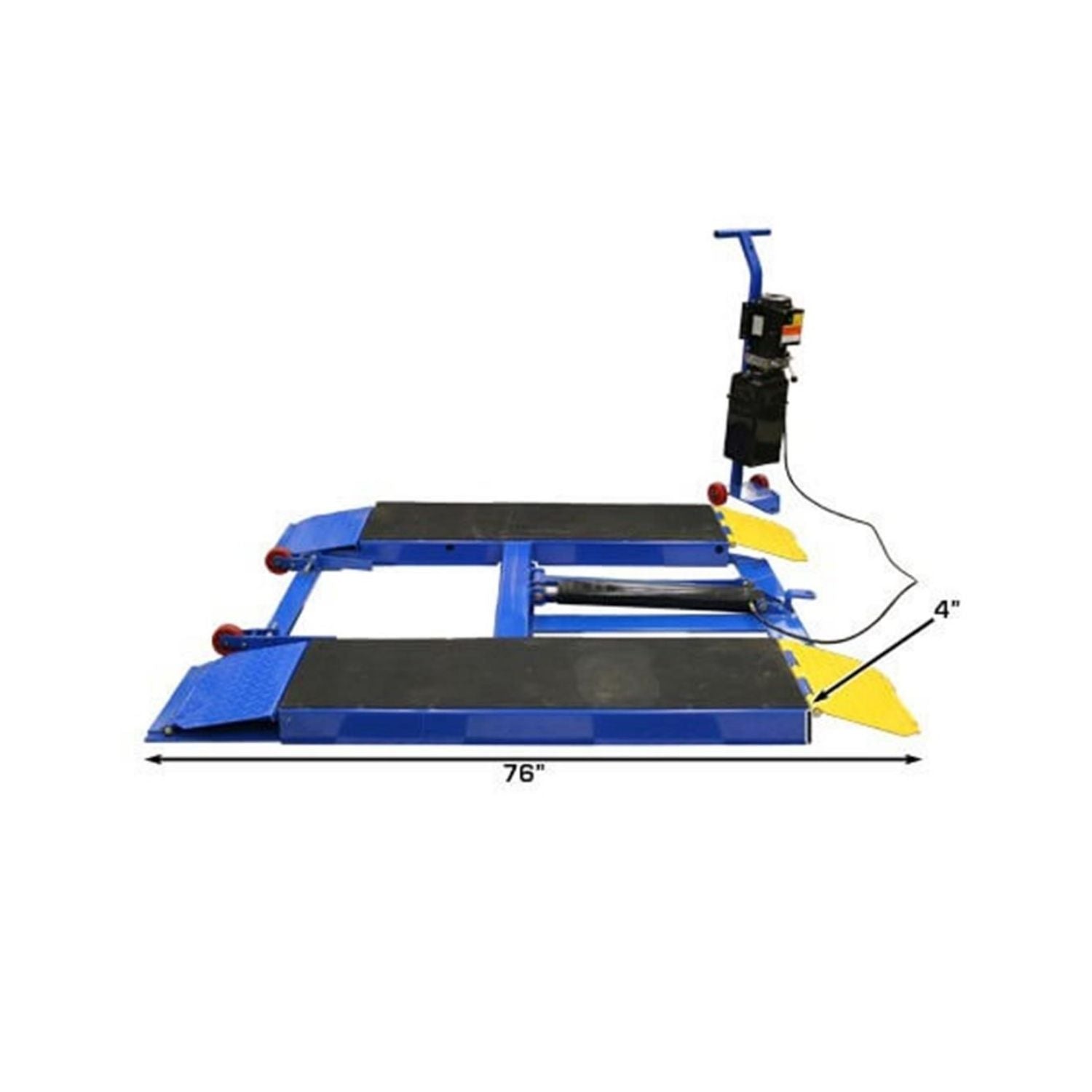

| Lowered Height | 4" |

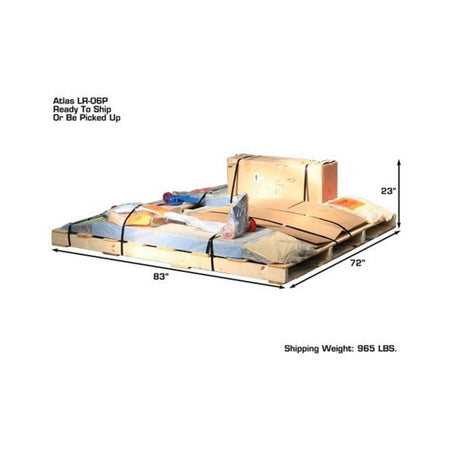

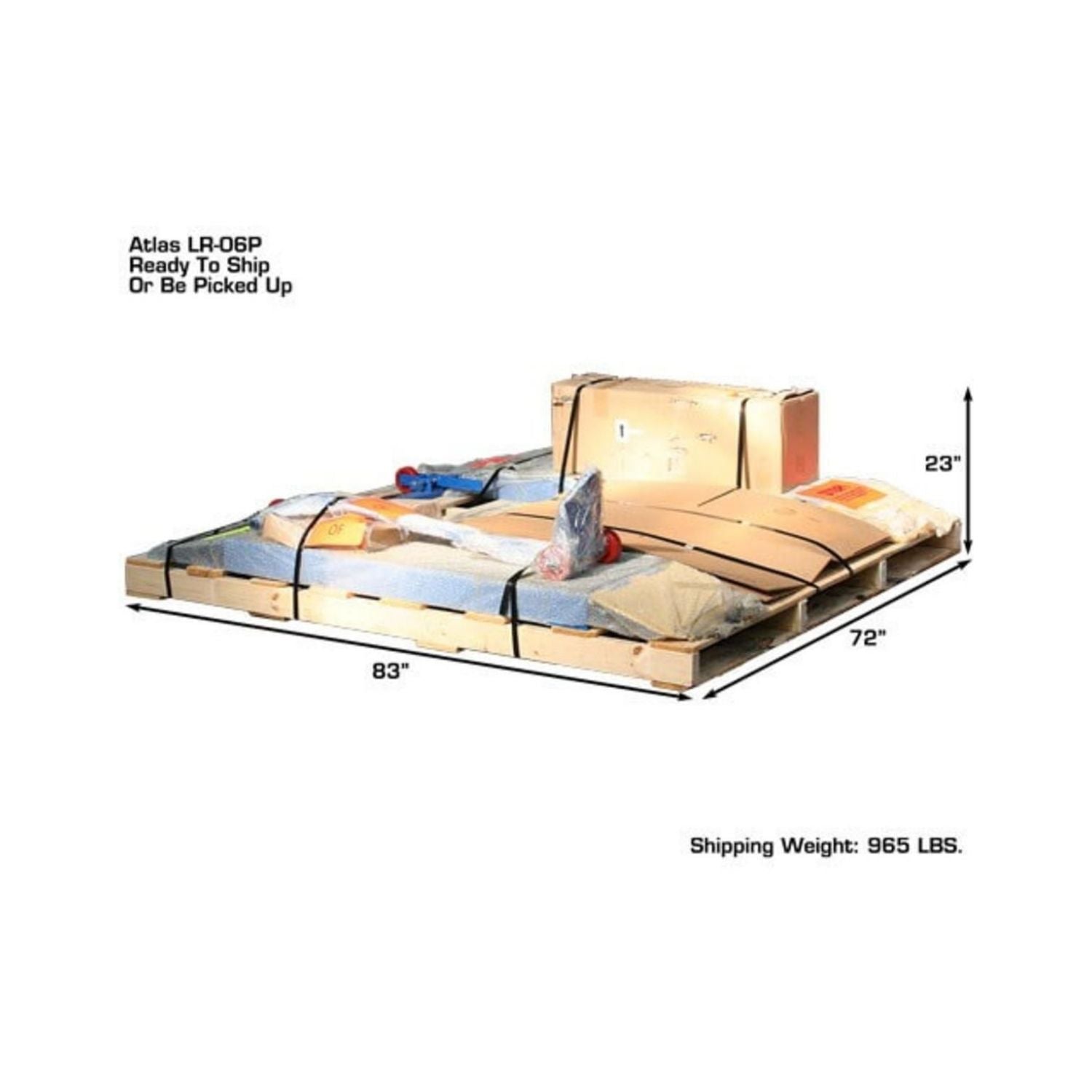

| Shipping Weight | 965 lbs |
⚠️ Installation Requirements
- Ceiling height: Plan for 24" (2') maximum lifting height overall lift height; measure to the lowest obstruction.
- Electrical: 110V single phase; consult an electrician for exact breaker sizing.
- Floor / Concrete: Portable design — no permanent anchoring required for standard use.
- Bay width: Confirm 70" (5' 10") overall width floor width clearance; measure before ordering.
- Surface anchoring: Anchor per manufacturer specification where applicable — do not skip anchoring on production bays.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Atlas Warranty — LR06
Atlas backs the LR06 with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the LR06 and should not be assumed to apply to other Atlas models.
| Component | Coverage Term |
|---|---|
| Structural components | 2 years |
| Hydraulic components | 1 year |
| Wear items & accessories | Not covered (consumable, parts-only warranty) |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — LR06
Is the Atlas LR06 ALI certified?
The LR06 is a commercial-grade portable lift; the live Atlas source does not list ALI certification.
Does the LR06 need compressed air?
No — the LR06 uses multi-position manual safety locks, so no external air supply is required.
How portable is the LR06?
Very — it's a 4" low-profile frame designed for quick repositioning and mobile use, unlike fixed in-ground or bay-mounted lifts.
What locking heights does the LR06 offer?
Three locking positions: 12 1/4", 18 1/2", and 22 1/4", giving flexibility for different service tasks.
Why Buy the LR06 from Alamo Equipment & Service?
- We install it. Every Atlas LR06 we sell can be delivered and set up by our team — we walk your crew through the manual lock positions before we leave.
- We service it. Need support down the road? Call (844) 480-6059 — you reach the team that delivered it, not a manufacturer hotline.
- We size it with you. Not sure if the LR06 (6,000 lbs, 24" maximum lifting height) fits your mobile or tight-space workflow? Call and we will help you plan it.
- Free shipping. The LR06 ships free to all 48 contiguous states.
- Expert comparison help. Trying to decide between the LR06's manual-lock portability and the 6PL's fixed open-center design? Call (844) 480-6059 — we will match the lift to how you actually work.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
