Atlas® Platinum PTC300 + PWB70 Combo #ATEAP-TCWB-COMBO4-FPD
Couldn't load pickup availability
| Tire changer | PTC300 |
| Wheel balancer | PWB70 |
| Power | 110V (both machines) |
| Warranty | 2 years parts (both machines) |

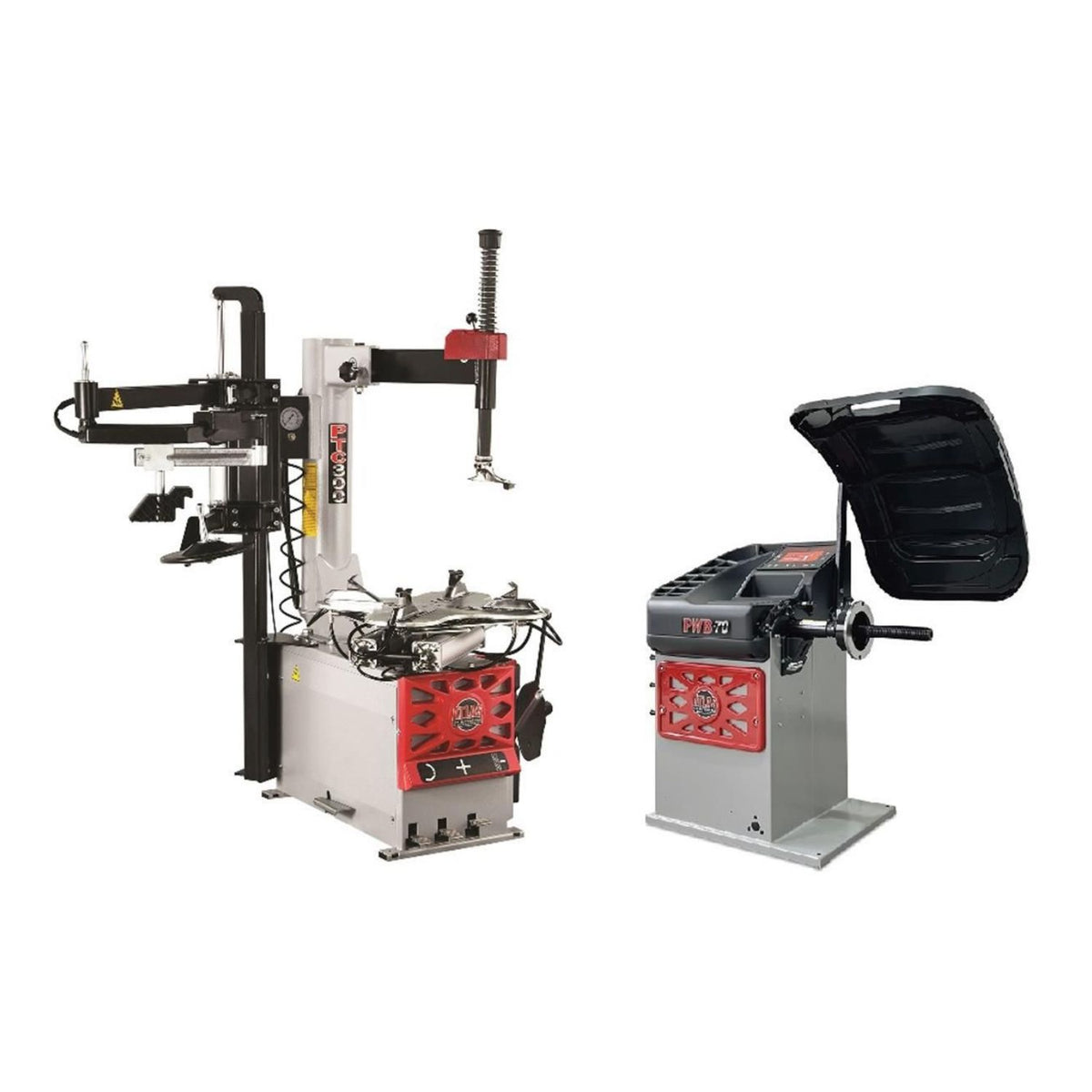

Atlas Platinum PTC300 + PWB70 Combo — Platinum Tire Changer + Balancer Combo
A shop that buys a changer and a balancer from two different catalogs usually buys two different problems — mismatched workflows, two warranties, two freight bills. The Atlas Platinum PTC300 + PWB70 combo buys one tire bay instead: a swing-arm changer with a left-hand assist arm, and an automatic 2D balancer with laser measurement and LED display, both on the Platinum line's 2-year parts warranty.
This is the Platinum entry pairing — the changer gives the assist arm where tire work actually strains, and the balancer auto-enters dimensions and measures with laser guidance, which is the moment the shop stops doing data-entry work and starts doing tire work.
Who the Atlas Platinum PTC300 + PWB70 Combo Is Built For
- Shops stepping up from the value line — the assist arm and the automatic laser balancer are the two upgrades that change the daily work, and this pairing buys both at the Platinum entry price.
- Bays whose changer does most of its work on standard passenger and light-truck wheels — the PTC300's 10"–24" external clamping covers the daily mix, with the LH assist for the stiff sidewalls.
- Shops done with manual dimension entry — the PWB70 auto-enters wheel data and measures with laser + LED, which is the tier where balancing becomes one-tech work.
- Warranty-driven buyers — 2-year parts coverage on both machines doubles the value line's 1-year terms.
- Shops buying one bay as a system — matched Platinum machines, one order, one freight bill, one warranty: the workflow questions answer themselves.
What the Atlas Platinum PTC300 + PWB70 Combo Is NOT Built For
This is not the big-rim pairing — the PTC300 clamps to 24 inches external, and 26-inch-plus custom work belongs to the PTC600/THA-class combos. It's not the 3D-balancing tier either (that's the PWB90XL pairings), and shops that don't need the assist arm might honestly prefer the value line.
Important sizing note: check your rim mix against the PTC300's 10"–24" external clamping, confirm 110V outlets and the changer's air requirement, and compare the balancer tier (PWB70 laser vs PWB90XL 3D) against your precision needs before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas Platinum PTC300 + PWB70 Combo Different

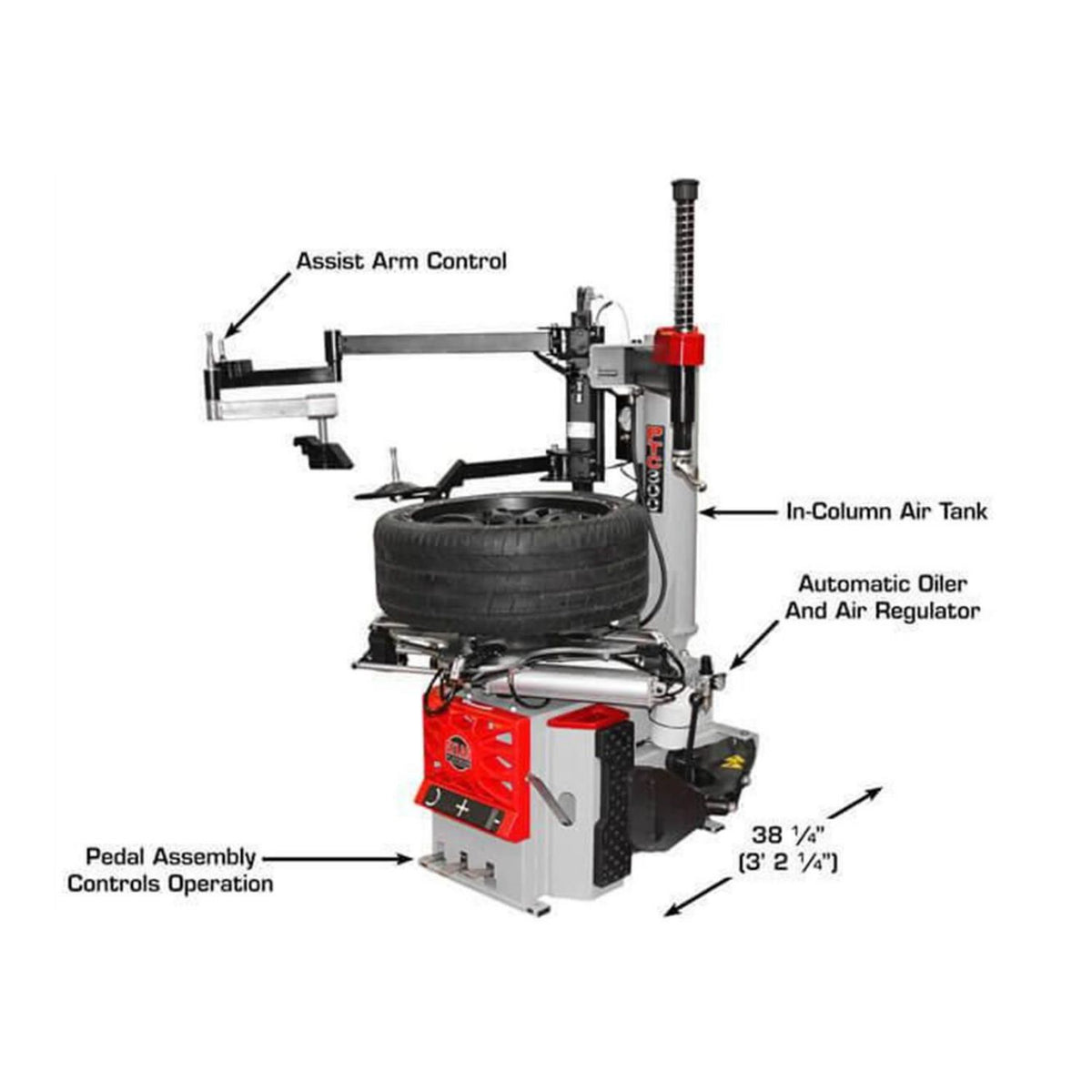

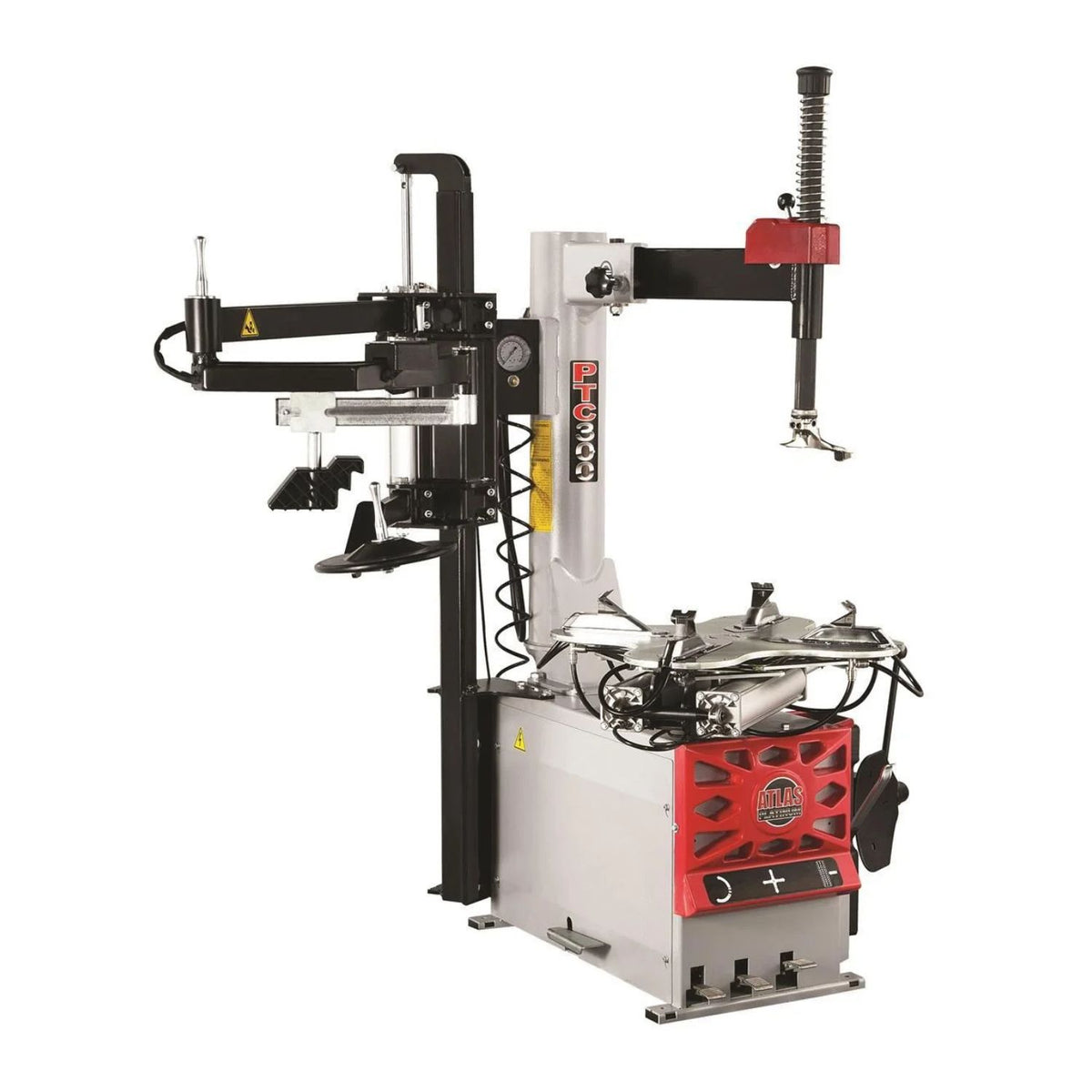

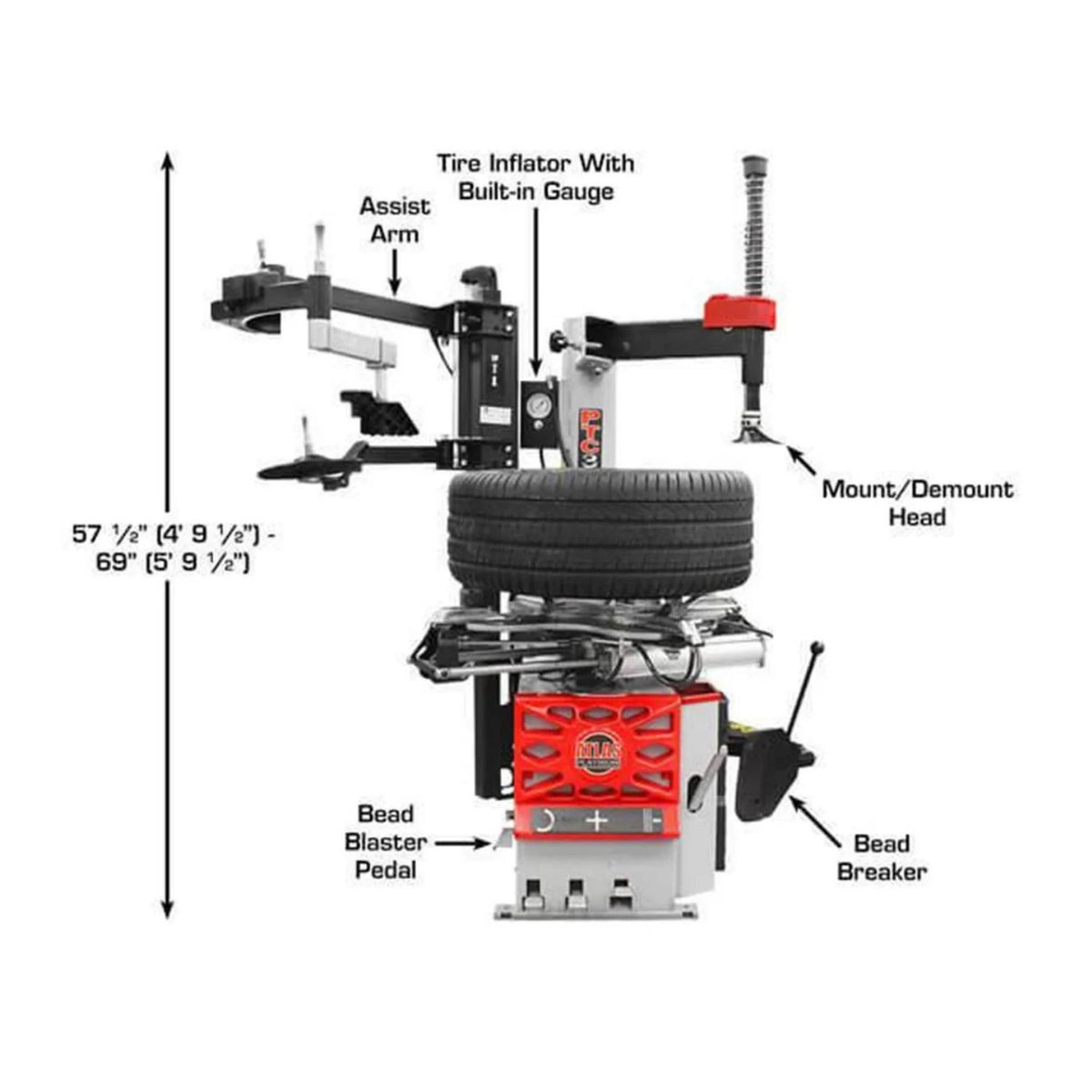

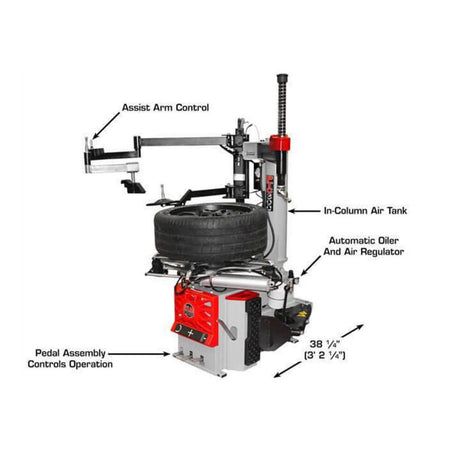

The changer: PTC300 swing arm with LH assist
Swing-arm configuration with the left-hand assist arm — the muscle where tire work actually strains, clamping 10"–24" externally.
The balancer: PWB70 auto 2D with laser + LED
Automatic dimension entry, laser-guided measurement, LED display — the tier where balancing stops being data-entry work.
Platinum terms
2-year parts warranty on both machines, both on 110 volts, freight prepaid — the Platinum entry with nothing stripped.
Best For
- Platinum entry tier
- Assist-arm changer work
- Laser-guided balancing
- 2-yr warranty both machines
Not Ideal For
- 26"+ custom rims (see PTC600 combos)
- 3D-balancing precision needs (see PWB90XL combos)
- Shops without shop air
What the PTC300+PWB70 combo changes vs buying the pieces separately
| Buy the Combo | Buy Separately | |
|---|---|---|
| Component matching | PTC300 + PWB70 paired by the manufacturer as one bay | you match changer and balancer yourself |
| Freight | one inbound freight bill, one delivery day | two machines, two freight days |
| Setup | both machines positioned and set up in one visit | separate deliveries to coordinate |
| Service path | one warranty path through Alamo | two purchase trails to track |
Same machines either way — the combo buys certainty on the pairing, one freight day, and one service path.
Full Specifications - Atlas Platinum PTC300 + PWB70 Combo

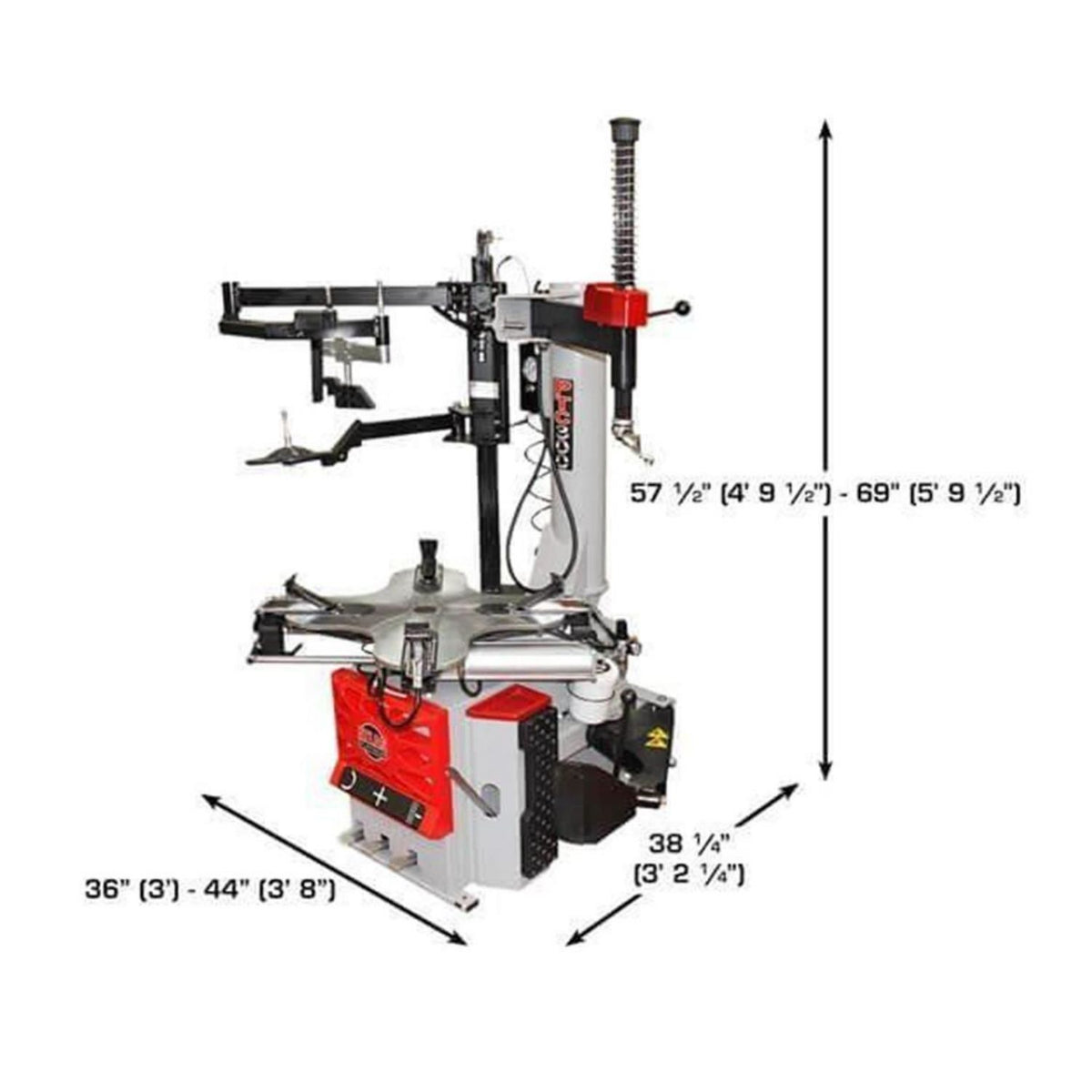

| PTC300 — type | Platinum Rim Clamp / Swing Arm Tire Changer |
| PTC300 — assist | Left Hand Assist Arm included |
| PTC300 — external clamping | 10" - 24" |
| PTC300 — internal clamping | 12" - 26" |
| PTC300 — max tire diameter | 43" |
| PTC300 — max wheel width | 15" |
| PTC300 — bead breaker force | 6,924 LB. (anodized aluminum cylinder) |
| PTC300 — air | 120-145 PSI (external supply required; air operated jaws & bead breaker) |
| PTC300 — power | 110 volt |
| PTC300 — shipping weight | 620 lbs |
| PWB70 — type | Platinum Computer Controlled Motorized Spin Balancer w/ Laser Line |
| PWB70 — rim sizes | 10" - 30" (cars & light trucks) |
| PWB70 — rim width | 1 1/2" - 20" |
| PWB70 — max tire diameter | 43" |
| PWB70 — max wheel weight | 165 lbs. |
| PWB70 — data entry | Automatic 2D (single data entry gauge) |
| PWB70 — accuracy | 1 gram |
| PWB70 — balancing speed | 130 rpm |
| PWB70 — cycle time | 7 seconds |
| PWB70 — power | 110 volt |
| PWB70 — shipping weight | 280 lbs |
⚠️ Installation Requirements
- Air: confirm shop air for the changer's pneumatic systems (see specs for the model's PSI) before install
- Power: both machines run on 110 volts — standard outlet territory; electrician confirms the circuits
- Position changer and balancer with working clearance between them (a tire bay's workflow matters)
- Some assembly per the included manuals
- Alamo delivers and installs — and services the wheel equipment we sell
Atlas® Platinum Warranty - Atlas Platinum PTC300 + PWB70 Combo
The Platinum wheel-service line backs both machines with its 2-year parts-only warranty — twice the value line's coverage — handled through Alamo.
| Component | Coverage Term |
|---|---|
| Parts — both machines | 2 years (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas Platinum PTC300 + PWB70 Combo
What does the combo include?
Two machines: the PTC300 swing-arm tire changer with LH assist arm, and the PWB70 automatic 2D balancer with laser + LED measurement — both 110V, both under the 2-year Platinum parts warranty.
Why the PWB70 over the PWB50?
Measurement technology: the PWB70 adds laser guidance and LED display over the PWB50's standard 2D — the difference shows up on alloy wheels where placement precision matters.
What power and air does it need?
Both machines on 110 volts; the changer needs shop air per its spec — confirm the drop before install.
Is there a balancer manual?
No PWB70 manual is published on the manufacturer's site — operation support comes from Alamo directly, and the changer manual ships in the box.
Why Buy the Atlas Platinum PTC300 + PWB70 Combo from Alamo Equipment & Service?
- We sell what fits. Rim sizes, tire mix, and balancer-tier needs — we confirm the pairing before you order.
- We deliver it. One freight bill, both machines, coordinated by us.
- We service it. One 2-year warranty, one shop — both machines route through Alamo.
- We know the Platinum ladder. PTC300 vs 400 vs 600, PWB70 vs 90XL — one call sorts the honest pairing.
- One bay, one system. Matched machines that work together from day one.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
