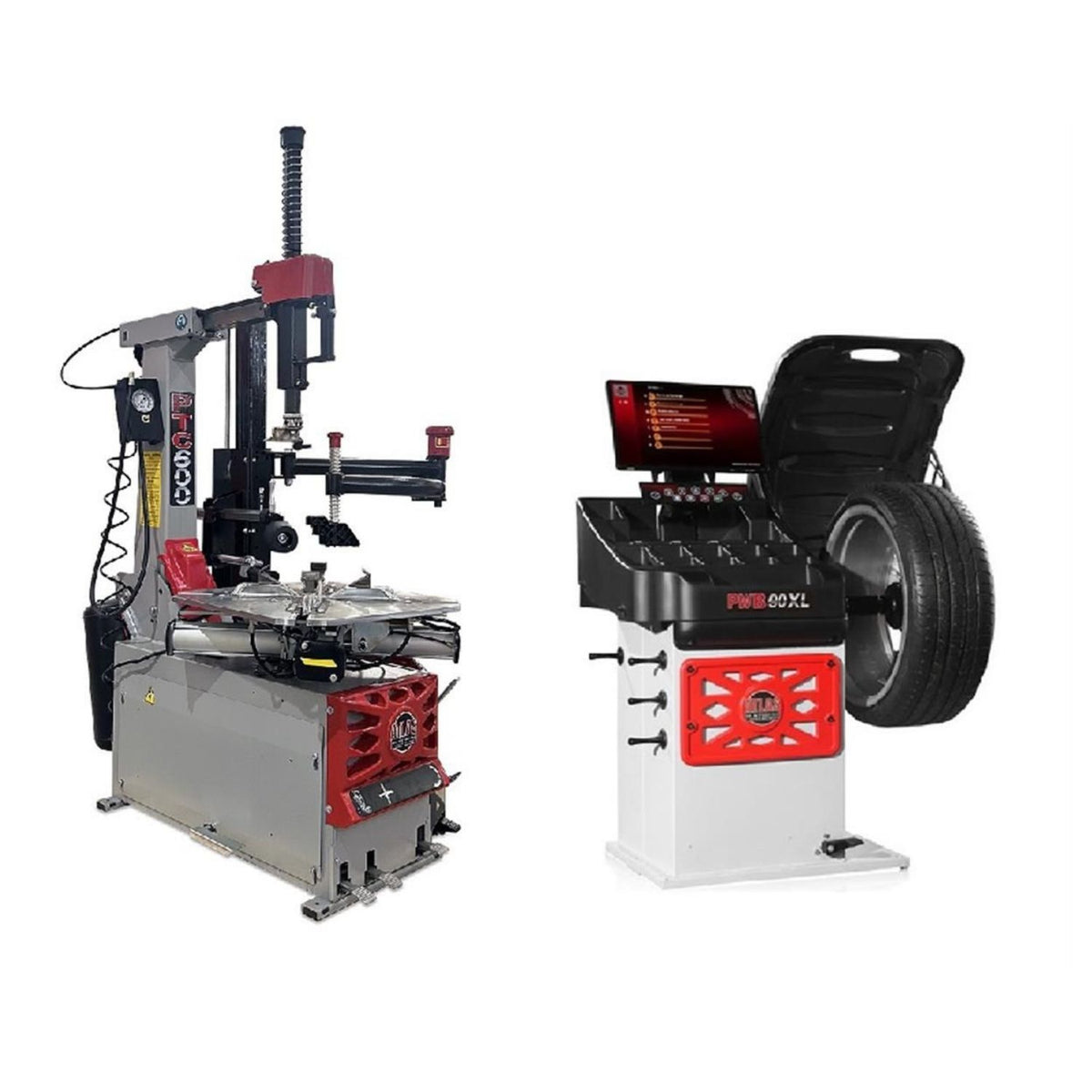

Atlas® Platinum PTC600 + PWB90XL Combo #ATEAP-TCWB-COMBO10-FPD
Couldn't load pickup availability
| Tire changer | PTC600 |
| Wheel balancer | PWB90XL |
| Power | 110V (both machines) |
| Warranty | 2 years parts (both machines) |
Atlas Platinum PTC600 + PWB90XL Combo — Platinum Tire Changer + Balancer Combo
The premium question in a tire bay is always the same two-part test: does the shop protect rims it can't afford to touch, and does it balance wheels it can't afford to guess on? The Atlas Platinum PTC600 + PWB90XL combo is the yes to both: the tilt-back changer (RH assist, 6,924 lb bead breaker, bead blast built in) and the 3D video/sonar balancer — the rim-protection ceiling and the measurement ceiling, one order.
Both machines carry the Platinum 2-year parts warranty and run on 110 volts. This is the pairing a shop buys when the wheels it services are worth more than the machines — and when the balancer's verdict needs to be right the first time.
Who the Atlas Platinum PTC600 + PWB90XL Combo Is Built For
- Premium custom-wheel operations — the shops whose customers' rims are the expensive part of the job: tilt-back demount protection plus 3D video/sonar measurement is the double ceiling that work demands.
- Shops that can't afford comebacks — 3D video with touchless sonar is the measurement tier where placement guesses end, and rim-conscious shops feel every one of those comebacks doubly.
- Warranty-driven buyers — 2-year parts on both machines, the Platinum standard on the premium pairing.
- Shops buying the bay as a system — matched Platinum machines, one order, one freight bill, one warranty path.
- One-order bay builders — the premium tier as a system: matched Platinum machines, one freight bill, one service line.
What the Atlas Platinum PTC600 + PWB90XL Combo Is NOT Built For
This is not the budget play — standard steel-wheel daily work belongs three tiers down, and shops paying premium prices for capability they don't touch should call us for the honest alternative. The tilt-back premium and the 3D premium are both real money, and both should earn their keep.
Important sizing note: check your rim mix against the PTC600's 10"–27" external clamping, confirm 120–145 PSI shop air, and note the PWB90XL's 290 lb wheel capacity before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas Platinum PTC600 + PWB90XL Combo Different
The changer: PTC600 tilt-back — the protection ceiling
Tilt-back demount, RH assist arm, 6,924 lb bead breaker, built-in bead blast, plastic-everywhere — the changer for wheels worth protecting.
The balancer: PWB90XL — the measurement ceiling
3D video with touchless sonar, automatic everything — the balancer for work that can't afford a second guess.
Premium terms
2-year parts warranty on both machines, freight prepaid — the premium pairing with the premium coverage.
Best For
- Premium custom-wheel operations
- Anti-comeback precision
- Double-ceiling capability
- 2-yr warranty both machines
Not Ideal For
- Standard steel-wheel daily work (see mid tiers)
- Budget entries (see value line)
- Shops without shop air
What the PTC600+PWB90XL combo changes vs buying the pieces separately
| Buy the Combo | Buy Separately | |
|---|---|---|
| Component matching | PTC600 + PWB90XL paired by the manufacturer as one bay | you match changer and balancer yourself |
| Freight | one inbound freight bill, one delivery day | two machines, two freight days |
| Setup | both machines positioned and set up in one visit | separate deliveries to coordinate |
| Service path | one warranty path through Alamo | two purchase trails to track |
Same machines either way — the combo buys certainty on the pairing, one freight day, and one service path.
Full Specifications - Atlas Platinum PTC600 + PWB90XL Combo
| PTC600 — type | Platinum Tilt-Back Rim Clamp Tire Changer |
| PTC600 — assist | Right Hand Bead Pressing and Bead Rolling Assist Arm included |
| PTC600 — external clamping | 10" - 27" |
| PTC600 — internal clamping | 12" - 29" |
| PTC600 — max tire diameter | 43" |
| PTC600 — max wheel width | 16" |
| PTC600 — bead breaker force | 6,924 LB. |
| PTC600 — air | 120-145 PSI (external supply required) |
| PTC600 — power | 110 volt |
| PTC600 — shipping weight | 795 lbs |
| PWB90XL — type | Platinum 3D Video Motorized Spin Balancer w/ Laser Line |
| PWB90XL — rim sizes | 10" - 30" (cars and light trucks) |
| PWB90XL — rim width | 1 1/2" - 20" |
| PWB90XL — max tire diameter | 43" |
| PWB90XL — max wheel weight | 165 lbs. |
| PWB90XL — data entry | Super Automatic 3D (single data entry gauge for offset and diameter; touchless sonar for rim width — no measuring arm) |
| PWB90XL — accuracy | 1 gram |
| PWB90XL — balancing speed | 130 rpm |
| PWB90XL — cycle time | 7 seconds |
| PWB90XL — power | 110 volt |
| PWB90XL — shipping weight | 290 lbs |
⚠️ Installation Requirements
- Air: confirm shop air for the changer's pneumatic systems (see specs for the model's PSI) before install
- Power: both machines run on 110 volts — standard outlet territory; electrician confirms the circuits
- Position changer and balancer with working clearance between them (a tire bay's workflow matters)
- Some assembly per the included manuals
- Alamo delivers and installs — and services the wheel equipment we sell
Atlas® Platinum Warranty - Atlas Platinum PTC600 + PWB90XL Combo
The Platinum wheel-service line backs both machines with its 2-year parts-only warranty — twice the value line's coverage — handled through Alamo.
| Component | Coverage Term |
|---|---|
| Parts — both machines | 2 years (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas Platinum PTC600 + PWB90XL Combo
What does the combo include?
The PTC600 tilt-back changer (RH assist, bead blast) and the PWB90XL 3D video/sonar balancer — both 110V, both under the 2-year Platinum warranty.
Why is this the premium pairing?
It stacks both ceilings: tilt-back rim protection on the changer and 3D video/sonar measurement on the balancer — the pairing for work where both mistakes cost real money.
What are the terms?
2-year parts warranty on both machines (the Platinum standard), one freight bill, one warranty path through Alamo — the premium pairing bought as a system.
What power and air does it need?
Both machines on 110 volts; the changer needs 120–145 PSI shop air.
Why Buy the Atlas Platinum PTC600 + PWB90XL Combo from Alamo Equipment & Service?
- We sell what fits. The premium pairing earns its price only when the wheels demand both ceilings — we'll tell you honestly when they don't.
- We deliver it. One freight bill, both machines, coordinated by us.
- We service it. One warranty, one shop — premium tier through Alamo like every tier.
- We know the ceiling trade. Tilt-back vs 30-inch capability, 3D vs laser — one call sorts the premium questions.
- One bay, one system. The Platinum ceiling, in one order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
