Atlas RJ6 Air/Hydraulic Rolling Bridge Jack 6,000 lb #ATEATTD-RJ-6-FPD
Couldn't load pickup availability
-
DESCRIPTION

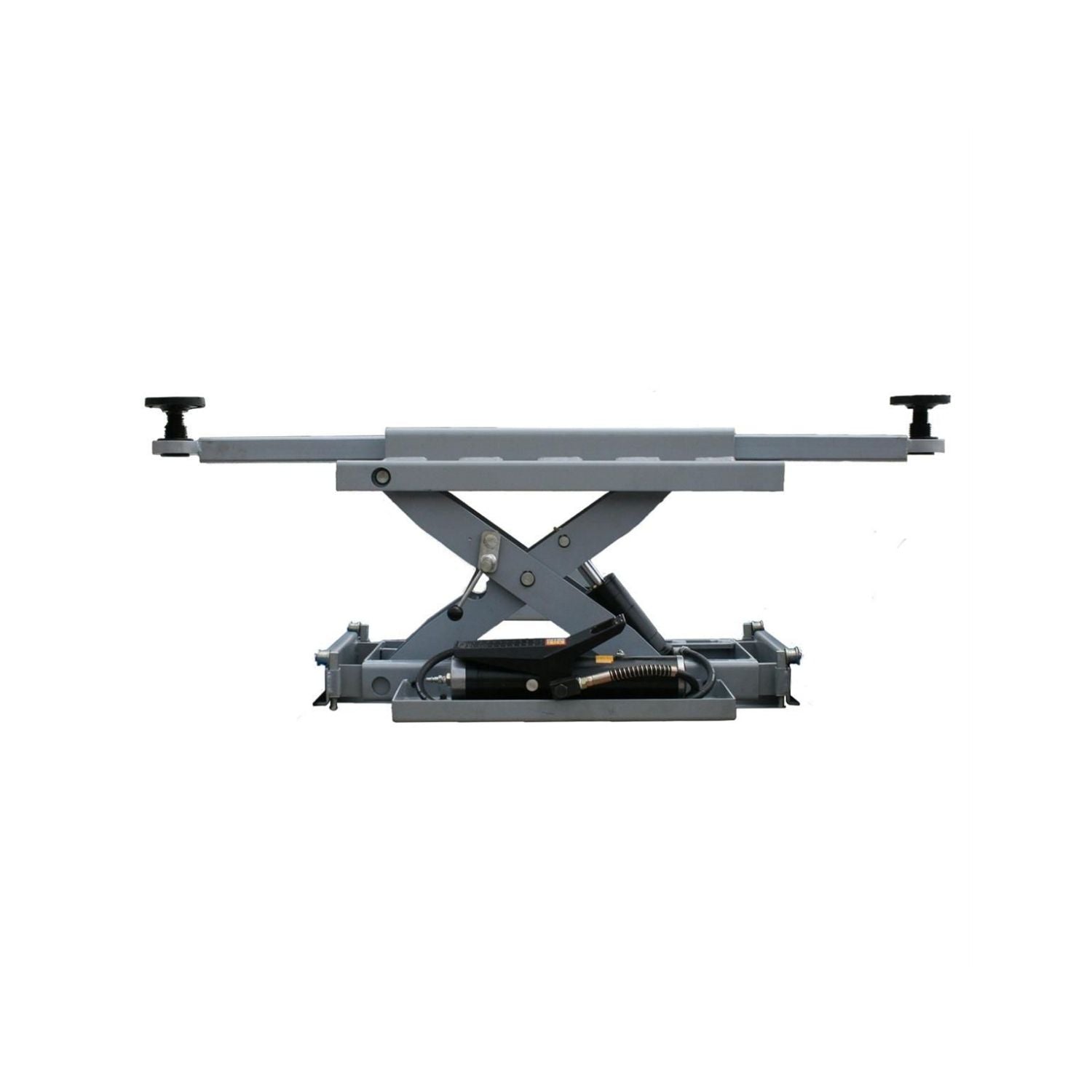

The Atlas RJ6 Air/Hydraulic Rolling Bridge Jack is designed to provide wheel-free lifting capability when used with compatible 4-post lifts.
With a 6,000 lb lifting capacity, this rolling jack allows technicians to raise a vehicle’s wheels off the runways, making it ideal for brake, suspension, and tire service. The air/hydraulic operation ensures smooth and controlled lifting, improving efficiency and reducing manual effort.
-
FEATURES AND BENEFITS
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- Double Screw-Up Adapters Included
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATEATTD-RJ-6-FPD Dimensions: 48" L × 24" W × 24" H Weight: 350 lbs UPC: 810524027106 Country of Origin: CHN Capacity: 6,000 lbs Minimum Width: 30 1/2" Maximum Width: 64 1/2" Distance Between Runway Capability: 31 1/2" - 49 1/2" Minimum Pad Height (Above Runway): 3 1/2" Maximum Lifting Height (w/ Adapters): 17 5/8" Air Requirement: 70-115 PSI Adapter Heights: 2 Each 3", 7" Arm Hole/Adapter Peg Size: 2"
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
