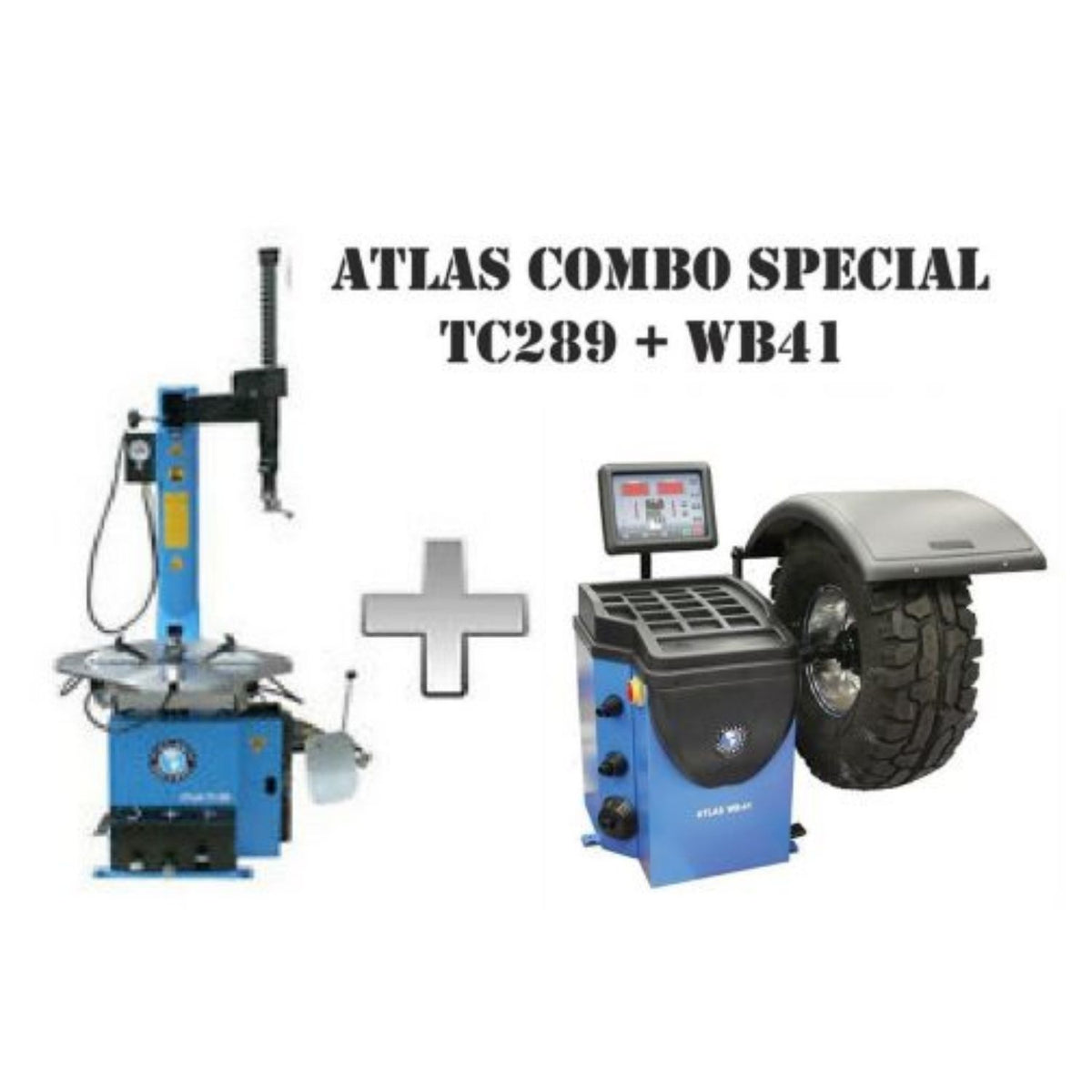

Atlas® TC289 + WB41 Combo Package #ATETCWB-COMBO2-FPD
Couldn't load pickup availability
| Tire changer | TC289 |
| Wheel balancer | WB41 |
| Power | 110V (both machines) |
| Warranty | See warranty tab |
Atlas TC289 + WB41 Combo Package — Tire Changer + Wheel Balancer Combo
The entry combo answers "can we do this at all" — the step-up combo answers "can we do this all day." The Atlas TC289 + WB41 pairing is that step-up: a heavier-duty tire changer above the TC229 and the WB41 balancer with its raised display, both on 110 volts, both under Atlas's 1-year parts warranty, freight prepaid.
It's the value-line answer for the shop whose tire volume has outgrown starter equipment but whose budget hasn't reached the Platinum line — more changer, more balancer, same plug-in power and one-order simplicity.
Who the Atlas TC289 + WB41 Combo Package Is Built For
- Small shops whose tire volume has outgrown the entry machines — the TC289/WB41 pairing is the value line's working tier, built for a busier bay without the Platinum price.
- Shops that want the raised-display balancer — the WB41's display position saves the tech's neck through a full day of balancing, the difference you feel at volume.
- Budget-conscious multi-service bays — one order adds change-and-balance to a general repair shop at the value line's price and warranty terms.
- Shops on 110-volt power — both machines stay plug-in; the step-up tier doesn't demand a re-wire.
- Buyers comparing the entry combo — the delta between this and the TC229+WB11 buys a heavier changer and the raised display; the manufacturer's own line is the ladder.
What the Atlas TC289 + WB41 Combo Package Is NOT Built For
This is still the value line — 1-year parts warranty and manual dimension entry on the balancer are the honest terms at this price. It's not for run-flat or big-rim daily work (Platinum country), and it's not the auto-data-entry balancer tier either.
Important sizing note: check your tire and rim mix against the TC289's clamping range and the WB41's specs, confirm 110V outlets for both machines, and note the changer's air requirement before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas TC289 + WB41 Combo Package Different
The changer: TC289 — the heavier value machine
The step-up tire changer in the value line: more machine above the TC229 for bays whose volume grew, on the same 110-volt power.
The balancer: WB41 with raised display
The WB41's raised display puts the readout where the tech actually looks — the neck-saving difference through a full day of balancing.
One order, one workflow
Both machines 110V, both under one warranty, freight prepaid — the step-up tire bay in a single delivery.
Best For
- Volume-outgrown entry equipment
- Raised-display balancing
- Multi-service bays
- 110V power
Not Ideal For
- Run-flat / big-rim daily work (see Platinum)
- Auto-data-entry needs
- Shops wanting 2-yr warranty terms
The Atlas combo line — where TC289+WB41 sits
| Combo | Changer / Balancer | Balancer data entry | Line |
|---|---|---|---|
| TC229 + WB11 | Swing arm / manual-entry balancer | Manual entry | Value entry |
| TC289 + WB41 (this page) | Step-up changer / raised-display balancer | Manual entry, raised display | Value step-up |
| PTC300 + PWB70 | Swing arm w/ assist / auto 2D w/ laser | Automatic 2D w/ laser | Platinum (2-yr) |
The value ladder: entry, step-up — and the Platinum line when the shop's daily volume justifies the jump.
Full Specifications - Atlas TC289 + WB41 Combo Package
| TC289 — type | Rim Clamp / Swing Arm Tire Changer |
| TC289 — external clamping | 11 7/8" to 27 7/8" (narrow to wide position) |
| TC289 — internal clamping | 13 7/8" to 29 7/8" (narrow to wide position) |
| TC289 — max tire diameter | 47" |

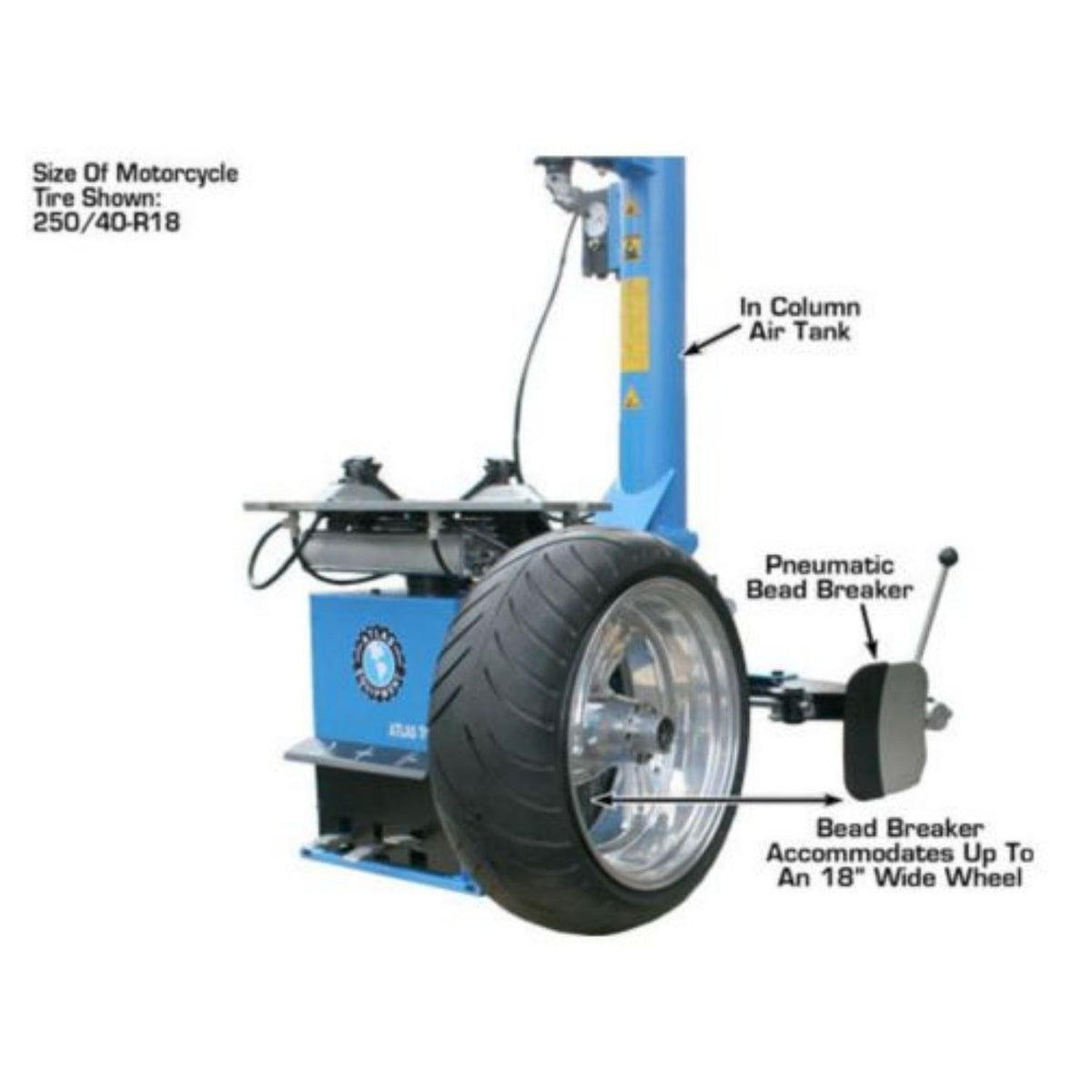

| TC289 — max wheel width | 18" |

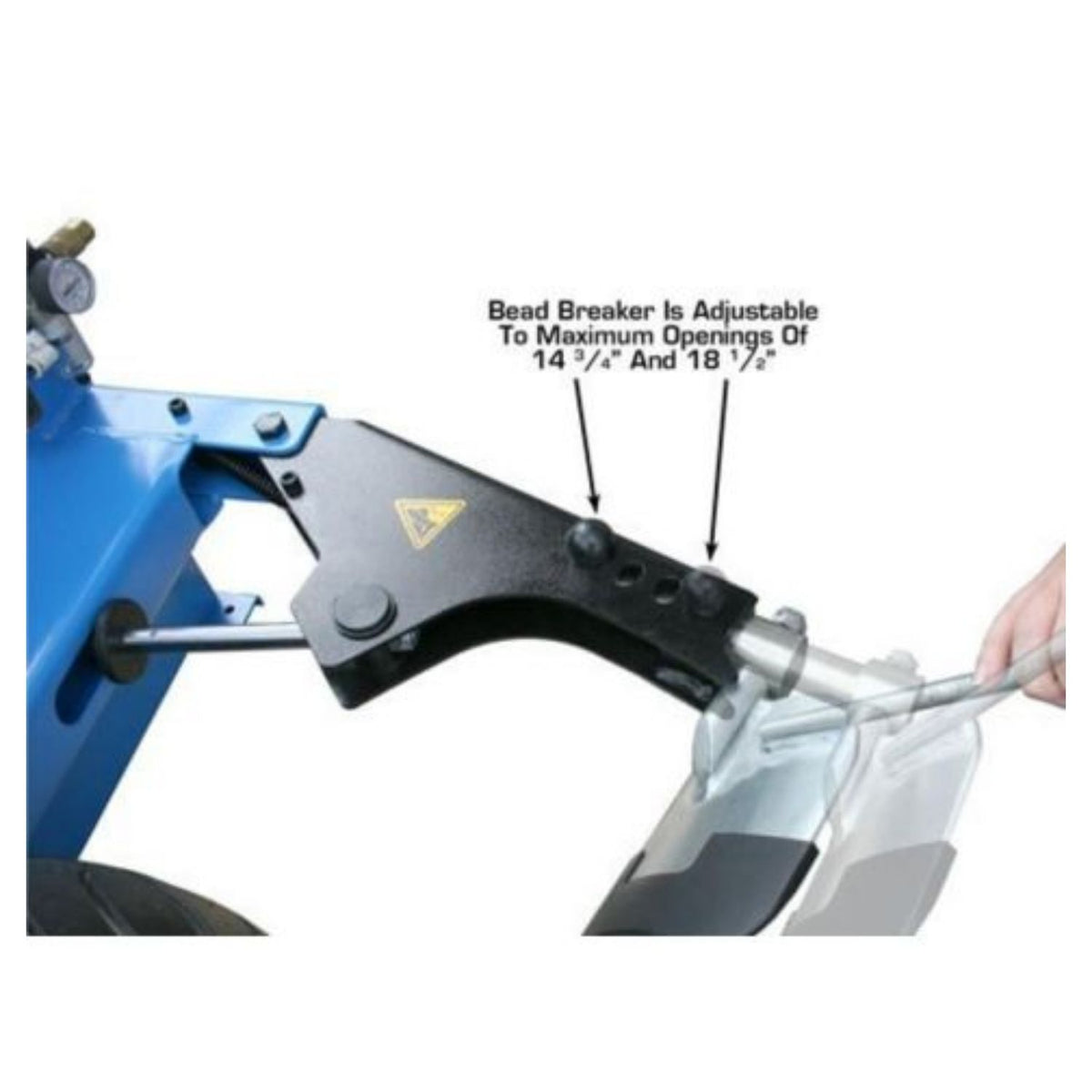

| TC289 — bead breaker force | 5,500 LB. |
| TC289 — air | 90-110 PSI (MUST NOT EXCEED 140 PSI); external air supply required |
| TC289 — power | 110 volt |

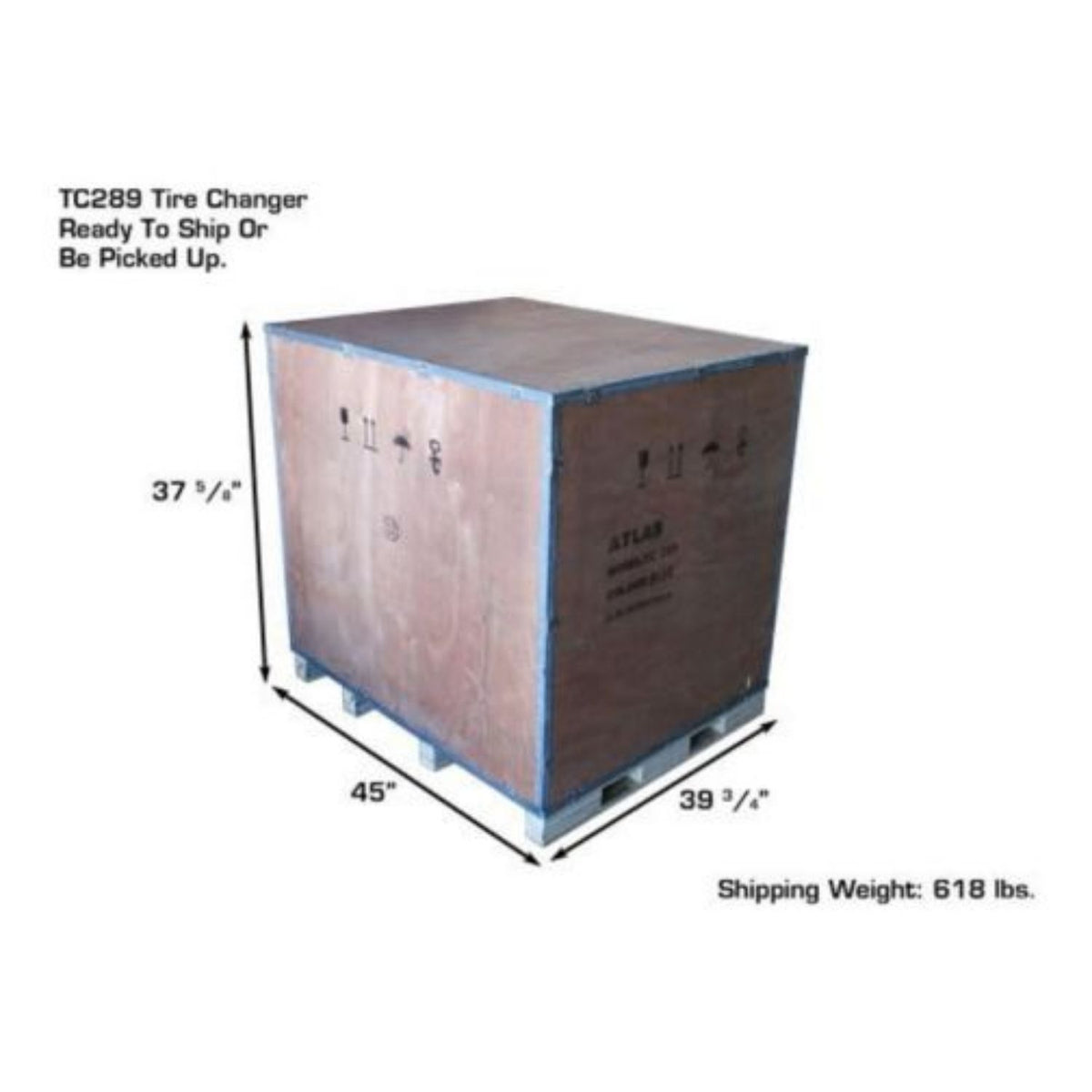

| TC289 — shipping weight | 620 lbs |
| WB41 — type | Computer Controlled Spin Balancer |
| WB41 — rim sizes | 10" - 32" (cars & light trucks) |
| WB41 — rim width | 1 1/2" - 20" |
| WB41 — max tire diameter | 39" |
| WB41 — max wheel weight | 150 lbs. |
| WB41 — data entry | All dimensions manual |
| WB41 — accuracy | 1 gram |
| WB41 — balancing speed | 150 rpm |
| WB41 — power | 110 volt |
| WB41 — shipping weight | 400 lbs |
⚠️ Installation Requirements
- Air: confirm shop air for the changer's pneumatic systems (see specs for the model's PSI) before install
- Power: both machines run on 110 volts — standard outlet territory; electrician confirms the circuits
- Position changer and balancer with working clearance between them (a tire bay's workflow matters)

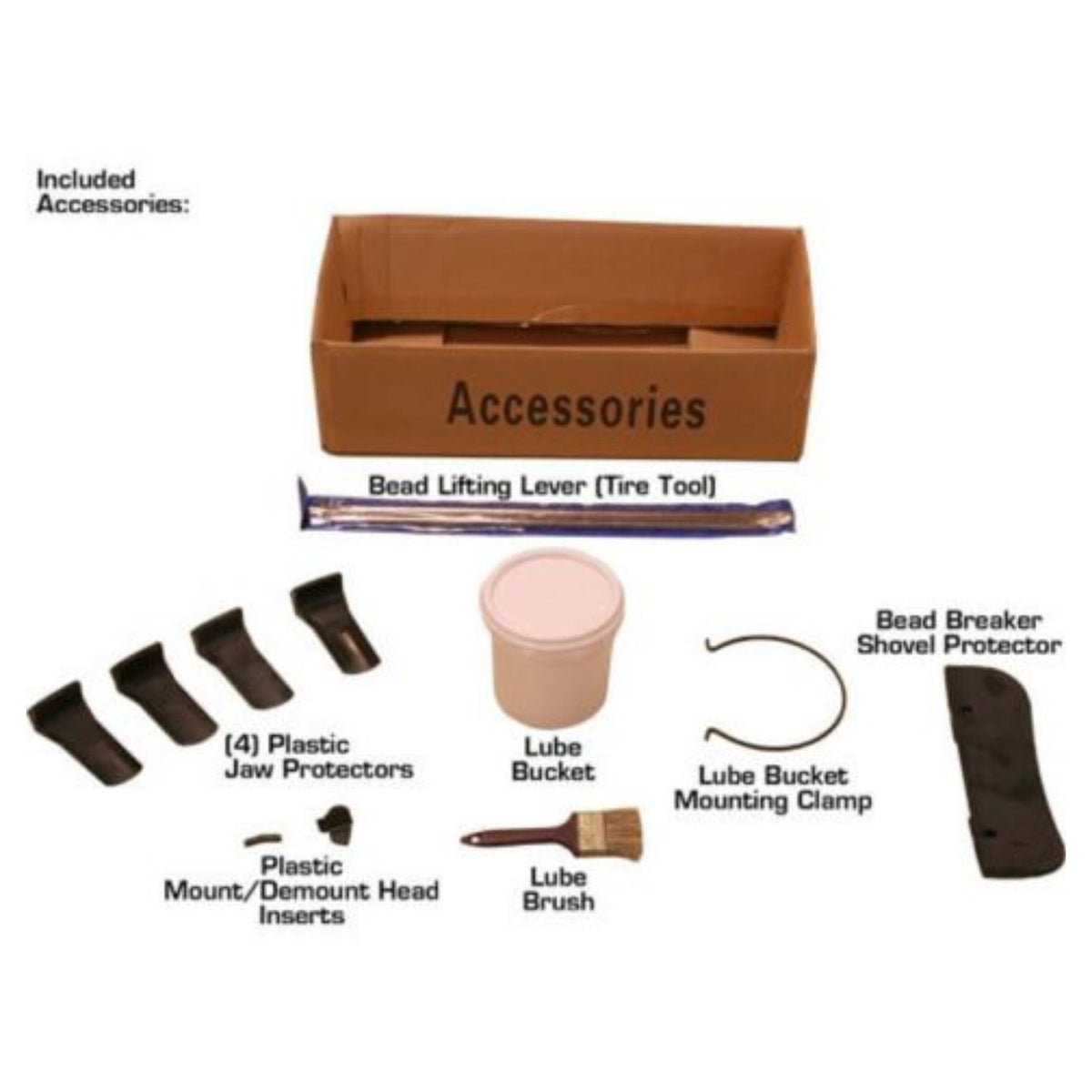

- Some assembly per the included manuals
- Alamo delivers and installs — and services the wheel equipment we sell
Atlas® Automotive Equipment Warranty - Atlas TC289 + WB41 Combo Package
Atlas covers both machines in the step-up value combo with its 1-year parts-only warranty, handled through Alamo.
| Component | Coverage Term |
|---|---|
| Parts — both machines (TC289 + WB41) | 1 year (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas TC289 + WB41 Combo Package
What does the combo include?
Two machines: the TC289 tire changer and the WB41 raised-display balancer — both 110V, both under Atlas's 1-year parts warranty, freight prepaid.
Why the TC289 over the TC229?
Volume. The TC289 is the value line's heavier-duty changer — the step-up for bays whose tire count has outgrown entry equipment.
What does the raised display get me?
Readout position. The WB41 puts the display where the tech actually looks, which is a real difference through a day of balancing.
What power and air does it need?
Both machines run on 110 volts; the changer needs shop air — confirm the drop before install.
Why Buy the Atlas TC289 + WB41 Combo Package from Alamo Equipment & Service?
- We sell what fits. Entry vs step-up vs Platinum — we'll put your volume against the ladder honestly before you order.
- We deliver it. Freight prepaid; we coordinate delivery of both machines.
- We service it. One warranty, one shop — both machines route through Alamo.
- One order, one workflow. The step-up tire bay in a single delivery.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
