Atlas® WBT-210 Heavy-Duty Truck Wheel Balancer #ATEATWBT-210-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

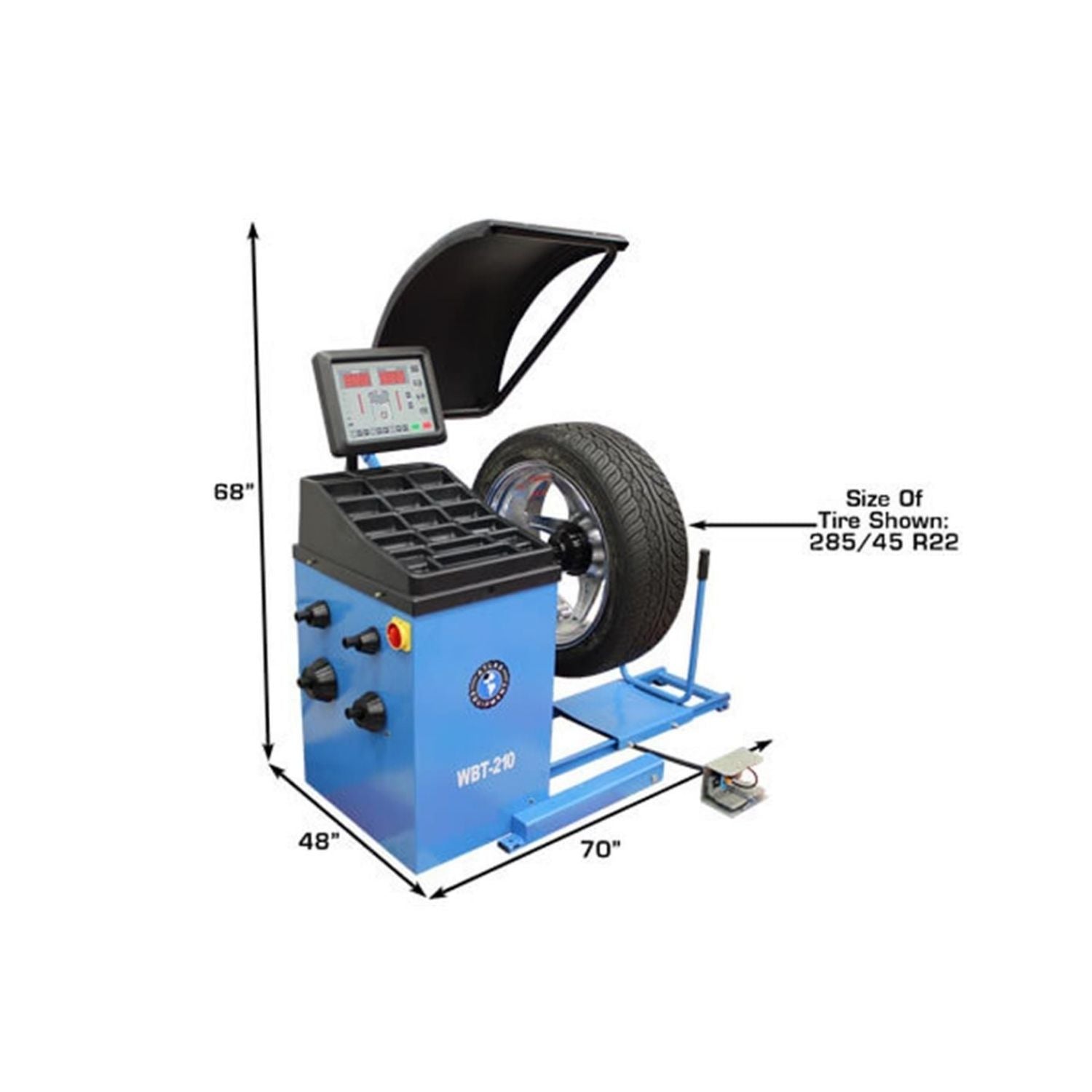

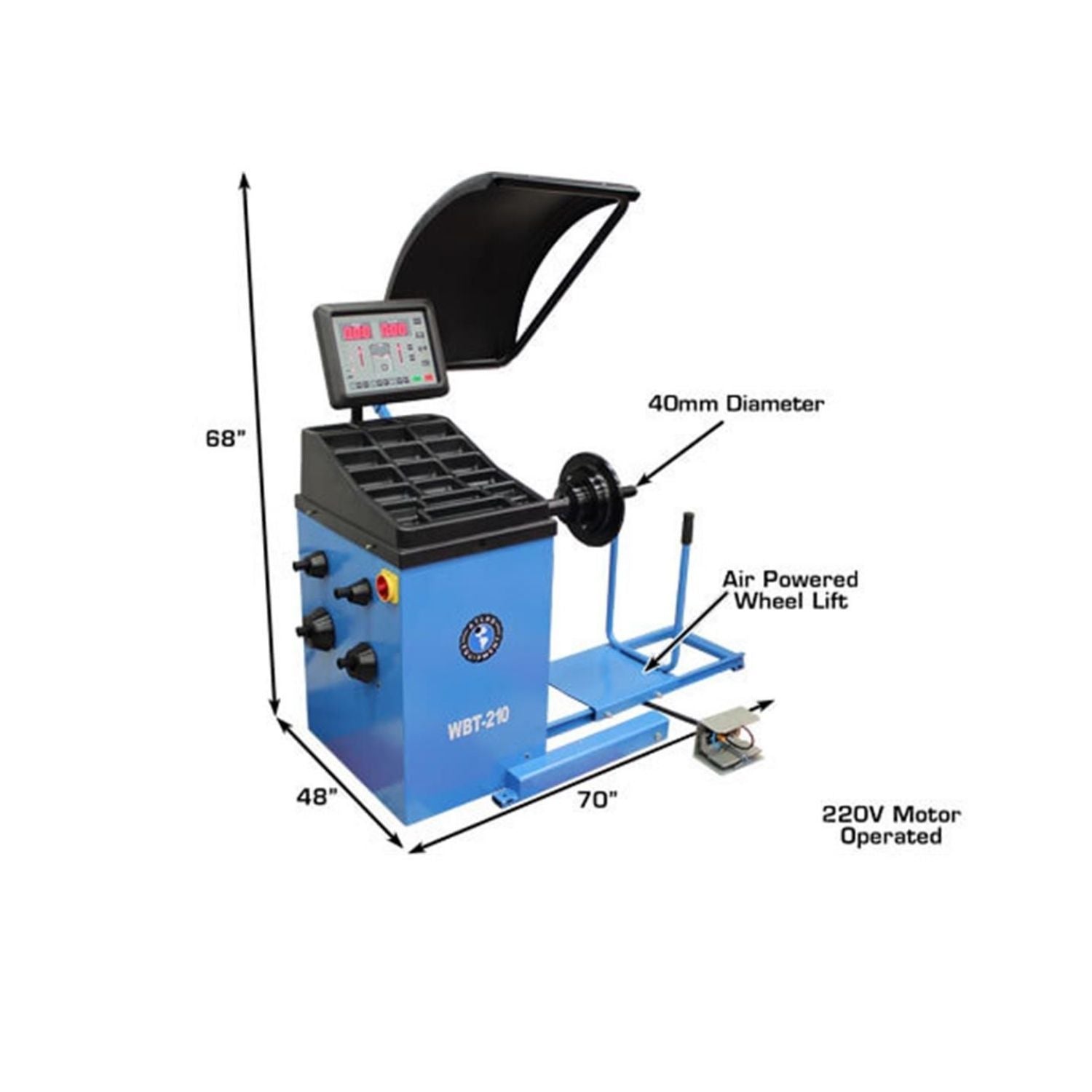

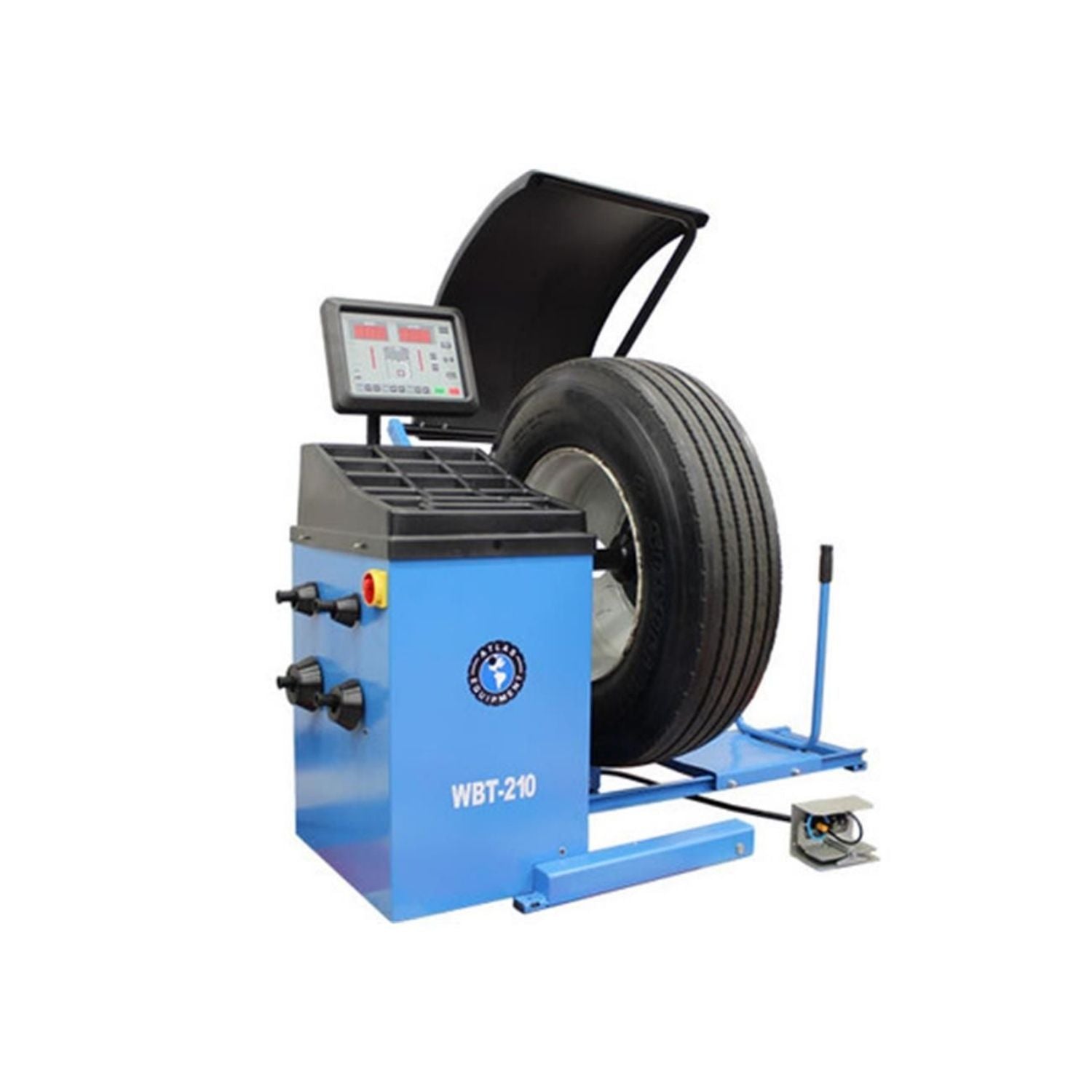

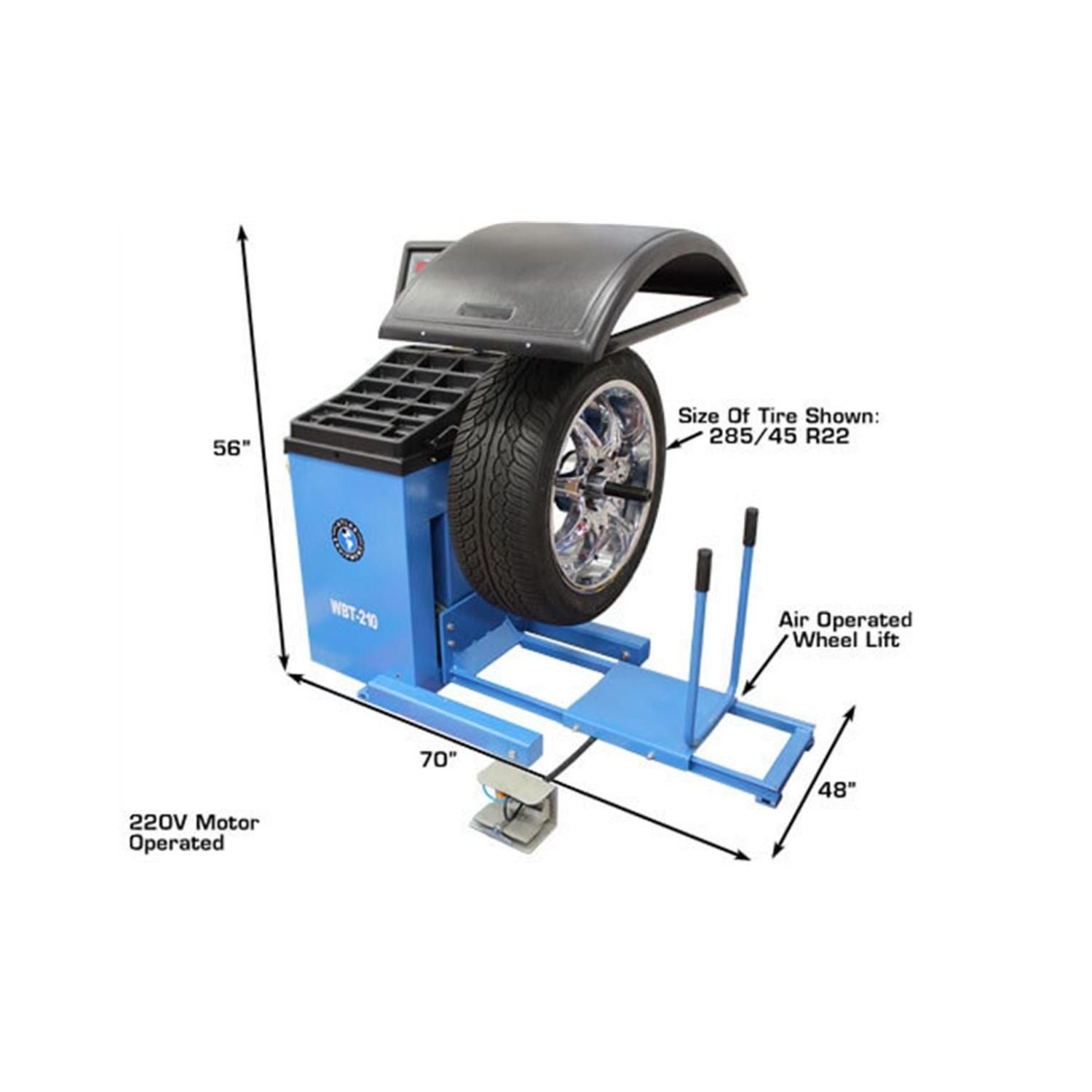

  The Atlas® WBT-210 Heavy-Duty Truck Wheel Balancer is designed for precise balancing of large and heavy commercial vehicle wheels, including trucks, buses, and fleet vehicles.

  Built to handle oversized assemblies, this machine provides the power and stability required for accurate balancing of heavy-duty wheels. Its advanced computerized system ensures reliable measurements, helping reduce vibration and improve vehicle performance.

  Engineered for demanding shop environments, the WBT-210 is ideal for commercial service centers and fleet maintenance facilities that require dependable performance for high-capacity wheel balancing.

• FEATURES AND BENEFITS

  • Computer Controlled Heavy Duty Spin Balancer
  • Cone sets for car and light truck tires
  • Cone and spacer set for truck, bus, or implement tires
  • Plastic Quick Release Nut included

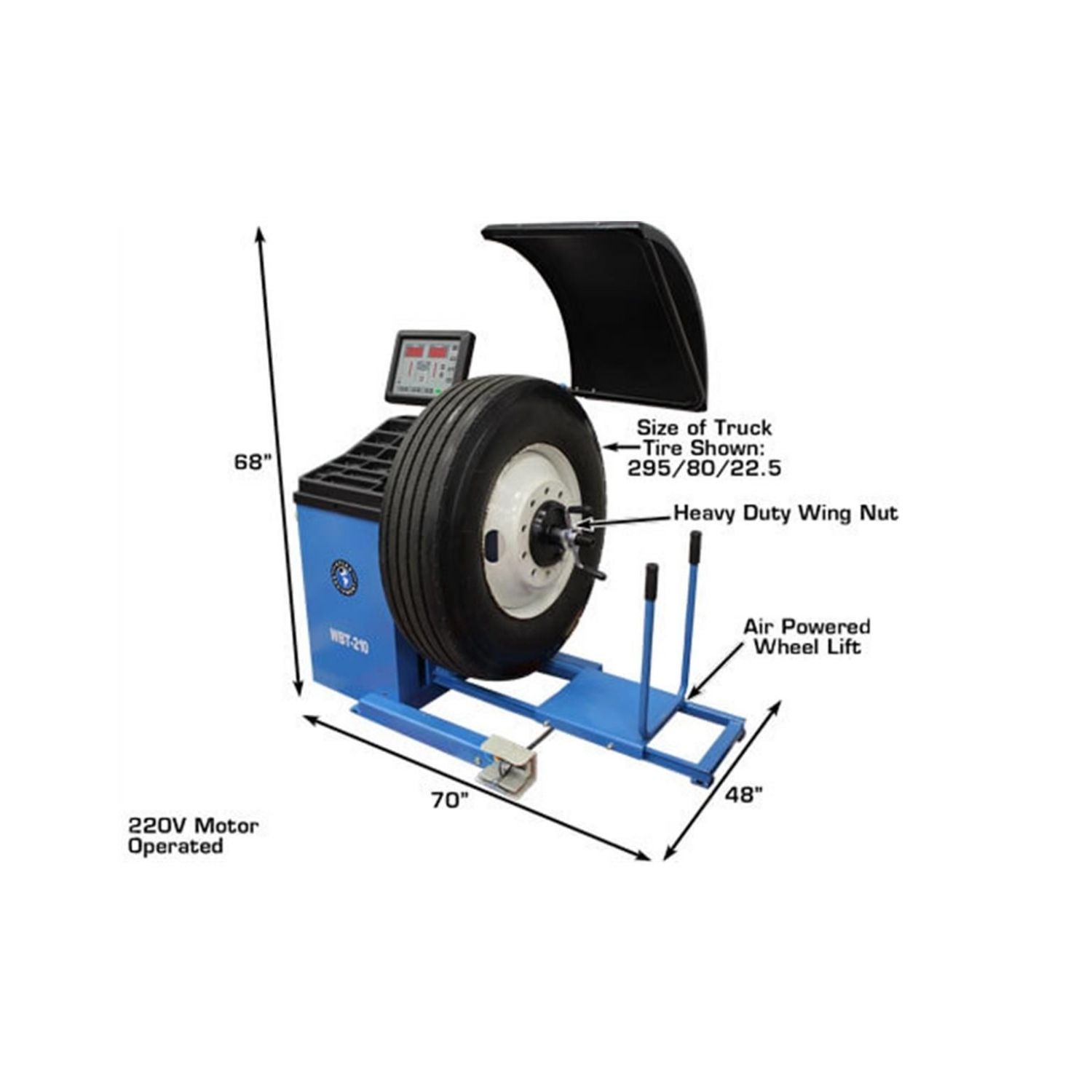

  • Heavy duty steel wing nut included
  • Pneumatic wheel lift (external air supply required)
  • Automatic start/stop when hood is lowered/raised.

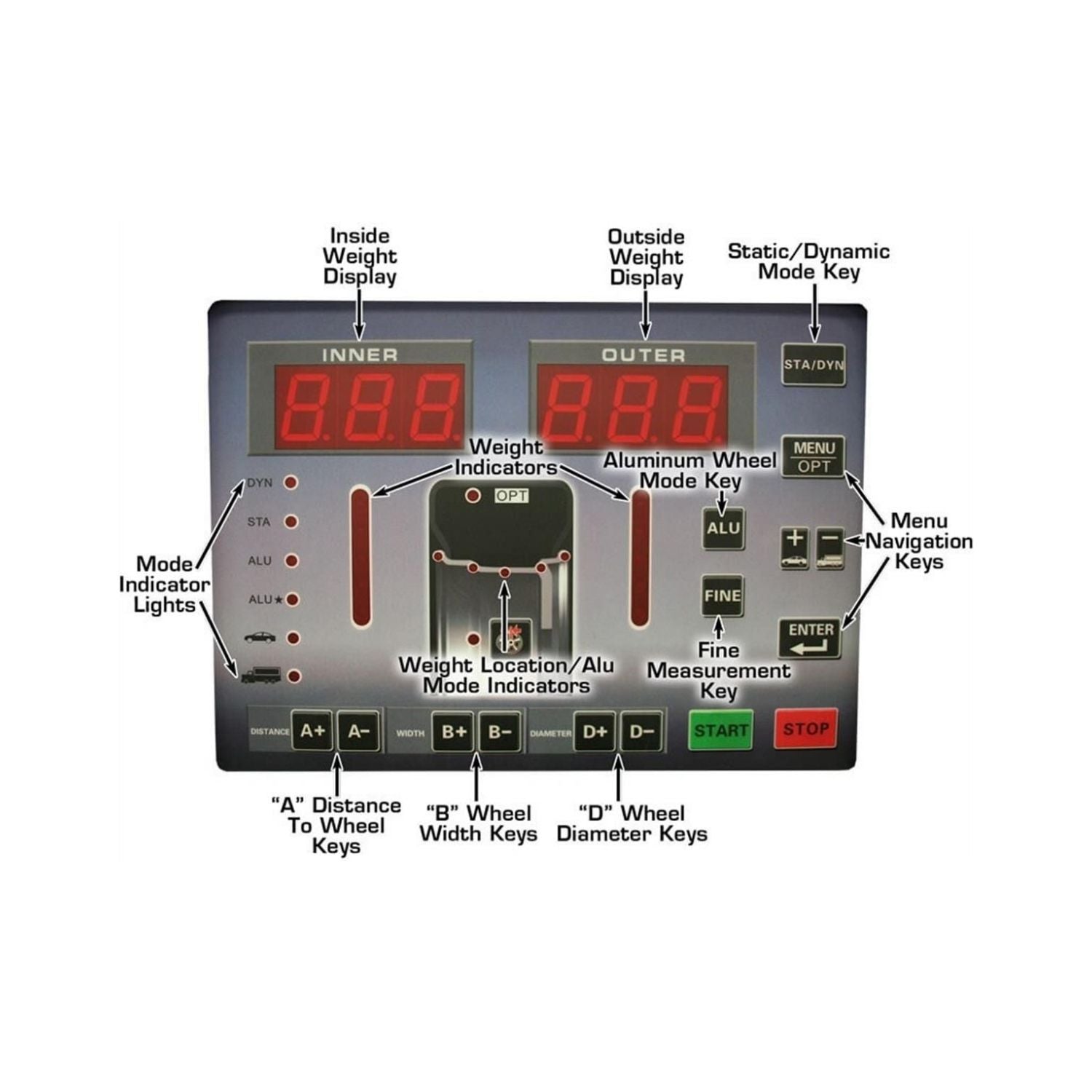

  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-diagnosis
  • Self-calibration
  • Exceptional stability in reading the unbalance between planes
  • Display in grams or ounces, and in mm or inches
  • Wheel Weight Pliers Included
  • Wheel Width Calipers Included
  • Replacement Parts & Wear Items Always in Stock
  • 1 Year Parts Only Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATWBT-210-FPD
  Dimensions:	45" L × 45" W × 33" H
  Max Tire Diameter:	47"
  Rim Sizes (Cars And Light Trucks):	10"–32"
  Rim Width:	1 1/2"–20"
  Shaft Size:	40mm
  Max. Wheel Weight:	440 lbs.
  Balancing Speed:	150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode)
  Data Entry:	All Dimensions Manual Entry
  Measurements:	Standard Or Metric
  Accuracy:	1 gram (Car/Light Truck Mode) / 10 gram (Truck Mode)
  Weight Position Resolution:	1.4 Degrees
  Self Calibration:	Yes
  Motor:	1/3 HP
  Air Requirement:	115–140 PSI (MUST NOT EXCEED 140 PSI)
  Power Supply:	220V ±5% (209–231 volts), 1 phase, 30 amp breaker required
  UPC:	810524028714
  Country of Origin:	CHN

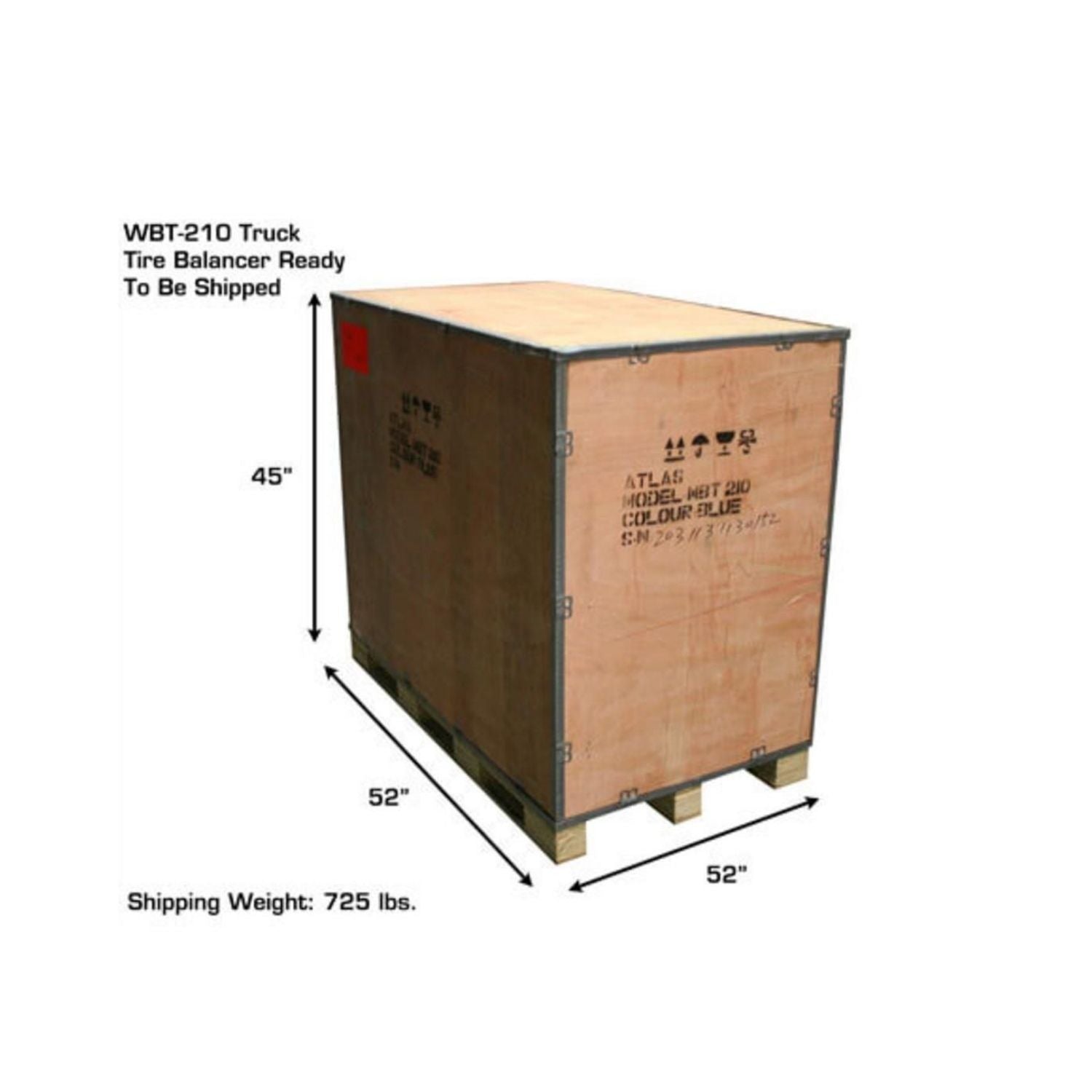

  Shipping Weight:	725 lbs.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
