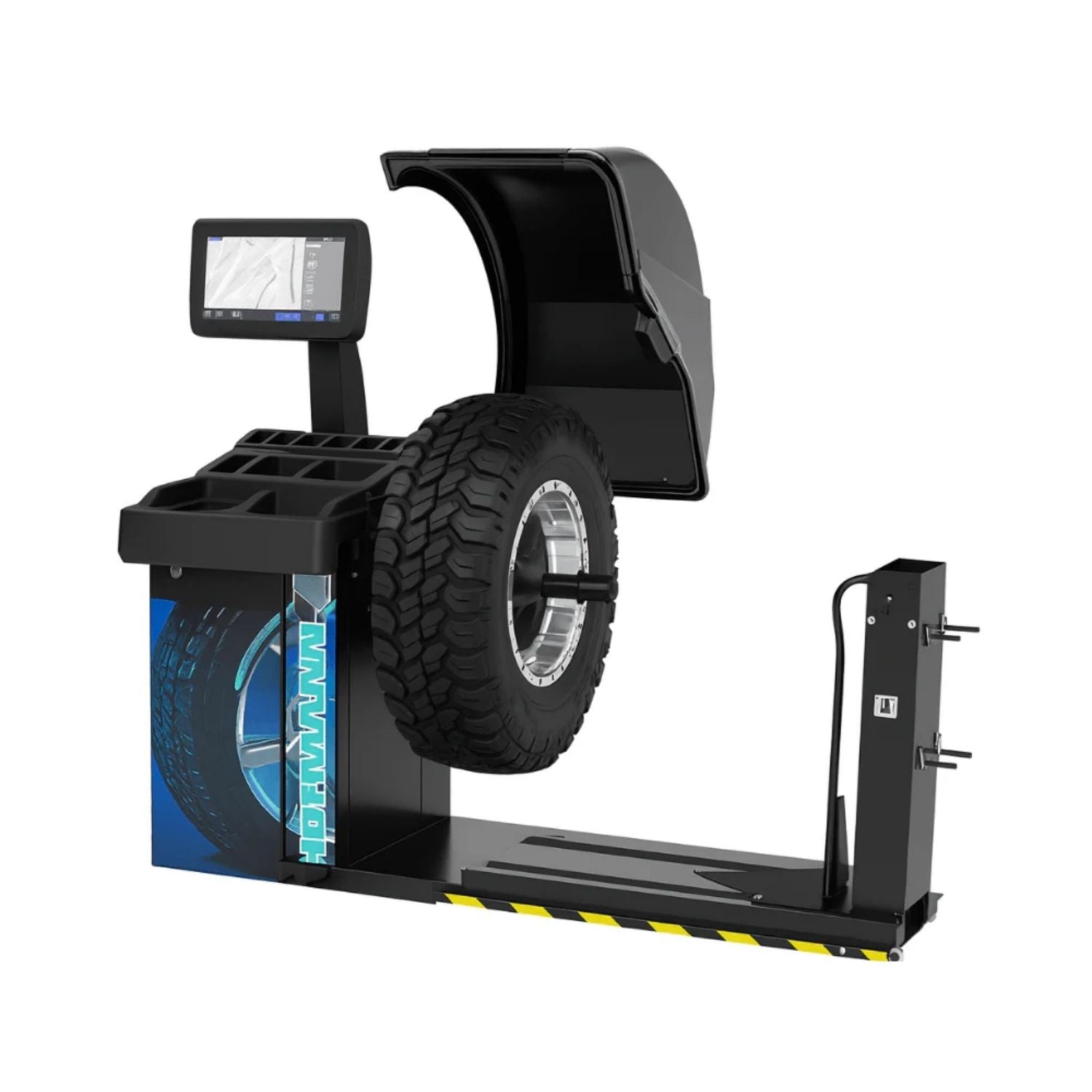

Hofmann Armored 2300P Wheel Balancer #EEWB783AUA1

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOWNLOADS

• DESCRIPTION

  The Hofmann Armored 2300P Wheel Balancer is a premium high-performance wheel balancing machine engineered for automotive dealerships, tire shops, and high-volume service centers requiring fast and precise balancing capability. Designed with rugged armored steel construction and advanced automation features, the Armored 2300P improves workflow efficiency while delivering consistent balancing accuracy for passenger vehicles, SUVs, and light trucks.

  Featuring automatic non-contact wheel measurement, smartSonar™ rim width detection, easyWeight™ laser-guided weight placement, and Power Clamp™ electromechanical clamping, this advanced balancing system reduces setup time while improving wheel centering consistency and technician productivity. Built for demanding commercial environments, the Armored 2300P combines precision technology with heavy-duty durability for continuous daily operation.

• FEATURES AND BENEFITS

  • Automatic Non-Contact Data Entry: Automatically measures wheel dimensions to reduce setup time and operator input
  • Power Clamp™ System: Electromechanical wheel clamping improves centering accuracy and repeatability
  • easyWeight™ Laser Guidance: Pinpoints exact adhesive weight placement locations for improved balancing precision
  • smartSonar™ Technology: Automatically detects rim width to minimize setup errors and improve workflow
  • QuickBal™ Optimization: Reduces balancing cycle time for increased shop productivity
  • Automatic Stop-in-Position Feature: Rotates wheel to the correct weight placement position automatically
  • LED Rim Illumination: Improves wheel visibility during balancing and cleaning procedures
  • Touchscreen User Interface: Simplifies operation with an intuitive digital control system
  • Split Weight Mode: Allows adhesive weights to be hidden behind wheel spokes for cleaner appearance
  • Heavy-Duty Armored Construction: Built for durability in demanding high-volume shop environments
  • EV Compatible Design: Suitable for electric vehicle wheel balancing applications
  • Professional Shop Performance: Ideal for dealerships, tire centers, and automotive repair facilities
  • Integrated Weight Storage: Keeps balancing weights and accessories organized and accessible


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEWB783AUA1
  Automatic Data Entry:	Semi-Automatic
  Clamping System:	Power Clamp™
  Wheel Lift:	Optional, up to 155 lbs. (70 kg)
  Report Generation:	Yes
  Semi-Auto Rim Diameter Range:	8" - 26" | 20 - 66 cm
  Semi-Auto Rim Width Range:	3" - 14" | 7.6 - 35.5 cm
  Manual Rim Diameter Range:	8" - 32" | 20 - 81 cm
  Manual Rim Width Range:	1" - 20" | 2.5 - 51 cm
  Max. Wheel Diameter:	44" | 111.7 cm
  Power Supply:	115V, 1-phase, 60 Hz
  Dimensions (L x W x H):	53" x 39" x 75" | 135 x 100 x 190 cm

• DOWNLOADS

  • Brochure

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN WHEEL BALANCERS

• LABOR 6 MONTHS
• PARTS 1 YEAR
• ELECTRONIC CIRCUIT BOARD 3 YEARS
• ELECTRIC MOTOR 5 YEARS

HOFMANN WHEEL ALIGNERS

• LABOR - 6 MONTHS
• CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
• PARTS & PRINTER - 1 YEAR

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN BRAKE LATHES

• LABOR - 6 MONTHS
• PARTS - 2 YEARS
• ELECTRIC MOTOR - 1 YEAR

HOFMANN TIRE CHANGERS

• LABOR - 6 MONTHS
• PARTS - 1 YEAR
• ELECTRIC MOTOR - 3 YEARS
• AIR MOTOR - 1 YEAR
• TRANSMISSION - 3 YEARS

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN LIFTS

• LABOR - 1 YEAR
• PARTS - 1 YEAR
• POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
• HYDRAULICS - 1 YEAR
