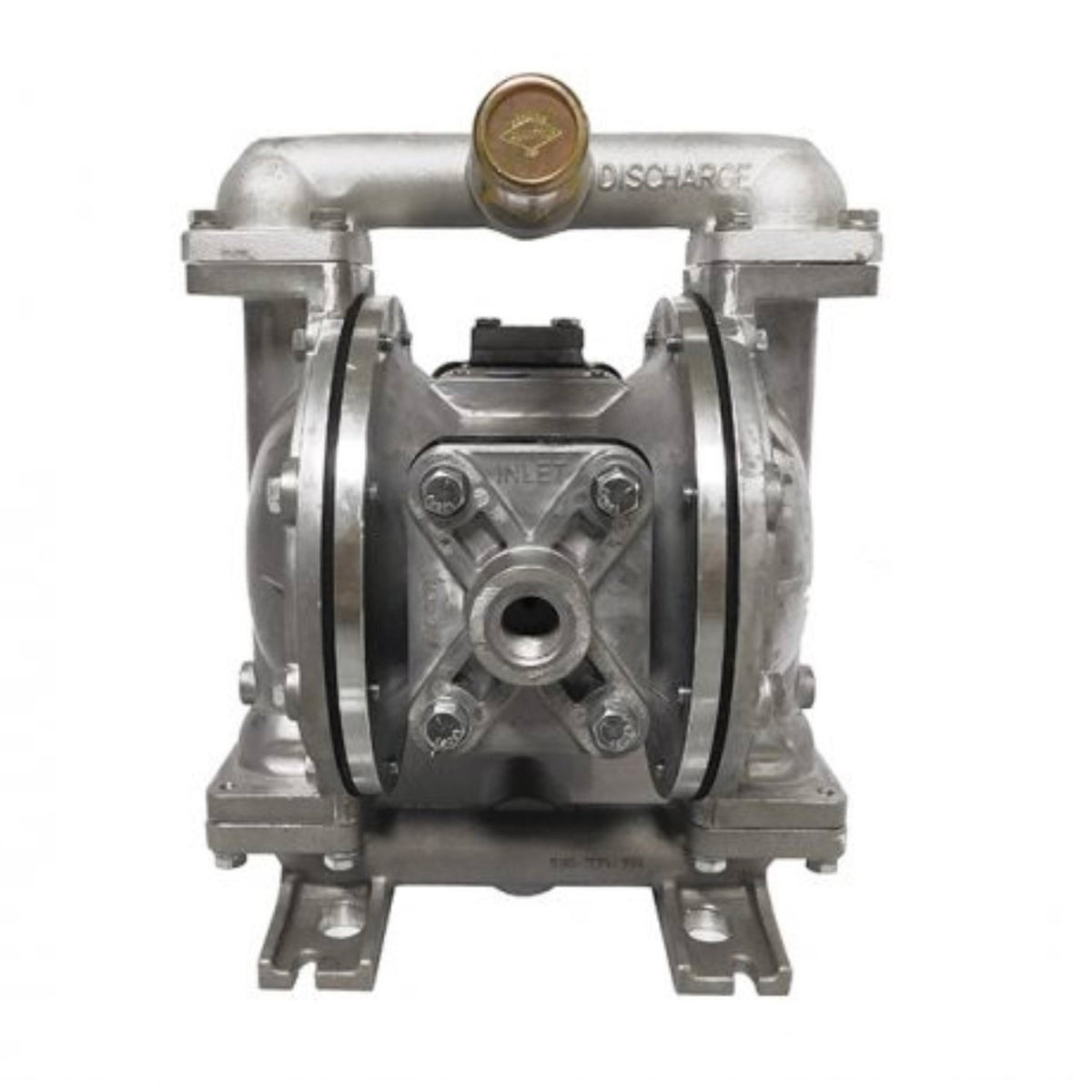

Balcrank AODD Conventional 1 in. Aluminum Diaphragm Pump #1120-015S
SKU 1120-015S
Lead time:
by Balcrank
Original price
$1,227.61
-
Original price
$1,227.61
Original price
$1,227.61
$1,227.61
-
$1,227.61
Current price
$1,227.61
-
DESCRIPTION
The Balcrank 1” AODD pump offers volume delivery at low air pressures and easy self-priming. This model is designed specifically for the transfer of light viscosity fluids, synthetic, mineral, water-based products, solvents, antifreeze, windshield wash solvent, and used petroleum products.
- SKU: 1120-015S
- Manufacturer: Balcrank
- Size: 1 in.
- Flow-Rate: 45 GPM
- Body Material: Aluminum
- Diaphragms: Nitrile
- Balls: Nitrile
- Seats: PTFE
- Weight: 80.00 LBS
-
FEATURES
- Stall resistant design
- Modular air motor/fluid sections
- Pressure differential in the air chambers to alternately create suction
- Positive fluid pressure in fluid chambers
- Ball checks insure a positive flow of fluid
- Externally serviceable after pump is installed
- Patented cross-drilled pressure ports
- Lube and ice-free
-
SPECS + APPS
SPECIFICATIONS
- Air inlet: 1/2″ NPT (F)
- Fluid inlet: 1″ NPT (F)
- Fluid outlet: 1″ NPT (F)
- Max. free flow: 45 G/M (170 L/M)
- Air pressure range: 45 – 100 PSI (3 – 6.8 bar)
- Max. solid suspension: 1/4″ (6 mm)
- Wetted materials: Nitrile, Neoprene, PTFE, Polypropylene and Polyethylene
APPLICATIONS
- Automotive Dealerships
- Mobile Lube
- Quick Lubes
- Tire Center
- Transmission Centers
-
WARRANTY
5 Year Warranty
