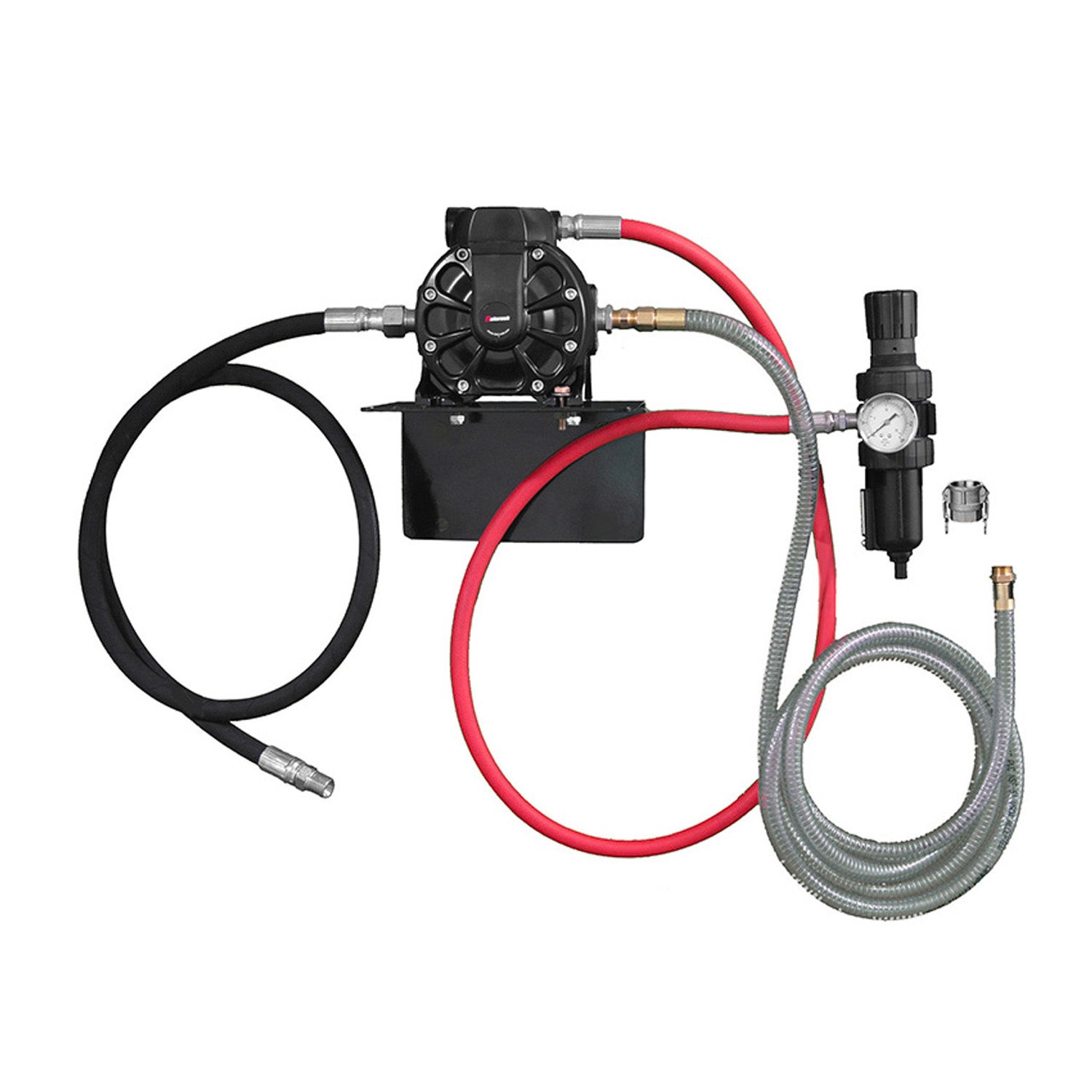

Balcrank CenterFlo CF50 Used Oil Evacuation Package #1121-024

• DESCRIPTION
• PACKAGE CONTENT
• SPECIFICATIONS
• WARRANTY + MANUAL

• DESCRIPTION

  The evacuation system for used oil disposal uses Balcrank's CF50, a high-performance 1-in. AODD pumps utilize a flow-through fluid design that is more air-efficient than traditional AODD pumps. Capable of distributing up to 50 gal/min. This equates to higher performance, versatility and easy serviceability.

  Note: For use with Used oil, anti-freeze, synthetic and mineral-based motor oils, and windshield washer solution.

  • SKU: 1121-024
  • Manufacturer: Balcrank
  • Product Type: Used Oil Pump System
  • Flow-Rate: 53 GPM
  • Pump Ratio: 1:1
  • Weight: 61.00 LBS

• PACKAGE CONTENT

  • Aluminum CF50 Diaphragm Pump (1120-037)
  • 3/8 in. x 5 ft. LP Hose Assembly (8134-005)
  • 1 in. x 5 ft. MP Hose Assembly (8281-005)
  • 1 in. x 5 ft. LP Hose Assembly (8182-005)
  • 1 in. Cam-Lock Coupler (4140-017)
  • 3/8 in. NPT(F) LP Air Ball Valve - No Bleed (3230-019)
  • 1 in. NPT(F) LP Air Ball Valve - No Bleed (3230-022)
  • 3/8 in. NPT(F) F/R Auto Drain (3260-035)
  • Mounting Bracket for CF50 AODD Pump (4411-036)
  • 1 in. NPT(F) Y-Strainer (3120-219)
  • Cam-lock Dust Plug 1 in. (4140-053)

• SPECIFICATIONS

  • Ratio: 1:1
  • Fluid Inlet/Outlet: 1 in. NPT(F)
  • Air Inlet: 3/8 in. NPSM(F)
  • Max Flow Rate: 53 GPM
  • Delivery per Stroke: 17 oz.
  • Air Pressure Operating Range: 22-115 PSI
  • Solid in Suspension Max Size: 1/8 in.
  • Maximum Suction Head: 16.5 ft. dry; 26.2 ft. wet

• WARRANTY + MANUAL

  5 Year Warranty

  Balcrank CenterFlo CF50 Used Oil Evacuation Package Manual
