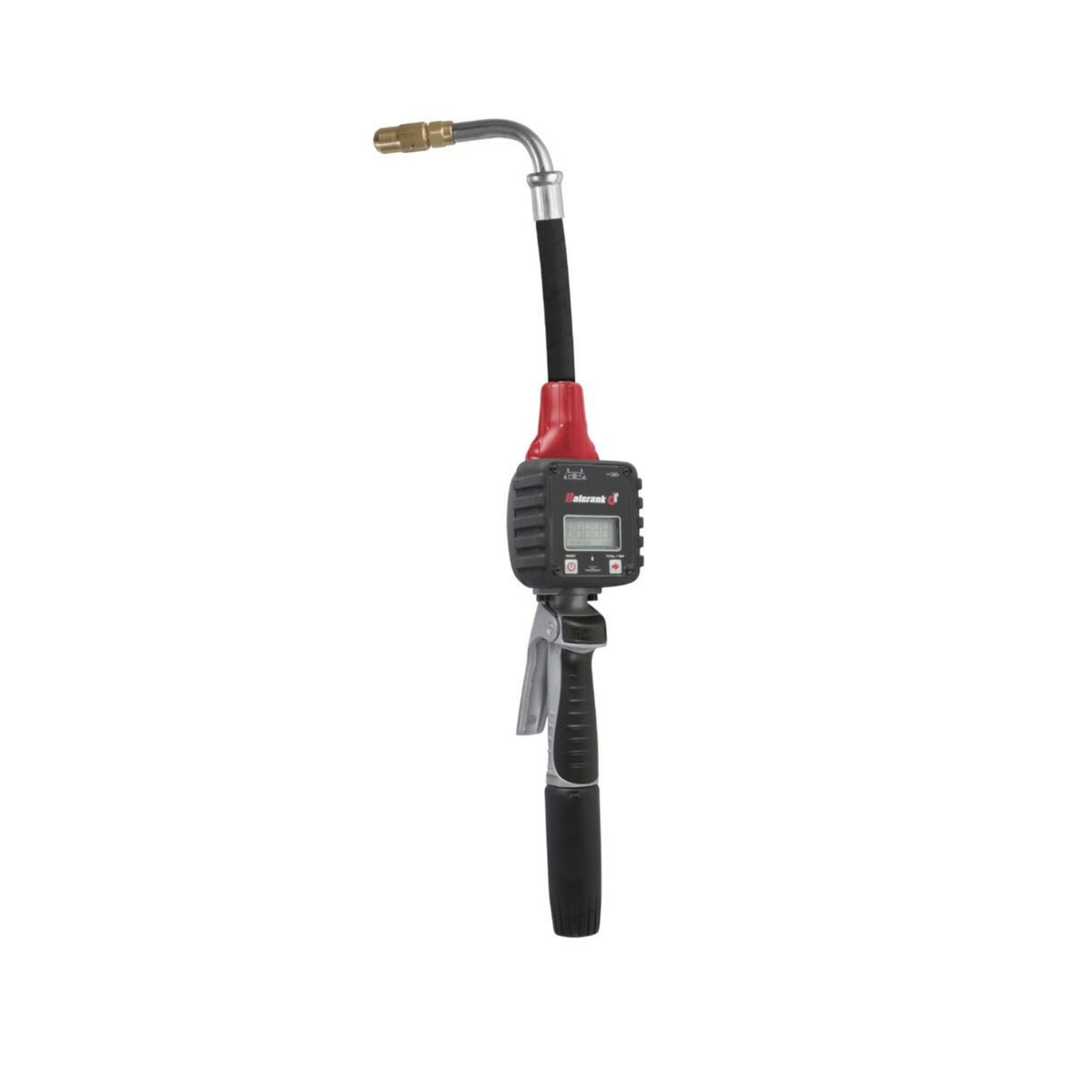

Balcrank DR Bare Digital Meter #3330-166
| Part Number | 3330-166 |
| Meter Type | DR Digital Register |
| Extension | None / Bare Meter |
| Outlet / Tip | No Outlet |
| Fluid Application | Oil / compatible lubricating fluids |
| Flow Range | 0.26–8 GPM (1–30 L/min) |
| Accuracy | ±0.5% of reading for lubricating oils |
| Maximum Pressure | 1,450 PSI (100 bar) |
| Swivel Inlet | 1/2 in. NPT(F) |
| Units of Measure | Gallons, Quarts, Pints and Liters |
| Battery | 2 × AAA alkaline |
| Service Bulletin | SB 3095 |
Balcrank DR Bare Digital Meter #3330-166
The Balcrank DR Meter Handle, No Extension, Oil #3330-166 is part of Balcrank's DR electronic metered-control-handle family for measured dispensing of compatible shop fluids. The DR platform combines an electronic register with a non-resettable totalizer, trip/batch measurement and a 1/2-inch NPT(F) swivel inlet.
Product Features
- Electronic digital register with batch/trip measurement
- Non-resettable totalizer records cumulative dispensed volume
- 0.26–8 GPM operating flow range
- Rated to 1,450 PSI maximum working pressure
- Protective inlet swivel cover and ergonomic control-handle design
Configuration & Application
This listing is for Balcrank part 3330-166. Match the meter family, inlet thread, extension/outlet style and intended fluid to the dispensing system before ordering. For ATF configurations, Balcrank advises verifying the fill-port inside diameter for nozzle compatibility.
Frequently Asked Questions
Questions before ordering? Call (817) 865-3707 with the Balcrank part number and your fluid application.
