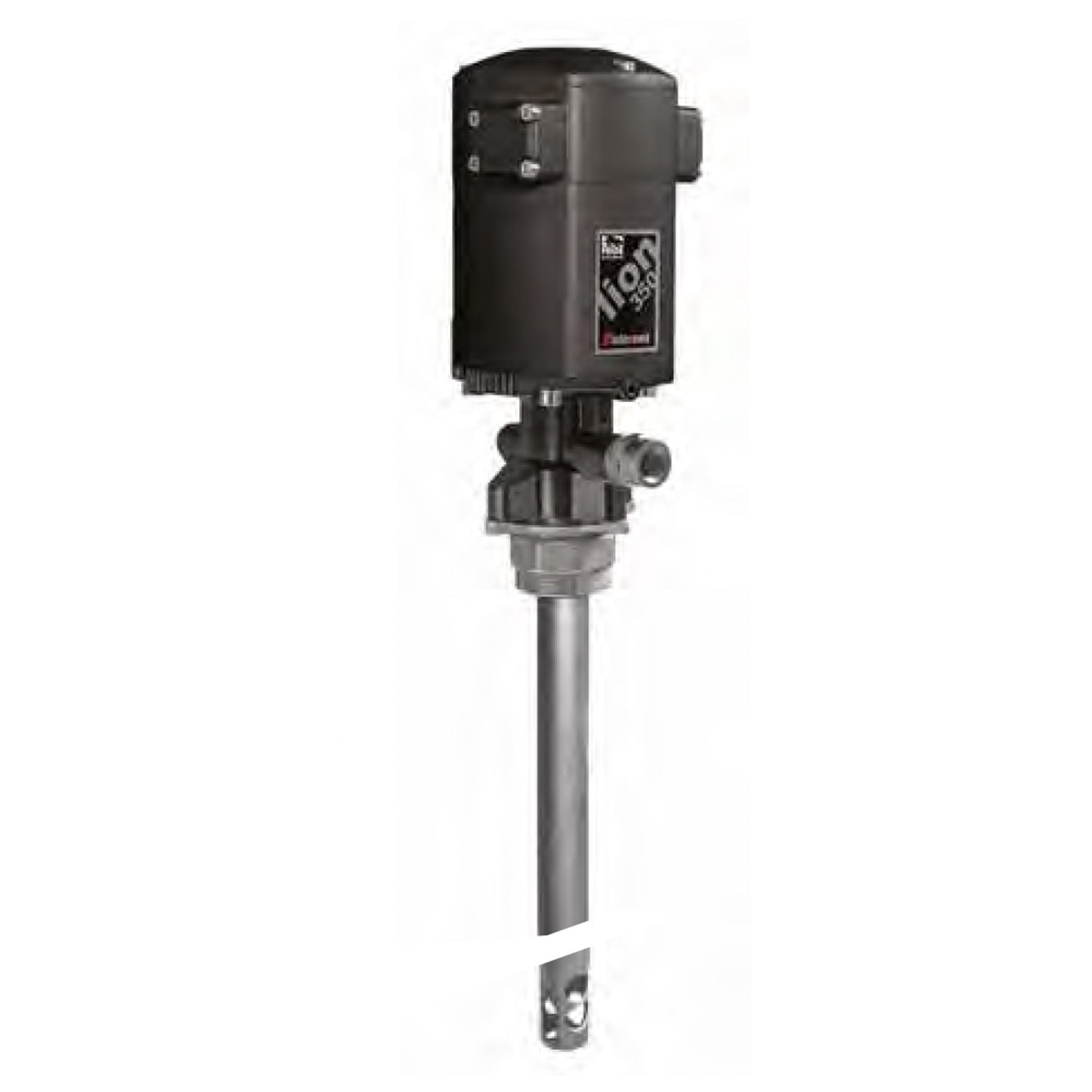

Balcrank Lion 360 60:1 Grease Pump for 400 lb. #1450-011

• DESCRIPTION
• TECHNICAL
• APPLICATION
• WARRANTY

• DESCRIPTION

  Balcrank's Lion 350 60:1 Grease Pump is designed for 400 lb. containers. It is ideal for users who need reliable grease delivery and medium-length systems that have multiple dispense points. This Lion grease pump delivers up to 4.4 lb/min (2 kg/min).

  Fluids: Grease up to NLGI-2.

  Part #1450-011

• TECHNICAL

  Pump Ratio	60:1
  Cycles per lb/min 100 psi (7 bar) free flow	50
  Operating air pressure range	20-145 psi (1.5-10 bar)
  Pump delivery with NLGI-2, 68º F (20º C), 70 psi (5 bar) air pressure and 80 cylces per minute	1.1 lbs/min (500 g/min)
  Max fluid stall pressure	8,700 psi (600 bar)
  Air Inlet	3/8” NPT(F)
  Fluid Outlet	3/8” NPT(F)
  Effective Air Piston Diameter	3.15” (80 mm)
  Wetted materials	Cast Iron, Hard chromed steel, Steel, UHMWPE, NBR, PTFE, Viton®
  Service Bulletin	SB 1153

• APPLICATION

  • Agriculture/farm implements
  • Small auto/truck shops
  • Tire & transmission shops
  • In-plant medium-volume use
  • Mining and construction
  • Truck fleets
  • Railroad/Mass transit
  • Lube trucks
  • Marine



• WARRANTY

  5 Year Warranty
