Balcrank Lion 450 40:1 Grease Package, Double Post Inductor #1451-001
Regular price
$12,753.65
Regular price
-35%
$19,621.00
Sale price
$12,753.65
Balcrank shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
๐ Manufacturer Resources
Quick Specs
| Part number | 1451-001 / 1451001 |
| Manufacturer | Balcrank |
| Series | Lion |
| Pump ratio | 40:1 |
| Configuration | Grease pump double post inductor package |
| Container | 400 lb drum |
| Inductor โ Pneumatic cylinder diameter | 3.15 in (80 mm) |
| Inductor โ Pneumatic cylinder stroke | 39.37 in (1,000 mm) |
| Inductor โ Minimum equipment height | 52 in (1,320 mm) |
| Inductor โ Maximum equipment height | 88 in (2,230 mm) |
| Inductor โ Base dimensions | 32.68 ร 23.62 in (830 ร 600 mm) |
| Inductor โ Air inlet | 1/2 in NPT |
| Inductor โ Maximum air pressure | 140 psi (10 bar) |
| Inductor โ Wetted parts | Aluminum, zinc-plated steel, Buna-N, Vitonยฎ |
| Inductor โ Control box | On/off pump control, up/down RAM control for drum exchange, independent air pressure regulators for pump and RAM, pump air pressure gauge, empty-drum shut-off, automatic vacuum release |
| Pump โ Operating air pressure | Up to 200 psi (14 bar) |
| Pump โ Recommended operating air pressure | 90 psi (6 bar) |
| Pump โ Maximum free flow | 24 lb/min (11 kg/min) |
| Pump โ Continuous duty flow rate | 8 lb/min (3.5 kg/min) |
| Pump โ Cycles per lb | 10 |
| Pump โ Maximum fluid stall pressure | 8,000 psi (560 bar) |
| Pump โ Air inlet | 1/2 in NPT(F) |
| Pump โ Fluid outlet | 1/2 in NPT(F) |
| Pump โ Air motor effective diameter | 4.5 in (115 mm) |
| Pump โ Air motor stroke | 4 in (100 mm) |
| Pump โ Air consumption | 26.5 CFM (750 Nl/min) at 5 bar air, NLGI-0 grease, 20 ยฐC, 80 cycles/min |
| Pump โ Wetted materials | Cast iron, steel, hard chromed steel, UHMWPE, Buna-Nโข, PTFE |
| Pump โ Noise level | 80 dB (1 m, 7 bar air, free delivery) |
| Approx. carton weight | 545 lb |
| Carton size (L x W x H) | 48 x 48 x 56 in |
Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

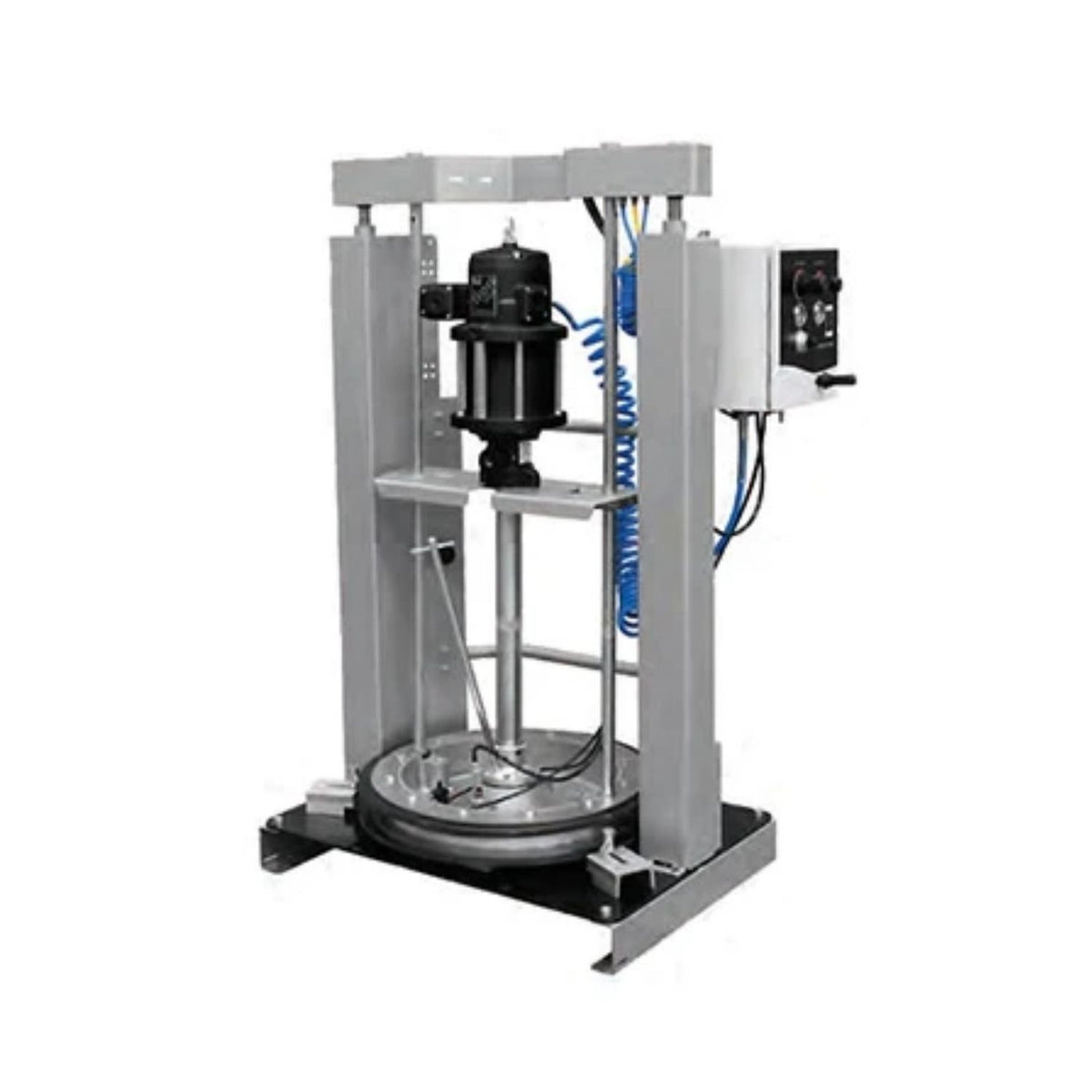

Balcrank Lion 450 40:1 Grease Package, Double Post Inductor (#1451-001)
The Balcrank Lion 450 40:1 Grease Package, Double Post Inductor (#1451-001) is a Balcrank grease pump double post inductor package for a 400 lb drum. The air-operated double post RAM uses controlled RAM pressure to aid pump priming, for high volumes, low temperatures, or heavier greases.
Compatibility & Fitment
- Lion 450 / Lion 600 pump packages for 400 lb (185 kg) drums.
- Built for a 400 lb drum.
- Not sure it fits your system? Call (817) 865-3707 with the part number.
