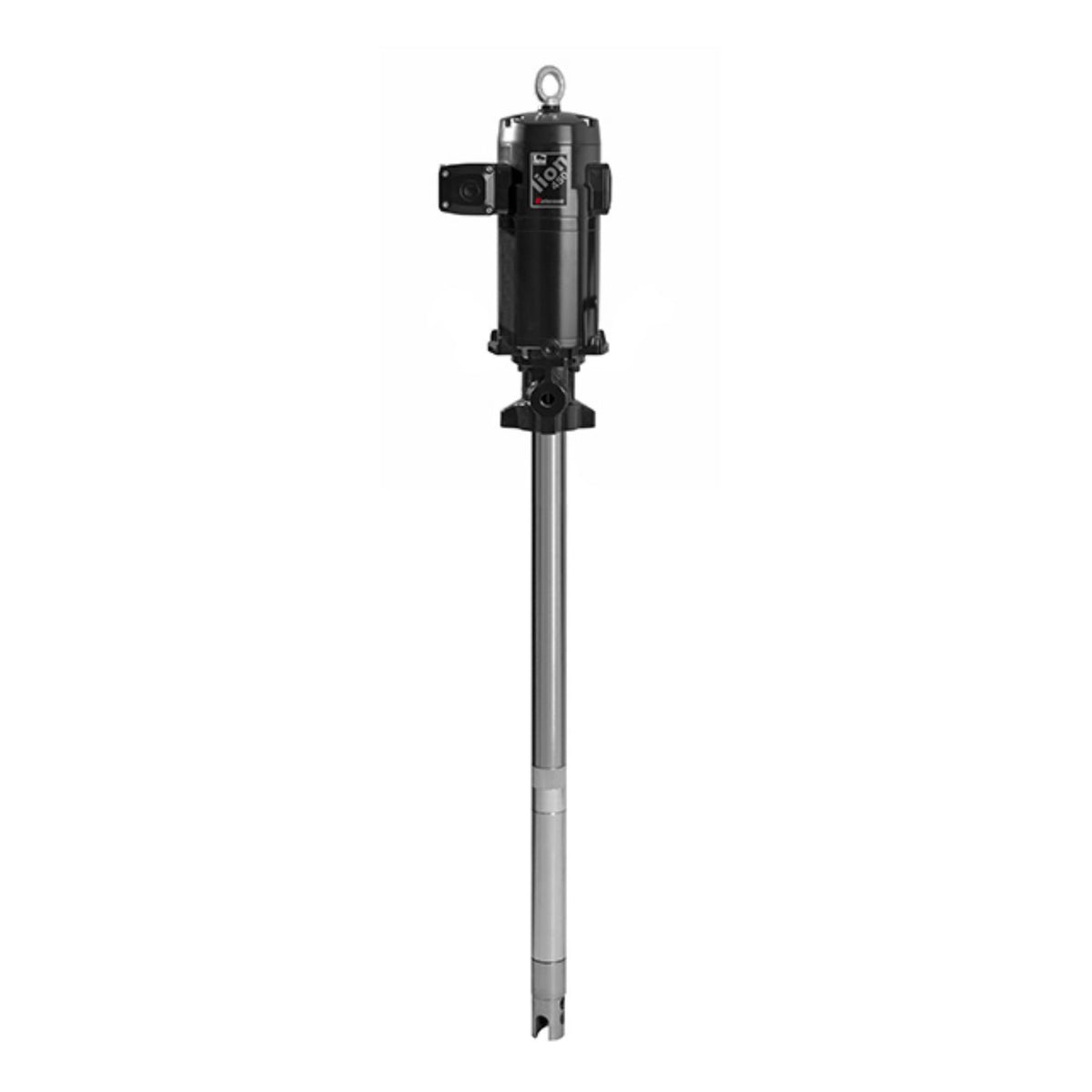

Balcrank Lion 450 70:1 Grease Pump, 400 lb #1450-005

Description

📚 Manufacturer Resources

Lion 450 70:1 Specification Sheet (PDF)Lion 450 70:1 Service Bulletin (PDF)

Quick Specs

Part number	1450-005 / 1450005
Manufacturer	Balcrank
Series	Lion 450 70:1
Pump ratio	70:1
Configuration	Grease pump
Container	400 lb drum
Operating air pressure	Up to 100 psi (7 bar)
Recommended operating air pressure	90 psi (6 bar)
Maximum free flow	16 lb/min
Continuous duty flow rate	5 lb/min (2 kg/min)
Cycles per lb	17
Maximum fluid stall pressure	7,000 psi (490 bar)
Air inlet	1/2 in NPT(F)
Fluid outlet	1/2 in NPT(F)
Air motor effective diameter	4.5 in (115 mm)
Air motor stroke	4 in (100 mm)
Air consumption	32.6 CFM (925 Nl/min) at 5 bar air, NLGI-0 grease, 20 °C, 80 cycles/min
Wetted materials	Cast iron, steel, hard chromed steel, UHMWPE, Buna-N™, PTFE
Noise level	80 dB (1 m, 7 bar air, free delivery)
Approx. carton weight	63 lb
Carton size (L x W x H)	56 x 14 x 14 in

Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

Balcrank Lion 450 70:1 Grease Pump, 400 lb (#1450-005)

The Balcrank Lion 450 70:1 Grease Pump, 400 lb (#1450-005) is a Balcrank grease pump for a 400 lb drum. It suits very cold environments and medium-pressure air supplies, and works with a follower plate, gravity inductor, or double post RAM.

Compatibility & Fitment

• Works with a follower plate system, a gravity inductor system, or a double post RAM.
• Built for a 400 lb drum.
• Not sure it fits your system? Call (817) 865-3707 with the part number.

Frequently Asked Questions

Is this the right pump for my container?

This part number is configured for 400 lb drum. Match the container size before you order, or call (817) 865-3707 and we will confirm.

What does the 70:1 ratio mean?

It is the pump's output-pressure ratio against supplied air pressure. Higher ratios deliver more pressure to long lines and cold, stiff grease; lower ratios favor volume.

What is the part number?

It is 1450-005, also written 1450005 — match it against the pump or outfit you are replacing before you order.

How does it ship?

It ships by small-parcel carrier, and the carrier and cost are calculated for your address at checkout. If you are ordering several pumps or accessories together, call (817) 865-3707 and we will check the combined shipment.

Part numbers: 1450-005, 1450005
