Balcrank Lynx 55:1 Grease Outfit, 25-35 lb Portable #1151-034

Description

📚 Manufacturer Resources

Lynx 55:1 Specification Sheet (PDF)Lynx 55:1 Service Bulletin (PDF)

Quick Specs

Part number	1151-034 / 1151034
Manufacturer	Balcrank
Series	Lynx 55:1
Pump ratio	55:1
Configuration	Grease pump outfit
Container	25-35 lb pail
Operating air pressure	Up to 140 psi (10 bar)
Maximum fluid stall pressure	7,700 psi at 140 psi air
Air inlet	1/4 in NPT(F)
Fluid outlet	1/4 in NPT(F)
Effective air piston diameter	2.75 in (70 mm)
Cycles per lb (100 psi, free flow)	318
Wetted materials	Steel, zinc, aluminum, Buna-N, PTFE
Noise level	92 dB
Approx. carton weight	25 lb
Carton size (L x W x H)	18.5 x 30 x 4.5 in

Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

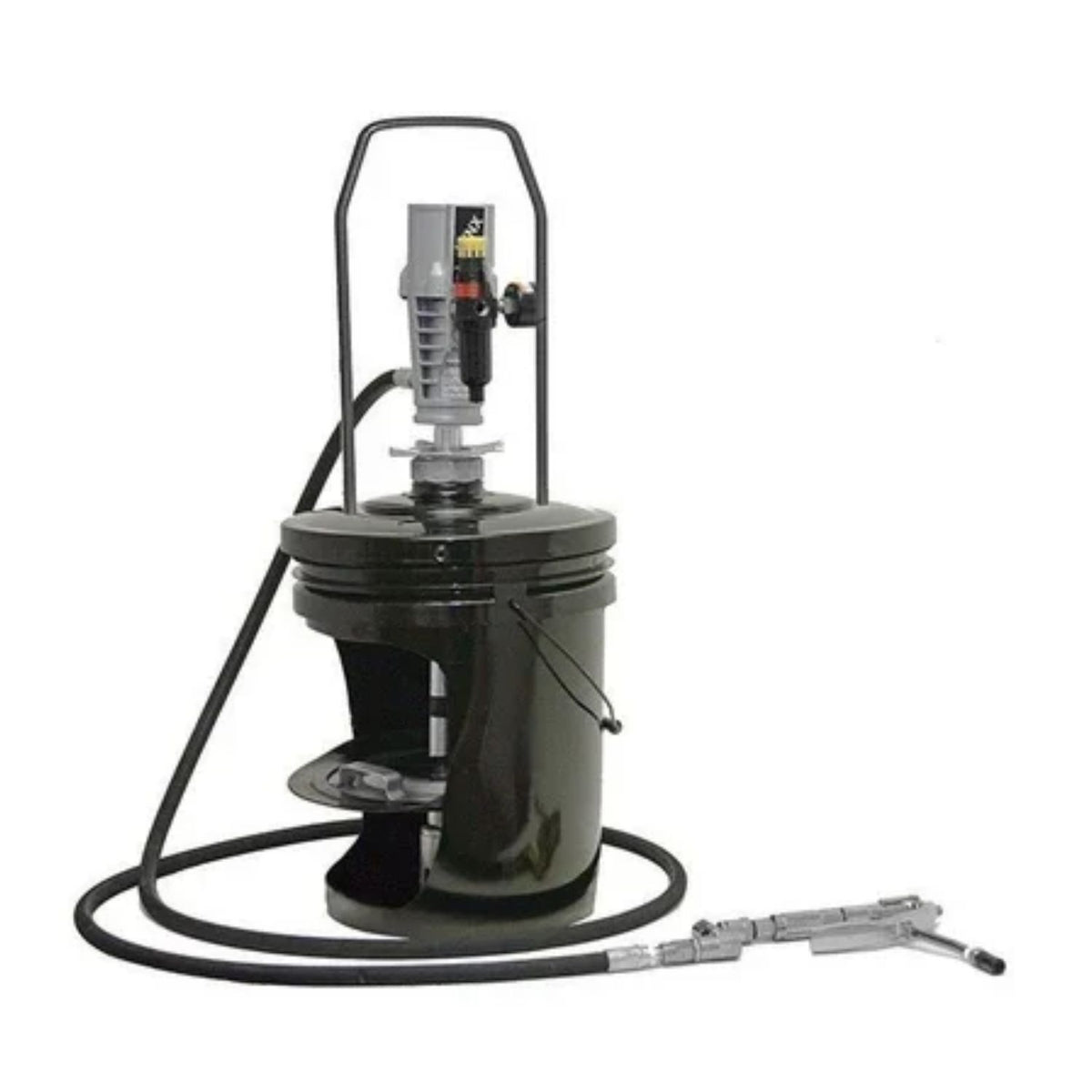

Balcrank Lynx 55:1 Grease Outfit, 25-35 lb Portable (#1151-034)

The Balcrank Lynx 55:1 Grease Outfit, 25-35 lb Portable (#1151-034) is a Balcrank grease pump outfit for a 25-35 lb pail. It is built for portable, single-point dispense at low volume and delivers up to 1.2 lb of grease per minute.

Compatibility & Fitment

• Lynx 55:1 grease pumps are offered by Balcrank for 25-35, 120 and 400 lb containers.
• Built for a 25-35 lb pail.
• Not sure it fits your system? Call (817) 865-3707 with the part number.

Frequently Asked Questions

Is this the right pump for my container?

This part number is configured for 25-35 lb pail. Match the container size before you order, or call (817) 865-3707 and we will confirm.

What does the 55:1 ratio mean?

It is the pump's output-pressure ratio against supplied air pressure. Higher ratios deliver more pressure to long lines and cold, stiff grease; lower ratios favor volume.

What is the part number?

It is 1151-034, also written 1151034 — match it against the pump or outfit you are replacing before you order.

How does it ship?

It ships by small-parcel carrier, and the carrier and cost are calculated for your address at checkout. If you are ordering several pumps or accessories together, call (817) 865-3707 and we will check the combined shipment.
