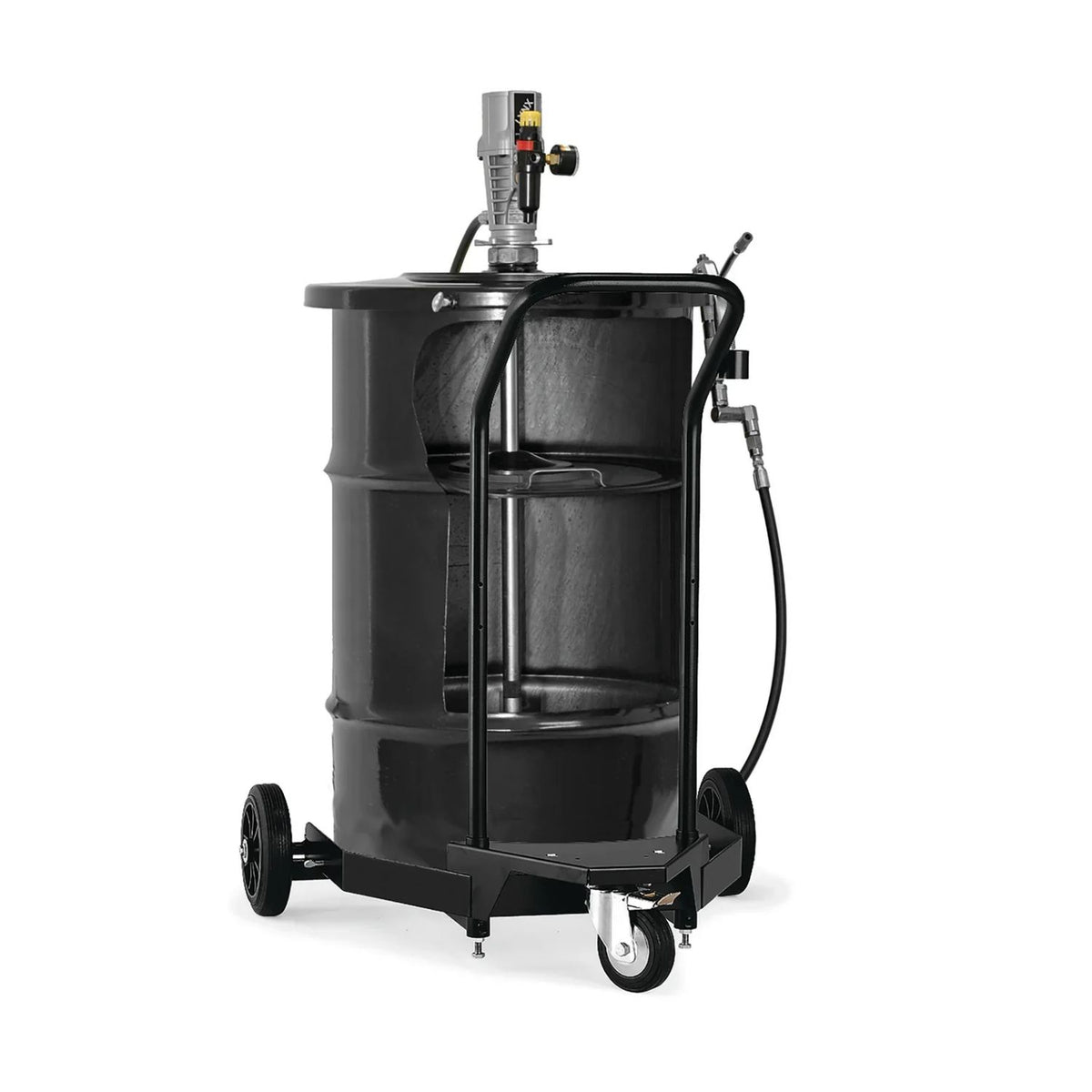

Balcrank Lynx 55:1 Grease Outfit, 400 lb Portable #1151-036

Description

📚 Manufacturer Resources

Lynx 55:1 Specification Sheet (PDF)Lynx 55:1 Service Bulletin (PDF)

Quick Specs

Part number	1151-036 / 1151036
Manufacturer	Balcrank
Series	Lynx 55:1
Pump ratio	55:1
Configuration	Grease pump outfit
Container	400 lb drum
Operating air pressure	Up to 140 psi (10 bar)
Maximum fluid stall pressure	7,700 psi at 140 psi air
Air inlet	1/4 in NPT(F)
Fluid outlet	1/4 in NPT(F)
Effective air piston diameter	2.75 in (70 mm)
Cycles per lb (100 psi, free flow)	318
Wetted materials	Steel, zinc, aluminum, Buna-N, PTFE
Noise level	92 dB
Approx. carton weight	75 lb
Carton size (L x W x H)	18.5 x 30 x 4.5 in

Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

Balcrank Lynx 55:1 Grease Outfit, 400 lb Portable (#1151-036)

The Balcrank Lynx 55:1 Grease Outfit, 400 lb Portable (#1151-036) is a Balcrank grease pump outfit for a 400 lb drum. It is built for portable, single-point dispense at low volume and delivers up to 1.2 lb of grease per minute.

Compatibility & Fitment

• Lynx 55:1 grease pumps are offered by Balcrank for 25-35, 120 and 400 lb containers.
• Built for a 400 lb drum.
• Not sure it fits your system? Call (817) 865-3707 with the part number.

Frequently Asked Questions

Is this the right pump for my container?

This part number is configured for 400 lb drum. Match the container size before you order, or call (817) 865-3707 and we will confirm.

What does the 55:1 ratio mean?

It is the pump's output-pressure ratio against supplied air pressure. Higher ratios deliver more pressure to long lines and cold, stiff grease; lower ratios favor volume.

What is the part number?

It is 1151-036, also written 1151036 — match it against the pump or outfit you are replacing before you order.

How does it ship?

It ships by small-parcel carrier, and the carrier and cost are calculated for your address at checkout. If you are ordering several pumps or accessories together, call (817) 865-3707 and we will check the combined shipment.

Part numbers: 1151-036, 1151036
