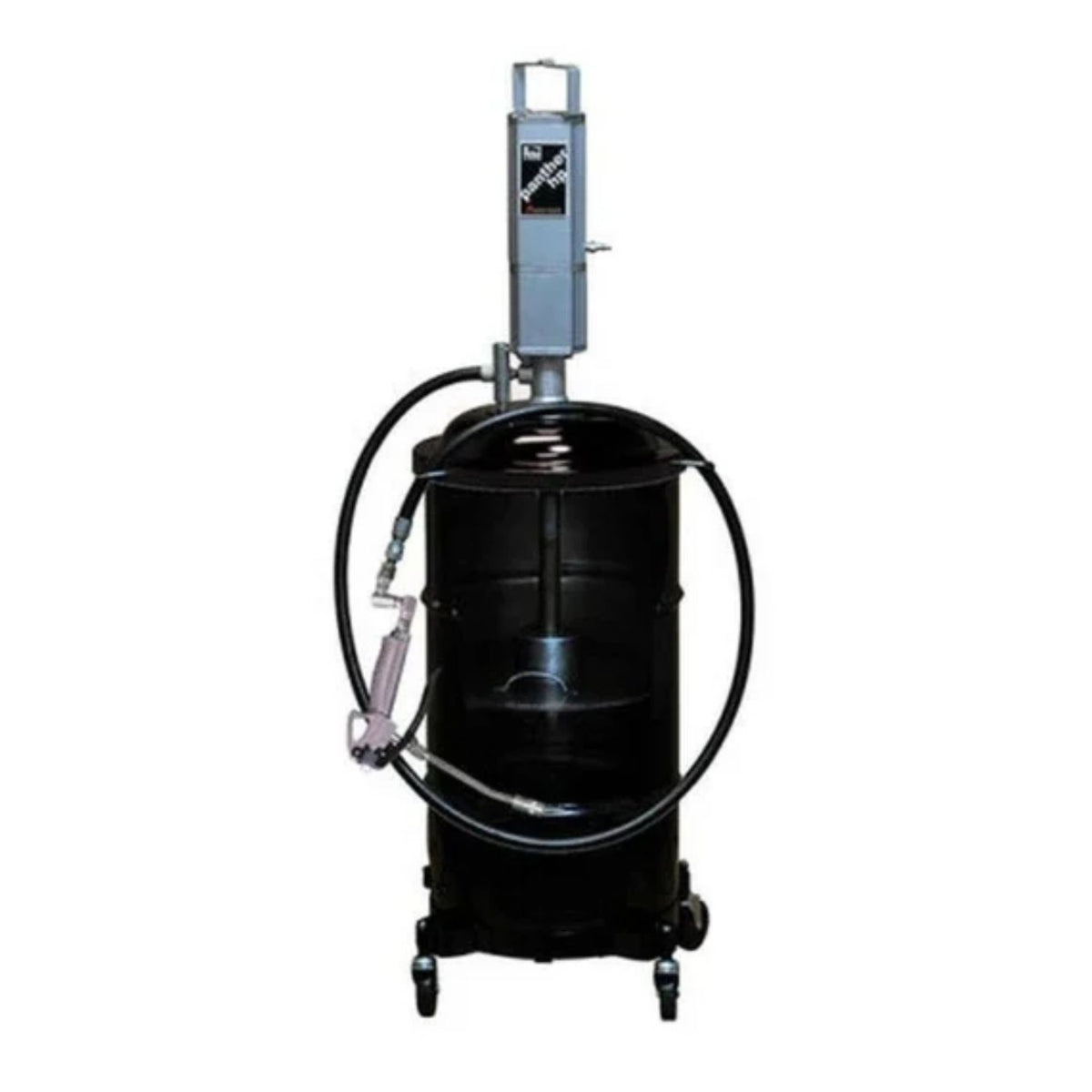

Balcrank Panther 50:1 Grease Outfit, 120 lb Stationary #1151-004

Description

📚 Manufacturer Resources

Panther HP 50:1 Specification Sheet (PDF)Panther HP 50:1 Service Bulletin (PDF)

Quick Specs

Part number	1151-004 / 1151004
Manufacturer	Balcrank
Series	Panther 50:1
Pump ratio	50:1
Configuration	Grease pump outfit
Container	120 lb container
Operating air pressure	40–150 psi
Recommended operating air pressure	40–125 psi
Maximum fluid stall pressure	7,500 psi (517 bar) at 150 psi air
Air inlet	1/4 in NPT(F)
Fluid outlet	1/4 in NPT(F)
Pump delivery (NLGI-2, 100 psi air, free flow)	Up to 3.4 lb/min
Continuous duty free flow	2 lb/min
Cycles per lb (100 psi, free flow)	70
Effective air piston diameter	2.5 in (63.5 mm)
Air motor stroke	3.25 in (83 mm)
Air consumption (100 psi air, 1.5 lb/min)	14.5 SCFM
Wetted materials	Stainless steel, carbon steel, brass, aluminum, Delrin®, Ultrathane®, Buna-N
Noise level	92 dB

Not for use with flammable fluids. Verify fluid compatibility before use. For grease heavier than NLGI-2 or custom system design, call us.

Balcrank Panther 50:1 Grease Outfit, 120 lb Stationary (#1151-004)

The Balcrank Panther 50:1 Grease Outfit, 120 lb Stationary (#1151-004) is a Balcrank grease pump outfit for a 120 lb container. It is built for lower-volume users with up to 2 dispense points and delivers up to 3.4 lb of grease per minute.

Compatibility & Fitment

• Panther 50:1 grease pumps accept a 40-mesh inlet screen and are offered by Balcrank for 25-35, 120 and 400 lb containers.
• Built for a 120 lb container.
• Not sure it fits your system? Call (817) 865-3707 with the part number.

Frequently Asked Questions

Is this the right pump for my container?

This part number is configured for 120 lb container. Match the container size before you order, or call (817) 865-3707 and we will confirm.

What does the 50:1 ratio mean?

It is the pump's output-pressure ratio against supplied air pressure. Higher ratios deliver more pressure to long lines and cold, stiff grease; lower ratios favor volume.

What is the part number?

It is 1151-004, also written 1151004 — match it against the pump or outfit you are replacing before you order.

How does it ship?

This item ships by freight quote. We confirm the carrier and rate for your address before the order ships. Call (817) 865-3707 with your ZIP code and delivery details for the current quote.

Part numbers: 1151-004, 1151004
