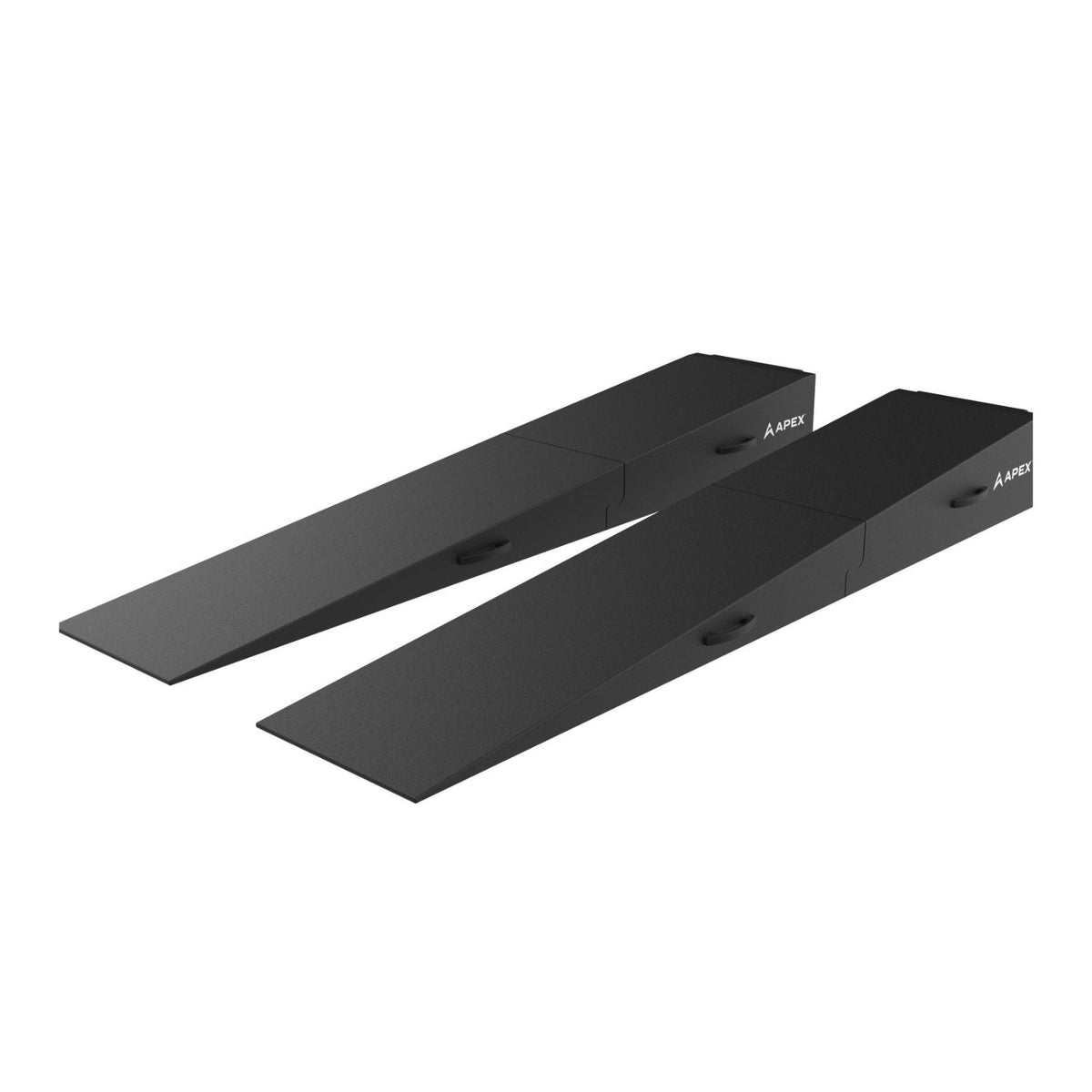

BendPak APEX 96 in. Foam 4-Post Ramp Kit, Set of 2 #5174170

SKU: ALMBPK5174170
(0)
Regular price $1,375.00
Available to order
Usually ships between 1 and 3 business days.
Quick Specs
Part Number 5174170
Configuration Set of 2 hook-nose ramps
Compatibility BendPak HD-973P / HD-973PX only
Capacity Per Ramp 1,750 lb
Capacity Per Pair 3,500 lb
Dimensions 96 x 19 x 11 in.
Approach Angle 6°
Hook Nose 14 x 3.25 in.
Core Material High-density EPS structural foam
Coating Textured polyurea elastomer
Weight Per Ramp 13.5 lb
Shipping Weight 33 lb
Shipping Method Parcel

APEX 96 in. Lightweight Foam 4-Post Ramp Kit, Set of 2 #5174170

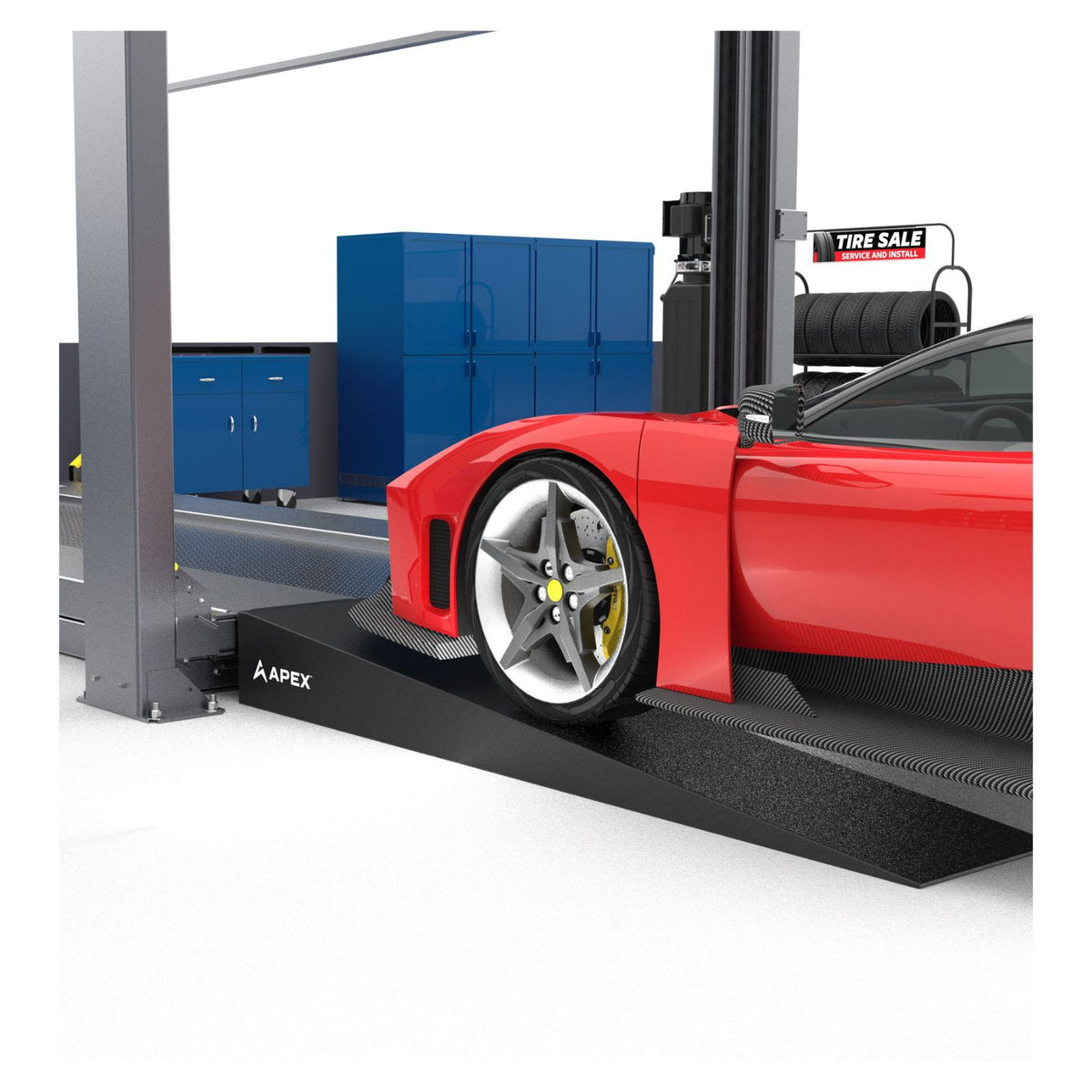

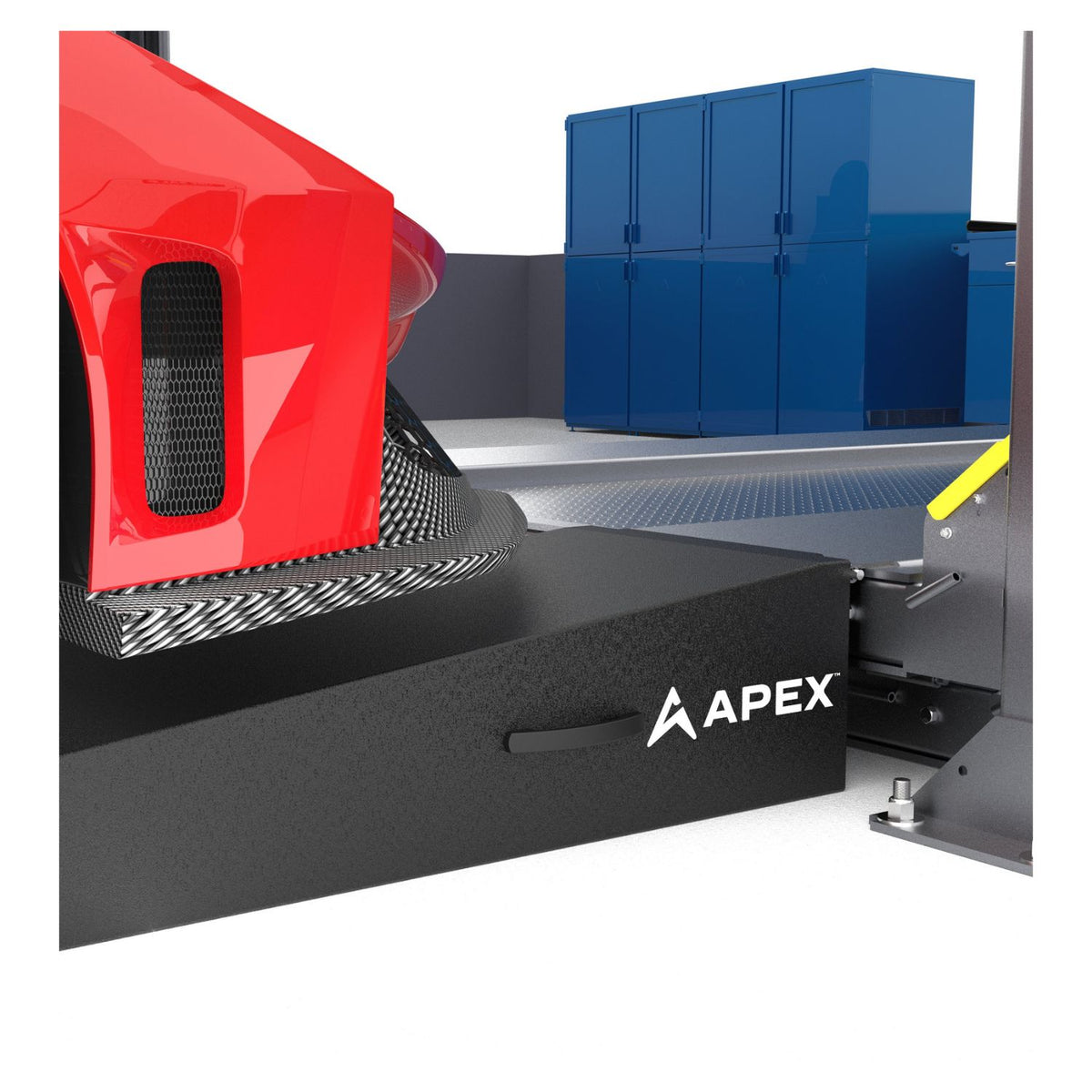

The APEX 96-inch Lightweight Foam Four-Post Ramp Kit is designed specifically for BendPak HD-973P and HD-973PX triple-stack parking lifts. It replaces the heavy factory drive-on ramps with a lighter hook-nose design that is easier to remove, carry and reinstall.

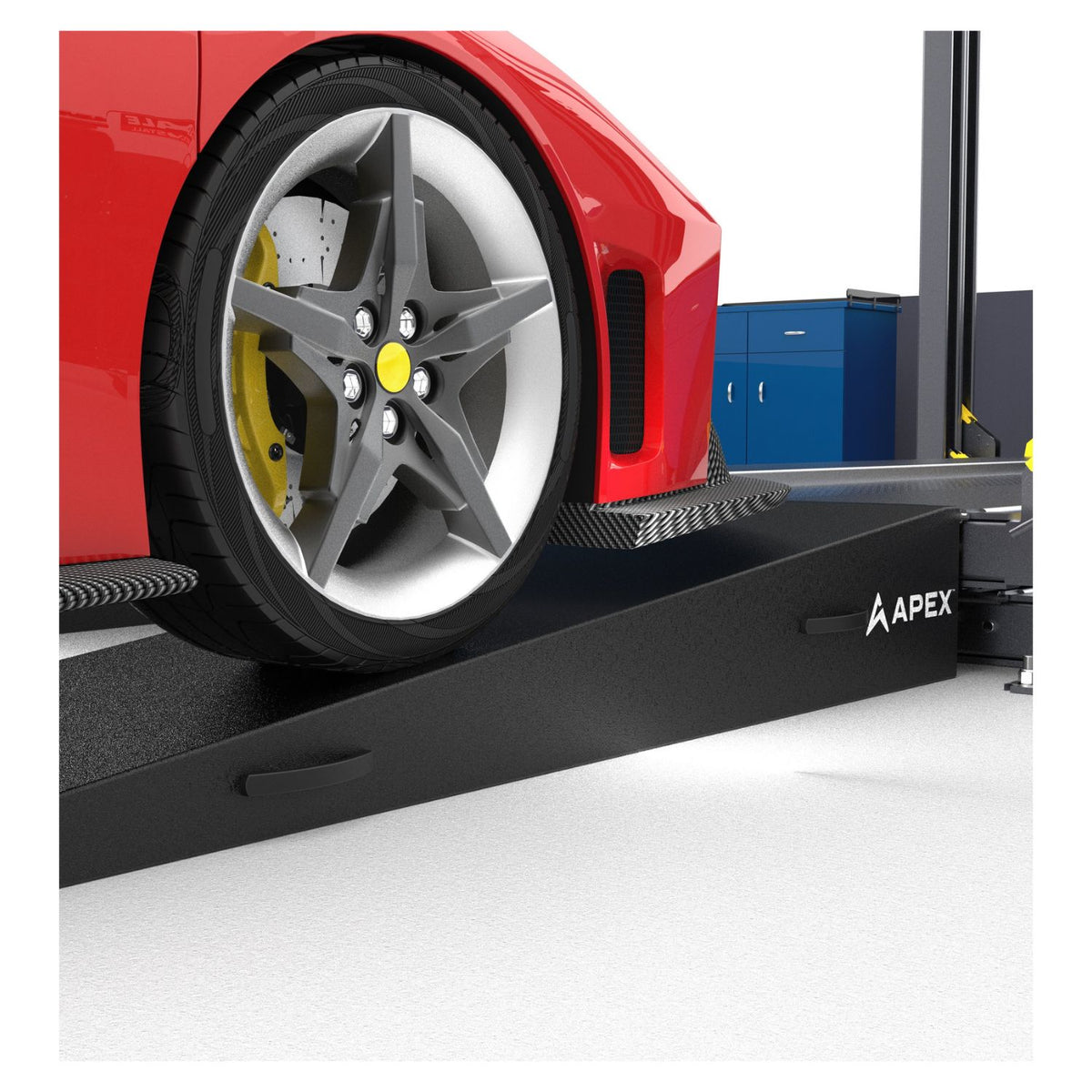

Each ramp measures 96 inches long and 19 inches wide with an 11-inch rise and a 6-degree approach angle. The longer profile provides a gradual transition onto the lift, helping reduce clearance problems with lowered vehicles, performance cars, long overhangs and front splitters.

Product Features

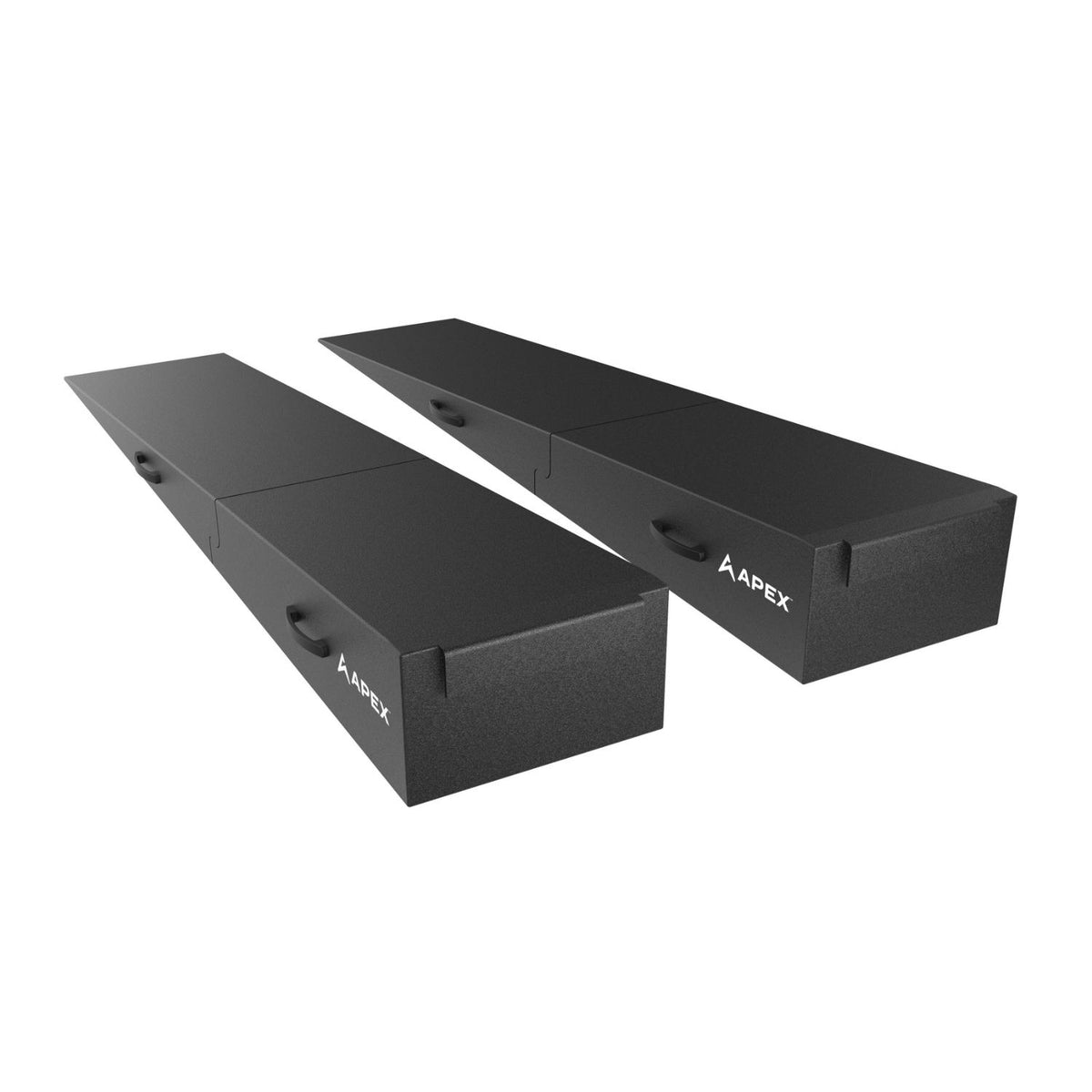

  • Set of two lightweight hook-nose four-post lift ramps
  • Designed exclusively for BendPak HD-973P and HD-973PX parking lifts
  • High-density expanded-polystyrene structural foam core
  • Textured polyurea elastomer outer coating

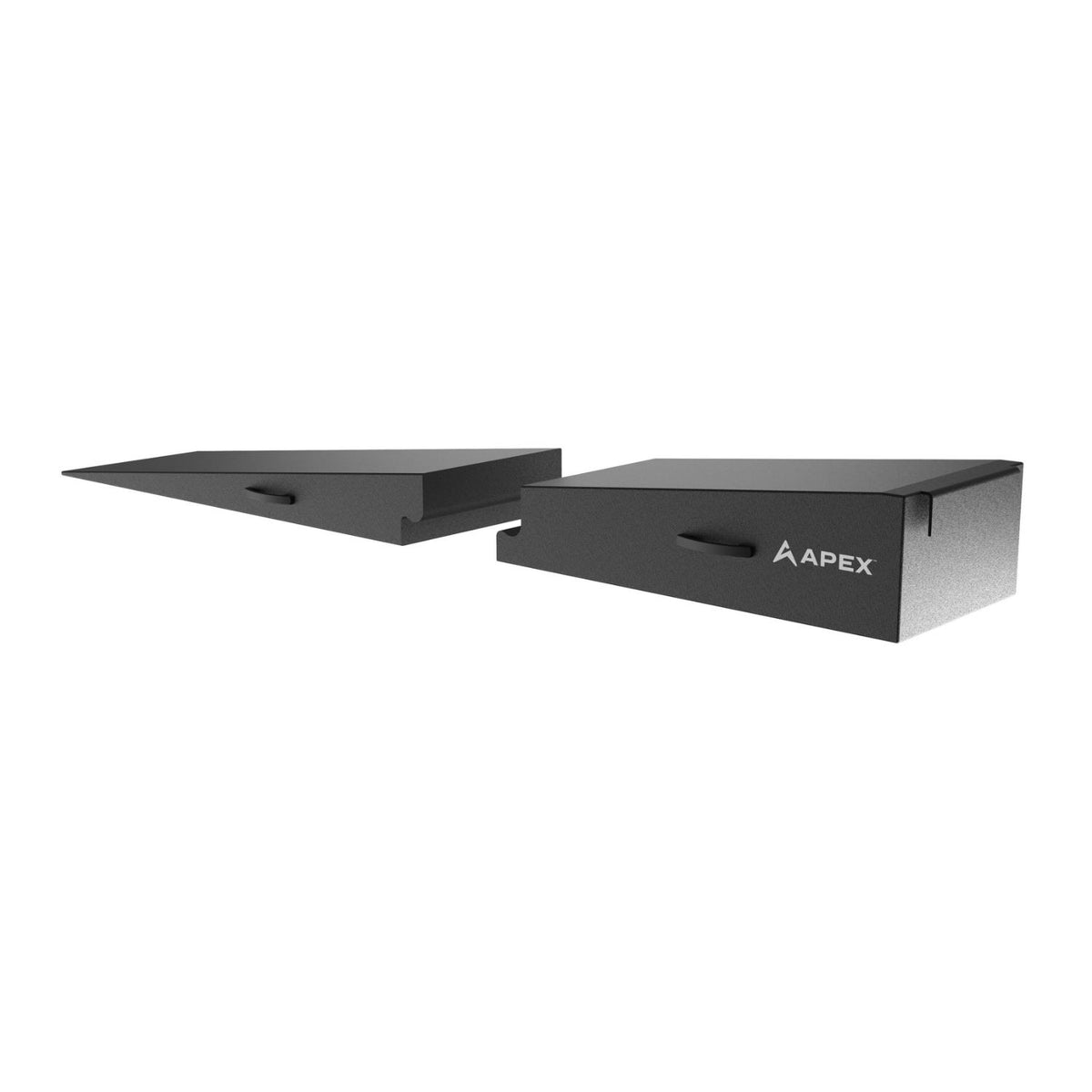

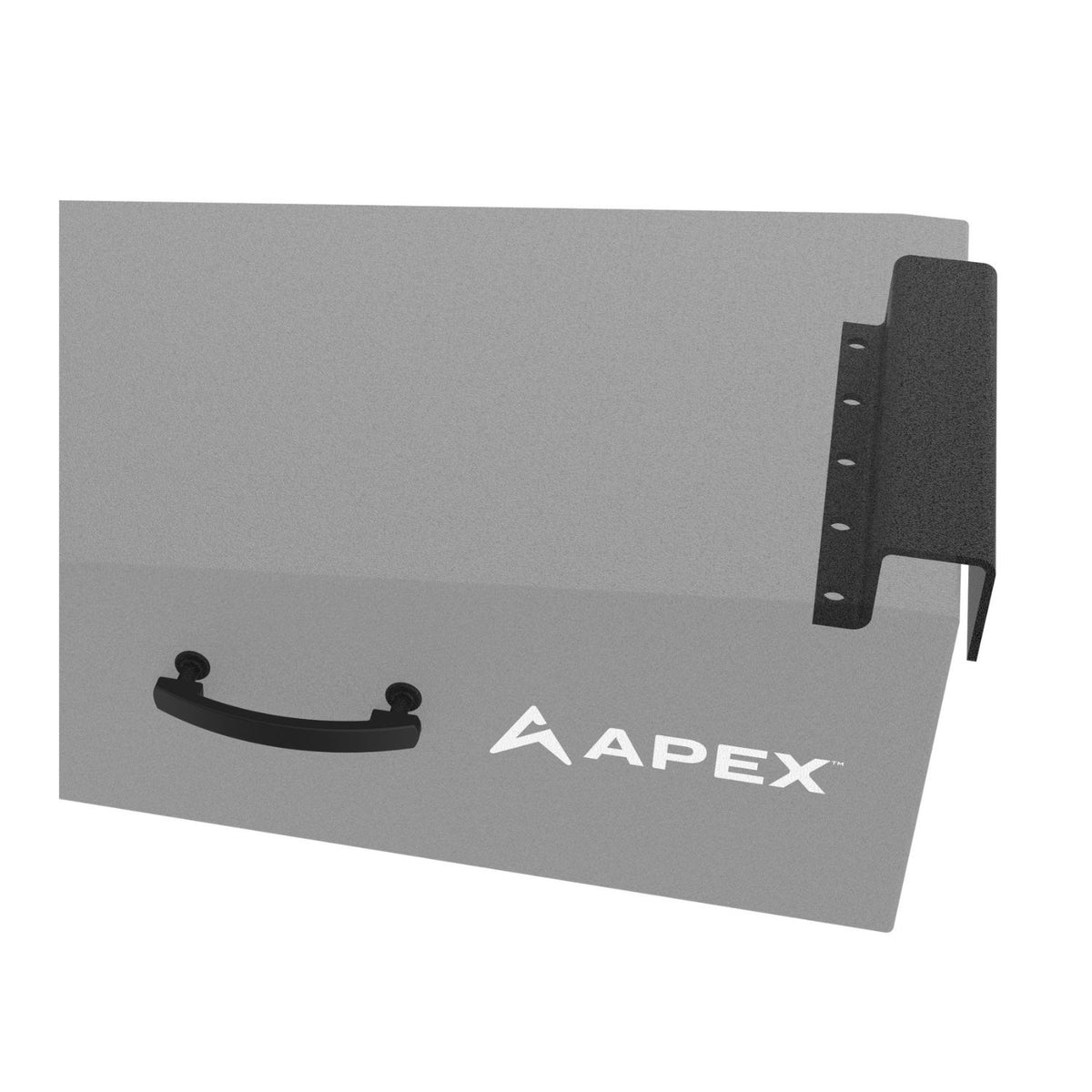

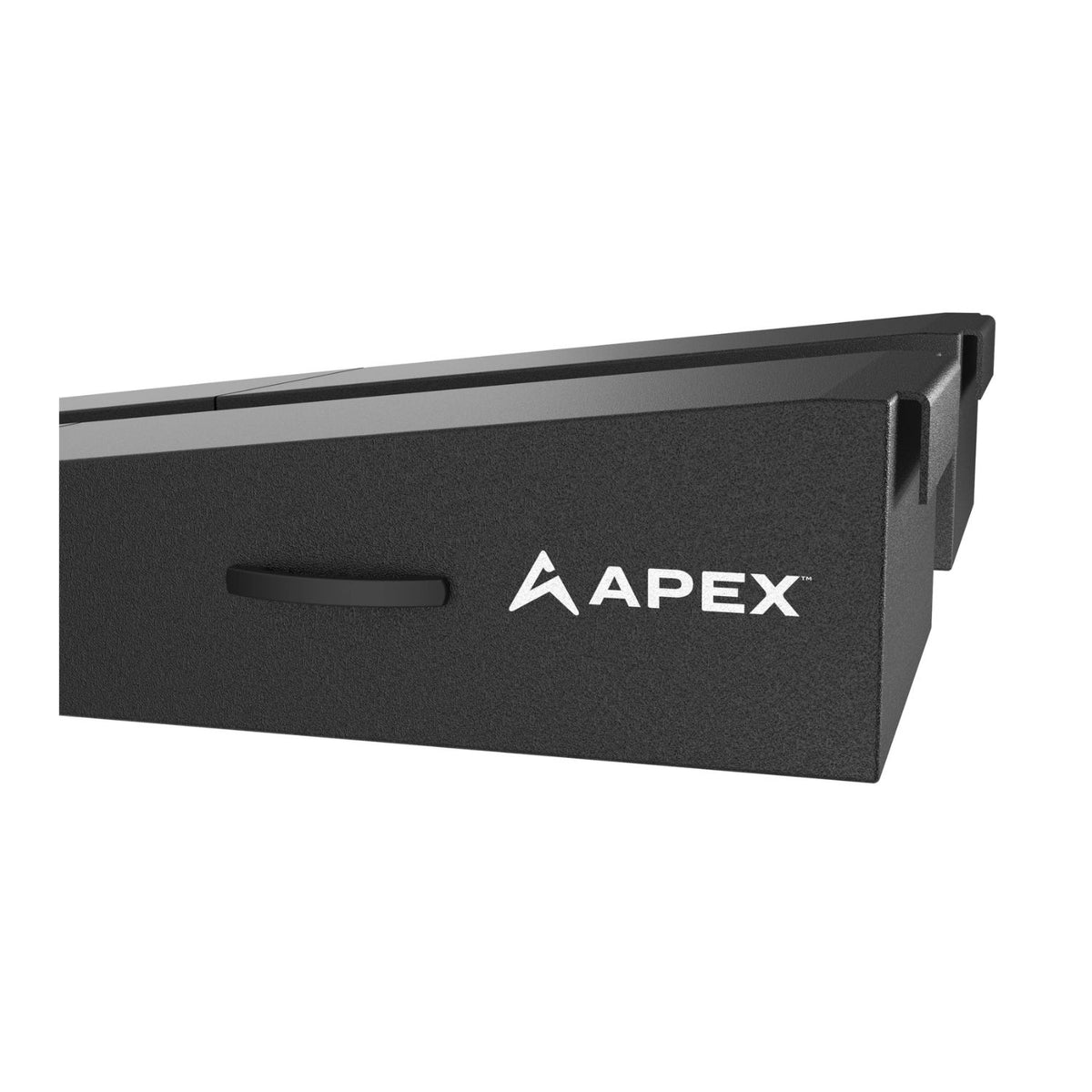

  • Reinforced hook-nose design for compatible ramp receivers
  • 6-degree approach angle for gradual drive-on loading
  • 1,750-lb rated capacity per ramp
  • 3,500-lb rated capacity per pair
  • 13.5-lb individual ramp weight for easier handling

Compatibility & Fitment

This ramp kit is engineered for BendPak HD-973P and HD-973PX four-post parking lifts only. The hook-nose profile is designed to engage compatible ramp receivers on these lifts. It is not approved as a universal four-post ramp.

APEX hook-nose ramps require compatible ramp receivers. If your lift does not already have receivers installed, confirm the required receiver-bracket configuration before ordering.

Frequently Asked Questions

Which lifts does #5174170 fit?

BendPak specifies this 96-inch ramp kit for the HD-973P and HD-973PX parking lifts only.

How much weight can the ramps support?

Each ramp is rated for 1,750 lb, with a combined pair rating of 3,500 lb.

Do the ramps require receiver brackets?

The hook-nose design requires compatible ramp receivers. Check whether your lift already has receivers installed before ordering additional brackets.

Questions about compatibility? Call (817) 865-3707.
