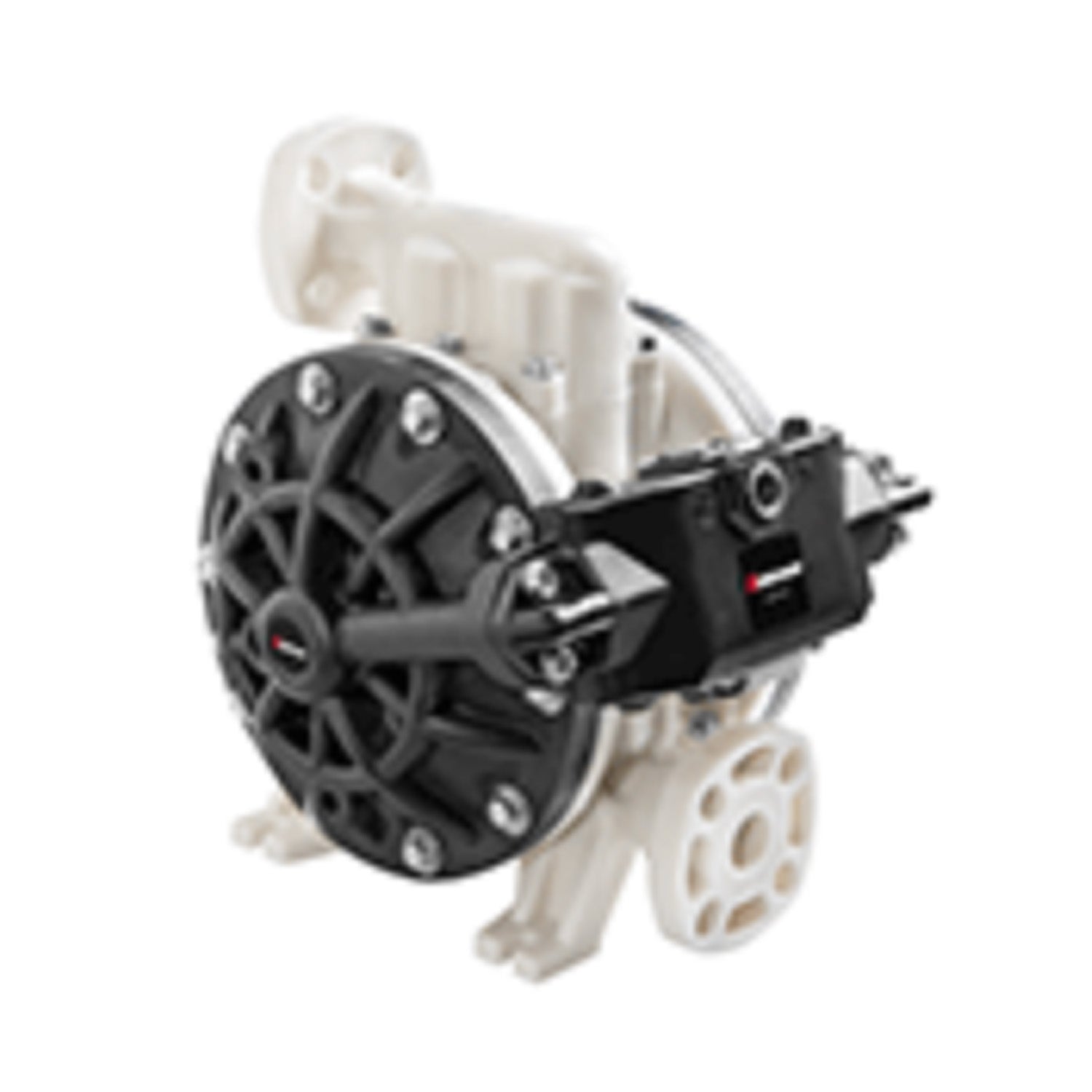

Balcrank CenterFlo CF50 #1120-038
Regular price
$1,749.15
Regular price
-35%
$2,691.00
Sale price
$1,749.15
Couldn't load pickup availability
-
DESCRIPTION
CF50 is a high performance 1” AODD pump with many unique features. Similar to all our CF series pumps, the new CF50 utilizes a flow through fluid design that is more air efficient than traditional AODD pumps. Capable of distributing up to 53 gal/min. This equates to higher performance, versatility along with easy serviceability.
- High performance; increased flow rate with minimal air consumption
- Dependability: non-icing air motor
- Versatile; inlet and outlet ports can be oriented to fit the installation/application
- Ease of service; diaphragms and air motor can be serviced with the pump installed without removal
- Part No.: 1120-038 CF50 Polypropylene
- Markets Served: Car and truck dealers, Fleets, Mining and construction, Lube Trucks, Railroad and mass transit, In-plant transfer
-
FEATURES
** Balcrank does not recommend pumping windshield wash or any other fluid below 100° flash point. Contact Balcrank for additional information.
- Air inlet 3/8” NPSM(F)
- Fluid inlet port1” ANSI flange B16.5 150 lb
- Fluid outlet port1” ANSI flange B16.5 150 lbs
- Max. free flow 53 gal/min (200 l/min)
- Air pressure range 22-102 psi (1.5-7 bar)
- Solids in suspension 1/8” (3.2 mm)
- Wetted MaterialsPTFE (Teflon®), Polypropylene, Stainless Steel, Hytrel®, FKN, ASTM
- Recommended FluidsWindshield wash solution
- Recommended ApplicationsFluid dispensing, transfer, and evacuation
- Service BulletinSB 1147
-
SPECIFICATIONS
Fluids Handled
- Windshield wash solution
- Used oil
- Used anti-freeze
- Synthetic and mineral based motor oils
-
WARRANTY + BROCHURES
5 Year Warranty
