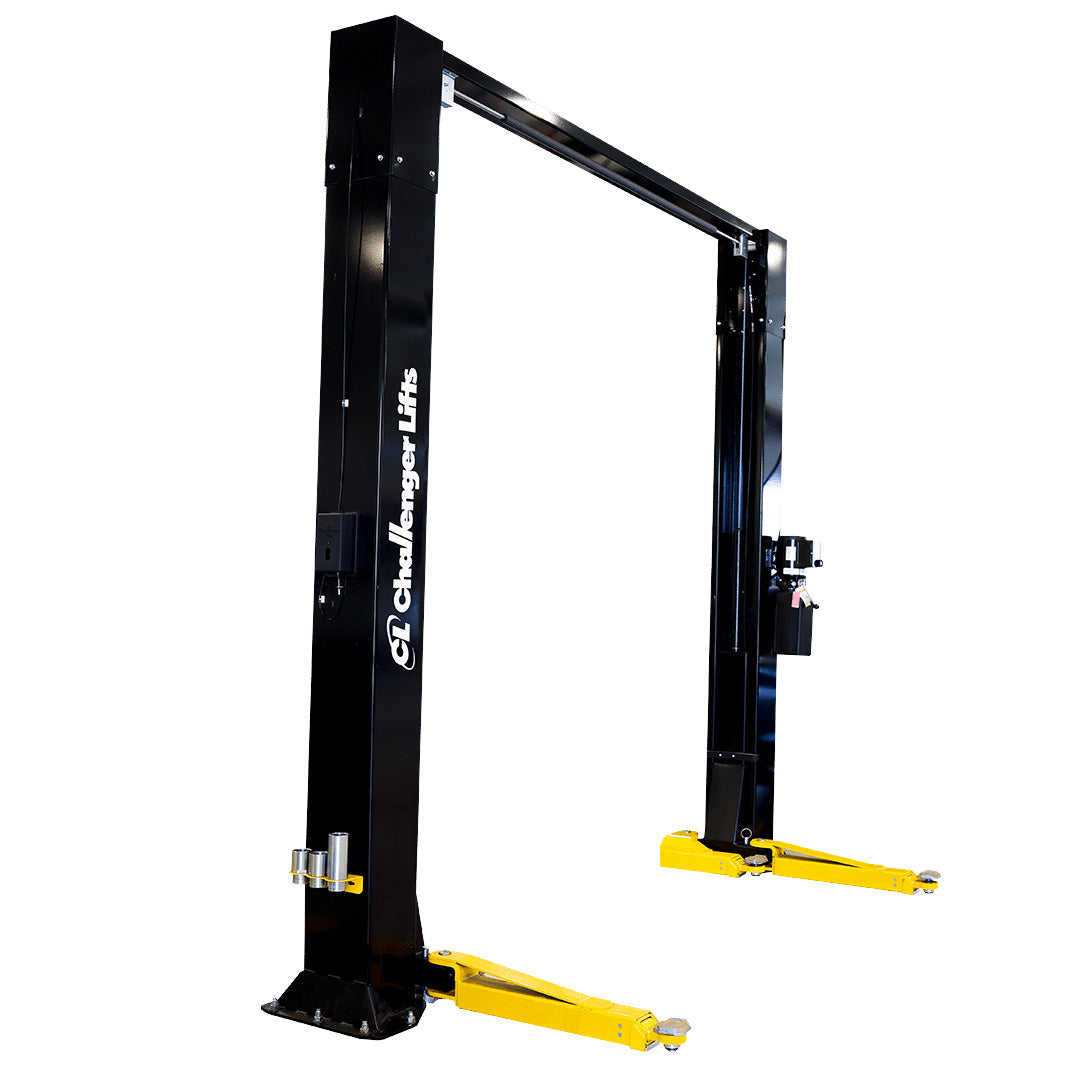

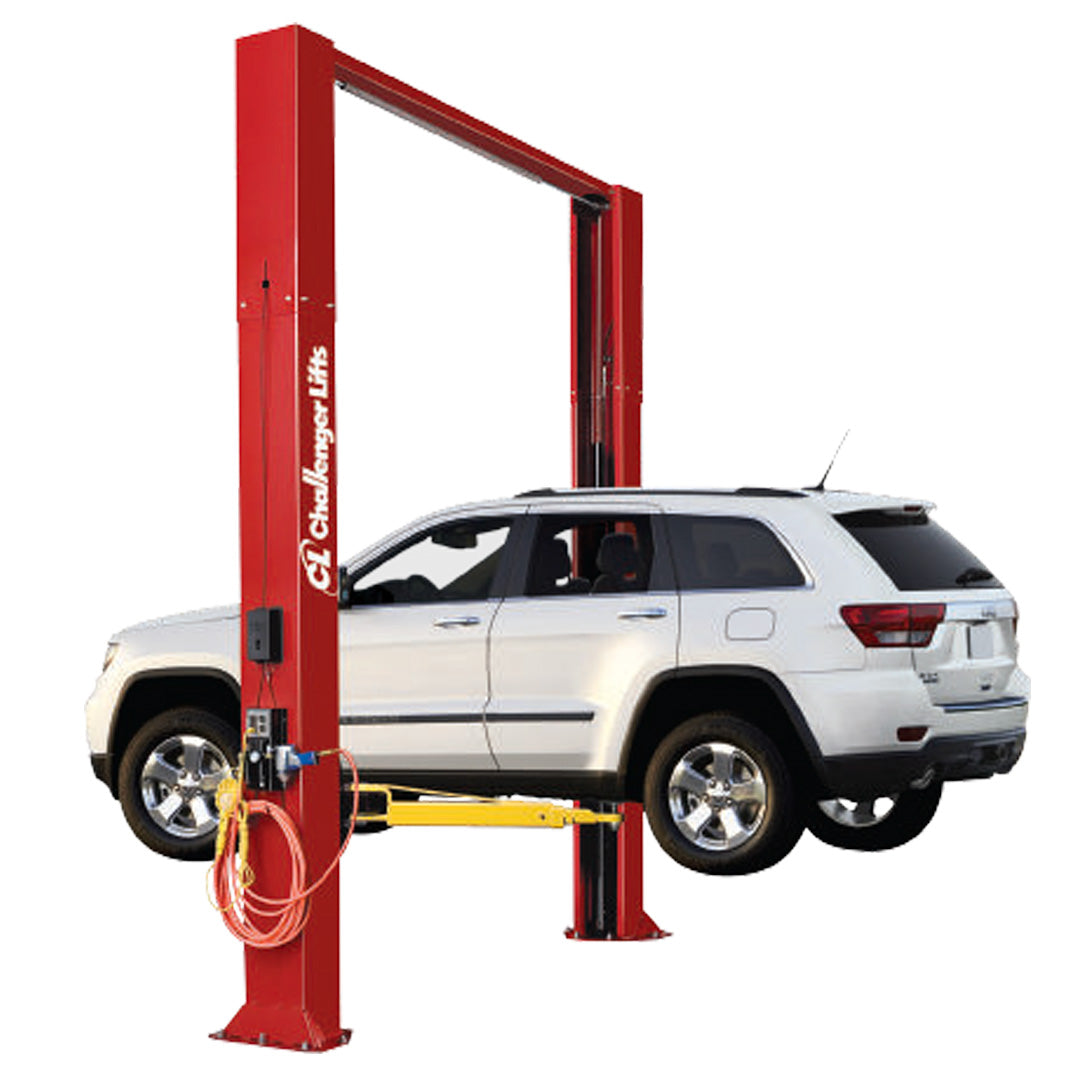

Challenger 10K VERSYMMETRIC® 2-Post #CL10V3-DPC
Lead time:
-
DESCRIPTION
Challenger’s CL10V3 model features our exclusive Versymmetric® technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT™ design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.
We also offer the CL10V3 in several configurations to meet your service application needs. A drive-on pad option provides the quickest vehicle spotting for express bays. Our added Quick Cycle™ models can rise in just 27 seconds and lower in only 17 seconds. Quick Cycle™ technology’s increased lift speed will drastically boost your service potential. Adjustable height and width options are also available. In addition, choose between a wide range of accessories to make the CL10V3 the perfect choice for your shop. Expand your service potential with our most versatile, easy-to-operate lift.
ALI® Certified
-
FEATURES + BENEFITS
- 10,000 lb. lift capacity
- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
- 48 in. elongated carriage design increases lift life
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
-
SPECIFICATIONS
MANUAL + SPECSModel Number CL10V3-DPC Lifting Capacity 10,000 lbs. Lifting Configuration Versymmetric Arms 3-stage front/3-stage rear Rise Height 74.125” Overall Height 134" / 140"
Overall Height (Cylinder Extended) 143"
2’ Height Extension Available Yes 3’ Height Extension Available Yes Overall Width 138.5" / 143"
Drive-Thru Clearance 100" / 104.5"
Floor to Overhead Switch 134.5"
Front Arm Reach 20” - 42” Rear Arm Reach 37.625” - 60” Screw Pad Height 3.875” - 6.125” Inside Columns 110" / 114.5"
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph Speed of Rise 38 s Ceiling Height Required 12' ALI/ETL Certified Yes Quick Cycle - Dual Pendant Controls Yes Colors Available Red, Blue, Black
