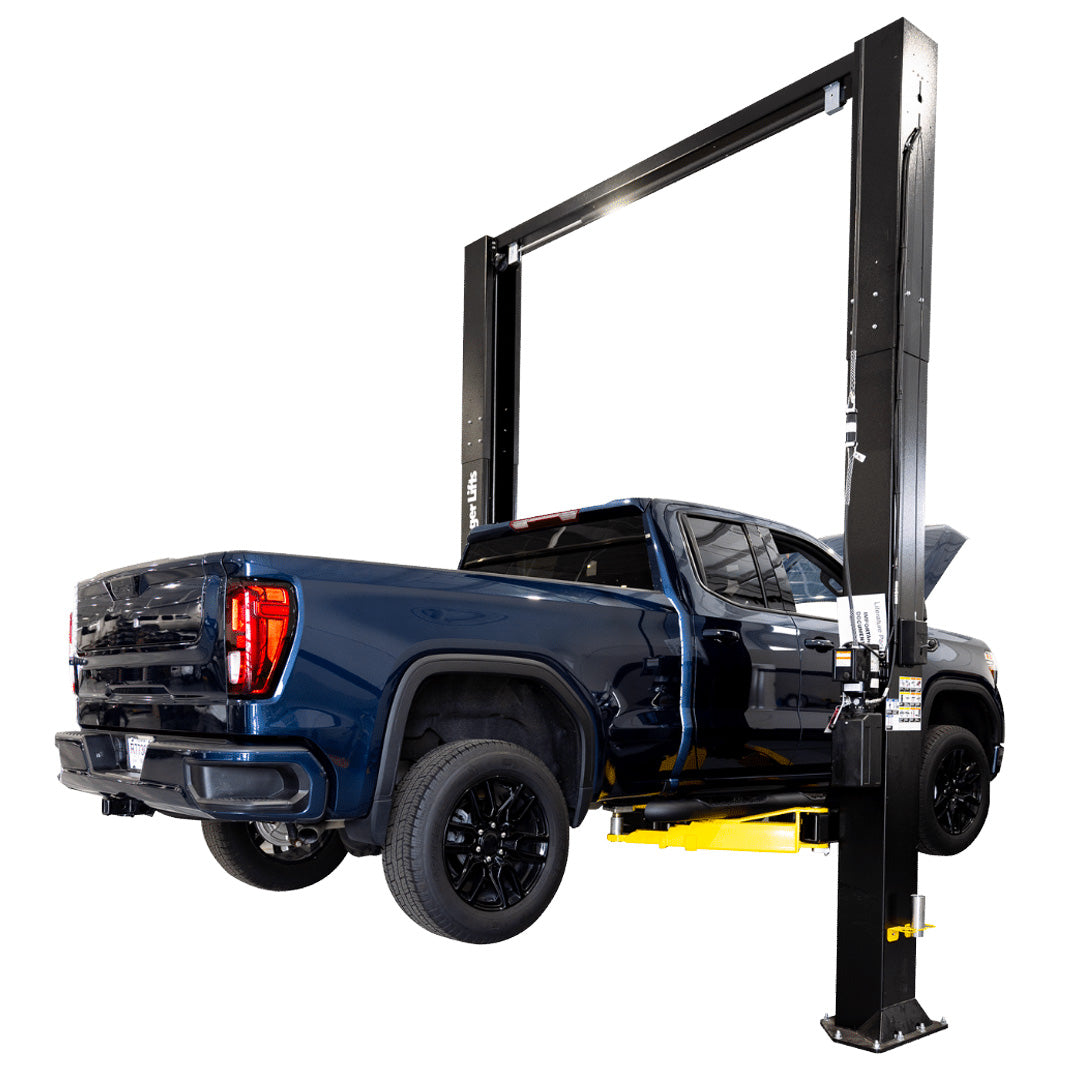

Challenger 12K Heavy-Duty 2-Post / Adjustable #CL12A-1
Couldn't load pickup availability
-
DESCRIPTION
Our 12,000 lbs. 2-Post now features the same width adjustability we developed for our 16K & 20K 2-Posts. Accommodate a wide range of standard cars, trucks, vans, and SUVs within the same service bay with +6″ & +12″ width adjustment (during installation) and +1′ & +2′ optional column extensions. Standard features also include 3-Stage front and rear arms and premium telescoping footpads.
Our Low Ceiling Model, CL12A-LC, has all the power of our standard 12K but features a column height of 11′ 11″ to fit in shops with 12′ ceilings.
Both models are ALI® Certified.
-
FEATURES + BENEFITS
- 3-Stage Front and Rear arms
- Adjustable width from 11' 10" to 12' 10"
- Designed to service electric and other wider vehicles when combined with TFPK footpad kit
- 1' and 2' Column Extensions available
- Plow-Ceiling model available with a column height of 11' 11"
- 3-Stage Front and Rear arms
-
SPECIFICATIONS
Model Number CL12A-1 Description
+ 1' Height Extensions Lifting Capacity 12,000 lbs. Lifting Configuration Symmetric Arms 3- Stage Front & Rear Rise Height 84.75" Overall Height 1 4' 2" or 13' 8" Overall Width Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" Drive Thru Clearance Standard - 8' 7.5" | +6" - 9' 1.5" | +12" - 9' 7.5" Floor to Overhead Switch
14' 2" or 13' 8" Arm Reach
Min. 27.5" Max. 59" Screw Pad Height
Min. 5" Max. 12 5/8" Standard Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph Rise Time
63s Min. Ceiling Height 14' 9" or 14' 3"
-
MANUAL + SPECS
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
