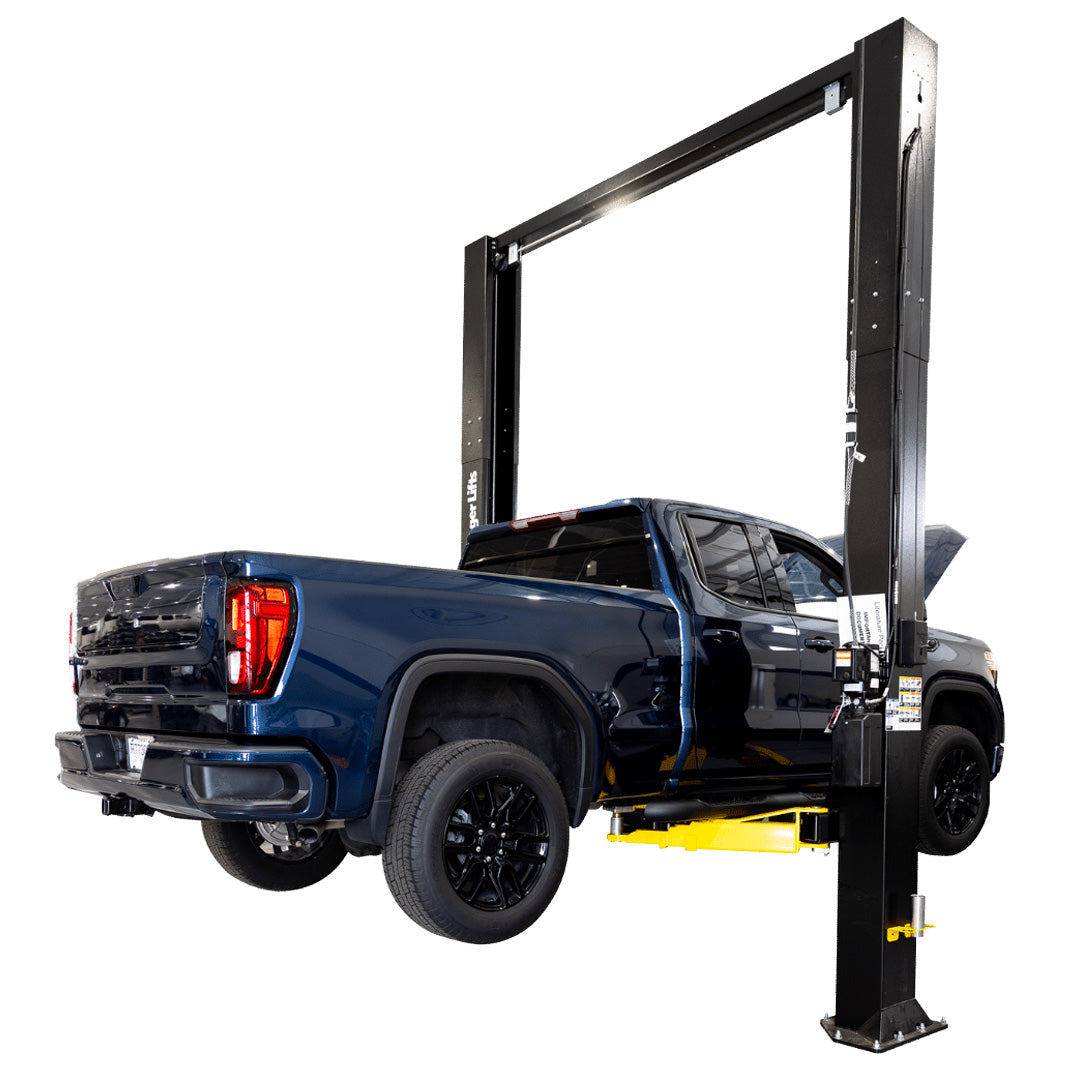

Challenger 12K Heavy-Duty 2-Post / Adjustable #CL12A-LC-DPC-QC
Couldn't load pickup availability
Meets the highest safety standards set by the Automotive Lift Institute.
Quick Specs
| Model / Part Number | CL12A-LC-DPC-QC |
| Capacity | 12,000 lbs |
| ALI Certified | ✓ Yes |
| Lift Type | Heavy-duty low-ceiling clearfloor 2-post |
| Lifting Configuration | Symmetric |
| Arm Configuration | 3-stage front / 3-stage rear |
| Rise Height | 80.75" |
| Overall Height | 11' 11" |
| Minimum Ceiling Height | 12' |
| Overall Width | 11' 10" / 12' 4" / 12' 10" |
| Drive-Thru Clearance | 8' 7.5" / 9' 1.5" / 9' 7.5" |
| Arm Reach | 27.5" min / 59" max |
| Motor / Voltage | 3 HP, 208-230V, 60Hz, 1-phase |
| Rise Time | 38 seconds |
| Colors | Black, blue, red |
| Installation | Available — call (817) 865-3707 |
The Challenger CL12A-LC-DPC-QC gives repair shops a 12,000 lb ALI certified 2-post lift in a low-ceiling package. Its 11' 11" column height is built for 12' ceiling shops that need more capacity than a 10K lift without stepping into a taller standard 12K frame.
This is the heavier-duty Challenger choice for shops working on pickups, vans, SUVs, fleet vehicles, and EV-era wider vehicles. Adjustable width settings, 3-stage arms, and premium telescoping footpads help technicians service a broader vehicle mix in one bay.
Low-Ceiling 12K Capability
The CL12A-LC is the low-ceiling version of Challenger's adjustable 12K 2-post family. It keeps the 12,000 lb lifting capacity while using an 11' 11" column height and 12' minimum ceiling requirement, which makes it practical for shops that cannot fit taller overhead models.
Adjustable Width for Wider Vehicles
During installation, the columns can be set at standard width, +6", or +12". That gives the bay more flexibility for trucks, vans, SUVs, and wider electric vehicles, while still keeping clear operating lanes for daily shop work.
3-Stage Front and Rear Arms
With 3-stage front and rear arms and a 27.5" to 59" arm reach range, the CL12A-LC can reach a wide spread of pickup points. That matters in mixed-use shops where the next vehicle may be a light truck, a large SUV, a van, or a standard passenger car.
QuickCycle and Dual Pendant Controls
The DPC/QC configuration pairs dual pendant controls with a listed 38-second rise time. Shops that cycle vehicles all day get easier access from either column and a faster lift cycle than a slower heavy-duty 2-post setup.
Frequently Asked Questions
Is the Challenger CL12A-LC-DPC-QC ALI certified?
Yes. The CL12A-LC-DPC-QC is listed as an ALI certified Challenger 12,000 lb 2-post lift, making it a strong fit for professional shops that need documented lift certification.
What ceiling height does the CL12A-LC need?
The low-ceiling CL12A-LC is built around an 11' 11" column height and a 12' minimum ceiling height, which helps shops add a 12K clearfloor lift where taller 12K models may not fit.
What vehicles is this 12K lift best for?
It is a good fit for light-duty trucks, vans, SUVs, fleet vehicles, and mixed repair work where a 10K lift is not enough but the shop still has a 12-foot ceiling constraint.
Does the CL12A-LC have adjustable width?
Yes. The lift has standard, +6 inch, and +12 inch width settings during installation, giving shops more flexibility for wider trucks and service bays.
What arm setup does the CL12A-LC use?
It uses 3-stage front and rear arms with a 27.5 inch to 59 inch arm reach range, helping technicians reach pickup points across cars, SUVs, vans, and trucks.
How fast does the Challenger CL12A-LC rise?
The low-ceiling CL12A-LC has a listed 38-second rise time, which is fast for a heavy-duty 12,000 lb 2-post lift.
Can Alamo install this Challenger 12K lift?
Yes. Alamo Equipment & Service can help with lift planning, installation, annual inspections, repair, and long-term service support. Call (817) 865-3707 to discuss the bay.
How does the CL12A-LC compare to the Atlas BP-12000 HD?
Both are Alamo-sold 12K options. The Challenger is the premium ALI certified low-ceiling clearfloor choice, while the Atlas BP-12000 HD is a value-focused baseplate alternative for shops managing lower ceilings.
Best For
✓ Repair shops with 12' ceilings that still need 12,000 lb capacity
✓ Fleet maintenance, truck/SUV service, vans, and wider modern vehicles
✓ Shops that want ALI certified lifting equipment and Challenger support
✓ Bays that need adjustable width during installation for vehicle clearance
✓ Owners who want Alamo to help with planning, install, inspection, and service
✗ Not ideal for ceilings under 12'
✗ Not ideal for buyers who prefer the lowest-cost 12K baseplate layout over a premium clearfloor Challenger lift
✗ Not ideal for applications above 12,000 lbs; consider a 15K or heavier-duty lift
Installation Requirements
• Concrete: verify slab thickness, reinforcement, PSI, condition, and local code before installation
• Anchor bolts: confirm anchor suitability with a licensed installer and the Challenger installation manual
• Electrical: 208-230V, 60Hz, single-phase service for the 3 HP motor
• Ceiling clearance: 12' minimum to lowest overhead obstruction
• Bay width: plan around standard, +6", or +12" column settings before installation
• Professional installation strongly recommended for a 12,000 lb commercial lift
• Alamo offers nationwide installation planning and support — call (817) 865-3707
Why Buy This Challenger CL12A-LC From Alamo Equipment
✓ Alamo can help confirm whether the CL12A-LC's 12,000 lb capacity, 12' ceiling fit, and adjustable width package match the shop's vehicle mix
✓ Low-ceiling 12K planning matters: Alamo can review ceiling clearance, slab condition, electrical service, column setting, delivery access, and installation timing before the lift arrives
✓ The CL12A-LC is a stronger fit than a 10K lift when the buyer needs more capacity margin for trucks, vans, SUVs, and fleet work in a 12' bay
✓ Alamo supports Challenger lift buyers with installation planning, annual inspections, maintenance, and repair after the sale
✓ Buyers can compare the CL12A-LC against Alamo-sold 12K alternatives like the Atlas BP-12000 HD without leaving the catalog
✓ Free shipping to the 48 contiguous states unless noted otherwise
(817) 865-3707
Challenger CL12A-LC-DPC-QC vs Atlas BP-12000 HD
Both are Alamo-sold 12,000 lb 2-post lifts for shops working with heavier vehicles and ceiling constraints. The Challenger CL12A-LC is the premium ALI certified clearfloor option with adjustable width, 3-stage arms, and QuickCycle speed. The Atlas BP-12000 HD is a lower-price baseplate alternative with a very short 10' 2.5" overall height and included truck adapters.
| Spec | Challenger CL12A-LC-DPC-QC | Atlas BP-12000 HD |
|---|---|---|
| Capacity | 12,000 lbs | 12,000 lbs |
| Certification / Positioning | ALI certified premium Challenger low-ceiling lift | Commercial-grade Atlas baseplate value alternative |
| Lift Style | Clearfloor, overhead, low-ceiling 2-post | Baseplate, open-top 2-post |
| Overall Height | 11' 11" | 10' 2.5" |
| Arm Design | 3-stage front/rear arms, 27.5"-59" reach | 3-stage symmetric arms |
| Bay Fit | Best when the shop wants clearfloor access and Challenger certification in a 12' ceiling | Best when the shop wants the shortest Alamo-sold 12K option and accepts a baseplate |
Choose the CL12A-LC when certification, clearfloor access, adjustable width, and Challenger support matter most. Choose the Atlas BP-12000 HD when the buyer wants an Alamo-sold 12K value alternative with a lower overall height and baseplate layout.
Free shipping: Orders ship free to the 48 contiguous states.
Real lift support: Alamo can help with model selection, bay fit, installation planning, maintenance, inspections, and service after the sale.
Commercial shop focus: This is not a generic pallet drop. You are buying from a team that works with automotive shop equipment every day.
Questions before you order? Call (844) 480-6059
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
