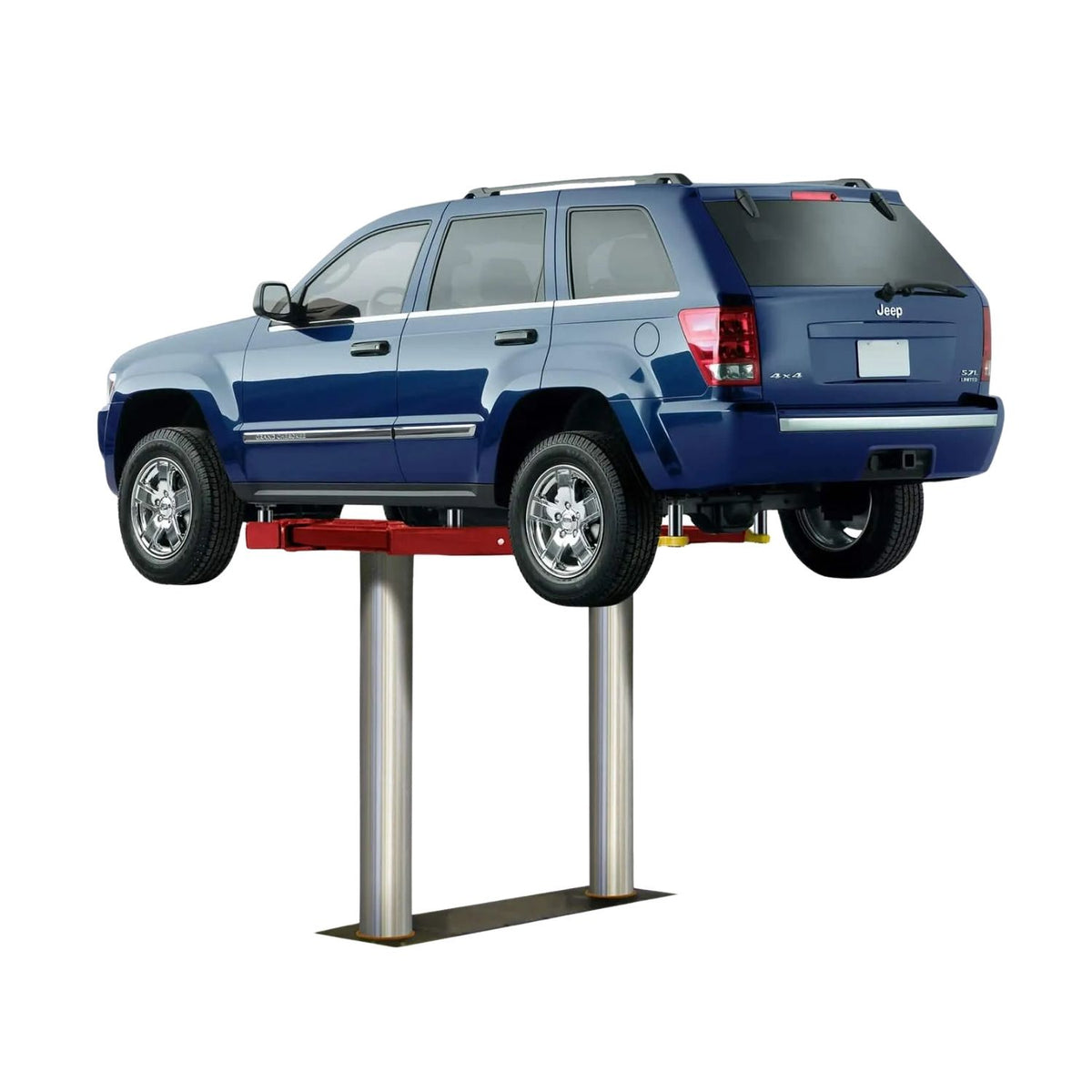

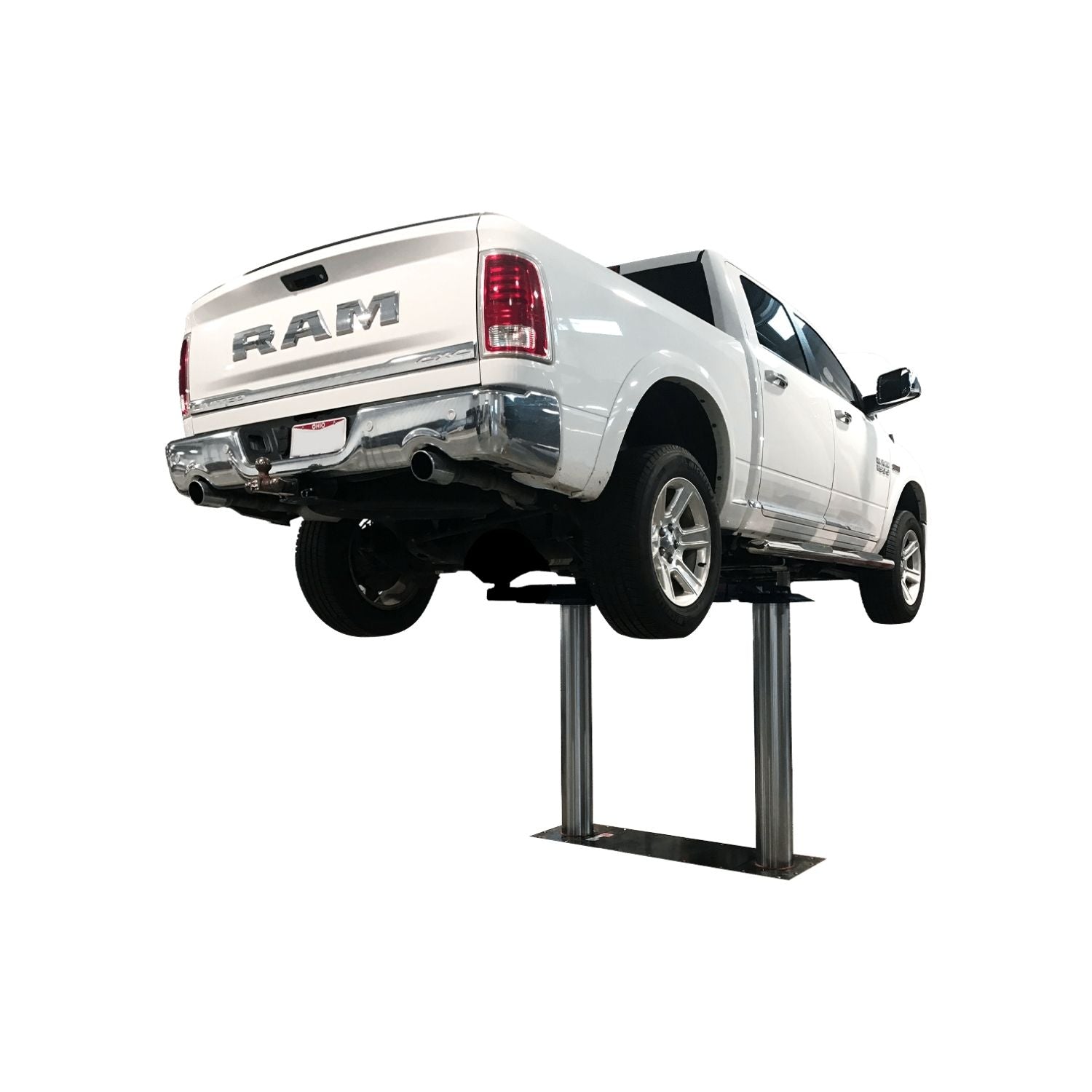

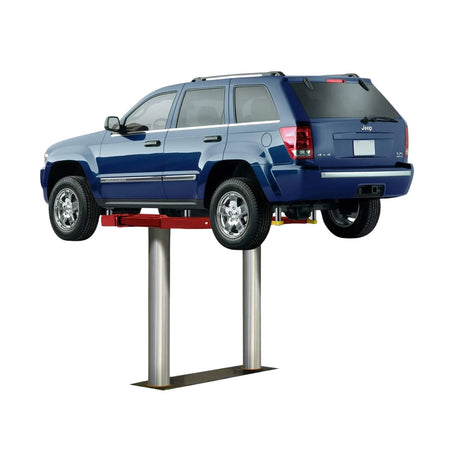

Challenger 12K Heavy-Duty Inground Lift #EV1220

Challenger EV1220

Floor-mounted lift posts eat into a service bay every single day you own them, and a heavier fleet lift's footprint costs even more of that floor space. The Challenger EV1220 is an electric-hydraulic, cassette-style heavy-duty inground lift built to solve exactly that. True 3-stage front and rear arms reach a wider range of lift points on larger, heavier vehicles.

The fully-contained, sealed cassette tub eliminates the risk of hydraulic fluid seeping into the ground, and heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points.

Who the EV1220 Is Built For

• Shops that need service-bay floor space back — the EV1220's cassette sits below grade, so the bay floor is clear whenever the lift is down -- no post footprint eating into walkway or parking space.
• Shops that need to reach a wide range of lift points — 3-stage front and rear arms sweep a broad spotting range so one lift configuration covers more of your vehicle mix.
• Buyers who value a sealed, contained lift mechanism — the fully-contained cassette tub eliminates the risk of hydraulic fluid seeping into the ground -- a real environmental and inspection concern with older inground designs.
• Shops fine with a stand-alone control console — if you don't need the bench-mounted option, the standard console keeps the purchase simpler -- BMC is available on this same family if you change your mind later.
• Shops that don't need the fastest possible cycle time — standard-speed rise/descent keeps the purchase price down -- QuickCycle is available on this same family if cycle time becomes the bottleneck later.

What the EV1220 Is NOT Built For

• You want a surface-mounted lift with no excavation or concrete work -- an inground lift is a bigger construction project than a 2-post or 4-post, not a drop-in replacement.
• Your heaviest vehicle exceeds this model's rated capacity -- capacity is not a number to round up.
• You regularly need to pull EV battery packs or service extra-wide vehicles -- look at the wide-clearance EW version in the same capacity class instead.
• You don't have shop air available -- this lift's lock release requires 90-120 psi air supply.
• You specifically want Bench-Mount Controls out of the box -- order the -BMC configuration of this same model instead.

What Sets the EV1220 Apart

• 12,000 lb. lifting capacity
• True 3-stage front and 3-stage rear arms
• 8.5" diameter chrome guide plunger for stability under load
• Chrome non-breathing ram-style cylinder for longer lift life
• Mechanical lock engages every 3" for ergonomic working height
• Fully-contained, sealed cassette tub eliminates hydraulic fluid ground-seepage risk
• Heavy-duty polyurethane screw pads
• 87" drive-thru clearance
• ALI/ETL certified

Full Specifications - EV1220

Challenger Lifts Warranty

Challenger Lifts backs the EV1220 with the following manufacturer coverage to the original owner. Alamo routes service and support after the sale.

Warranty is to the original owner. Coverage excludes normal wear, improper installation, and unapproved parts. Warranty service is through Alamo Equipment & Service - call (817) 865-3707.
