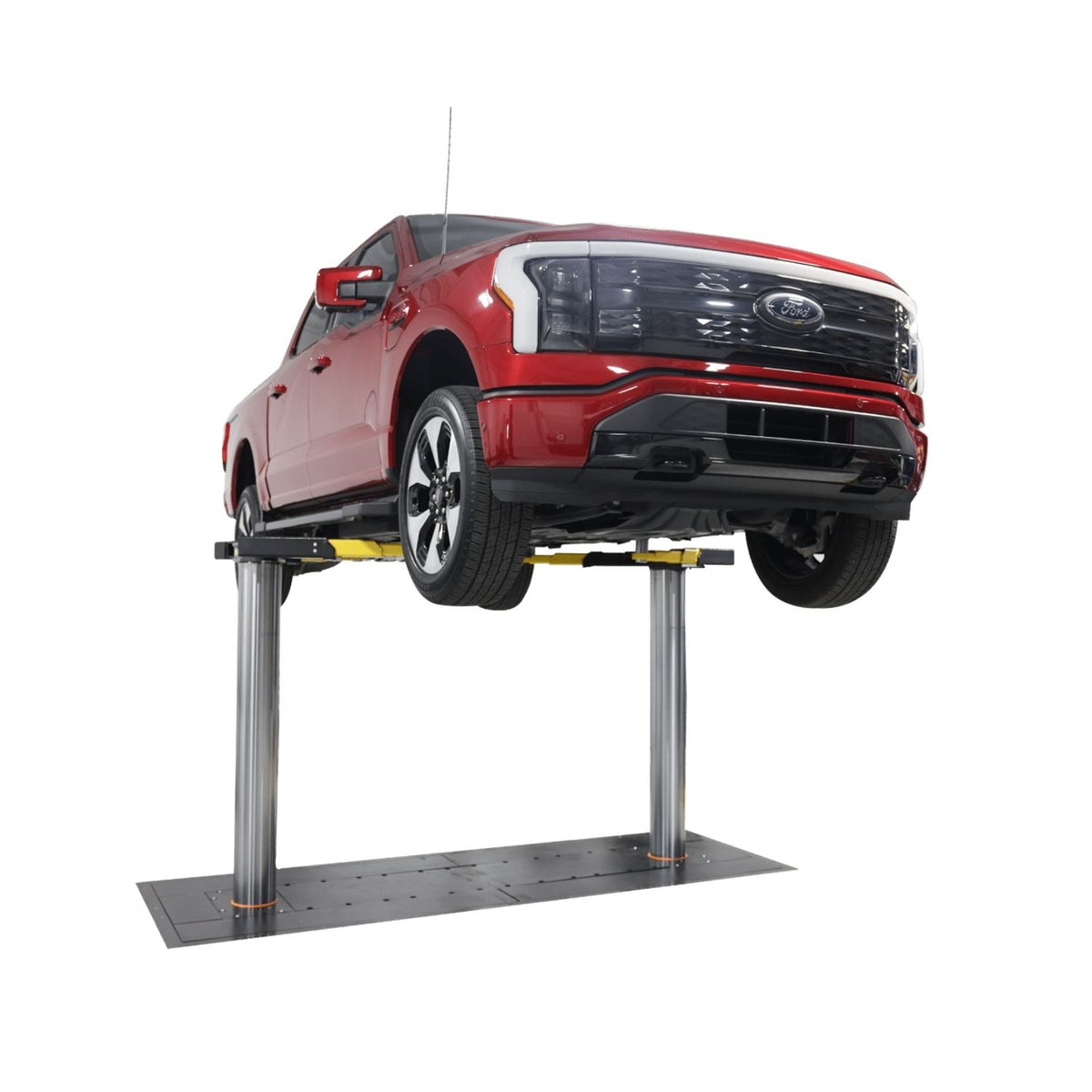

Challenger 12K Wide Inground Lift #EW12

Challenger EW12

A standard inground cassette's bolster blocks exactly the space a technician needs to lower an EV battery pack or clear some of the widest vehicles on the road today. The Challenger EW12 is an electric-hydraulic, extra-wide inground lift built to solve exactly that.

True 3-stage front and rear arms and double-telescoping screw pads come standard, and the design supports battery-lowering out of electric vehicles without losing the function of a conventional inground cassette.

Who the EW12 Is Built For

• Shops that need service-bay floor space back — the EW12's cassette sits below grade, so the bay floor is clear whenever the lift is down -- no post footprint eating into walkway or parking space.
• Shops servicing wide-bodied trucks, EVs, or exotics — 88" of drive-thru clearance is built for pulling EV battery packs and clearing wide-track vehicles that a standard-width inground cassette can't.
• Buyers who value a sealed, contained lift mechanism — the fully-contained cassette tub eliminates the risk of hydraulic fluid seeping into the ground -- a real environmental and inspection concern with older inground designs.
• Shops fine with a stand-alone control console — if you don't need the bench-mounted option, the standard console keeps the purchase simpler -- BMC is available on this same family if you change your mind later.
• Shops that don't need the fastest possible cycle time — standard-speed rise/descent keeps the purchase price down -- QuickCycle is available on this same family if cycle time becomes the bottleneck later.

What the EW12 Is NOT Built For

• You want a surface-mounted lift with no excavation or concrete work -- an inground lift is a bigger construction project than a 2-post or 4-post, not a drop-in replacement.
• Your heaviest vehicle exceeds this model's rated capacity -- capacity is not a number to round up.
• You don't need the extra drive-thru clearance -- the standard-width EV version in the same capacity class is a simpler, less expensive choice.
• You don't have shop air available -- this lift's lock release requires 90-120 psi air supply.
• You specifically want Bench-Mount Controls out of the box -- order the -BMC configuration of this same model instead.

What Sets the EW12 Apart

• 12,000 lb. lifting capacity
• Extra-wide drive-through clearance for wide-bodied and EV service
• True 3-stage front and rear arms
• Double-telescoping screw pads
• 88" drive-thru clearance
• QuickCycle™ available
• ALI/ETL certified

Full Specifications - EW12

Challenger Lifts Warranty

Challenger Lifts backs the EW12 with the following manufacturer coverage to the original owner.

Warranty is to the original owner. Coverage excludes normal wear, improper installation, and unapproved parts. Warranty service is through Alamo Equipment & Service - call (817) 865-3707.
