Challenger 7.7K Scissor Lift #DX77-SURF, DX77-FLUSH
Couldn't load pickup availability
| Model / Part Number | DX77-SURF / DX77-FLUSH |
| Brand | Challenger |
| Lifting Capacity | 7,700 lbs |
| Raise Height | 74.5" |
| Overall Length | 83.25" |
| Overall Width | 82" |
| Platform Length | 59" |
| Platform Width | 24.5" |
- 4" minimum reinforced slab
- 6" preferred for production bays
- Must be fully cured before anchor installation
- Confirm with Alamo before install
- Have an electrician run a dedicated circuit to the bay before install day
- 90-120 PSI
- Confirm shop air line reaches the bay before install day
Challenger 7,700 lb Scissor Lift — Surface or Flush Mount
A shop planning a new scissor lift install often has to make a call before the equipment even arrives: pour a recessed pit and flush-mount for a clean, tripping-hazard-free floor, or surface-mount on the existing slab to save on concrete work. Most scissor lifts force a shop into one or the other before purchase. The Challenger DX77-SURF/FLUSH doesn't.

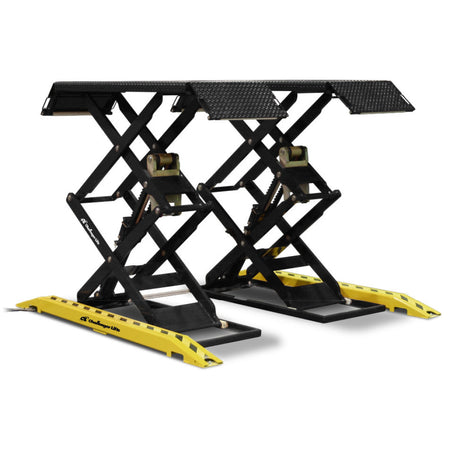

The DX77 is a 7,700 lb double scissor lift with standard-length ramps that installs either surface-mounted or flush-mounted — the same lift, the shop's choice at install time. That flexibility is what separates it from the DX77-EXT, which is flush-mount only and trades some rise height for an extended, low-approach-angle ramp built around scrape-prone vehicles. The standard DX77 rises to 74.5" (4.5" taller than the EXT's 70"), giving a bit more underbody working height, and its cross-member-free platform design keeps the area around and between the platforms clear on all sides.
Who the DX77-SURF/FLUSH Is Built For
- A shop that hasn't decided between surface and flush mount yet, and wants a lift that works either way rather than locking in a mount type before construction.
- An operation retrofitting an existing bay where pouring a full recessed pit isn't in the budget, but a clean flush finish is still preferred if feasible.
- A general-service shop that doesn't regularly see low-profile or scrape-prone vehicles and doesn't need the DX77-EXT's extended ramp geometry.
- A shop that wants the extra 4.5" of rise height (74.5" vs. 70") for slightly more underbody clearance on taller service jobs.
- A facility that values unobstructed access all around the lifted vehicle, thanks to the cross-member-free platform design.
- A shop standardizing on one scissor lift spec across multiple bays where some will be surface-mounted and others flush-mounted.
What the DX77-SURF/FLUSH Is NOT Built For
If your shop regularly services low-profile or lowered vehicles that scrape on approach, the DX77-EXT's extended ramp geometry solves that specific problem better than the standard-length ramps here. And if the job is alignment work rather than general service, the SX14 scissor alignment lift is purpose-built for that with runway synchronization the DX77 doesn't provide.
What Makes the DX77-SURF/FLUSH Different
Choice of Surface or Flush Mount
The DX77 installs on your existing slab as a surface-mounted lift, or recesses into a pit for a flush, floor-level finish — it's the same lift either way, and the decision is made at install time based on your bay and budget, not locked in before you buy. That flexibility is the defining difference between this model and the flush-only DX77-EXT.
Slightly Taller Rise (74.5")
At 74.5" of rise, the standard DX77 reaches 4.5" higher than the flush-only EXT variant's 70". For techs doing underbody work that benefits from extra standing clearance, that additional height adds up over a full day of service.
Double Scissor Design
The double scissor mechanism provides more overall working clearance underneath the vehicle than a single-scissor lift design at the same capacity — more room for the tech to move, not just lift height.
Cross-Member-Free Design
With no cross-member obstruction underneath, techs get free access all around the lifted vehicle and between the platforms. That open layout reduces trip hazards and makes it easier to work a job from any angle instead of navigating around lift hardware.
Includes Spotting Blocks
The DX77 ships with 3" and 1.5" rubber spotting block sets (4 each) already included, covering standard lift-point work without a separate purchase before the lift goes into service.
- Surface-mounted or flush-mounted double scissor lift, standard ramps applications
- Shops needing 7,700 lbs certified alignment capacity
- Facilities with at least ≈10' x 10' of bay space
- General repair bays without dedicated alignment volume
- Shops with bay space below ≈10' x 10'
DX77-SURF/FLUSH vs. Atlas 7K Kwik Mid-Rise Scissor Lift 7,000 lb #ATEATTD-7K-KWIK-FPD — Which Fits Your Shop?
| Feature | DX77-SURF/FLUSH | Atlas 7K Kwik Mid-Rise Scissor Lift 7,000 lb |
|---|---|---|
| Lift type | Surface-mounted or flush-mounted double scissor lift, standard ramps | Mid-rise scissor lift |
| Capacity | 7,700 lbs | 7,000 lbs |
| Configuration | Surface or Flush Mount, Standard Ramps | Portable, mid-rise |
| Warranty | Challenger (see Warranty tab) | Confirm current term with Atlas at purchase |
| Best use case | Surface-mounted or flush-mounted double scissor lift, standard ramps | Nearby capacity class mid-rise scissor lift |
The right choice depends on your bay type and alignment volume — not just preference. Call (844) 480-6059 and we'll help you decide.
Full Specifications
| Model / Part Number | DX77-SURF / DX77-FLUSH |
| Brand | Challenger |
| Lifting Capacity | 7,700 lbs |
| Raise Height | 74.5" |
| Overall Length | 83.25" |
| Overall Width | 82" |
| Platform Length | 59" |
| Platform Width | 24.5" |
| Width Between Platforms | 21" - 27" |
| Ramp Length | 11.75" |
| Lowered Height | 4.5" |
| Motor | 2HP, Single Phase, 60Hz |
| Voltage | 208/220V |
| Air Supply Required | 90-120 PSI |
| Speed of Rise | 43 seconds |
| Max. Load per Platform | 3,850 lbs |
| Installation | Standard (Surface or Flush) |
⚠️ Installation Requirements

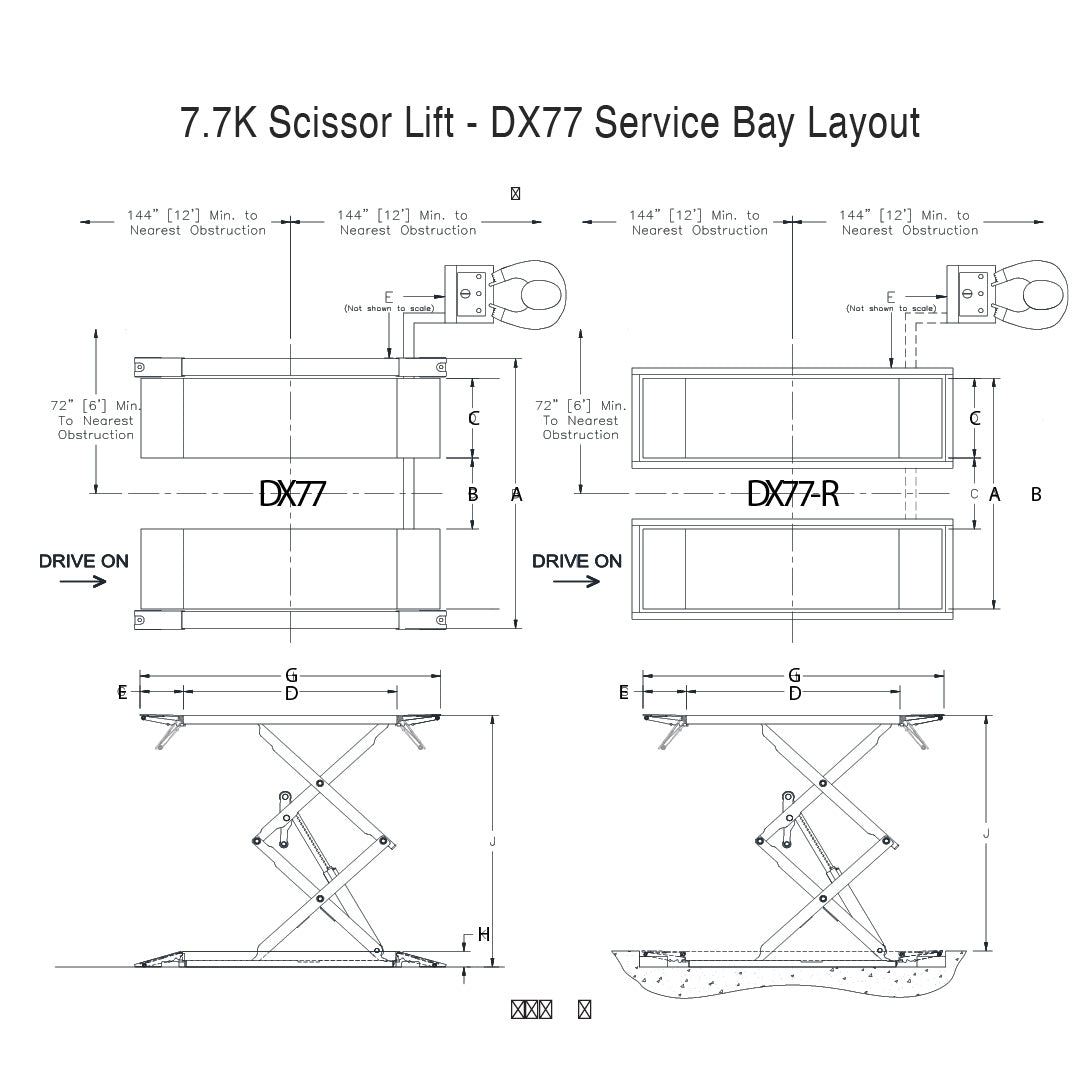

- Bay size: Minimum ≈10' x 10' recommended — confirm before ordering
- Electrical: Confirm exact breaker sizing with a licensed electrician before install day
- Concrete: Minimum 4" reinforced concrete slab; 6" preferred for production environments
- Surface anchoring: Lift must be anchored per manufacturer specification — do not skip anchoring on production bays
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Challenger Warranty — DX77-SURF/FLUSH
Challenger backs the DX77-SURF/FLUSH with the following coverage terms.
| Component | Coverage Term |
|---|---|
| Labor | 1 year |
| Functional Parts | 1 year |
| Structural Parts | 1 year |
| Wear Items / Accessories | 90 days |
Warranty service is through Alamo Equipment & Service. When you buy from us, you're not waiting on a manufacturer's 800 number — you're calling us at (844) 480-6059 and we dispatch a tech. That's the difference between buying from a box shipper and buying from Alamo.
⚠️ Warranty terms above are sourced from Challenger's canonical warranty policy documentation. Confirm exact terms at the time of purchase.
Frequently Asked Questions — DX77-SURF/FLUSH
Why Buy the DX77-SURF/FLUSH from Alamo Equipment & Service?
- We install it. The DX77 installs either surface-mounted or flush-mounted — our team helps you decide which fits your bay and budget, handles any pit prep for flush installs, and connects air supply and power before handoff.
- We service it. When something needs attention after the install, we're the same people you call. Not a national warranty line.
- We size it with you. 7,700 lbs capacity, ≈10' x 10' minimum bay — we'll confirm it fits before you buy.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right fit vs. the Atlas 7K Kwik Mid-Rise Scissor Lift 7,000 lb #ATEATTD-7K-KWIK-FPD? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Free shipping: Orders ship free to the 48 contiguous states.
Real lift support: Alamo can help with model selection, bay fit, installation planning, maintenance, inspections, and service after the sale.
Commercial shop focus: This is not a generic pallet drop. You are buying from a team that works with automotive shop equipment every day.
Questions before you order? Call (844) 480-6059
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
