Challenger Power Unit for E10 / LE10 Two-Post Lifts #AB-9367

SKU: ALMCHAAB9367
(0)
$1,141.62
Available to order
Usually ships between 1 and 3 business days.

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (817) 865-3707

Specifications
Part Number AB-9367
Product Type Hydraulic Lift Power Unit
Motor 2 HP, Single Phase, 3450 RPM
Voltage 208-230V AC
Frequency 60 Hz
Pump Flow 2.1 GPM
Reservoir Capacity 4 Gallons
Documented Applications Challenger E10 / LE10 and Other Compatible Lift Applications
Alternate Reference 31368-21

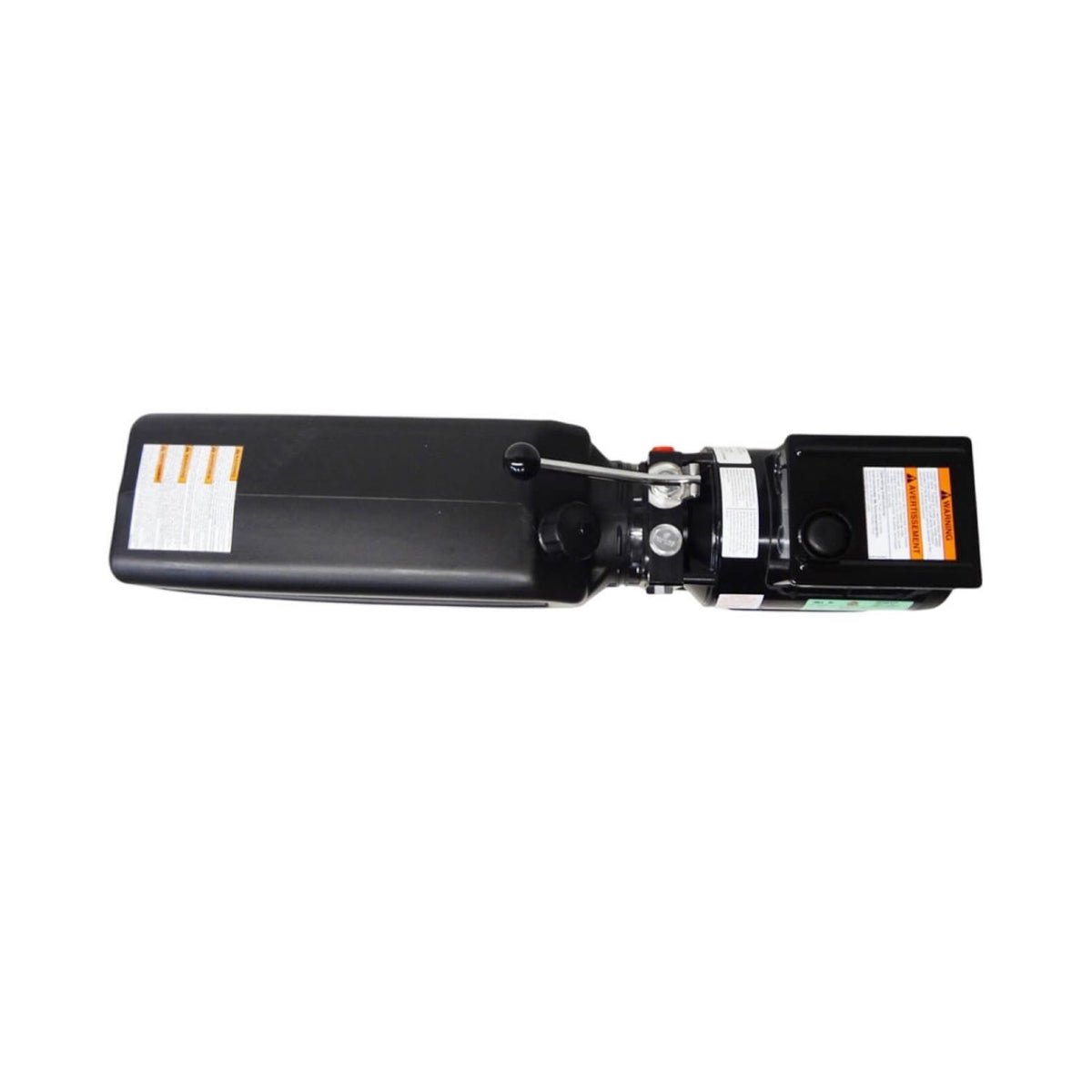

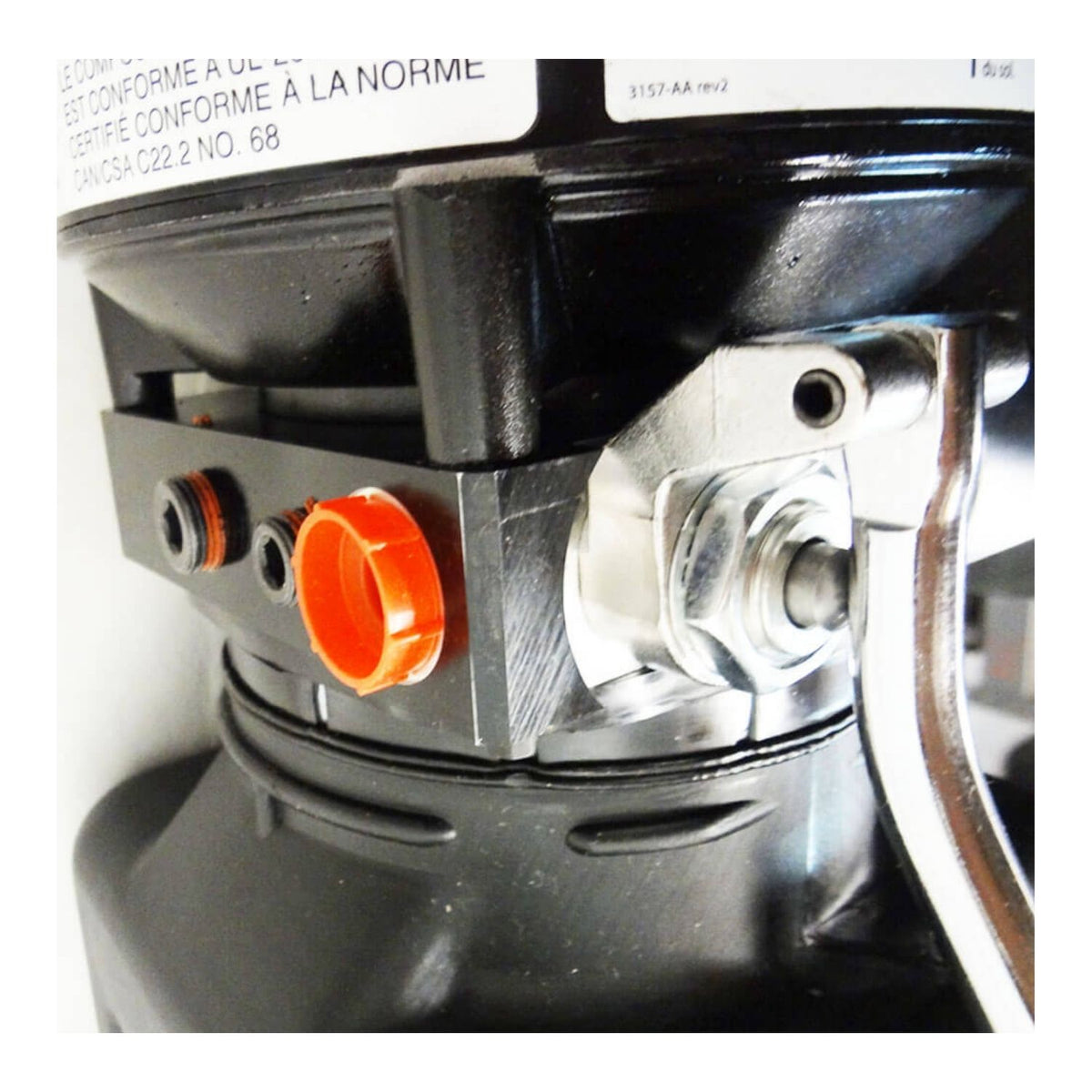

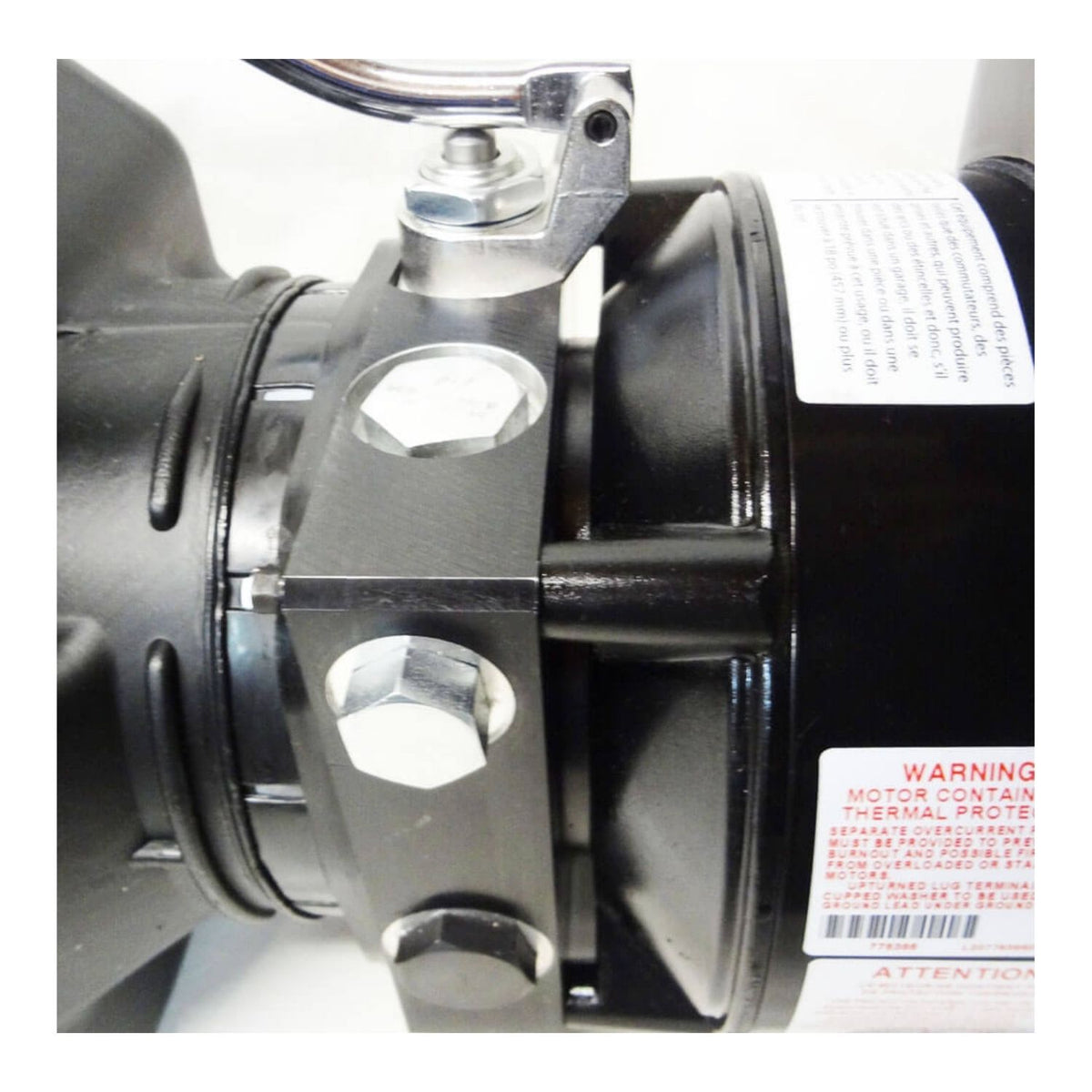

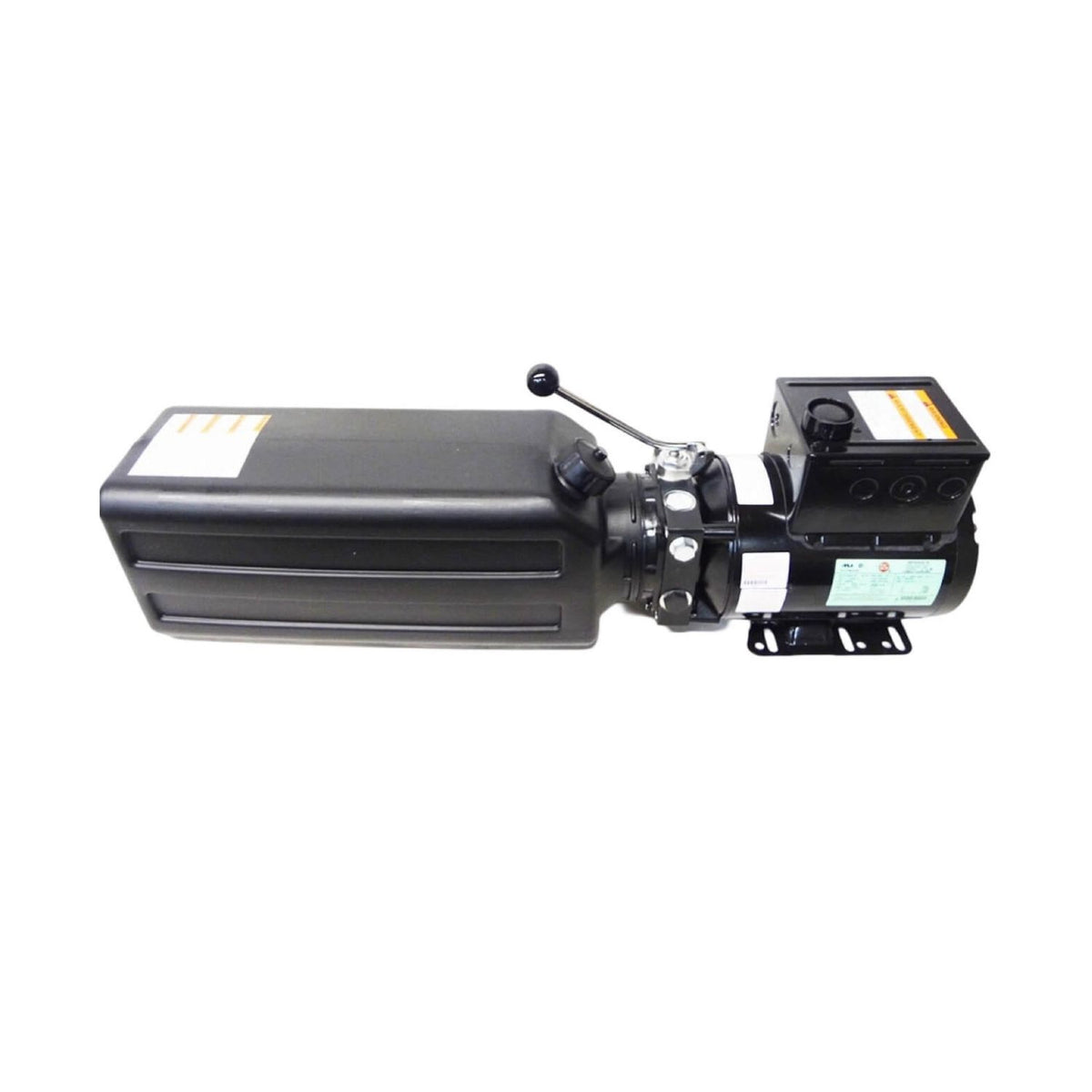

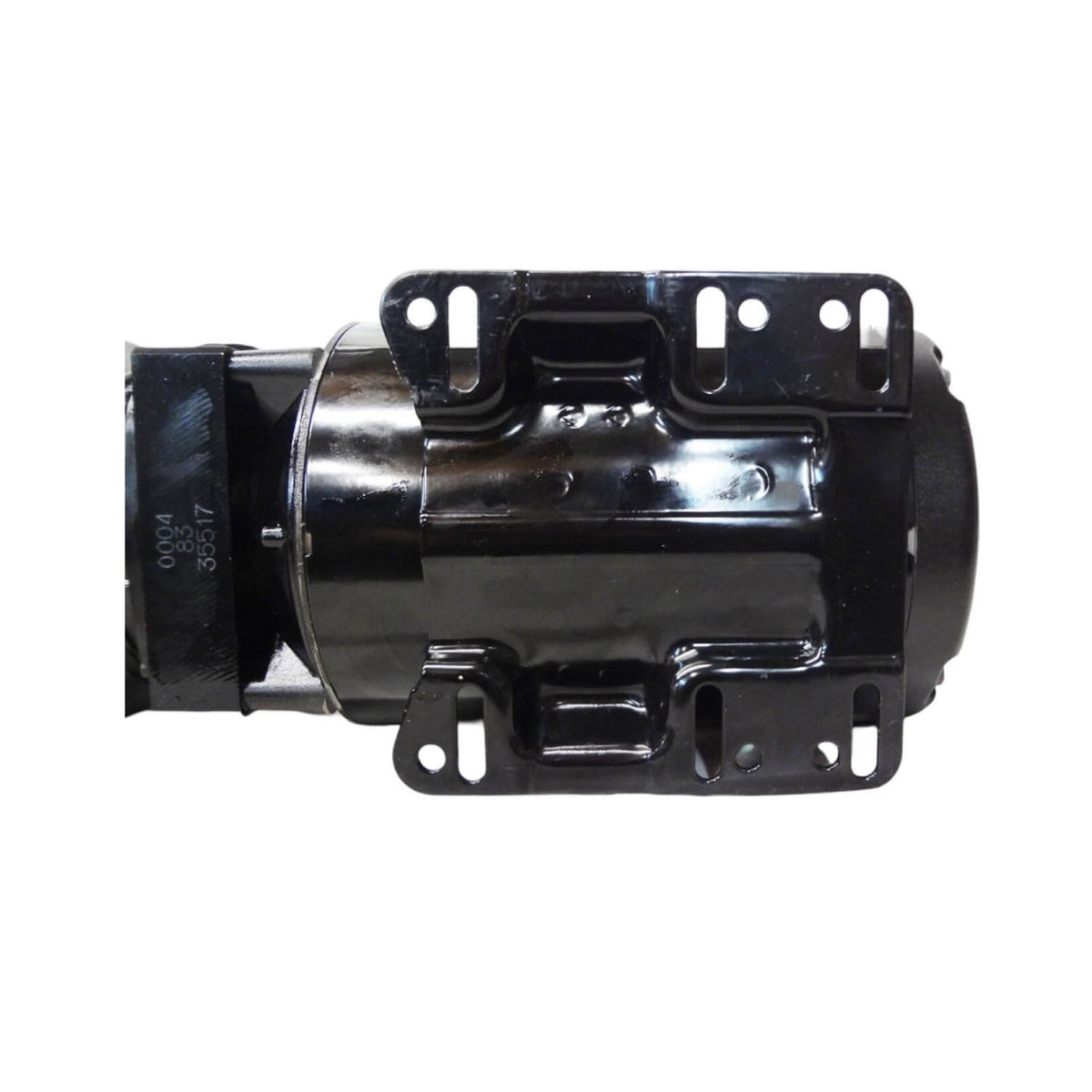

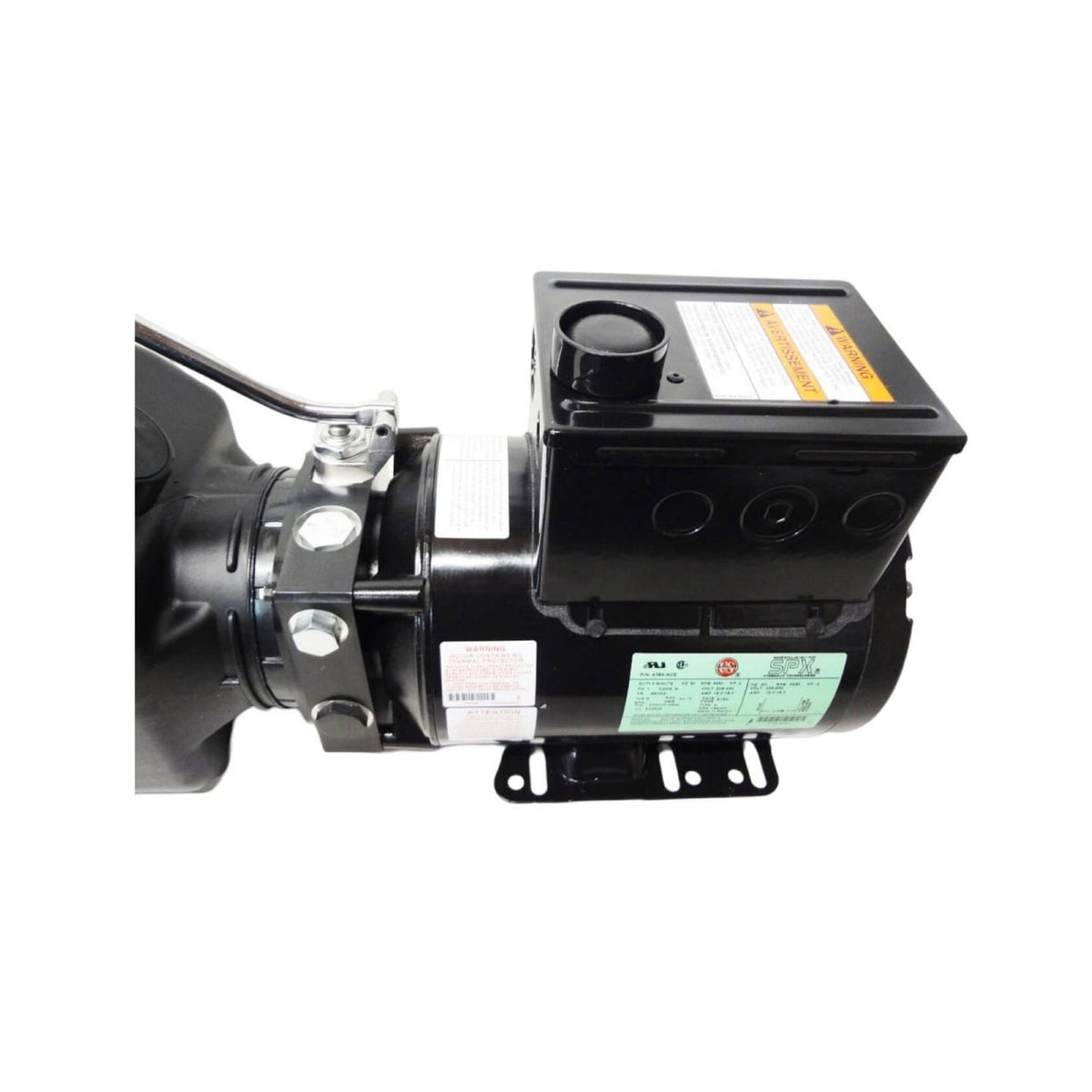

Challenger 2HP Power Unit #AB-9367 for E10 / LE10 Two-Post Lifts

Challenger #AB-9367 is a single-phase hydraulic power unit used on compatible Challenger two-post lifts, including E10 and LE10 applications equipped with the AB-9367-style power unit. The assembly combines the electric motor, hydraulic pump, and reservoir into one replacement unit.

This configuration uses a 2 HP, 3450 RPM motor operating on 208-230V single-phase, 60 Hz electrical service. Replacement-unit specifications list approximately 2.1 GPM pump flow and a 4-gallon vertical reservoir.

Compatibility & Fitment

Make / Brand Model(s) Reference
Challenger E10 AB-9367 / 31368-21
Challenger LE10 AB-9367 / 31368-21
Snap-on / John Bean EELR532A / EELR731A Verify existing power unit
Quality Q10 Verify existing power unit

Fitment should be confirmed from the existing power-unit identification and lift model. Challenger has used more than one power-unit configuration across related lift families and production periods.

Product Features

  • Complete hydraulic power-unit assembly
  • 2 HP single-phase electric motor
  • 3450 RPM motor speed
  • 208-230V AC, 60 Hz electrical configuration
  • Approximately 2.1 GPM hydraulic pump flow
  • 4-gallon vertical reservoir
⚠ Confirm before ordering: match your lift model, electrical service, existing power-unit part number, hydraulic connection, and required pump configuration. The CL10 Quick Cycle configuration uses a different power unit.

Before Installation

  • Verify the lift is disconnected from electrical power before service.
  • Confirm the replacement unit matches the required voltage and phase.
  • Match the hydraulic connection and power-unit mounting arrangement.
  • Use only hydraulic fluid specified for the applicable lift and power unit.
  • Follow the Challenger installation and bleeding procedure before returning the lift to service.

Frequently Asked Questions

What voltage does AB-9367 use?

The single-phase AB-9367 configuration is listed for 208-230V AC, 60 Hz service.

Is AB-9367 a complete power unit?

Yes. Replacement configurations include the electric motor, hydraulic pump, and reservoir as a complete power-unit assembly.

Is this the same as AB-9367-DLH?

No. AB-9367 is the older 2 HP configuration. AB-9367-DLH is a newer Challenger power-unit design with different motor and reservoir specifications and is currently listed in Challenger's LE10 parts documentation.

Does this fit a Challenger CL10 Quick Cycle lift?

No. The Quick Cycle configuration uses a different higher-flow power-unit arrangement. Confirm the exact lift model before ordering.

Questions before ordering? Call (817) 865-3707 with your Challenger lift model, serial number, and existing power-unit information.
