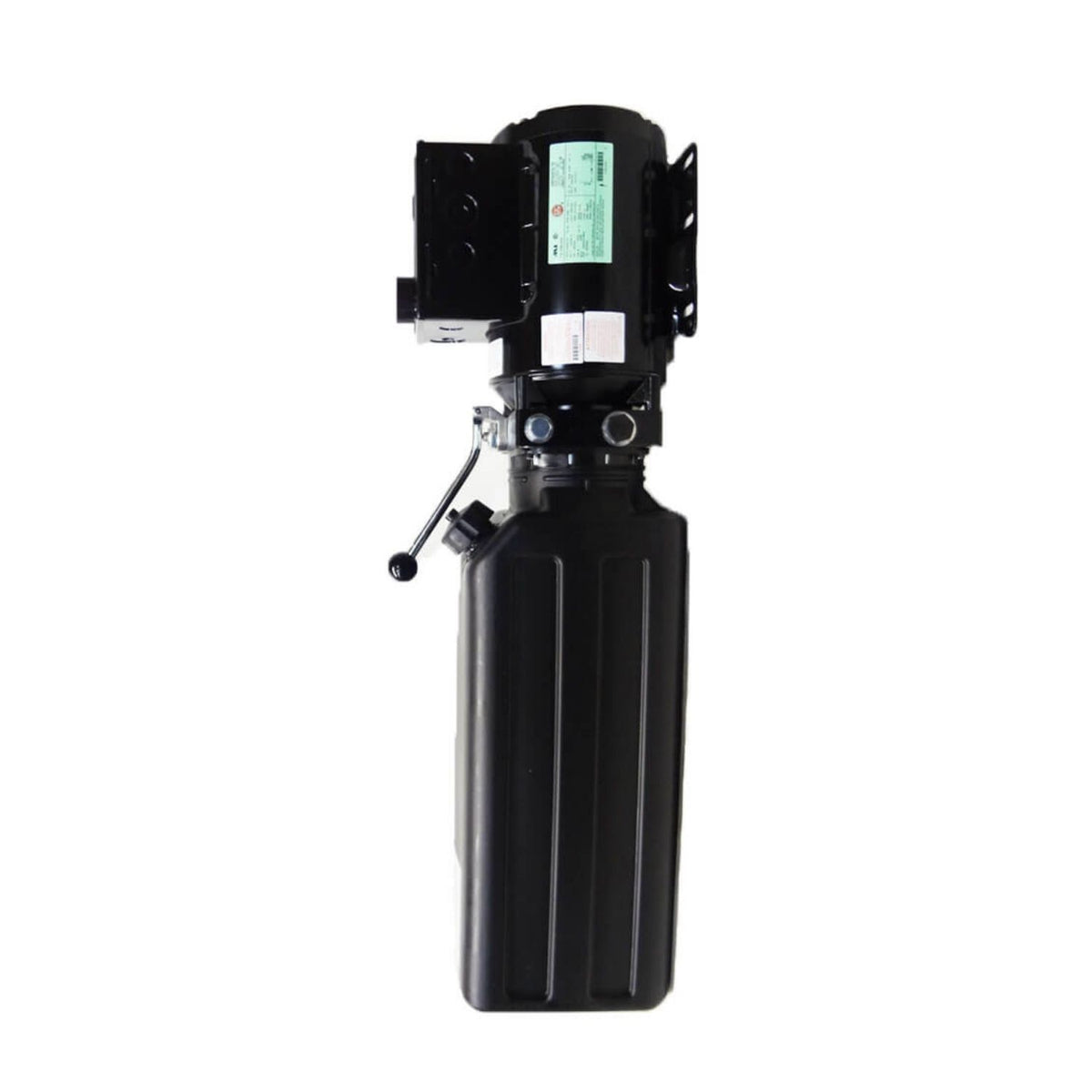

Challenger Power Unit for E10 / LE10 Two-Post Lifts #AB-9367-DLH
| Part Number | AB-9367-DLH |
| Product Type | Hydraulic Lift Power Unit |
| Motor | 3 HP, Single Phase |
| Voltage | 208-240V AC |
| Frequency | 50/60 Hz |
| Motor Speed | 2880 / 3450 RPM |
| Pressure Relief | 2900 PSI, Preset |
| Reservoir Capacity | 2.6 Gallons / Approx. 10 L |
| Pressure Port | 9/16-18 UNF |
| Documented Application | Challenger LE10; Also Sold for Compatible E10 Applications |
| Replacement Reference | 31368-21 / Earlier AB-9367 Applications |
Challenger 3HP Power Unit #AB-9367-DLH for E10 / LE10 Two-Post Lifts
Challenger #AB-9367-DLH is a single-phase hydraulic power unit used on compatible Challenger two-post lifts. Challenger's LE10 parts breakdown specifically identifies AB-9367-DLH as the power-unit assembly for that lift, and current Challenger parts distributors also list the unit for E10 applications.
The DLH configuration uses a 3 HP single-phase motor rated for 208-240V, 50/60 Hz service, with 2880/3450 RPM motor speed, a 2.6-gallon reservoir, and a preset 2900 PSI pressure-relief setting.
Compatibility & Fitment
| Make / Brand | Model | Notes |
|---|---|---|
| Challenger | LE10 | AB-9367-DLH listed in Challenger parts breakdown |
| Challenger | E10 | Current replacement-part application; verify existing configuration |
AB-9367-DLH is also used on additional Challenger lift models. Always match the exact lift model, electrical requirements, and existing power-unit configuration rather than selecting by appearance alone.
Product Features
- Complete single-phase hydraulic power unit
- 3 HP motor
- 208-240V AC electrical range
- 50/60 Hz operation
- 2880 RPM at 50 Hz / 3450 RPM at 60 Hz
- Preset 2900 PSI pressure relief
- 2.6-gallon / approximately 10-liter plastic reservoir
- 9/16-18 UNF hydraulic pressure port
Before Installation
- Disconnect and lock out electrical power before service.
- Confirm the circuit matches the power unit's voltage and single-phase requirement.
- Verify the hydraulic hose and pressure-port configuration.
- Inspect the reservoir and fittings for shipping damage before installation.
- Fill and bleed the hydraulic system according to the applicable Challenger lift manual.
- Do not alter the factory-set pressure relief.
