DURO 110 Volt Short Tank #PU-110V-S-K
| Part Number | PU-110V-S-K |
| Brand / Type | DURO hydraulic power unit |
| Power Supply | 115VAC / 60Hz / 1PH |
| Motor | 2.5 HP |
| Amps | 20A |
| RPM / Max Pressure | 3450 RPM / 3050 PSI |
| Housing | Short Tank (27 in shipping length vs 33 in on the Long Tank) |
| Shipping Weight | 55 lb |

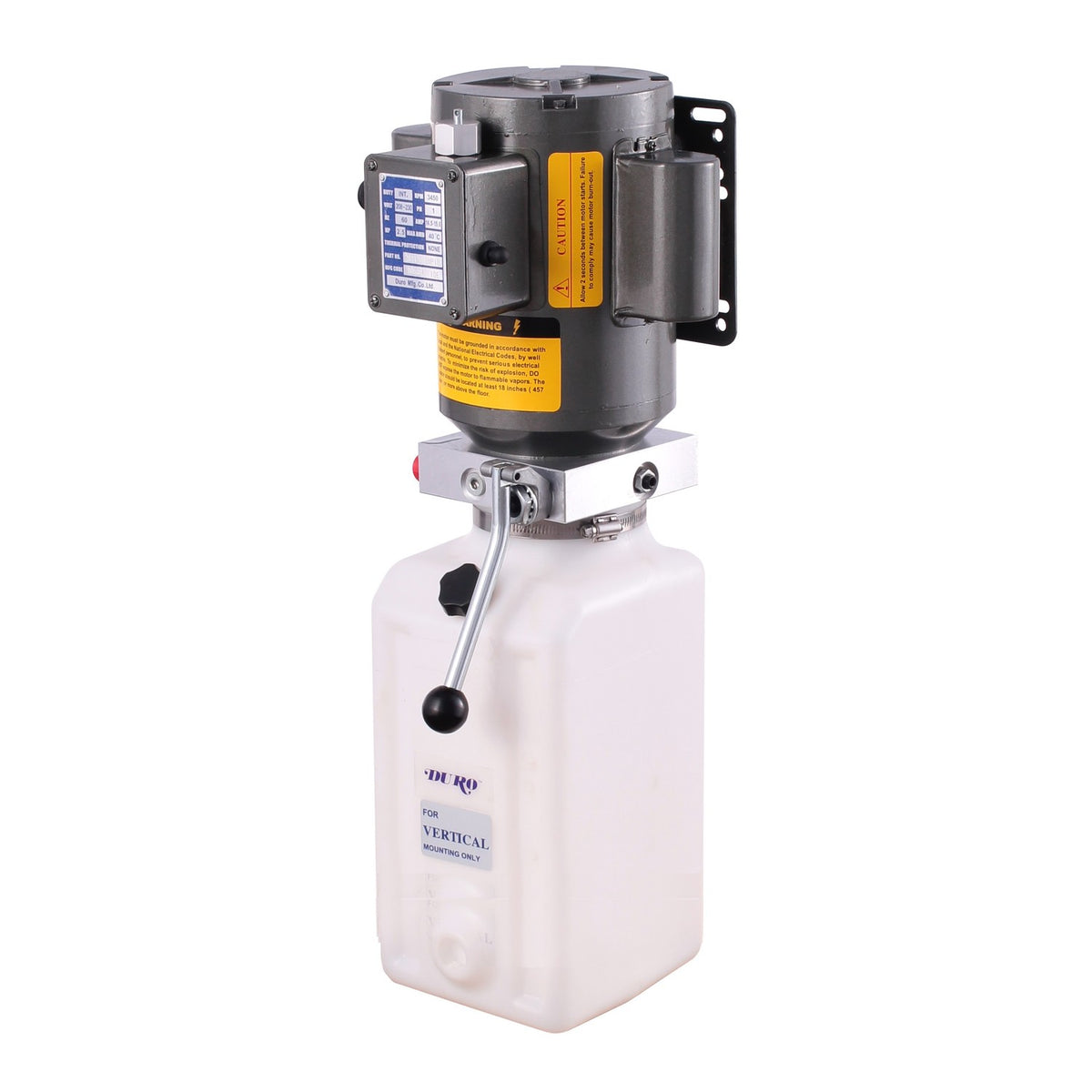

DURO 110 Volt Short Tank Power Unit #PU-110V-S-K
The DURO PU-110V-S-K is a 115-volt single-phase hydraulic power unit built in the shorter "Short Tank" housing of Tuxedo's two 110-volt DURO configurations. It shares the same 2.5 HP motor, 3450 RPM, and 3050 PSI rating as the Long Tank version (PU-110V-L-K), sized instead for bays or lift cabinets with tighter clearance for the power unit housing.
DURO units raise the vehicle with a push-button control up to a locked position and lower it by gravity descent through a handle-operated dump valve. The design is field-serviceable, so a shop technician can service common wear items without sending the unit back to the factory.
Questions before ordering? Call (817) 865-3707 and our team will help confirm fit for your lift.
Compatibility & Fitment
A 115-volt/1-phase replacement power unit sized for most residential and light-commercial two-post and four-post lifts that use a standard 110V DURO-style power pack. The Short Tank housing suits installs where cabinet space is limited. Confirm your lift's original power unit voltage and mounting pattern before ordering.
Warranty
Tuxedo Distributors backs this power unit with a limited one-year parts warranty to the original purchaser against defects in materials or workmanship under normal use; the purchaser is responsible for return shipping. Normal-wear items are excluded. Contact Alamo for full warranty terms.
