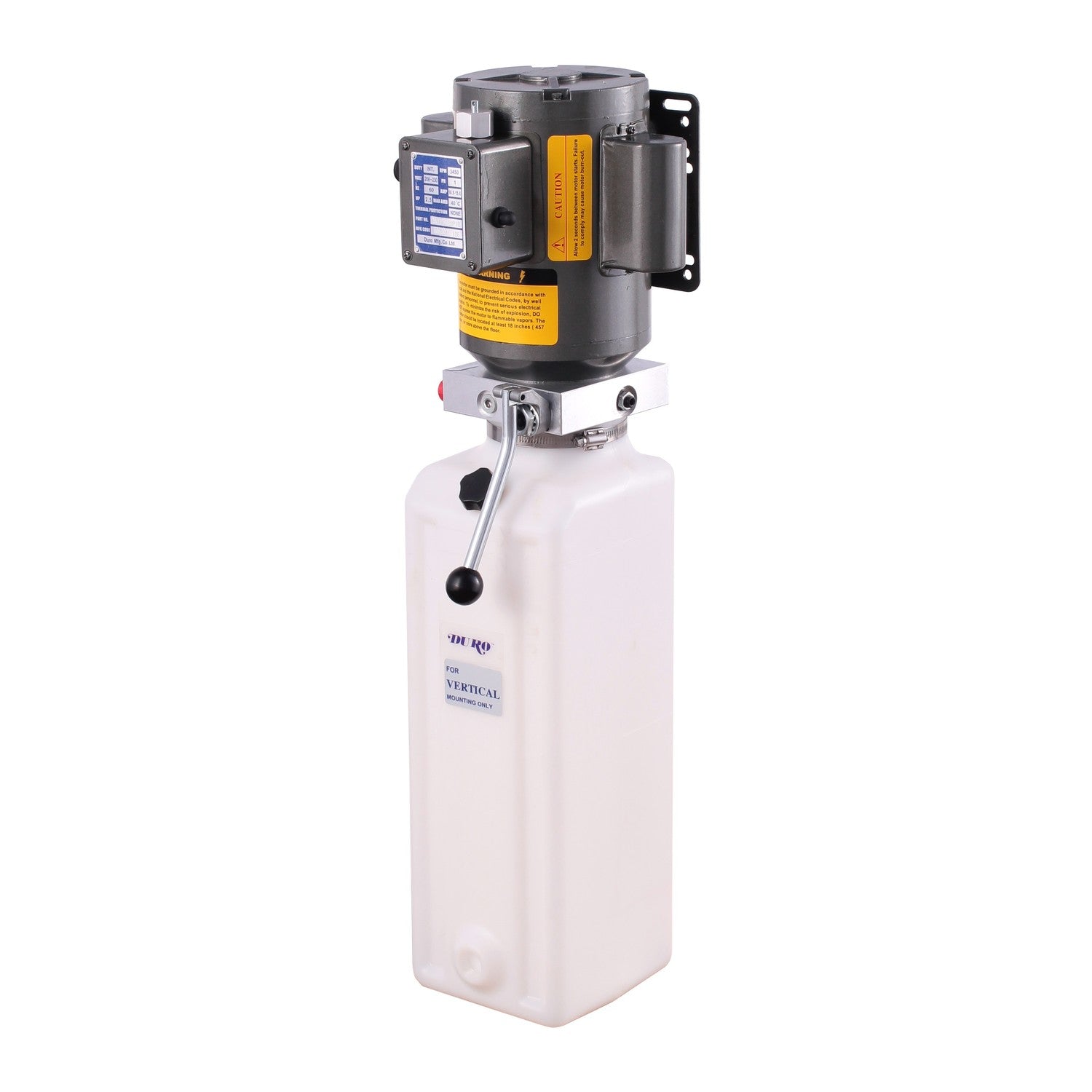

DURO 220 Volt high capacity #PU-220V-L-H
| Part Number | PU-220V-L-H |
| Brand / Type | DURO hydraulic power unit, 220V high capacity |
| Power Supply | 208-230VAC / 60Hz / 1PH |
| Motor | 2.5 HP |
| Amps | 14.5-16.5A |
| RPM / Max Pressure | 3450 RPM / 3050 PSI |
| Tank Capacity | 3.5 Gallon |
| Overhead Cutoff | Included |
| Fits Lifts Up To | 10,000 lb capacity (2-post or 4-post) |
| Shipping Weight | 55 lb |
DURO 220 Volt High Capacity Power Unit, With Cutoff #PU-220V-L-H
The DURO PU-220V-L-H is a 220-volt single-phase hydraulic power unit built for two-post and four-post lifts rated up to 10,000 lb capacity. It runs a 2.5 HP motor at 3450 RPM to 3050 PSI from a 3.5-gallon tank, and it includes the overhead (O/H) cutoff switch as standard equipment.
DURO units raise the vehicle with a push-button control up to a locked position and lower it by gravity descent through a handle-operated dump valve. The design is field-serviceable, so a shop technician can service common wear items without sending the unit back to the factory.
Questions before ordering? Call (817) 865-3707 and our team will help confirm fit for your lift.
Compatibility & Fitment
A 220-volt/1-phase replacement power unit sized for most two-post and four-post lifts up to 10,000 lb capacity that use a standard 220V DURO-style power pack. Confirm your lift's original power unit voltage, hydraulic fitting size, and whether it requires an overhead cutoff switch before ordering.
Warranty
Tuxedo Distributors backs this power unit with a limited one-year parts warranty to the original purchaser against defects in materials or workmanship under normal use; the purchaser is responsible for return shipping. Normal-wear items are excluded. Contact Alamo for full warranty terms.
