Flo-Dynamics EF-100 ATF & Motor Oil Extract & Fill Machine #40400035
Couldn't load pickup availability
-
DESCRIPTION

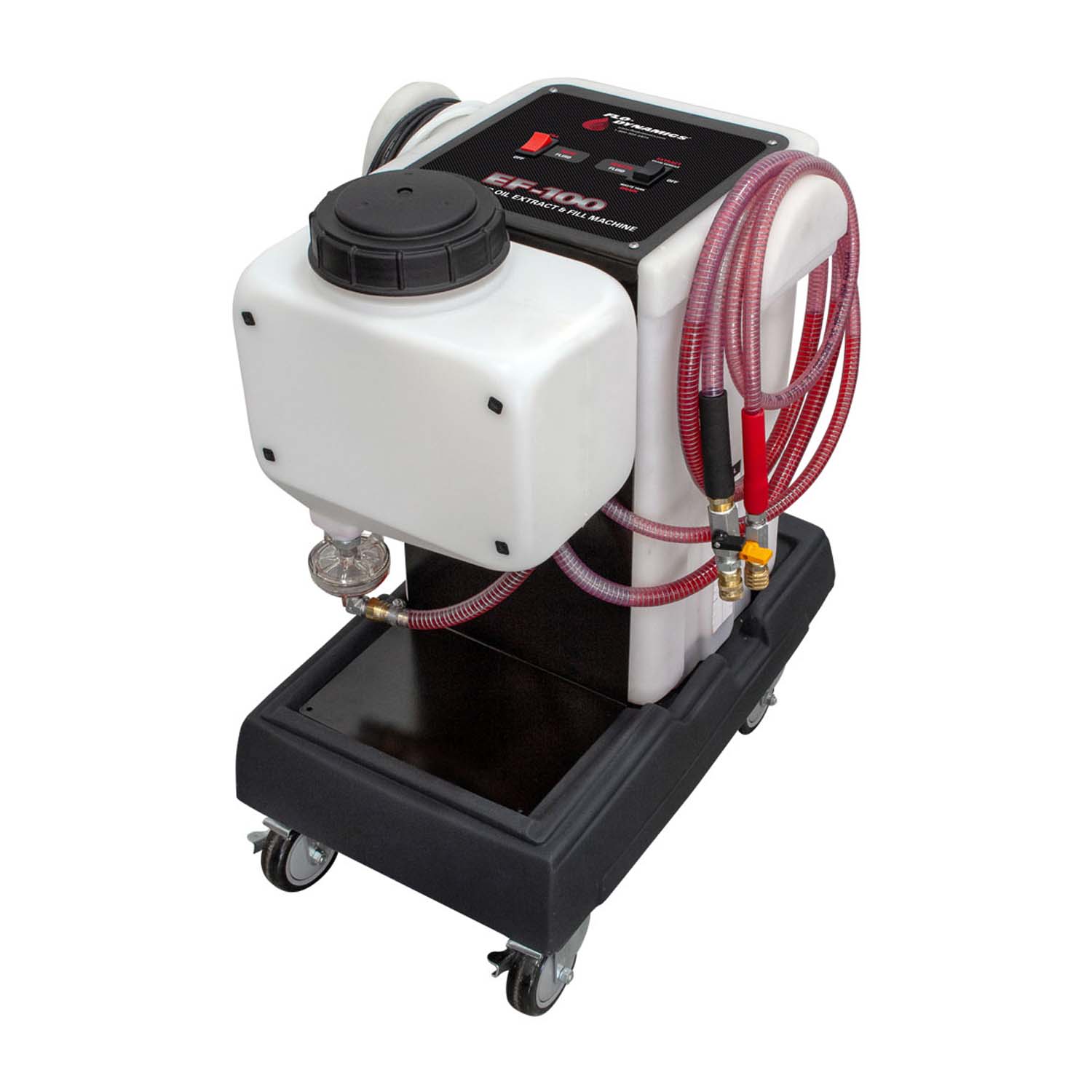

Flo-Dynamics EF-100 ATF & Motor Oil Extract & Fill Machine. The EF-100 ATF Extraction machine Fast and easy to use ATF extraction and fill station designed to be used thru the dipstick. Engineered to extract or fill all types of ATF including CVT fluids, as well as motor oil.
-
Features
- Graduated fluid level scale on waste tank for gallons, quarts and liters
- 12V DC powered, rated 4 GPM pump used for extracting used fluid and emptying waste tank
- 12V DC powered, new fluid diaphragm pump
- Large 3 gallon (12 quart) capacity new fluid tank

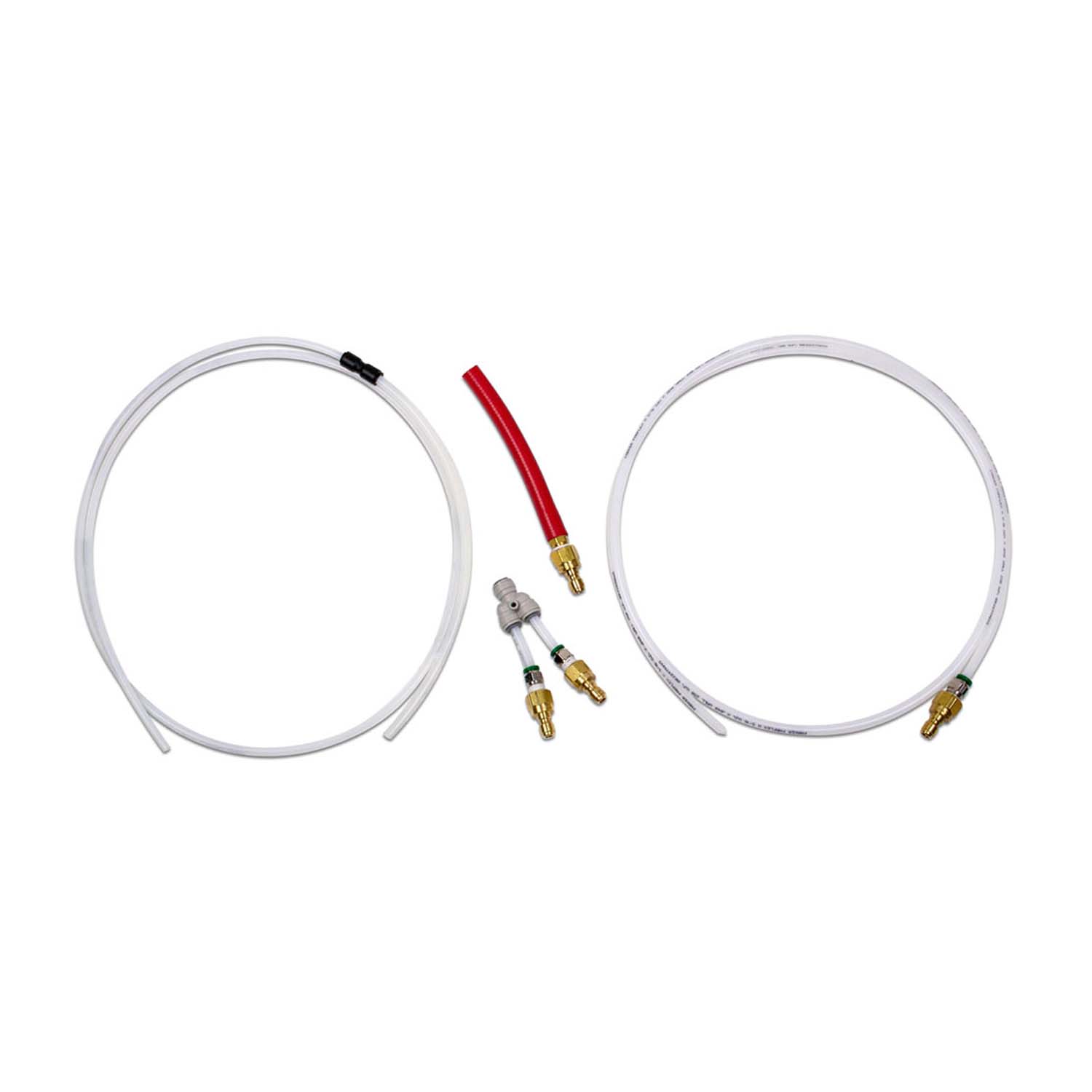

- 6' extraction tubes 5/16" & 1/4"
- Y Adapter
- EXTRACTION RATES (Transmission Fluid @ 72°F)
- 5/16" – 1.75 qt./min.
- 1/4" – .6 qt./min.
- FILL RATES (Transmission Fluid @ 72°F)
- 5/16" – 4 qt./min.
- 1/4" – 2 qt./min.
-
SPECIFICATIONS
Specifications EF-100 New Fluid Tanks
3 Gallons Waste Fluid Tank
4 Gallons Extraction Rates - Transmission Fluid @ 72°F 5/16" – 1.75 qt./min. / 1/4" – .6 qt./min. Fill Rates - Transmission Fluid @ 72°F
5/16" – 4 qt./min. / 1/4" – 2 qt./min. Shipping Dimensions 39" H x 20" W x 27" D Shipping Weight
48 lbs.
-
WARRANTY AND MEDIA
1 Year Warranty
